Hello,

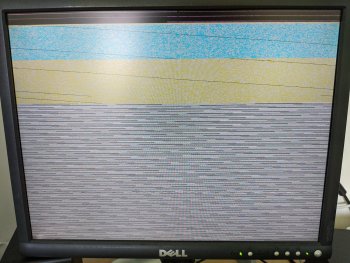

I have an issue with my C2D-upgraded late 2006 Mac Mini - image displays correctly only using a DVI to VGA adapter, if I use DVI-D I get a screen like this:
What could be the issue? Has anyone fixed this problem?
I'd appreciate any help.
Thanks in advance


1madman1

macrumors 6502
Oct 23, 2013
481
346
Richmond, BC, Canada
Probably a damaged connector resulting in a pin or two failing to contact sufficiently. The signal pins for a DVI-D signal are slightly different from VGA (aka DVI-A), and I expect the pins that are shared have a greater tolerance. A poor connection on VGA (analog) will just get you a blurrier picture,

  • Like
Reactions: Mormislaw
