2010 iMac 27" LDVS Pinout Schematic

J

jims2005

macrumors newbie
Original poster
Apr 5, 2009
1
0

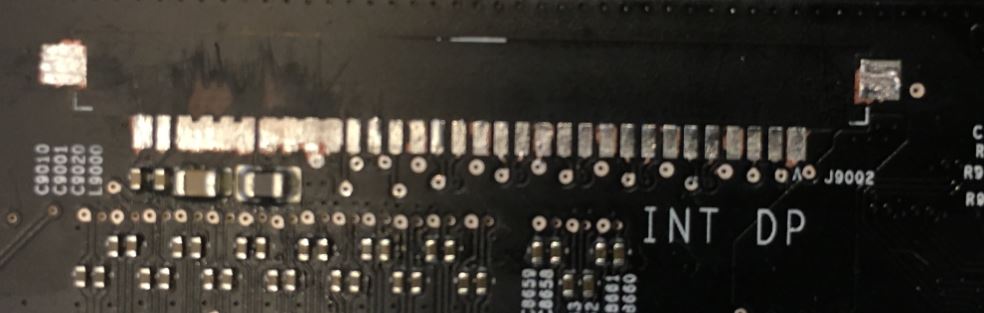

hi, i tried to remove the broken connector from my 2010 iMac 27" and while removing the excessive solder using the solder wick, i accidentally removed the separator between the pins while trying to remove the tough cold solder. i realized that pin 23 to 26 are connected and pin 27 to 30 are connected.

can someone provide the schematic and let me know if they are actually connected in the circuits?

Thanks in advance.
