theedle

macrumors newbie
Original poster
Jul 10, 2019
18
3
Russia
Hi!

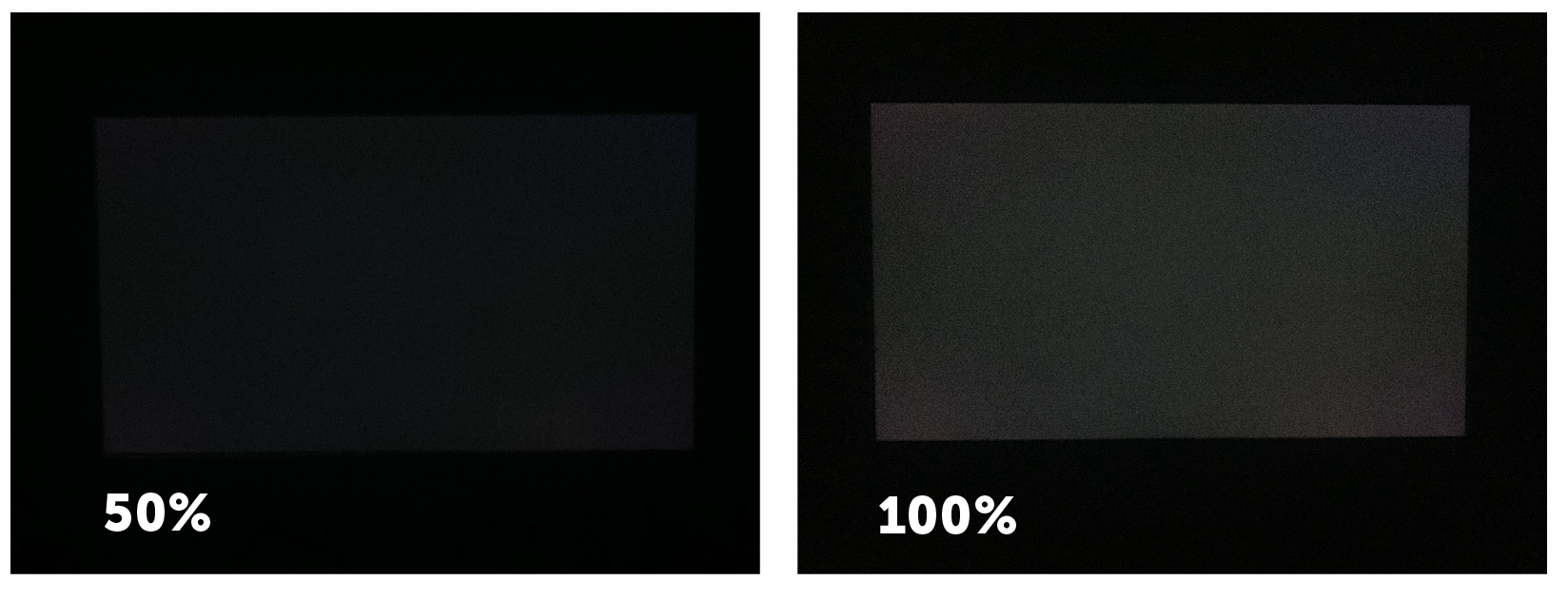

Just delivered my iMac (how it's beaftiful! :)) and tested it on IPS glow. What I've got on the picture. Does this a normal behaviour and all IPS monitors got this effect of I should try to send back and ask for a new one (in my case, it will be around 2-3 weeks)? I appreciate, if you can share your photos in dark room with black image.. Especially who got this models.

And the second question: doest this effect will grow through the time? If yes, does Apple care help me to fix it after 1-2 year?

Thanks a lot!



redheeler

macrumors G3
Oct 17, 2014
8,583
9,180
Colorado, USA
So, I shouldn't worry and just relax and work? :)
Do I have chance to get a better variant or in any case I'll face with this effect?
Backlight bleed does vary from unit to unit, but there's a chance you'll get one that's better, or one that's worse. None of them are perfect.

My advice is simply to relax and enjoy your new iMac. :)

  • Like
Reactions: Hakiroto

theedle

macrumors newbie
Original poster
Jul 10, 2019
18
3
Russia
Backlight bleed does vary from unit to unit, but there's a chance you'll get one that's better, or one that's worse. None of them are perfect.

My advice is simply to relax and enjoy your new iMac. :)

Thanks for opinion and advice! ;)


whosthis

macrumors member
Aug 21, 2008
99
44
From your point of view keeping it seems good.
From the point of waiting people for a refurb sending it back is the way to go. :D


theedle

macrumors newbie
Original poster
Jul 10, 2019
18
3
Russia
So, I not decided yet what to do.. Apple support told me, that this is a bad situation, when iMac gives such red glow and they don't face often with this problem, so it means that best way will be send this iMac back and wait for new one. But I don't know what I'll receive in future :)


mrvo

macrumors member
Nov 16, 2018
81
18
This is normal. I’d only get annoyed if I crank up the brightness in very dimmed environment. Which I never go past 150cd/m2 anyway.


theedle

macrumors newbie
Original poster
Jul 10, 2019
18
3
Russia
This is normal. I’d only get annoyed if I crank up the brightness in very dimmed environment. Which I never go past 150cd/m2 anyway.
Which model you use?
Some people tell me that they never face such glows in 5k models.


Khaleal

macrumors regular
Aug 24, 2013
186
80
I have the 2017 27" model and I don't get IPS glow at all (and looks like both 2017 and 2019 use the same panel). If returning the unit and getting a new one doesn't involve a lot of hassle I'd return it.


theedle

macrumors newbie
Original poster
Jul 10, 2019
18
3
Russia
I have the 2017 27" model and I don't get IPS glow at all (and looks like both 2017 and 2019 use the same panel). If returning the unit and getting a new one doesn't involve a lot of hassle I'd return it.
Thanks for feedback! Can you take a photo in dark room with solid black in monitor?
And tell me, pls, in different angles (top and bottom), you still don't see any glows in corners?
For me, it's visible only in dark room + solid black in full monitor.

Thank you!


mrvo

macrumors member
Nov 16, 2018
81
18

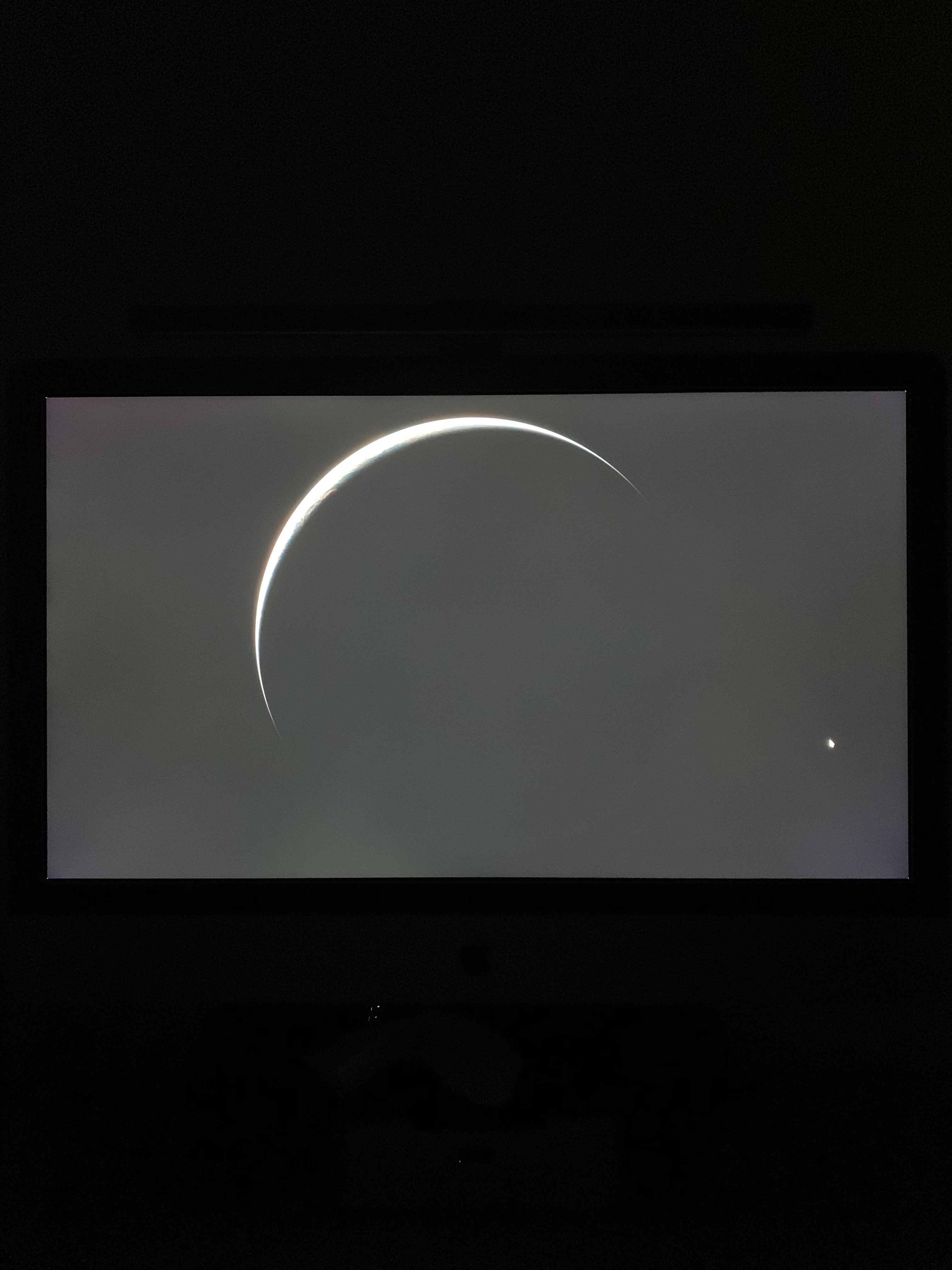

2019 BTO.

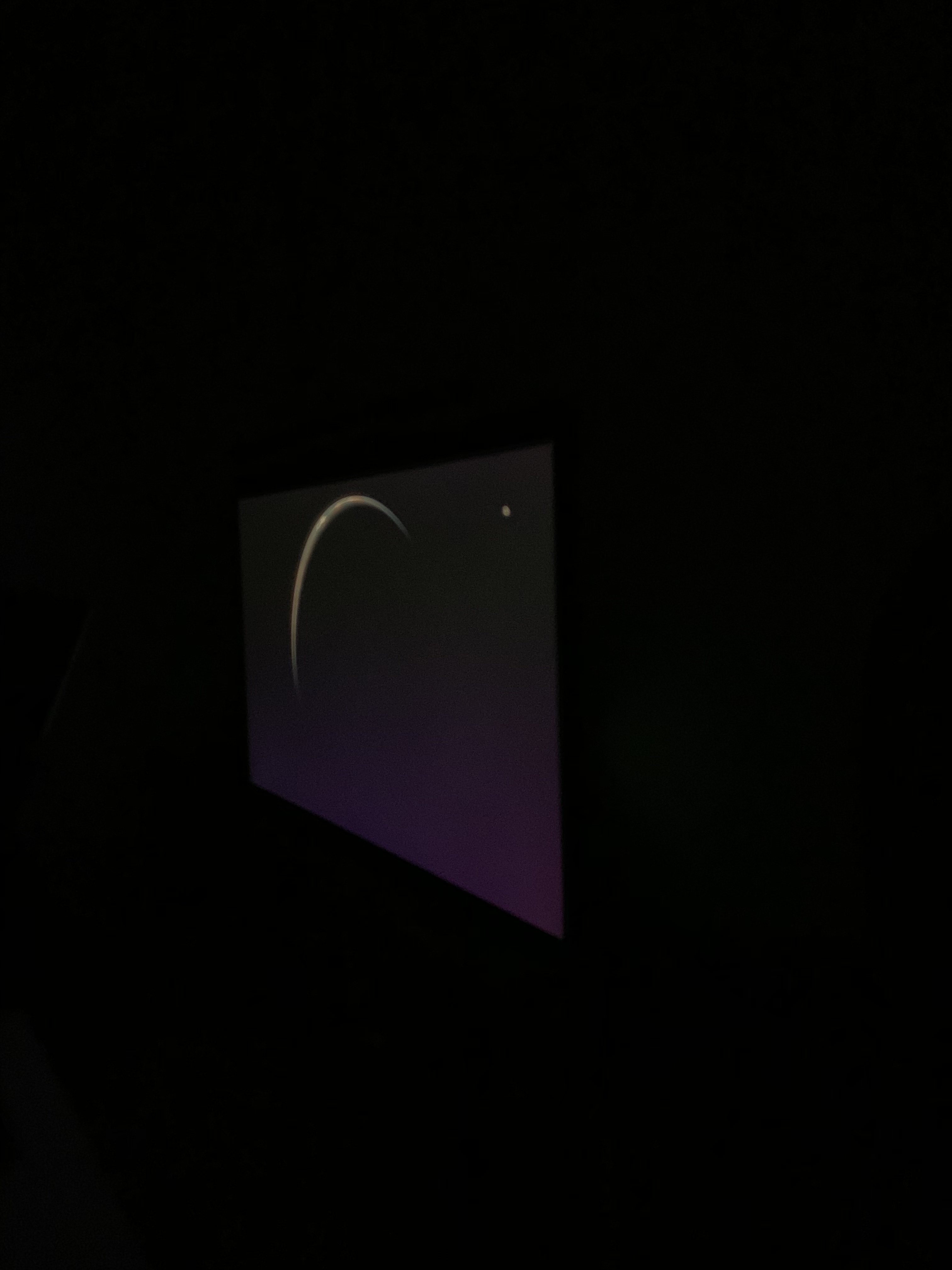

Doesn’t bother me when look directly, it’s not as “exaggerated”. Side angle is as bad as expected.

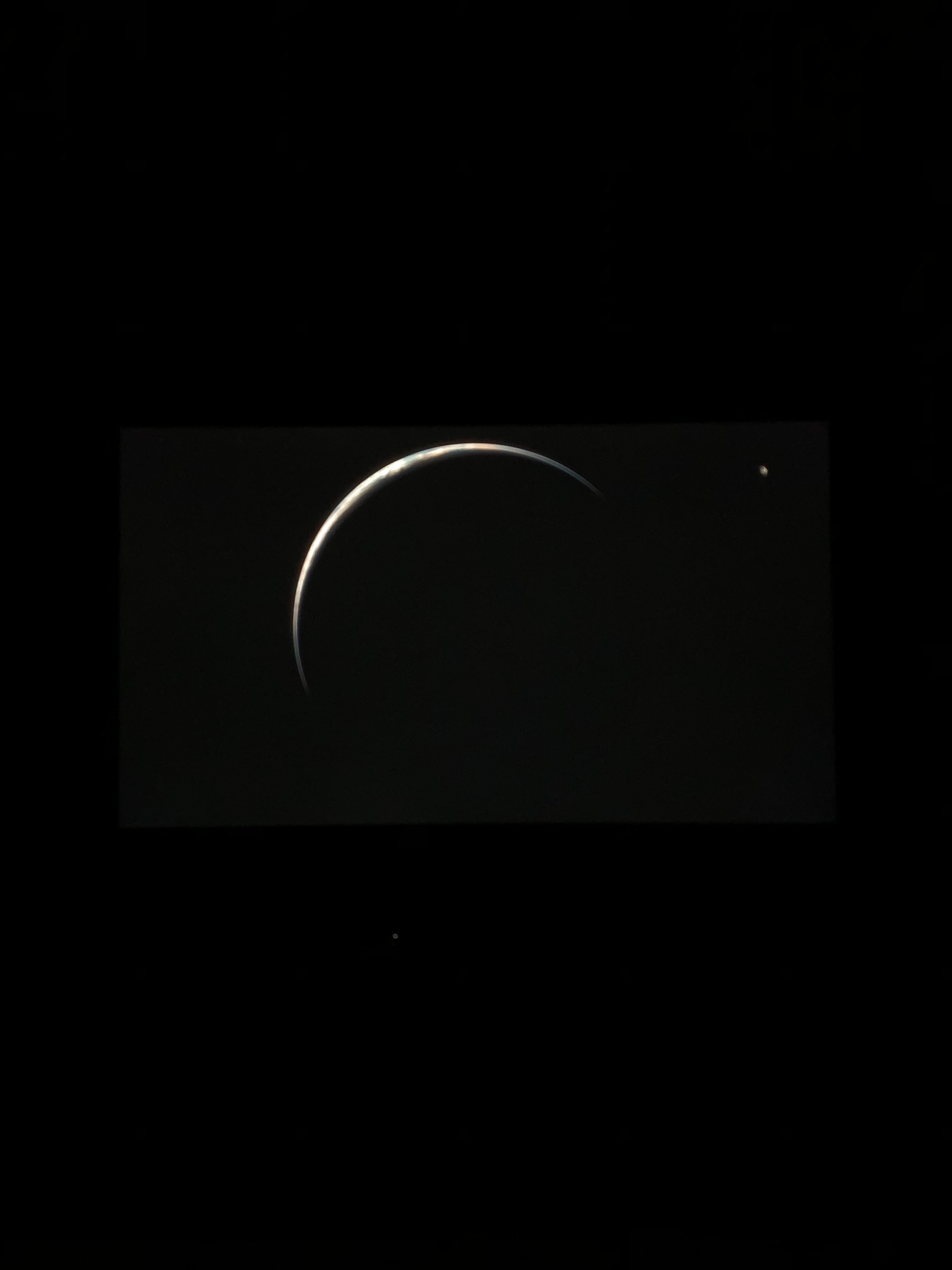

When I took these photos (max iMac brightness, screen is calibrated with probe already), I adjusted the exposure to match what my eyes see. If one just point to the iMac screen, it will just brighten the exposure and makes the glow looks exaggerated. For example, unadjusted:

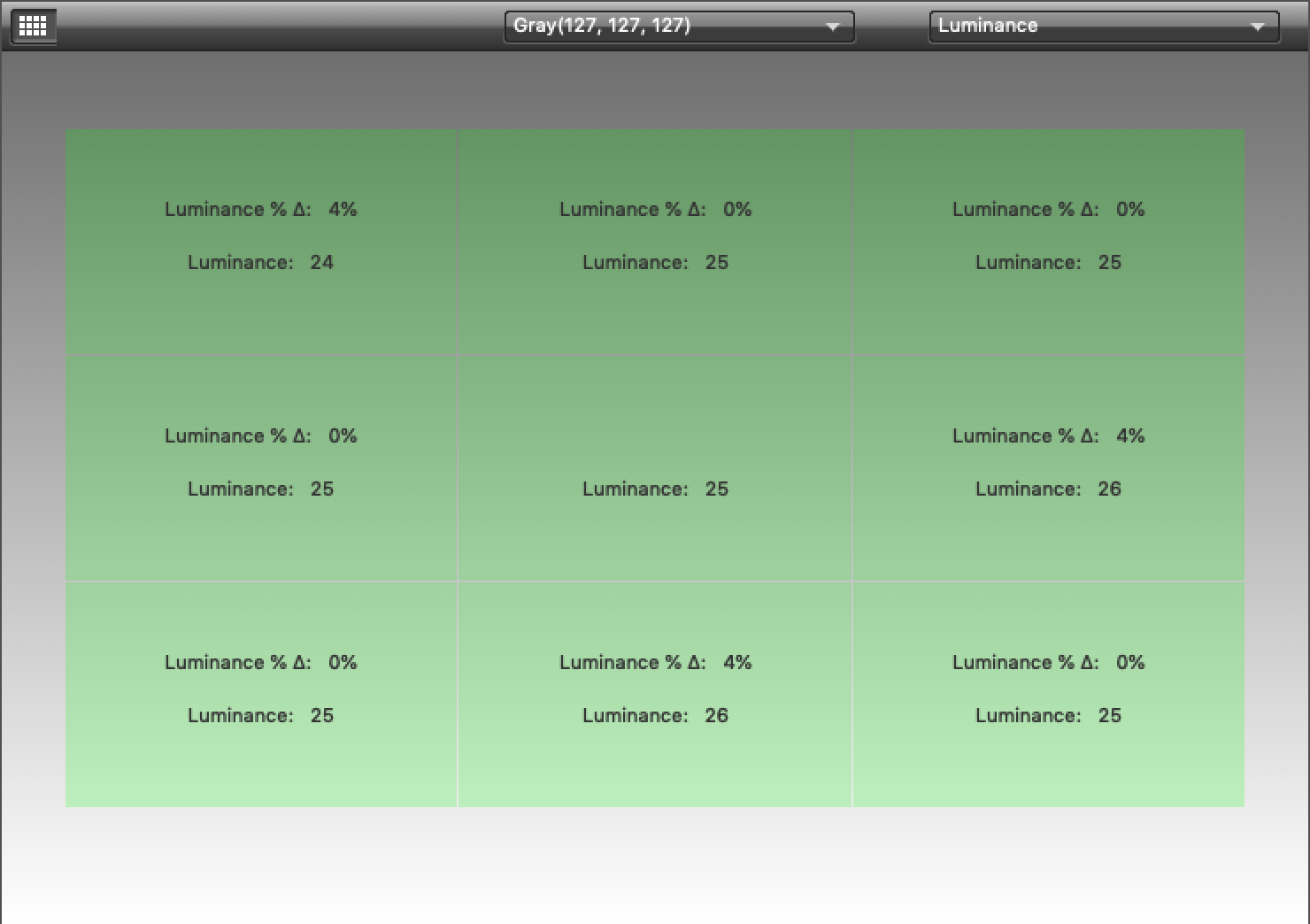

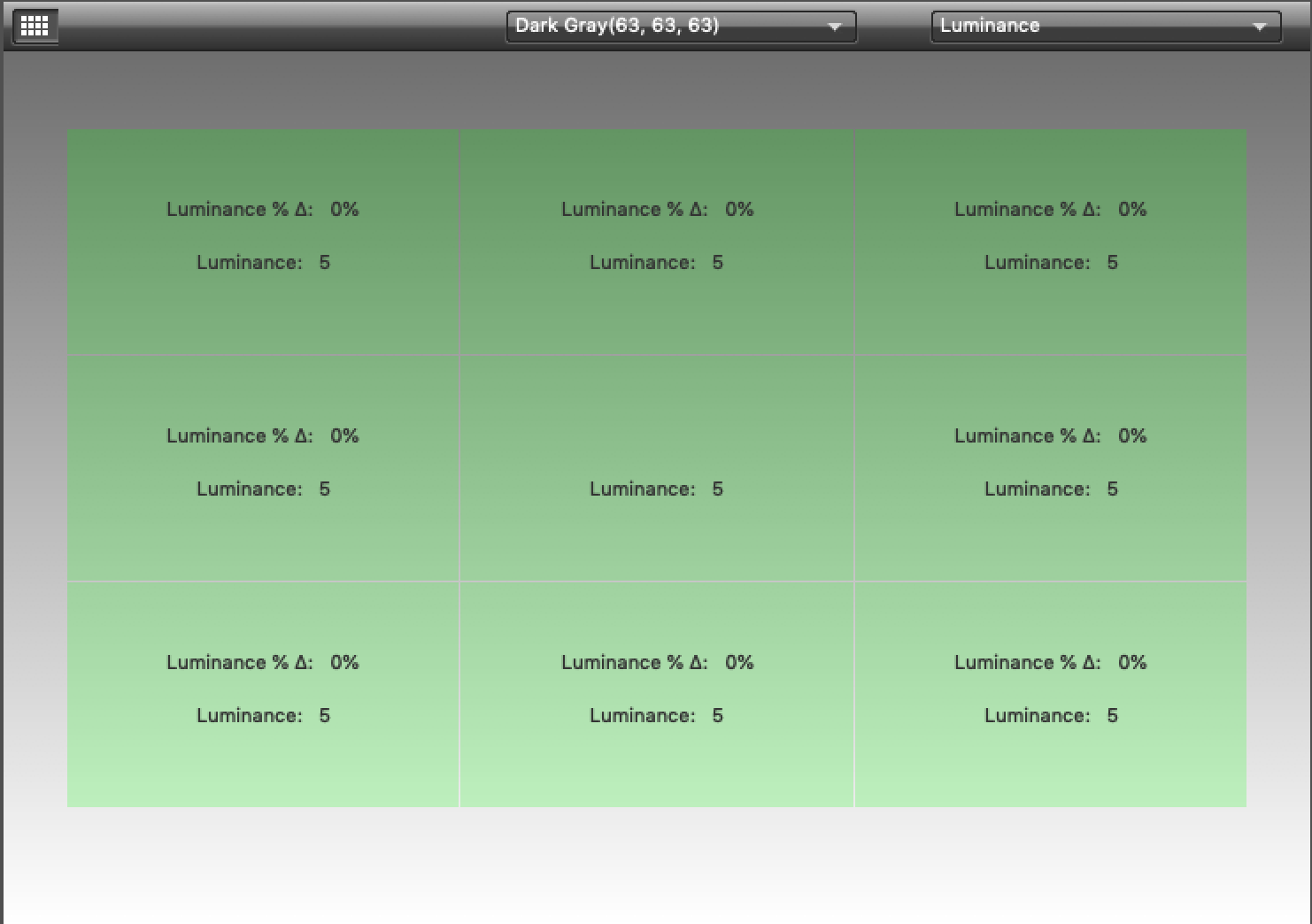

Display Uniformity (roughly 120cd/m2)
display-uniforminity-white-png.845482

display-uniforminity-gray-png.845481

display-uniforminity-dark-gray-png.845480


p.s: I would only be bothered if we are paying Eizo price, fortunately we aren’t for this gorgeous consumer 5K panel. Wait until we see if the XDR display suffers bleeding.

Last edited:

theedle

macrumors newbie
Original poster
Jul 10, 2019
18
3
Russia
2019 BTO.

Doesn’t bother me when look directly, it’s not as “exaggerated”. Side angle is as bad as expected.

When I took these photos (max iMac brightness, screen is calibrated with probe already), I adjusted the exposure to match what my eyes see. If one just point to the iMac screen, it will just brighten the exposure and makes the glow looks exaggerated. For example, unadjusted:

Display Uniformity (roughly 120cd/m2)

Wow. Really nice results. I don't see any glows at the corners in the front photo.

Btw, how you did this "Display Uniformity"? It's kind a software that can help to check size of the glow? If yes, tell me pls here I can get it :)


mrvo

macrumors member
Nov 16, 2018
81
18
Wow. Really nice results. I don't see any glows at the corners in the front photo.

Btw, how you did this "Display Uniformity"? It's kind a software that can help to check size of the glow? If yes, tell me pls here I can get it :)

You need a physical instrument, mine is retail X-Rite i1Display Pro, which comes with bundled X-Rite i1Profiler software.

If you get OEM i1Display probe, free DisplayCal does the job nicely too.

Last edited:

theedle

macrumors newbie
Original poster
Jul 10, 2019
18
3
Russia
You need a physical instrument, mine is retail X-Rite i1Display Pro, which comes with bundled X-Rite i1Profiler software.

If you get OEM i1Display probe, free DisplayCal does the job nicely too.

So, if I will call to the specialist, he can take this test and tell me: problem with monitor, not with my eyes? If so, I think that this is only one objective method to check this out.


mrvo

macrumors member
Nov 16, 2018
81
18
So, if I will call to the specialist, he can take this test and tell me: problem with monitor, not with my eyes? If so, I think that this is only one objective method to check this out.

not worth the hassle, if you're keen just exchange it then, no cost. I've tested the iMac Pro panel in store for QC quality, same glow variance, not better.

Last edited:

alisalem

macrumors regular
Apr 12, 2013
158
123
Mississauga, ON
The camera definitely makes it look worse. I don't think you'll be able to run the iMac at full brightness in a dark room for too long anyway. Your eyes will hurt like crazy.


theedle

macrumors newbie
Original poster
Jul 10, 2019
18
3
Russia
not worth the hassle, if you're keen just exchange it then, no cost. I've tested the iMac Pro panel in store for QC quality, same glow variance, not better.

Mine is the same. I see it as normal.

The camera definitely makes it look worse. I don't think you'll be able to run the iMac at full brightness in a dark room for too long anyway. Your eyes will hurt like crazy.

Called to Apple and specialist from Ireland, told me that this is not normal.
Guys, who fix apple's products, told me too — this is not ok when you've got such big «colored glow».
So I packed iMac and will send it back.


Sensamic

macrumors 68040
Mar 26, 2010
3,070
687
It is normal. Just check out any other IPS screen, like a phone or another computer, with a complete black wallpaper. You'll see the same.


theedle

macrumors newbie
Original poster
Jul 10, 2019
18
3
Russia

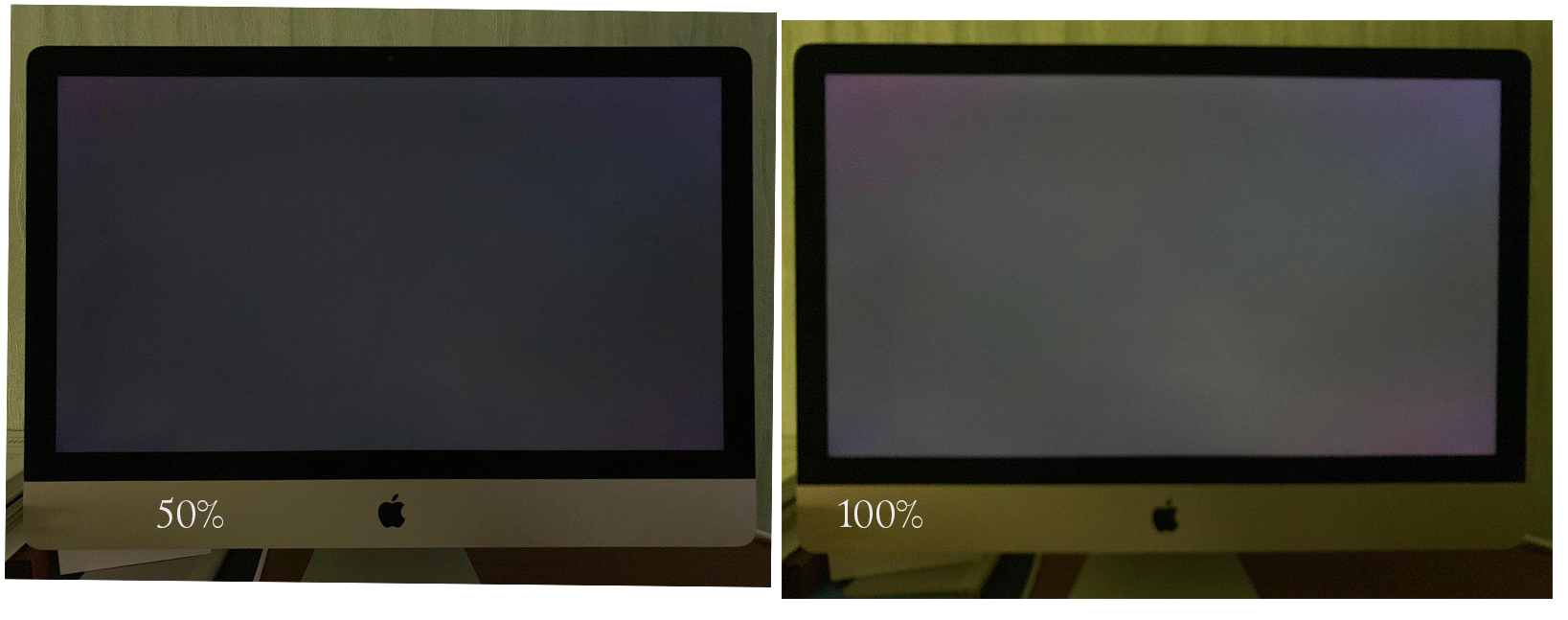

Small update. I've sent back this iMac, and when received money, bought one more. This iMac don't have this violet glow. So glad :) Thanks to all for your messages.


  • Like
Reactions: kazmac and CE3

CE3

macrumors 68000
Nov 26, 2014
1,809
3,146
Small update. I've sent back this iMac, and when received money, bought one more. This iMac don't have this violet glow. So glad :) Thanks to all for your messages.


Good choice. Big improvement.


alisalem

macrumors regular
Apr 12, 2013
158
123
Mississauga, ON
I'm glad you got a better screen that you're happy with. Apple and IPS LCDs is always a hit or miss when it comes to display uniformity. That being said, the new set of photos you took are completely different than the initial ones you shared. They are really dim, so obviously will look better.


theedle

macrumors newbie
Original poster
Jul 10, 2019
18
3
Russia
I'm glad you got a better screen that you're happy with. Apple and IPS LCDs is always a hit or miss when it comes to display uniformity. That being said, the new set of photos you took are completely different than the initial ones you shared. They are really dim, so obviously will look better.

Yeah, I really happy with this one.
Thanks!
