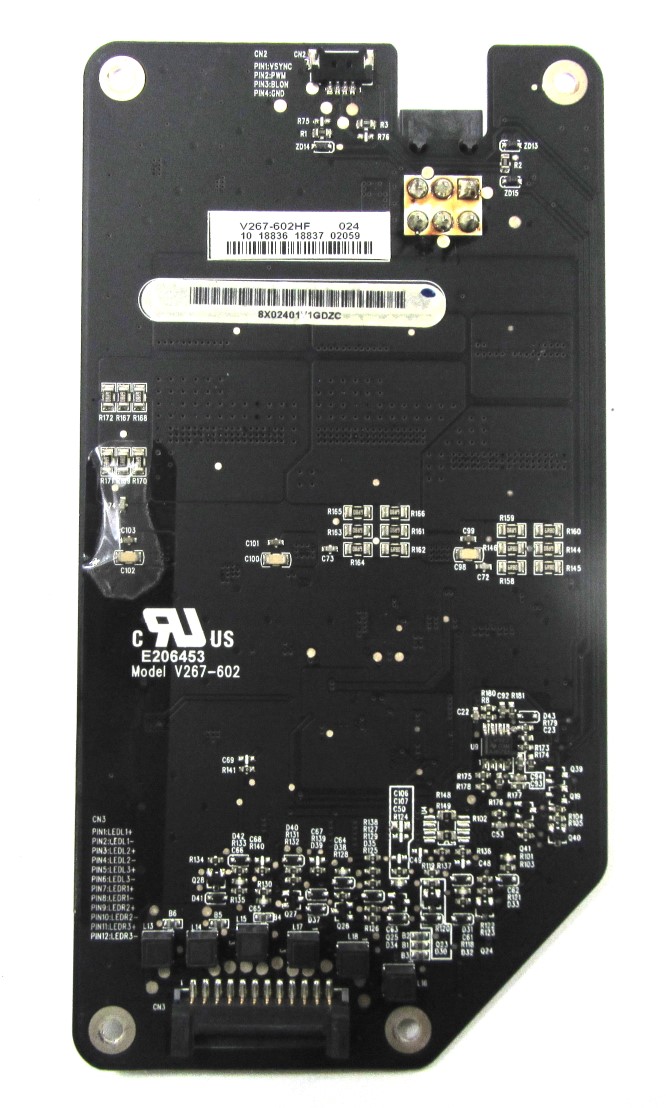

Just bought a 2010 27" iMac to repair. Previous owner busted all 4 connectors while removing the LCD. Need to source 2 new connectors to resolder onto the board. I can find the wide connector (the one with lots of pins) on ebay but can't find the inverter board's v-sync connector. Attached is a pic on the connector in question (labeled CN2 on top of the board) Anyone knows where to source one of these? Or if anyone know the name of this type of connector, I can google it to see if possible to find a source.
UPDATE: After googling some 4 pin header images, think I found the item. Its is Molex 537800470. The original connector has the marking MXJ7C on it (MX=Molex, not sure what J7C is) Will report back if identical part after receiving it.
UPDATE: Received the Molex part and its correct. The last 3 digit on the markings MXJ7C looks like just tape feeder position. These parts comes in taped assembly for robotic assembly equipment.
UPDATE: After googling some 4 pin header images, think I found the item. Its is Molex 537800470. The original connector has the marking MXJ7C on it (MX=Molex, not sure what J7C is) Will report back if identical part after receiving it.
UPDATE: Received the Molex part and its correct. The last 3 digit on the markings MXJ7C looks like just tape feeder position. These parts comes in taped assembly for robotic assembly equipment.
