MP 1,1-5,1 4,1/5,1 and Big Sur?

0

0488568

Cancelled
Original poster
Feb 17, 2008
406
107
Hello,

I haven't been around for a while and Im still running Mojave with out problems.

Is a Big Sur upgrade recommended?

Should I just wait?

Thanks

K

kithara6

macrumors newbie
Aug 20, 2020
7
0
yeah I am in the same boat, surprised that I got the prompt to update. But my machine has been been running odd since the prompt though.

S

safari70

macrumors member
Jan 10, 2006
87
30
ON
Hi,

I upgraded to Big Sur 11.1 (from Catalina) few weeks ago and MP5.1 is working great - surprisingly it's snappier than Catalina...

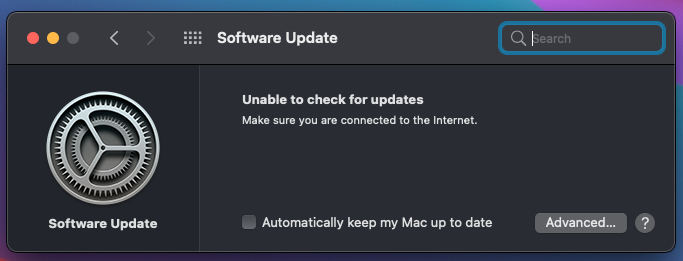

One problem I noticed is that Software Update is not working and complains that it is "Unable to check for updates. make sure you are connected to the Internet" (attached).

Of course I am connected and can access any web site (including this one here), so there's something else going on. Could it be related to platform id, logic board id, etc.? I tried deleting all preferences and caches, reset NVRAM / SMC but with similar issue. Any ideas what could be wrong?

Thanks.


Attachments

  • Screen Shot 2021-01-18 at 9.49.43 AM.png
    Screen Shot 2021-01-18 at 9.49.43 AM.png
    87.1 KB · Views: 52
h9826790

h9826790

macrumors P6
Apr 3, 2014
16,656
8,587
Hong Kong
safari70 said:
Hi,

I upgraded to Big Sur 11.1 (from Catalina) few weeks ago and MP5.1 is working great - surprisingly it's snappier than Catalina...

One problem I noticed is that Software Update is not working and complains that it is "Unable to check for updates. make sure you are connected to the Internet" (attached).

Of course I am connected and can access any web site (including this one here), so there's something else going on. Could it be related to platform id, logic board id, etc.? I tried deleting all preferences and caches, reset NVRAM / SMC but with similar issue. Any ideas what could be wrong?

Thanks.
Click to expand...
That's with the latest OpenCore 0.6.5?

Last edited:
S

safari70

macrumors member
Jan 10, 2006
87
30
ON

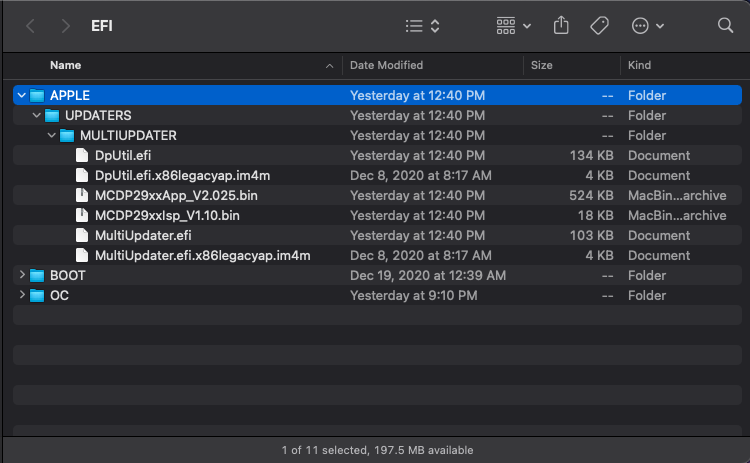

I was just looking in my EFI folder (to update to 0.6.5), and noticed there is an "APPLE" folder which was not there when I was still on Catalina - it was added after upgrading the Big Sur (see attached).

Does that look ok? should I leave it or do I remove it?

Thanks!


Attachments

  • Screen Shot 2021-01-18 at 8.56.40 PM.png
    Screen Shot 2021-01-18 at 8.56.40 PM.png
    85.2 KB · Views: 75
h9826790

h9826790

macrumors P6
Apr 3, 2014
16,656
8,587
Hong Kong
safari70 said:
I was just looking in my EFI folder (to update to 0.6.5), and noticed there is an "APPLE" folder which was not there when I was still on Catalina - it was added after upgrading the Big Sur (see attached).

Does that look ok? should I leave it or do I remove it?

Thanks!
Click to expand...
Leave it, that's irrelevant, no need to touch it.

S

safari70

macrumors member
Jan 10, 2006
87
30
ON
Ok left it there and updated OC to 0.6.5 - same issue... I'm attaching my config.plist, if you can take a quick look for any discrepancies I'd appreciate it... thanks!

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>ACPI</key>
<dict>
<key>Add</key>
<array>
<dict>
<key>Comment</key>
<string>GC Titan Ridge</string>
<key>Enabled</key>
<true/>
<key>Path</key>
<string>SSDT-TBOLT3.aml</string>
</dict>
</array>
<key>Delete</key>
<array/>
<key>Patch</key>
<array/>
<key>Quirks</key>
<dict>
<key>FadtEnableReset</key>
<false/>
<key>NormalizeHeaders</key>
<false/>
<key>RebaseRegions</key>
<false/>
<key>ResetHwSig</key>
<false/>
<key>ResetLogoStatus</key>
<false/>
</dict>
</dict>
<key>Booter</key>
<dict>
<key>Patch</key>
<array/>
<key>MmioWhitelist</key>
<array/>
<key>Quirks</key>
<dict>
<key>AllowRelocationBlock</key>
<false/>
<key>AvoidRuntimeDefrag</key>
<false/>
<key>DevirtualiseMmio</key>
<false/>
<key>DisableSingleUser</key>
<false/>
<key>DisableVariableWrite</key>
<false/>
<key>DiscardHibernateMap</key>
<false/>
<key>EnableSafeModeSlide</key>
<false/>
<key>EnableWriteUnprotector</key>
<false/>
<key>ForceExitBootServices</key>
<false/>
<key>ProtectMemoryRegions</key>
<false/>
<key>ProtectSecureBoot</key>
<true/>
<key>ProtectUefiServices</key>
<false/>
<key>ProvideCustomSlide</key>
<false/>
<key>ProvideMaxSlide</key>
<integer>0</integer>
<key>RebuildAppleMemoryMap</key>
<false/>
<key>SetupVirtualMap</key>
<false/>
<key>SignalAppleOS</key>
<false/>
<key>SyncRuntimePermissions</key>
<false/>
</dict>
</dict>
<key>DeviceProperties</key>
<dict>
<key>Add</key>
<dict/>
<key>Delete</key>
<dict/>
</dict>
<key>Kernel</key>
<dict>
<key>Add</key>
<array>
<dict>
<key>Arch</key>
<string>x86_64</string>
<key>BundlePath</key>
<string>Lilu.kext</string>
<key>Comment</key>
<string>Do not touch this setting</string>
<key>Enabled</key>
<false/>
<key>ExecutablePath</key>
<string>Contents/MacOS/Lilu</string>
<key>MaxKernel</key>
<string></string>
<key>MinKernel</key>
<string>16.0.0</string>
<key>PlistPath</key>
<string>Contents/Info.plist</string>
</dict>
<dict>
<key>Arch</key>
<string>x86_64</string>
<key>BundlePath</key>
<string>WhateverGreen.kext</string>
<key>Comment</key>
<string>Required for HWAccel</string>
<key>Enabled</key>
<false/>
<key>ExecutablePath</key>
<string>Contents/MacOS/WhateverGreen</string>
<key>MaxKernel</key>
<string></string>
<key>MinKernel</key>
<string>16.0.0</string>
<key>PlistPath</key>
<string>Contents/Info.plist</string>
</dict>
<dict>
<key>Arch</key>
<string>x86_64</string>
<key>BundlePath</key>
<string>AppleMCEReporterDisabler.kext</string>
<key>Comment</key>
<string>Only required for dual CPU Mac Pro</string>
<key>Enabled</key>
<true/>
<key>ExecutablePath</key>
<string></string>
<key>MaxKernel</key>
<string></string>
<key>MinKernel</key>
<string>19.0.0</string>
<key>PlistPath</key>
<string>Contents/Info.plist</string>
</dict>
<dict>
<key>Arch</key>
<string>x86_64</string>
<key>BundlePath</key>
<string>RadeonBoost.kext</string>
<key>Comment</key>
<string></string>
<key>Enabled</key>
<false/>
<key>ExecutablePath</key>
<string></string>
<key>MaxKernel</key>
<string></string>
<key>MinKernel</key>
<string></string>
<key>PlistPath</key>
<string>Contents/Info.plist</string>
</dict>
<dict>
<key>Comment</key>
<string></string>
<key>PlistPath</key>
<string>Contents/Info.plist</string>
<key>Enabled</key>
<false/>
<key>MaxKernel</key>
<string>20.99.99</string>
<key>MinKernel</key>
<string>19.0.0</string>
<key>ExecutablePath</key>
<string>Contents/MacOS/IO80211Mojave</string>
<key>Arch</key>
<string>Any</string>
<key>BundlePath</key>
<string>IO80211Mojave.kext</string>
</dict>
<dict>
<key>Comment</key>
<string></string>
<key>PlistPath</key>
<string>Contents/Info.plist</string>
<key>Enabled</key>
<false/>
<key>MaxKernel</key>
<string>20.99.99</string>
<key>MinKernel</key>
<string>19.0.0</string>
<key>ExecutablePath</key>
<string>Contents/MacOS/AirPortBrcm4331</string>
<key>Arch</key>
<string>Any</string>
<key>BundlePath</key>
<string>IO80211Mojave.kext/Contents/PlugIns/AirPortBrcm4331.kext</string>
</dict>
</array>
<key>Block</key>
<array/>
<key>Emulate</key>
<dict>
<key>DummyPowerManagement</key>
<false/>
<key>Cpuid1Data</key>
<data>AAAAAAAAAAAAAACAAAAAAA==</data>
<key>Cpuid1Mask</key>
<data>AAAAAAAAAAAAAAAAAAAAAA==</data>
<key>MaxKernel</key>
<string></string>
<key>MinKernel</key>
<string></string>
</dict>
<key>Force</key>
<array/>
<key>Patch</key>
<array>
<dict>
<key>Arch</key>
<string>Any</string>
<key>Base</key>
<string></string>
<key>Comment</key>
<string>IONVMeFamily Patch#External</string>
<key>Count</key>
<integer>0</integer>
<key>Enabled</key>
<true/>
<key>Find</key>
<data>RXh0ZXJuYWw=</data>
<key>Identifier</key>
<string>com.apple.iokit.IONVMeFamily</string>
<key>Limit</key>
<integer>0</integer>
<key>Mask</key>
<data></data>
<key>MaxKernel</key>
<string></string>
<key>MinKernel</key>
<string>17.0.0</string>
<key>Replace</key>
<data>SW50ZXJuYWw=</data>
<key>ReplaceMask</key>
<data></data>
<key>Skip</key>
<integer>0</integer>
</dict>
</array>
<key>Quirks</key>
<dict>
<key>AppleCpuPmCfgLock</key>
<false/>
<key>AppleXcpmCfgLock</key>
<false/>
<key>AppleXcpmExtraMsrs</key>
<false/>
<key>AppleXcpmForceBoost</key>
<false/>
<key>CustomSMBIOSGuid</key>
<false/>
<key>DisableIoMapper</key>
<false/>
<key>DisableLinkeditJettison</key>
<true/>
<key>DisableRtcChecksum</key>
<false/>
<key>ExtendBTFeatureFlags</key>
<false/>
<key>ExternalDiskIcons</key>
<true/>
<key>ForceSecureBootScheme</key>
<false/>
<key>IncreasePciBarSize</key>
<false/>
<key>LapicKernelPanic</key>
<false/>
<key>LegacyCommpage</key>
<false/>
<key>PanicNoKextDump</key>
<false/>
<key>PowerTimeoutKernelPanic</key>
<false/>
<key>ThirdPartyDrives</key>
<true/>
<key>XhciPortLimit</key>
<false/>
</dict>
<key>Scheme</key>
<dict>
<key>FuzzyMatch</key>
<false/>
<key>KernelArch</key>
<string>x86_64</string>
<key>KernelCache</key>
<string>Auto</string>
</dict>
</dict>
<key>Misc</key>
<dict>
<key>BlessOverride</key>
<array/>
<key>Boot</key>
<dict>
<key>HibernateMode</key>
<string>None</string>
<key>HideAuxiliary</key>
<false/>
<key>ConsoleAttributes</key>
<integer>0</integer>
<key>PickerAttributes</key>
<integer>19</integer>
<key>PickerAudioAssist</key>
<false/>
<key>PickerMode</key>
<string>External</string>
<key>PollAppleHotKeys</key>
<false/>
<key>ShowPicker</key>
<true/>
<key>TakeoffDelay</key>
<integer>0</integer>
<key>Timeout</key>
<integer>10</integer>
</dict>
<key>Debug</key>
<dict>
<key>AppleDebug</key>
<false/>
<key>ApplePanic</key>
<false/>
<key>DisableWatchDog</key>
<false/>
<key>DisplayDelay</key>
<integer>0</integer>
<key>DisplayLevel</key>
<integer>2151678018</integer>
<key>SerialInit</key>
<false/>
<key>SysReport</key>
<false/>
<key>Target</key>
<integer>0</integer>
</dict>
<key>Entries</key>
<array/>
<key>Security</key>
<dict>
<key>AllowNvramReset</key>
<false/>
<key>AllowSetDefault</key>
<true/>
<key>ApECID</key>
<integer>0</integer>
<key>AuthRestart</key>
<false/>
<key>BlacklistAppleUpdate</key>
<true/>
<key>BootProtect</key>
<string>None</string>
<key>DmgLoading</key>
<string>Signed</string>
<key>EnablePassword</key>
<false/>
<key>ExposeSensitiveData</key>
<integer>15</integer>
<key>HaltLevel</key>
<integer>2147483648</integer>
<key>PasswordHash</key>
<data></data>
<key>PasswordSalt</key>
<data></data>
<key>ScanPolicy</key>
<integer>0</integer>
<key>SecureBootModel</key>
<string>Disabled</string>
<key>Vault</key>
<string>Optional</string>
</dict>
<key>Tools</key>
<array/>
</dict>
<key>NVRAM</key>
<dict>
<key>Add</key>
<dict>
<key>4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14</key>
<dict>
<key>UIScale</key>
<data>AQ==</data>
<key>DefaultBackgroundColor</key>
<data>AAAAAA==</data>
</dict>
<key>7C436110-AB2A-4BBB-A880-FE41995C9F82</key>
<dict>
<key>boot-args</key>
<string>mbasd=1 -no_compat_check no32exec=0</string>
<key>run-efi-updater</key>
<string>No</string>
</dict>
</dict>
<key>Delete</key>
<dict>
<key>4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14</key>
<array>
<string>UIScale</string>
<string>DefaultBackgroundColor</string>
</array>
<key>7C436110-AB2A-4BBB-A880-FE41995C9F82</key>
<array>
<string>boot-args</string>
</array>
</dict>
<key>LegacyEnable</key>
<false/>
<key>LegacyOverwrite</key>
<false/>
<key>LegacySchema</key>
<dict/>
<key>WriteFlash</key>
<false/>
</dict>
<key>PlatformInfo</key>
<dict>
<key>Automatic</key>
<false/>
<key>CustomMemory</key>
<false/>
<key>Generic</key>
<dict/>
<key>SMBIOS</key>
<dict>
<key>BoardProduct</key>
<string>Mac-27AD2F918AE68F61</string>
<key>ProcessorType</key>
<integer>1281</integer>
<key>FirmwareFeatures</key>
<data>A1QM4A==</data>
<key>FirmwareFeaturesMask</key>
<data>P/8f/w==</data>
</dict>
<key>UpdateDataHub</key>
<false/>
<key>UpdateNVRAM</key>
<false/>
<key>UpdateSMBIOS</key>
<true/>
<key>UpdateSMBIOSMode</key>
<string>Create</string>
</dict>
<key>UEFI</key>
<dict>
<key>APFS</key>
<dict>
<key>EnableJumpstart</key>
<false/>
<key>GlobalConnect</key>
<false/>
<key>HideVerbose</key>
<false/>
<key>JumpstartHotPlug</key>
<false/>
<key>MinDate</key>
<integer>0</integer>
<key>MinVersion</key>
<integer>0</integer>
</dict>
<key>Audio</key>
<dict>
<key>AudioCodec</key>
<integer>0</integer>
<key>AudioDevice</key>
<string></string>
<key>AudioOut</key>
<integer>0</integer>
<key>AudioSupport</key>
<false/>
<key>MinimumVolume</key>
<integer>0</integer>
<key>PlayChime</key>
<string>Enabled</string>
<key>VolumeAmplifier</key>
<integer>0</integer>
</dict>
<key>ConnectDrivers</key>
<true/>
<key>Drivers</key>
<array>
<string>OpenRuntime.efi</string>
<string>OpenCanopy.efi</string>
<string>CrScreenshotDxe.efi</string>
</array>
<key>Input</key>
<dict>
<key>KeyFiltering</key>
<false/>
<key>KeyForgetThreshold</key>
<integer>0</integer>
<key>KeyMergeThreshold</key>
<integer>0</integer>
<key>KeySupport</key>
<false/>
<key>KeySupportMode</key>
<string></string>
<key>KeySwap</key>
<false/>
<key>PointerSupport</key>
<false/>
<key>PointerSupportMode</key>
<string></string>
<key>TimerResolution</key>
<integer>0</integer>
</dict>
<key>Output</key>
<dict>
<key>ClearScreenOnModeSwitch</key>
<false/>
<key>ConsoleMode</key>
<string></string>
<key>DirectGopRendering</key>
<true/>
<key>ForceResolution</key>
<false/>
<key>IgnoreTextInGraphics</key>
<false/>
<key>ProvideConsoleGop</key>
<true/>
<key>ReconnectOnResChange</key>
<false/>
<key>ReplaceTabWithSpace</key>
<false/>
<key>Resolution</key>
<string>Max</string>
<key>SanitiseClearScreen</key>
<false/>
<key>TextRenderer</key>
<string>BuiltinGraphics</string>
<key>UgaPassThrough</key>
<false/>
</dict>
<key>ProtocolOverrides</key>
<dict>
<key>AppleAudio</key>
<false/>
<key>AppleBootPolicy</key>
<true/>
<key>AppleDebugLog</key>
<false/>
<key>AppleEvent</key>
<false/>
<key>AppleFramebufferInfo</key>
<false/>
<key>AppleImageConversion</key>
<false/>
<key>AppleImg4Verification</key>
<false/>
<key>AppleKeyMap</key>
<false/>
<key>AppleRtcRam</key>
<false/>
<key>AppleSecureBoot</key>
<false/>
<key>AppleSmcIo</key>
<false/>
<key>AppleUserInterfaceTheme</key>
<true/>
<key>DataHub</key>
<false/>
<key>DeviceProperties</key>
<false/>
<key>FirmwareVolume</key>
<false/>
<key>HashServices</key>
<false/>
<key>OSInfo</key>
<false/>
<key>UnicodeCollation</key>
<false/>
</dict>
<key>Quirks</key>
<dict>
<key>DeduplicateBootOrder</key>
<false/>
<key>ExitBootServicesDelay</key>
<integer>0</integer>
<key>IgnoreInvalidFlexRatio</key>
<false/>
<key>ReleaseUsbOwnership</key>
<false/>
<key>RequestBootVarRouting</key>
<true/>
<key>TscSyncTimeout</key>
<integer>0</integer>
<key>UnblockFsConnect</key>
<false/>
</dict>
<key>ReservedMemory</key>
<array/>
</dict>
</dict>
</plist>

h9826790

h9826790

macrumors P6
Apr 3, 2014
16,656
8,587
Hong Kong
safari70 said:
Ok left it there and updated OC to 0.6.5 - same issue... I'm attaching my config.plist, if you can take a quick look for any discrepancies I'd appreciate it... thanks!

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>ACPI</key>
<dict>
<key>Add</key>
<array>
<dict>
<key>Comment</key>
<string>GC Titan Ridge</string>
<key>Enabled</key>
<true/>
<key>Path</key>
<string>SSDT-TBOLT3.aml</string>
</dict>
</array>
<key>Delete</key>
<array/>
<key>Patch</key>
<array/>
<key>Quirks</key>
<dict>
<key>FadtEnableReset</key>
<false/>
<key>NormalizeHeaders</key>
<false/>
<key>RebaseRegions</key>
<false/>
<key>ResetHwSig</key>
<false/>
<key>ResetLogoStatus</key>
<false/>
</dict>
</dict>
<key>Booter</key>
<dict>
<key>Patch</key>
<array/>
<key>MmioWhitelist</key>
<array/>
<key>Quirks</key>
<dict>
<key>AllowRelocationBlock</key>
<false/>
<key>AvoidRuntimeDefrag</key>
<false/>
<key>DevirtualiseMmio</key>
<false/>
<key>DisableSingleUser</key>
<false/>
<key>DisableVariableWrite</key>
<false/>
<key>DiscardHibernateMap</key>
<false/>
<key>EnableSafeModeSlide</key>
<false/>
<key>EnableWriteUnprotector</key>
<false/>
<key>ForceExitBootServices</key>
<false/>
<key>ProtectMemoryRegions</key>
<false/>
<key>ProtectSecureBoot</key>
<true/>
<key>ProtectUefiServices</key>
<false/>
<key>ProvideCustomSlide</key>
<false/>
<key>ProvideMaxSlide</key>
<integer>0</integer>
<key>RebuildAppleMemoryMap</key>
<false/>
<key>SetupVirtualMap</key>
<false/>
<key>SignalAppleOS</key>
<false/>
<key>SyncRuntimePermissions</key>
<false/>
</dict>
</dict>
<key>DeviceProperties</key>
<dict>
<key>Add</key>
<dict/>
<key>Delete</key>
<dict/>
</dict>
<key>Kernel</key>
<dict>
<key>Add</key>
<array>
<dict>
<key>Arch</key>
<string>x86_64</string>
<key>BundlePath</key>
<string>Lilu.kext</string>
<key>Comment</key>
<string>Do not touch this setting</string>
<key>Enabled</key>
<false/>
<key>ExecutablePath</key>
<string>Contents/MacOS/Lilu</string>
<key>MaxKernel</key>
<string></string>
<key>MinKernel</key>
<string>16.0.0</string>
<key>PlistPath</key>
<string>Contents/Info.plist</string>
</dict>
<dict>
<key>Arch</key>
<string>x86_64</string>
<key>BundlePath</key>
<string>WhateverGreen.kext</string>
<key>Comment</key>
<string>Required for HWAccel</string>
<key>Enabled</key>
<false/>
<key>ExecutablePath</key>
<string>Contents/MacOS/WhateverGreen</string>
<key>MaxKernel</key>
<string></string>
<key>MinKernel</key>
<string>16.0.0</string>
<key>PlistPath</key>
<string>Contents/Info.plist</string>
</dict>
<dict>
<key>Arch</key>
<string>x86_64</string>
<key>BundlePath</key>
<string>AppleMCEReporterDisabler.kext</string>
<key>Comment</key>
<string>Only required for dual CPU Mac Pro</string>
<key>Enabled</key>
<true/>
<key>ExecutablePath</key>
<string></string>
<key>MaxKernel</key>
<string></string>
<key>MinKernel</key>
<string>19.0.0</string>
<key>PlistPath</key>
<string>Contents/Info.plist</string>
</dict>
<dict>
<key>Arch</key>
<string>x86_64</string>
<key>BundlePath</key>
<string>RadeonBoost.kext</string>
<key>Comment</key>
<string></string>
<key>Enabled</key>
<false/>
<key>ExecutablePath</key>
<string></string>
<key>MaxKernel</key>
<string></string>
<key>MinKernel</key>
<string></string>
<key>PlistPath</key>
<string>Contents/Info.plist</string>
</dict>
<dict>
<key>Comment</key>
<string></string>
<key>PlistPath</key>
<string>Contents/Info.plist</string>
<key>Enabled</key>
<false/>
<key>MaxKernel</key>
<string>20.99.99</string>
<key>MinKernel</key>
<string>19.0.0</string>
<key>ExecutablePath</key>
<string>Contents/MacOS/IO80211Mojave</string>
<key>Arch</key>
<string>Any</string>
<key>BundlePath</key>
<string>IO80211Mojave.kext</string>
</dict>
<dict>
<key>Comment</key>
<string></string>
<key>PlistPath</key>
<string>Contents/Info.plist</string>
<key>Enabled</key>
<false/>
<key>MaxKernel</key>
<string>20.99.99</string>
<key>MinKernel</key>
<string>19.0.0</string>
<key>ExecutablePath</key>
<string>Contents/MacOS/AirPortBrcm4331</string>
<key>Arch</key>
<string>Any</string>
<key>BundlePath</key>
<string>IO80211Mojave.kext/Contents/PlugIns/AirPortBrcm4331.kext</string>
</dict>
</array>
<key>Block</key>
<array/>
<key>Emulate</key>
<dict>
<key>DummyPowerManagement</key>
<false/>
<key>Cpuid1Data</key>
<data>AAAAAAAAAAAAAACAAAAAAA==</data>
<key>Cpuid1Mask</key>
<data>AAAAAAAAAAAAAAAAAAAAAA==</data>
<key>MaxKernel</key>
<string></string>
<key>MinKernel</key>
<string></string>
</dict>
<key>Force</key>
<array/>
<key>Patch</key>
<array>
<dict>
<key>Arch</key>
<string>Any</string>
<key>Base</key>
<string></string>
<key>Comment</key>
<string>IONVMeFamily Patch#External</string>
<key>Count</key>
<integer>0</integer>
<key>Enabled</key>
<true/>
<key>Find</key>
<data>RXh0ZXJuYWw=</data>
<key>Identifier</key>
<string>com.apple.iokit.IONVMeFamily</string>
<key>Limit</key>
<integer>0</integer>
<key>Mask</key>
<data></data>
<key>MaxKernel</key>
<string></string>
<key>MinKernel</key>
<string>17.0.0</string>
<key>Replace</key>
<data>SW50ZXJuYWw=</data>
<key>ReplaceMask</key>
<data></data>
<key>Skip</key>
<integer>0</integer>
</dict>
</array>
<key>Quirks</key>
<dict>
<key>AppleCpuPmCfgLock</key>
<false/>
<key>AppleXcpmCfgLock</key>
<false/>
<key>AppleXcpmExtraMsrs</key>
<false/>
<key>AppleXcpmForceBoost</key>
<false/>
<key>CustomSMBIOSGuid</key>
<false/>
<key>DisableIoMapper</key>
<false/>
<key>DisableLinkeditJettison</key>
<true/>
<key>DisableRtcChecksum</key>
<false/>
<key>ExtendBTFeatureFlags</key>
<false/>
<key>ExternalDiskIcons</key>
<true/>
<key>ForceSecureBootScheme</key>
<false/>
<key>IncreasePciBarSize</key>
<false/>
<key>LapicKernelPanic</key>
<false/>
<key>LegacyCommpage</key>
<false/>
<key>PanicNoKextDump</key>
<false/>
<key>PowerTimeoutKernelPanic</key>
<false/>
<key>ThirdPartyDrives</key>
<true/>
<key>XhciPortLimit</key>
<false/>
</dict>
<key>Scheme</key>
<dict>
<key>FuzzyMatch</key>
<false/>
<key>KernelArch</key>
<string>x86_64</string>
<key>KernelCache</key>
<string>Auto</string>
</dict>
</dict>
<key>Misc</key>
<dict>
<key>BlessOverride</key>
<array/>
<key>Boot</key>
<dict>
<key>HibernateMode</key>
<string>None</string>
<key>HideAuxiliary</key>
<false/>
<key>ConsoleAttributes</key>
<integer>0</integer>
<key>PickerAttributes</key>
<integer>19</integer>
<key>PickerAudioAssist</key>
<false/>
<key>PickerMode</key>
<string>External</string>
<key>PollAppleHotKeys</key>
<false/>
<key>ShowPicker</key>
<true/>
<key>TakeoffDelay</key>
<integer>0</integer>
<key>Timeout</key>
<integer>10</integer>
</dict>
<key>Debug</key>
<dict>
<key>AppleDebug</key>
<false/>
<key>ApplePanic</key>
<false/>
<key>DisableWatchDog</key>
<false/>
<key>DisplayDelay</key>
<integer>0</integer>
<key>DisplayLevel</key>
<integer>2151678018</integer>
<key>SerialInit</key>
<false/>
<key>SysReport</key>
<false/>
<key>Target</key>
<integer>0</integer>
</dict>
<key>Entries</key>
<array/>
<key>Security</key>
<dict>
<key>AllowNvramReset</key>
<false/>
<key>AllowSetDefault</key>
<true/>
<key>ApECID</key>
<integer>0</integer>
<key>AuthRestart</key>
<false/>
<key>BlacklistAppleUpdate</key>
<true/>
<key>BootProtect</key>
<string>None</string>
<key>DmgLoading</key>
<string>Signed</string>
<key>EnablePassword</key>
<false/>
<key>ExposeSensitiveData</key>
<integer>15</integer>
<key>HaltLevel</key>
<integer>2147483648</integer>
<key>PasswordHash</key>
<data></data>
<key>PasswordSalt</key>
<data></data>
<key>ScanPolicy</key>
<integer>0</integer>
<key>SecureBootModel</key>
<string>Disabled</string>
<key>Vault</key>
<string>Optional</string>
</dict>
<key>Tools</key>
<array/>
</dict>
<key>NVRAM</key>
<dict>
<key>Add</key>
<dict>
<key>4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14</key>
<dict>
<key>UIScale</key>
<data>AQ==</data>
<key>DefaultBackgroundColor</key>
<data>AAAAAA==</data>
</dict>
<key>7C436110-AB2A-4BBB-A880-FE41995C9F82</key>
<dict>
<key>boot-args</key>
<string>mbasd=1 -no_compat_check no32exec=0</string>
<key>run-efi-updater</key>
<string>No</string>
</dict>
</dict>
<key>Delete</key>
<dict>
<key>4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14</key>
<array>
<string>UIScale</string>
<string>DefaultBackgroundColor</string>
</array>
<key>7C436110-AB2A-4BBB-A880-FE41995C9F82</key>
<array>
<string>boot-args</string>
</array>
</dict>
<key>LegacyEnable</key>
<false/>
<key>LegacyOverwrite</key>
<false/>
<key>LegacySchema</key>
<dict/>
<key>WriteFlash</key>
<false/>
</dict>
<key>PlatformInfo</key>
<dict>
<key>Automatic</key>
<false/>
<key>CustomMemory</key>
<false/>
<key>Generic</key>
<dict/>
<key>SMBIOS</key>
<dict>
<key>BoardProduct</key>
<string>Mac-27AD2F918AE68F61</string>
<key>ProcessorType</key>
<integer>1281</integer>
<key>FirmwareFeatures</key>
<data>A1QM4A==</data>
<key>FirmwareFeaturesMask</key>
<data>P/8f/w==</data>
</dict>
<key>UpdateDataHub</key>
<false/>
<key>UpdateNVRAM</key>
<false/>
<key>UpdateSMBIOS</key>
<true/>
<key>UpdateSMBIOSMode</key>
<string>Create</string>
</dict>
<key>UEFI</key>
<dict>
<key>APFS</key>
<dict>
<key>EnableJumpstart</key>
<false/>
<key>GlobalConnect</key>
<false/>
<key>HideVerbose</key>
<false/>
<key>JumpstartHotPlug</key>
<false/>
<key>MinDate</key>
<integer>0</integer>
<key>MinVersion</key>
<integer>0</integer>
</dict>
<key>Audio</key>
<dict>
<key>AudioCodec</key>
<integer>0</integer>
<key>AudioDevice</key>
<string></string>
<key>AudioOut</key>
<integer>0</integer>
<key>AudioSupport</key>
<false/>
<key>MinimumVolume</key>
<integer>0</integer>
<key>PlayChime</key>
<string>Enabled</string>
<key>VolumeAmplifier</key>
<integer>0</integer>
</dict>
<key>ConnectDrivers</key>
<true/>
<key>Drivers</key>
<array>
<string>OpenRuntime.efi</string>
<string>OpenCanopy.efi</string>
<string>CrScreenshotDxe.efi</string>
</array>
<key>Input</key>
<dict>
<key>KeyFiltering</key>
<false/>
<key>KeyForgetThreshold</key>
<integer>0</integer>
<key>KeyMergeThreshold</key>
<integer>0</integer>
<key>KeySupport</key>
<false/>
<key>KeySupportMode</key>
<string></string>
<key>KeySwap</key>
<false/>
<key>PointerSupport</key>
<false/>
<key>PointerSupportMode</key>
<string></string>
<key>TimerResolution</key>
<integer>0</integer>
</dict>
<key>Output</key>
<dict>
<key>ClearScreenOnModeSwitch</key>
<false/>
<key>ConsoleMode</key>
<string></string>
<key>DirectGopRendering</key>
<true/>
<key>ForceResolution</key>
<false/>
<key>IgnoreTextInGraphics</key>
<false/>
<key>ProvideConsoleGop</key>
<true/>
<key>ReconnectOnResChange</key>
<false/>
<key>ReplaceTabWithSpace</key>
<false/>
<key>Resolution</key>
<string>Max</string>
<key>SanitiseClearScreen</key>
<false/>
<key>TextRenderer</key>
<string>BuiltinGraphics</string>
<key>UgaPassThrough</key>
<false/>
</dict>
<key>ProtocolOverrides</key>
<dict>
<key>AppleAudio</key>
<false/>
<key>AppleBootPolicy</key>
<true/>
<key>AppleDebugLog</key>
<false/>
<key>AppleEvent</key>
<false/>
<key>AppleFramebufferInfo</key>
<false/>
<key>AppleImageConversion</key>
<false/>
<key>AppleImg4Verification</key>
<false/>
<key>AppleKeyMap</key>
<false/>
<key>AppleRtcRam</key>
<false/>
<key>AppleSecureBoot</key>
<false/>
<key>AppleSmcIo</key>
<false/>
<key>AppleUserInterfaceTheme</key>
<true/>
<key>DataHub</key>
<false/>
<key>DeviceProperties</key>
<false/>
<key>FirmwareVolume</key>
<false/>
<key>HashServices</key>
<false/>
<key>OSInfo</key>
<false/>
<key>UnicodeCollation</key>
<false/>
</dict>
<key>Quirks</key>
<dict>
<key>DeduplicateBootOrder</key>
<false/>
<key>ExitBootServicesDelay</key>
<integer>0</integer>
<key>IgnoreInvalidFlexRatio</key>
<false/>
<key>ReleaseUsbOwnership</key>
<false/>
<key>RequestBootVarRouting</key>
<true/>
<key>TscSyncTimeout</key>
<integer>0</integer>
<key>UnblockFsConnect</key>
<false/>
</dict>
<key>ReservedMemory</key>
<array/>
</dict>
</dict>
</plist>
Click to expand...
Looks OK to me.

If internet is normal, may be check your DNS. Or even try VPN.

That's looks more like network issue.

You must log in or register to reply here.
Register on MacRumors! This sidebar will go away, and you'll see fewer ads.
Top Bottom
