MP 7,1 Add Radeon VII to the basic 580X...

[jerrygladh]

Hi there folks!
Got myself a Radeon VII for my MP 7,1 with the basic 580X installed.
Got it to a really good price, so I will live with the "No Sleep Mode" enviroment.
My Q is if there is some benefits to keep the 580x installed, and in that case which slots to use for optimal performance.
I have 3 DP Eizo displays so they will go into the VII
Just want good performance in Davinci Resolve, nothing else.



[erroneous]

I believe having an MPX module installed is necessary to send DisplayPort to any of the top/back TB3 ports.

The Mac Pro apple support page has details on slot lane allocation, and suggestions on preferred order of use. (TLDR: use slot 1 and slot 3 first for high performance devices)

Install Expansion Cards on Mac Pro

Instructions for installing expansion cards in Mac Pro tower.

support.apple.com



[jerrygladh]

I believe having an MPX module installed is necessary to send DisplayPort to any of the top/back TB3 ports.

The Mac Pro apple support page has details on slot lane allocation, and suggestions on preferred order of use. (TLDR: use slot 1 and slot 3 first for high performance devices)

Install Expansion Cards on Mac Pro

Instructions for installing expansion cards in Mac Pro tower.

support.apple.com

Thx, seems like its just to put it in 3. Will be nice to free up all TB3 ports on the machine.



[flowrider]

2019 Mac Pro - GPU options

real world speed test results for performance minded Macintosh users

barefeats.com

Lou



[awkward_eagle]

Just want good performance in Davinci Resolve, nothing else.

Resolve prefers dedicated cards for UI and Compute. The best setup is one card for monitor and two identical headless cards for compute. Resolve limits the overall performance to the slowest card in the pool, so manually selecting only the card(s) you want to use for compute is important. In my experience 2 cards for compute is the best setup. 3 cards for compute is faster but not 3x faster. 4 cards for compute is a little bit faster, but the splitting up the task that many ways takes its toll on performance. If you add a second Radeon VII be sure to space them out and use a fan control app so they don't thermally throttle.

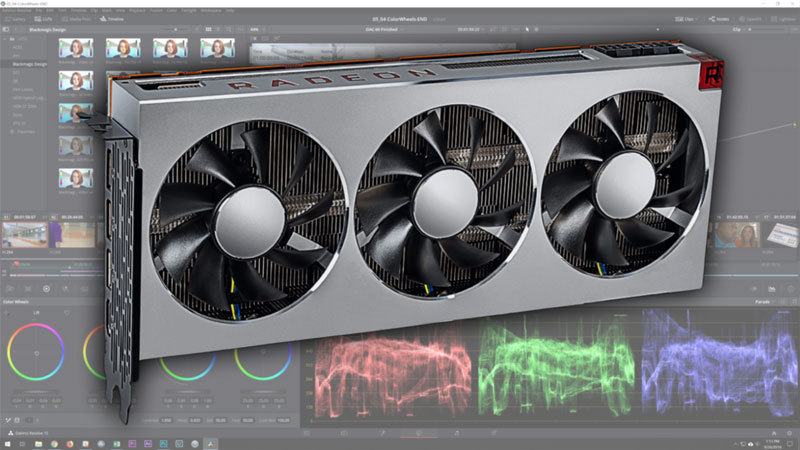

DaVinci Resolve 15: AMD Radeon VII 16GB Performance

The Radeon VII is a very interesting card for DaVinci Resolve due to its 16GB of VRAM which is twice what you would get from a similarly priced NVIDIA GPU. But is it able to keep up in terms of raw performance?

www.pugetsystems.com

Keep the monitors plugged into the 580X via TB3 ports and let the Radeon VII sit headless. In the Resolve preferences manually set the compute type to Metal and manually uncheck the 580X so the Radeon VII is the only one selected. Restart Resolve and you're all set.



[jerrygladh]

Resolve prefers dedicated cards for UI and Compute. The best setup is one card for monitor and two identical headless cards for compute. Resolve limits the overall performance to the slowest card in the pool, so manually selecting only the card(s) you want to use for compute is important. In my experience 2 cards for compute is the best setup. 3 cards for compute is faster but not 3x faster. 4 cards for compute is a little bit faster, but the splitting up the task that many ways takes its toll on performance. If you add a second Radeon VII be sure to space them out and use a fan control app so they don't thermally throttle.

DaVinci Resolve 15: AMD Radeon VII 16GB Performance

The Radeon VII is a very interesting card for DaVinci Resolve due to its 16GB of VRAM which is twice what you would get from a similarly priced NVIDIA GPU. But is it able to keep up in terms of raw performance?

www.pugetsystems.com

Keep the monitors plugged into the 580X via TB3 ports and let the Radeon VII sit headless. In the Resolve preferences manually set the compute type to Metal and manually uncheck the 580X so the Radeon VII is the only one selected. Restart Resolve and you're all set.

Thx a lot, exactly what i needed to know!
Will spoil my "free up TB3 and DP strategy" but performance will go first.

Jerry



[jerrygladh]

[/QUOTE]
Keep the monitors plugged into the 580X via TB3 ports and let the Radeon VII sit headless. In the Resolve preferences manually set the compute type to Metal and manually uncheck the 580X so the Radeon VII is the only one selected. Restart Resolve and you're all set.
[/QUOTE]

Thx again, works like a charm in Resolve.
2xVII, nothing attached.
All displays via 580X.
Just the VII:s to Resolve and manual to Metal.
Realtime BM 4,6k raw, 4k timeline with usual grade, NR, Sharpening etc.

Jerry



[jccmaxon]

Keep the monitors plugged into the 580X via TB3 ports and let the Radeon VII sit headless. In the Resolve preferences manually set the compute type to Metal and manually uncheck the 580X so the Radeon VII is the only one selected. Restart Resolve and you're all set.
[/QUOTE]

Thx again, works like a charm in Resolve.
2xVII, nothing attached.
All displays via 580X.
Just the VII:s to Resolve and manual to Metal.
Realtime BM 4,6k raw, 4k timeline with usual grade, NR, Sharpening etc.

Jerry
[/QUOTE]


And for fcpx. Would it be such a good improvement? I prefer FCPX and I am thinking of catching a radeon vii to accompany my 580x. The bad thing is that I don't know where to buy one in Spain. In Amazon is the Xfx.

thanks



[jerrygladh]

Thx again, works like a charm in Resolve.
2xVII, nothing attached.
All displays via 580X.
Just the VII:s to Resolve and manual to Metal.
Realtime BM 4,6k raw, 4k timeline with usual grade, NR, Sharpening etc.

Jerry
[/QUOTE]


And for fcpx. Would it be such a good improvement? I prefer FCPX and I am thinking of catching a radeon vii to accompany my 580x. The bad thing is that I don't know where to buy one in Spain. In Amazon is the Xfx.

thanks
[/QUOTE]

No idea about FCPX workflow.

Bought mine at Newegg, Im located in Sweden, I see there is a "Spain site" to.

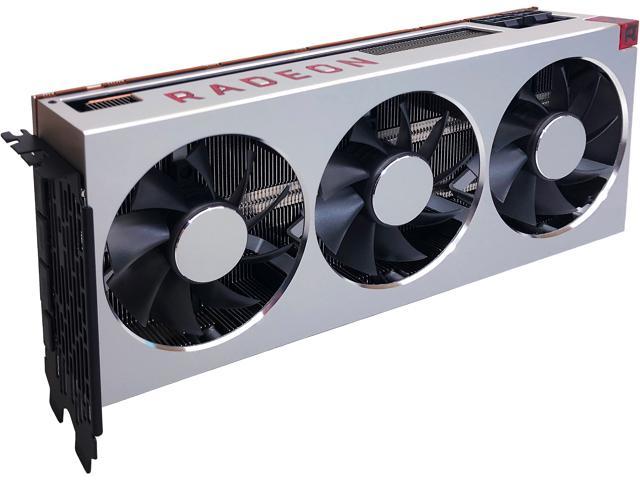

XFX Radeon VII Video Card RX-VEGMA3FD6 - Newegg.com

Buy XFX Radeon VII 16GB HBM2 PCI Express 3.0 CrossFireX Support Video Card RX-VEGMA3FD6 with fast shipping and top-rated customer service. Once you know, you Newegg!

www.newegg.com



[awkward_eagle]

FCPX takes advantage of multiple GPUs but doesn't give manual selection the way Resolve does. As far as I can tell GPU selection can only be done when choosing between internal or external. In the case of the Mac Pro it uses everything installed internally with no option to change.

Final Cut's render engine is different than Resolve, but I would venture to guess it limits the overall compute power to the slowest card in the same way Resolve does. I think that's just an unavoidable limitation of splitting up a single compute task across devices. You'd likely get better FCP performance by using just one fast card vs two cards of mixed speed, or just get two fast cards.



[jccmaxon]

FCPX takes advantage of multiple GPUs but doesn't give manual selection the way Resolve does. As far as I can tell GPU selection can only be done when choosing between internal or external. In the case of the Mac Pro it uses everything installed internally with no option to change.

Final Cut's render engine is different than Resolve, but I would venture to guess it limits the overall compute power to the slowest card in the same way Resolve does. I think that's just an unavoidable limitation of splitting up a single compute task across devices. You'd likely get better FCP performance by using just one fast card vs two cards of mixed speed, or just get two fast cards.

then it’s better remove 580x To get better FCP performance with Radeon Vii.

thanks
