Any way to prevent the "Incompatible disk" warning on dual boot MacOS?

[ferencav]

I would like to run Mojave (for some old 32-bit software) and Sequoia in dual boot on my iMac. I erased my drive and created two separate APFS containers and installed Mojave on the first one with no problems. Then I installed Sequoia on the second APFS container and it also works flawlessly. But then on Mojave I get the message "Incompatible Disk" after logging in. I know this is because Sequoia made changes to the APFS containers. However I thought by making two separate APFS containers, Sequoia would leave the partition of Mojave alone.

I do think I can actually ignore the message, but the OCD in me wants me to get rid of this message. So is there a way to completely prevent this warning? Or should I use an external HD for one of the two versions of MacOS?

Thanks in advance!



[goldmac2006]

I would like to run Mojave (for some old 32-bit software) and Sequoia in dual boot on my iMac. I erased my drive and created two separate APFS containers and installed Mojave on the first one with no problems. Then I installed Sequoia on the second APFS container and it also works flawlessly. But then on Mojave I get the message "Incompatible Disk" after logging in. I know this is because Sequoia made changes to the APFS containers. However I thought by making two separate APFS containers, Sequoia would leave the partition of Mojave alone.

I do think I can actually ignore the message, but the OCD in me wants me to get rid of this message. So is there a way to completely prevent this warning? Or should I use an external HD for one of the two versions of MacOS?

Thanks in advance!

External HD with the macOS Mojave installer instead of a partition on the internal drive would work better



[ferencav]

Thanks, I will try this!



[bogdanw]

You could use /etc/fstab to prevent Mojave being mounted in Sequoia and Sequoia being mounted in Mojave.



[ferencav]

You could use /etc/fstab to prevent Mojave being mounted in Sequoia and Sequoia being mounted in Mojave.

That's a good one! I tried this by following the steps in this discussion:

Prevent a volume from mounting at startup - Apple Community

discussions.apple.com

I did manage to prevent the automatic mounting of the volume "Update" which was made by the Sequoia installer.

However I can't prevent the mounting of the Sequoia partition. This partition is encrypted and when I start Mojave it asks for a password to access the drive. It doesn't matter if I enter a password or not. Both ways it gives the "Incompatible Disk" warning.

According to the discussion you have to enter the password for the encrypted drive and save the password to your keychain. Then follow the steps, but unfortunately this doesn't work either.



[bogdanw]

Don't run diskutil info /Volumes/volume, use diskutil info disk without entering the password
Command to return all UUIDs:

for d in $(diskutil list | awk '/disk[0-9]+s[0-9]+/{print $NF}'); do
  diskutil info "$d" | awk -F': *' '
    /Device Identifier|Volume Name|Volume UUID/ {printf "%s ", $2}
    END {print ""}
  '
done



[ferencav]

Don't run diskutil info /Volumes/volume, use diskutil info disk without entering the password
Command to return all UUIDs:

for d in $(diskutil list | awk '/disk[0-9]+s[0-9]+/{print $NF}'); do
  diskutil info "$d" | awk -F': *' '
    /Device Identifier|Volume Name|Volume UUID/ {printf "%s ", $2}
    END {print ""}
  '
done

Yeah, I just right clicked -> Get Info on the volume in Disk Utility. From there you can copy the UUID also.



[Fishrrman]

OP wrote:
"I would like to run Mojave (for some old 32-bit software) and Sequoia in dual boot on my iMac."

I do this (use both Mojave and Sequoia) on my 2018 Mac Mini (now semi-retired on the "back desk").

You're going to get that "incompatible" warning because old Mojave IS incompatible with the disk structure on the new Sequoia volume.

It is what it is.
So... get used to it.
A minor aggravation. Just "click through" it and get on with things.

In my case, Sequoia is on a separate, external drive.
I disconnect the drive when booting from Mojave.
No warnings that way...



[ferencav]

Yeah you're right I have to get used to it I guess. Time to tame down the OCD. And otherwise I'm going to try the external disk option. Thanks!



[bogdanw]

I don't use encrypted volumes and I was curious why it doesn’t work. So I asked ChatGPT “Can /etc/fstab be used on macOS to prevent encrypted volumes being mounted?”

Response “Short answer: No, not reliably. On modern macOS, /etc/fstab cannot be used as a dependable mechanism to prevent encrypted volumes from being mounted.”

But “For encrypted APFS volumes: The volume is discovered as soon as the container is attached.”

So, try to add the UUID of the container to /etc/fstab, not just of the volumes.



[ferencav]

I don't use encrypted volumes and I was curious why it doesn’t work. So I asked ChatGPT “Can /etc/fstab be used on macOS to prevent encrypted volumes being mounted?”

Response “Short answer: No, not reliably. On modern macOS, /etc/fstab cannot be used as a dependable mechanism to prevent encrypted volumes from being mounted.”

But “For encrypted APFS volumes: The volume is discovered as soon as the container is attached.”

So, try to add the UUID of the container to /etc/fstab, not just of the volumes.

Oe! That sounds like a good thing to try out. Will report back to you soon



[goldmac2006]

Thanks, I will try this!

Are you attempting to dual boot your Mac with two different macOS versions?



[ferencav]

I don't use encrypted volumes and I was curious why it doesn’t work. So I asked ChatGPT “Can /etc/fstab be used on macOS to prevent encrypted volumes being mounted?”

Response “Short answer: No, not reliably. On modern macOS, /etc/fstab cannot be used as a dependable mechanism to prevent encrypted volumes from being mounted.”

But “For encrypted APFS volumes: The volume is discovered as soon as the container is attached.”

So, try to add the UUID of the container to /etc/fstab, not just of the volumes.

Unfortunately an APFS container doesn't have an UUID



[ferencav]

Are you attempting to dual boot your Mac with two different macOS versions?

Yes I already installed both of them. I guess there are two options left:

- Just ignore the message every time you reboot
- Install Sequoia on an external SSD and disconnect it when booting Mojave (more of a hassle then just closing the warning)

Unless someone has another option 😇



[bogdanw]

Unfortunately an APFS container doesn't have an UUID

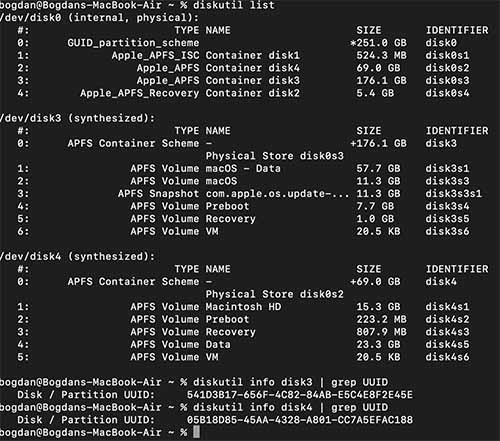

I have Big Sur and Sequoia installed on the internal SSD of MBA M1, they look like this and have Disk / Partition UUID
disk4 is Big Sur and disk3 is Sequoia


diskutil list
diskutil info disk3 | grep UUID
diskutil info disk4 | grep UUID



[goldmac2006]

Yes I already installed both of them. I guess there are two options left:

- Just ignore the message every time you reboot
- Install Sequoia on an external SSD and disconnect it when booting Mojave (more of a hassle then just closing the warning)

Unless someone has another option 😇

Do the USB install option ! Boot from startup options and select the drive. Make sure all external ssds are APFS formatted !

What type of error message do you get when you reboot?
