"Augury" vulnerability discovered in Apple silicon and mobile chips

[pshufd]

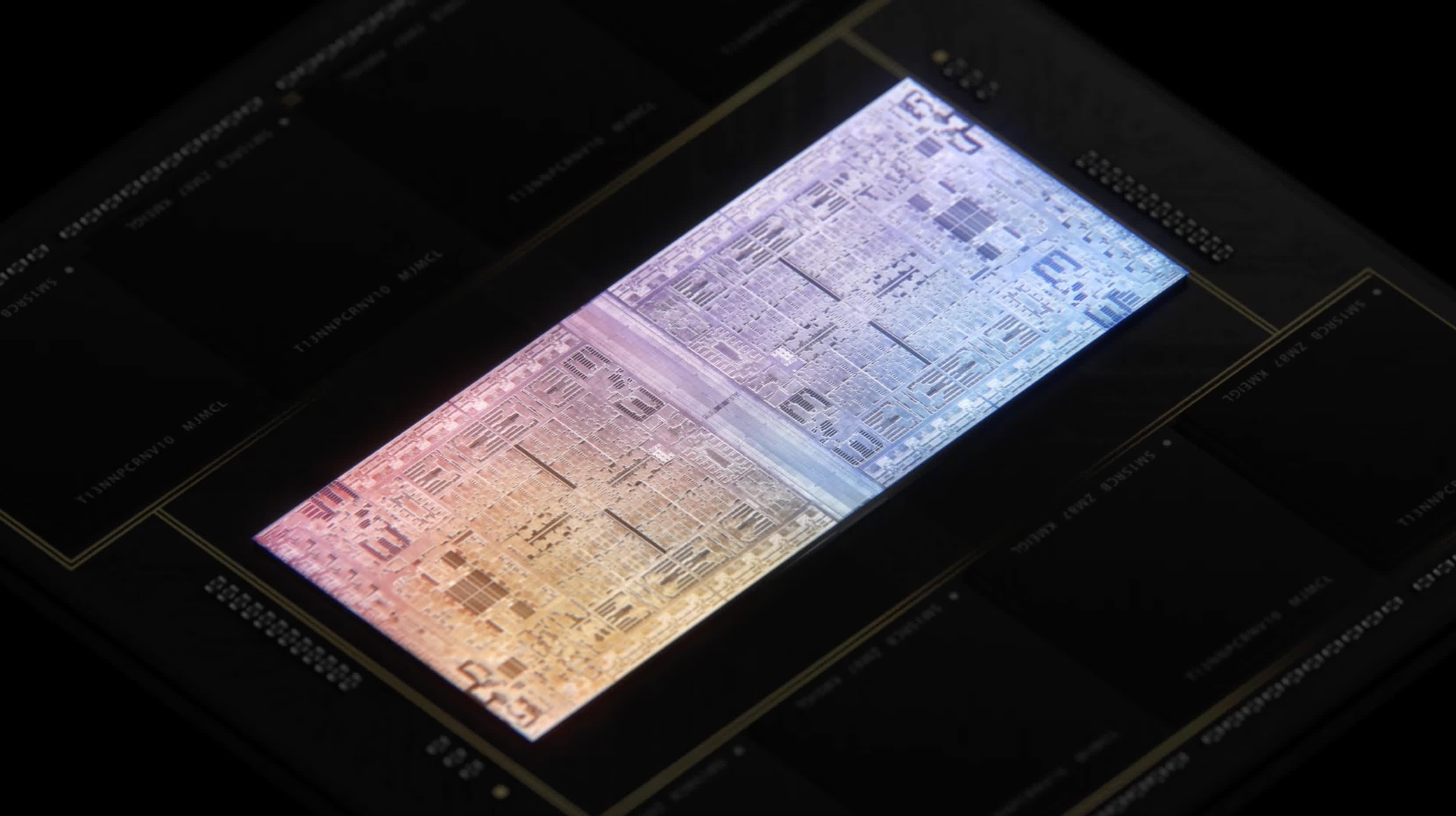

Researchers recently published a paper detailing a vulnerability they are calling Augury that affects Apple's M1, M1 Max, and A14 processors. It might also reach older A-series chips and newer M1 relatives.

Augury comes from Apple silicon's use of a Data Memory-Dependent Prefetcher (DMP) which is an optimization that accounts for the content of previous memory prefetches. That method provides a clue as to the memory's contents, making it possible to leak them.

"Augury" vulnerability discovered in Apple silicon and mobile chips

Researchers recently published a paper detailing a vulnerability they are calling Augury that affects Apple's M1, M1 Max, and A14 processors. It might also reach older A-series...

www.techspot.com

There are several articles out about this. I'd guess that Apple will fix it pretty fast or that it has already been fixed.



[sorgo †]

Yikes—surprised there hasn’t been a front-page MacRumors story yet.



[leman]

Doubt that Apple will fix it. It’s basically another variant of Spectre. Sounds scary, but almost impossible to exploit in practice. There are still no Spectre exploits in the wild even though all CPUs have been vulnerable for years.



[Andropov]

Doubt that Apple will fix it. It’s basically another variant of Spectre. Sounds scary, but almost impossible to exploit in practice. There are still no Spectre exploits in the wild even though all CPUs have been vulnerable for years.

Seems even less scary than Spectre. The paper mentions some limitations of the method. It exploits pointer dereference prefetching behaviour, but to actually leak any data, the target memory addresses must:

• Be a valid pointer (the upper 57 bits must be a valid memory address).
• The address in those upper 57 bits must be within the 0x000000000 to 0x280000000 range (this means that only works on userspace memory, and not even all userspace memory).
• Be within a maximum distance from previously fetched addresses.
• Be 8-byte aligned.

Some extra limitations:

• Firestorm cores only (different prefetching behaviour on Icestorm).
• The lower 8 bits of the target memory address cannot be leaked, and, since the addresses must be 8-byte aligned for the prefetching to happen, it's not possible to run a 'sliding window' to retrieve those 8 bits by shifting the target address by 8 bits. Those lower bits are apparently safe from this vulnerability.



[jav6454]

Seems even less scary than Spectre. The paper mentions some limitations of the method. It exploits pointer dereference prefetching behaviour, but to actually leak any data, the target memory addresses must:

• Be a valid pointer (the upper 57 bits must be a valid memory address).
• The address in those upper 57 bits must be within the 0x000000000 to 0x280000000 range (this means that only works on userspace memory, and not even all userspace memory).
• Be within a maximum distance from previously fetched addresses.
• Be 8-byte aligned.

Some extra limitations:

• Firestorm cores only (different prefetching behaviour on Icestorm).
• The lower 8 bits of the target memory address cannot be leaked, and, since the addresses must be 8-byte aligned for the prefetching to happen, it's not possible to run a 'sliding window' to retrieve those 8 bits by shifting the target address by 8 bits. Those lower bits are apparently safe from this vulnerability.

So in other words, it is even harder to exploit. Even if it was, the hacker would have to know where specifically in memory is the data they want to gain direct access and within only a certain range of memory addresses.



[Colstan]

So, this exploit makes for an interesting research paper that grabs headlines, but there are far easier, less time consuming, and much simpler ways to hack into a system?



[k27]

Augury: Using Data Memory-Dependent
Prefetchers to Leak Data at Rest

https://www.prefetchers.info/augury.pdf



[jav6454]

So, this exploit makes for an interesting research paper that grabs headlines, but there are far easier, less time consuming, and much simpler ways to hack into a system?

View attachment 2001883

I laughed too hard at this comic, good one.



[BootsWalking]

Seems even less scary than Spectre. The paper mentions some limitations of the method. It exploits pointer dereference prefetching behaviour, but to actually leak any data, the target memory addresses must:

• Be a valid pointer (the upper 57 bits must be a valid memory address).
• The address in those upper 57 bits must be within the 0x000000000 to 0x280000000 range (this means that only works on userspace memory, and not even all userspace memory).
• Be within a maximum distance from previously fetched addresses.
• Be 8-byte aligned.

Some extra limitations:

• Firestorm cores only (different prefetching behaviour on Icestorm).
• The lower 8 bits of the target memory address cannot be leaked, and, since the addresses must be 8-byte aligned for the prefetching to happen, it's not possible to run a 'sliding window' to retrieve those 8 bits by shifting the target address by 8 bits. Those lower bits are apparently safe from this vulnerability.

Few points. First, this isn't limited to user space. They found the M1's DMP would not speculatively prefetch between 0x280000000 and 0xffff3f2b0000 but based on some M1-based kernel panics I found online the kernel uses addresses above this range (first response marked "helpful" in this thread).

Second, most/all pointers will be 8-byte aligned as a compiler optimization, so that's not a significant limitation.

Also, there are serious vulnerabilities brought up in the paper. For example, the ability to break ASLR more easily since valid/invalid virtual address pointers can be trivially induced.

Speaking more generally, the fact that by nature DMP is speculatively prefetching based on data contents rather than just addresses opens up a pandora box of exploits, too many for the papers' authors to even imagine and consider. It doesn't help that the M1 doesn't seem to employ any observable mitigation such as instruction-pointer tagging. To devise such a broad-based speculative prefetcher in the era of known Spectre-type side-channel exploits without significant preventative mitigations (as far as we're aware today, which is admittedly early) is shocking to me.
