MP 1,1-5,1 Big Sur OC 0.6.6 but no wifi details, what chipset do I need?

[Craigo1]

I've gone from freshly installed Catalina (all working fine) to Big Sur with OC and now my MacPro 5,1 won't recognise my wi-fi card (model AR5BXB112), do I need to buy a different card?
I have tried the config file edit Martin Lo suggests and tried OC 0.6.3 wifi fix but nothing is helping.

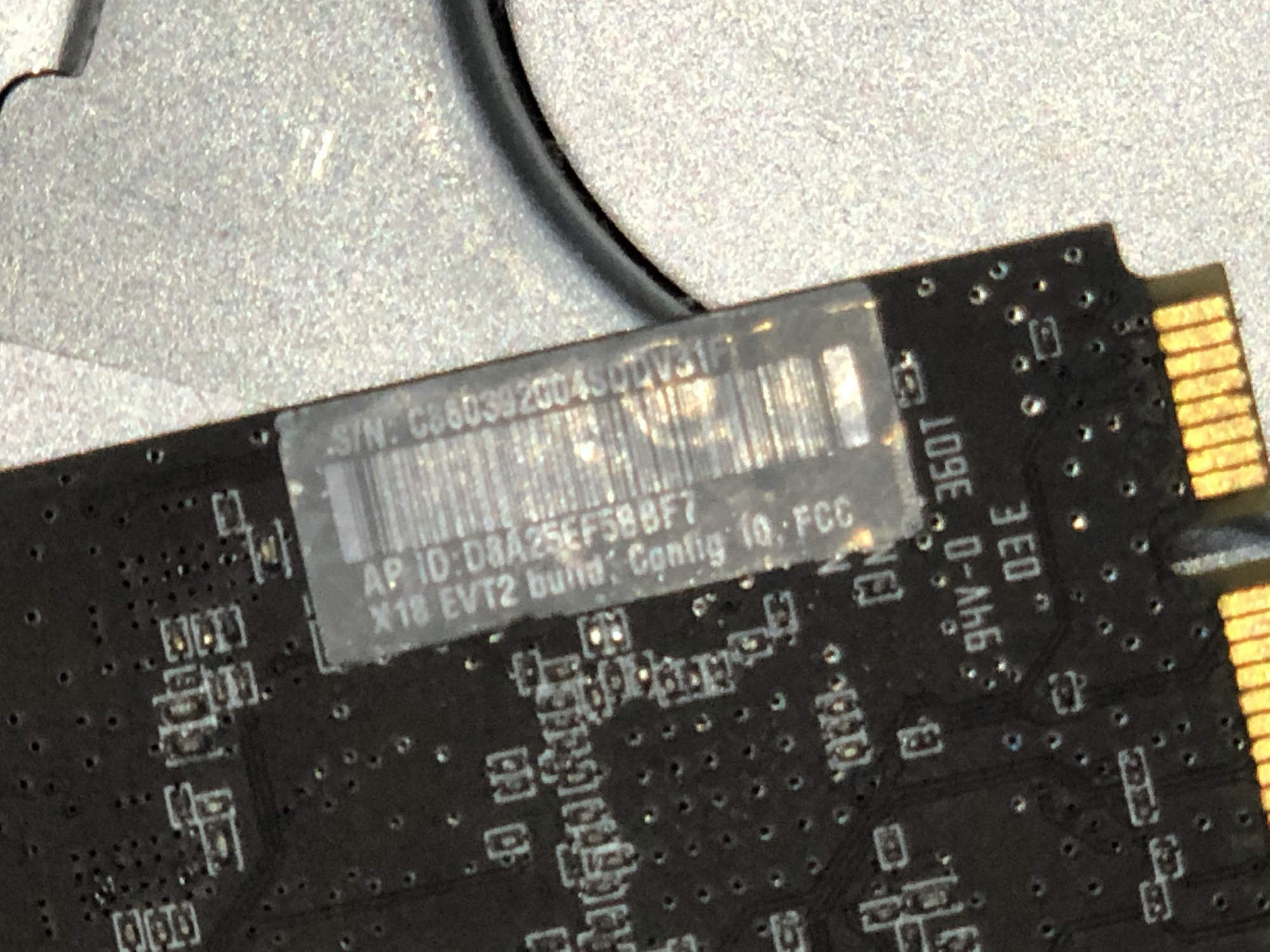

See attached images of my current card.
Thanks
Craig



[tsialex]

I've gone from freshly installed Catalina (all working fine) to Big Sur with OC and now my MacPro 5,1 won't recognise my wi-fi card (model AR5BXB112), do I need to buy a different card?
I have tried the config file edit Martin Lo suggests and tried OC 0.6.3 wifi fix but nothing is helping.
See attached images of my current card.
Thanks
Craig

Apple removed Atheros AirPort Extreme support long, long ago.

You need a BigSur native supported BCM94360CD card, see the upgrade thread below or if you want to do it on the cheap, buy a BCM94322MC and then install the kext for it. I'd go for a BCM94360CD, 802.11AC, BT4.1 and BigSur native support.

802.11ac, BT 4.0, Continuity, and Handoff Working on Mac Pro 2010

-------------------------------------------------------------------------------------------------------------------------------------- -------------------------------------------------------------------------------------------------------------------------------------- News&Updates: (I will...

forums.macrumors.com



[Craigo1]

Apple removed Atheros AirPort Extreme support long, long ago.

You need a BigSur native supported BCM94360CD card, see the upgrade thread below or if you want to do it on the cheap, buy a BCM94322MC and then install the kext for it. I'd go for a BCM94360CD, 802.11AC, BT4.1 and BigSur native support.

802.11ac, BT 4.0, Continuity, and Handoff Working on Mac Pro 2010

-------------------------------------------------------------------------------------------------------------------------------------- -------------------------------------------------------------------------------------------------------------------------------------- News&Updates: (I will...

forums.macrumors.com

Thanks for the help, I’ve managed to source one from Amazon as you recommend.



[tsialex]

Thanks for the help, I’ve managed to source one from Amazon as you recommend.

If you got a BCM94360CD, you need the Mac Pro adaptor too and not just the AirPort Extreme, see the thread linked.

BCM94322MC is a drop-in, just install it and then add the needed kext.



[Craigo1]

If you got a BCM94360CD, you need the Mac Pro adaptor too and not just the AirPort Extreme, see the thread linked.

BCM94322MC is a drop-in, just install it and then add the needed kext.

For Broadcom BCM94360CD 802.11ac Wireless Network Card Mini PCI-E WiFi WLAN + for Bluetooth 4.0 for IOS 2013 21.5/27"

Specification: Condition: 100% Brand New Item Type: Wireless Network Card Material: Printed Circuit Board Model: BCM94360CD For Bluetooth Version: 4.0 Compatible: 2013 21.5/27 " for iMac Note: Suitable for Broadcom BCM94360CD pci-e mini custom combination WLAN + for Bluetooth card supporting IEE...

www.amazon.co.uk

This is it... where do I find an adaptor?

is this correct: https://www.ebay.co.uk/i/123326032203?chn=ps&mkevt=1&mkcid=28

or if I go for a BCM94322MC are these easily available in the UK?



[tsialex]

For Broadcom BCM94360CD 802.11ac Wireless Network Card Mini PCI-E WiFi WLAN + for Bluetooth 4.0 for IOS 2013 21.5/27"

Specification: Condition: 100% Brand New Item Type: Wireless Network Card Material: Printed Circuit Board Model: BCM94360CD For Bluetooth Version: 4.0 Compatible: 2013 21.5/27 " for iMac Note: Suitable for Broadcom BCM94360CD pci-e mini custom combination WLAN + for Bluetooth card supporting IEE...

www.amazon.co.uk

This is it... where do I find an adaptor?

eBay/AliExpress see the thread, at the end of it people posted inexpensive adapters.

or if I go for a BCM94322MC are these easily available in the UK?

You shouldn't, while it's inexpensive, it's a 802.11n 2xMIMO (300 Mbps) BT2.0 card from 2010 that is not supported anymore since Mojave and it's known to have problems with USB3.0 cables dropping the BT signal.

It's a very common use Apple card and you should find used pulls easily on eBay UK.



[startergo]

You can try

IO80211-Patches/10.13.6-High-Sierra-Kexts/IO80211HighSierra.kext.zip at main · khronokernel/IO80211-Patches

Repo for patched IO80211Family Kexts. Contribute to khronokernel/IO80211-Patches development by creating an account on GitHub.

github.com

loaded in OC

This kext is required for all Atheros chipsets that had support dropped in Mojave, these include:

• AR242x
• AR542x
• AR5416
• AR5418
• AR9280 - AR5BHB92
• AR9285 - AR5B95
• AR9287 - AR5B97
• AR9380 - AR5BXB112



[Craigo1]

You can try

IO80211-Patches/10.13.6-High-Sierra-Kexts/IO80211HighSierra.kext.zip at main · khronokernel/IO80211-Patches

Repo for patched IO80211Family Kexts. Contribute to khronokernel/IO80211-Patches development by creating an account on GitHub.

github.com

loaded in OC

thanks for this... but I've order a new card and adaptor, hopefully everything is good to go then.
