MP 7,1 Can you help me decode this kernel panic?

[RyanFlynn]

Hey friends,

My computer is powering off under high load. Can't seam to get to the bottom of the issue, usually involving adobe products, but sometimes it just happens randomly.

Specs:
Mac Pro 7,1
28 core
384gb ram
Vega pro II duo

Thanks!
Ryan

Spoiler: KP Dump

Panic(CPU 0, time 61833210356887): NMIPI for unresponsive processor: TLB flush timeout, TLB state:0x0
RAX: 0x0000000000000235, RBX: 0x000000000000002b, RCX: 0x0000000000000017, RDX: 0xffffff8019cc7500
RSP: 0xffffffa57ba6ecf0, RBP: 0xffffffa57ba6ed30, RSI: 0x0000000000000000, RDI: 0xffffff8019cc7500
R8: 0xffffffa577153ae4, R9: 0x0000000000000001, R10: 0x0000000000ffff01, R11: 0xffffffa57710e8d0
R12: 0xffffff89085fa9e0, R13: 0x0000000000000000, R14: 0x0000000000000000, R15: 0xffffff8019cc7500
RFL: 0x0000000000000093, RIP: 0xffffff8018ea4554, CS: 0x0000000000000008, SS: 0x0000000000000010
Backtrace (CPU 0), Frame : Return Address
0xffffffa57ba6eba0 : 0xffffff8018fc4bab
0xffffffa57ba6ebf0 : 0xffffff8018e32d39
0xffffffa57ba6ed30 : 0xffffff8018eaf593
0xffffffa57ba6edf0 : 0xffffff8018eaefe2
0xffffffa57ba6ee30 : 0xffffff8018eaeeac
0xffffffa57ba6ee60 : 0xffffff8018eddbdf
0xffffffa57ba6ef20 : 0xffffff8018fb0e93
0xffffffa57ba6ef60 : 0xffffff8018fce48a
0xffffffa57ba6ef80 : 0xffffff8018fc4bab
0xffffffa57ba6efd0 : 0xffffff8018e32bdd
0xffffffa59d37bd00 : 0xffffff8018ed97a9
0xffffffa59d37bd60 : 0xffffff8018f0d2d9
0xffffffa59d37bd90 : 0xffffff8018e936cd
0xffffffa59d37be00 : 0xffffff8018e69cf5
0xffffffa59d37be60 : 0xffffff8018e81252
0xffffffa59d37bef0 : 0xffffff8018fa970d
0xffffffa59d37bfa0 : 0xffffff8018e33216

Process name corresponding to current thread: Adobe Premiere Pro 2021
Boot args: chunklist-security-epoch=0 -chunklist-no-rev2-dev

Mac OS version:
20G95

Kernel version:
Darwin Kernel Version 20.6.0: Wed Jun 23 00:26:31 PDT 2021; root:xnu-7195.141.2~5/RELEASE_X86_64
Kernel UUID: FECBF22B-FBBE-36DE-9664-F12A7DD41D3D
KernelCache slide: 0x0000000018c00000
KernelCache base: 0xffffff8018e00000
Kernel slide: 0x0000000018c10000
Kernel text base: 0xffffff8018e10000
__HIB text base: 0xffffff8018d00000
System model name: MacPro7,1 (Mac-27AD2F918AE68F61)
System shutdown begun: NO
Hibernation exit count: 0

System uptime in nanoseconds: 61833210396002
Last Sleep: absolute base_tsc base_nano
Uptime : 0x0000383caa8a8101
Sleep : 0x0000000000000000 0x0000000000000000 0x0000000000000000
Wake : 0x0000000000000000 0x0000000c2b5a89b8 0x0000000000000000
last started kext at 52960322144829: >!UAudio 405.39 (addr 0xffffff7fb39ac000, size 315392)
last stopped kext at 702375785844: >!AThunderboltEDMSink 5.0.3 (addr 0xffffff7fb3955000, size 32768)
loaded kexts:
com.google.drivefs.filesystems.dfsfuse 45.3.0
com.intel.driver.EnergyDriver 3.7.0
com.uaudio.driver.UAD2System 9.14.7
>X86PlatformShim 1.0.0
>AGPM 122.1
>!APlatformEnabler 2.7.0d0
@fileutil 20.036.15
>AudioAUUC 1.70
@filesystems.autofs 3.0
>!AUpstreamUserClient 3.6.8
>!AMCCSControl 1.14
@kext.AMDFramebuffer 4.0.6
@kext.AMDRadeonX5000 4.0.6
@kext.AMDRadeonServiceManager 4.0.6
>!AGraphicsDevicePolicy 6.3.5
@AGDCPluginDisplayMetrics 6.3.5
>pmtelemetry 1
|IOUserEthernet 1.0.1
>usb.!UUserHCI 1
|IO!BSerialManager 8.0.5d7
@Dont_Steal_Mac_OS_X 7.0.0
>!AHV 1
>!ADiskImages2 1
>!A!IMCEReporter 115
>!A!ISlowAdaptiveClocking 4.0.0
>!A!IPCHPMC 2.0.1
>BridgeAudioCommunication 140.4
>!AThunderboltIP 4.0.3
>!ABridgeAudio!C 140.4
>!AGFXHDA 100.1.433
@kext.AMD10000!C 4.0.6
>!AAVEBridge 6.1
>!ARAID 5.1.0
@!AEthernetAquantiaAqtionFirmware 1.0.36
>!ATopCaseHIDEventDriver 4050.1
>!UTopCaseDriver 4050.1
>BCMWLANFirmware4378.Hashstore 1
>BCMWLANFirmware4377.Hashstore 1
>BCMWLANFirmware4364.Hashstore 1
>BCMWLANFirmware4355.Hashstore 1
>!AFileSystemDriver 3.0.1
@filesystems.tmpfs 1
@filesystems.hfs.kext 556.100.11
@BootCache 40
@!AFSCompression.!AFSCompressionTypeZlib 1.0.0
@!AFSCompression.!AFSCompressionTypeDataless 1.0.0d1
>!ABCMWLANBusInterfacePCIeMac 1
@filesystems.apfs 1677.141.1
>!AAHCIPort 346.100.2
@private.KextAudit 1.0
>!AACPIButtons 6.1
>!ASMBIOS 2.1
>!AACPIEC 6.1
>!AAPIC 1.7
@!ASystemPolicy 2.0.0
@nke.applicationfirewall 311
|IOKitRegistryCompatibility 1
|EndpointSecurity 1
>!UAudio 405.39
@kext.triggers 1.0
|IO!BHost!CUARTTransport 8.0.5d7
|IO!BHost!CTransport 8.0.5d7
>!ASMBus!C 1.0.18d1
@kext.AMDRadeonX5700HWLibs 1.0
|IOAccelerator!F2 442.9
@kext.AMDRadeonX5000HWServices 4.0.6
>!AGraphicsControl 6.3.5
>!A16X50Serial 3.2
|IOAVB!F 940.4
|IOEthernetAVB!C 1.1.0
@plugin.IOgPTPPlugin 985.2
@!AGPUWrangler 6.3.5
|IOSlowAdaptiveClocking!F 1.0.0
>X86PlatformPlugin 1.0.0
>IOPlatformPlugin!F 6.0.0d8
|IOFireWire!F 4.8.3
>usb.cdc.acm 5.0.0
>usb.serial 6.0.0
|IONDRVSupport 585.1
|IOAudio!F 300.6.1
@vecLib.kext 1.2.0
@kext.AMDSupport 4.0.6
@!AGraphicsDeviceControl 6.3.5
|IOGraphics!F 585.1
|IOAHCIBlock!S 332
>!AActuatorDriver 4440.3
>!AHS!BDriver 4050.1
>IO!BHIDDriver 8.0.5d7
>usb.IOUSBHostHIDDevice 1.2
>!AMultitouchDriver 4440.3
>!AInputDeviceSupport 4400.35
>!AHIDKeyboard 224
>usb.cdc.ecm 5.0.0
>usb.cdc.ncm 5.0.0
>usb.!UHub 1.2
>usb.cdc 5.0.0
>usb.networking 5.0.0
>usb.!UHostCompositeDevice 1.2
>!AThunderboltDPOutAdapter 8.1.4
>!AThunderboltPCIUpAdapter 4.1.1
>!AThunderboltPCIDownAdapter 4.1.1
>!AThunderboltDPInAdapter 8.1.4
>!AThunderboltDPAdapter!F 8.1.4
>!AHPM 3.4.4
>!A!ILpssI2C!C 3.0.60
>!A!ILpssDmac 3.0.60
>!ABSDKextStarter 3
|IOSurface 290.8.1
@filesystems.hfs.encodings.kext 1
>!AEthernetAquantiaAqtion 1.0.64
>!ABCMWLANCoreMac 1.0.0
|IOSerial!F 11
|IO80211!FV2 1200.12.2b1
|IOSkywalk!F 1
>mDNSOffloadUserClient 1.0.1b8
>IOImageLoader 1.0.0
>corecapture 1.0.4
>!AThunderboltNHI 7.2.8
|IOThunderbolt!F 9.3.2
>!AXsanScheme 3
>usb.!UVHCIBCE 1.2
>usb.!UVHCICommonBCE 1.0
>usb.!UVHCI 1.2
>usb.!UVHCICommon 1.0
>!AEffaceableNOR 1.0
|IOBufferCopy!C 1.1.0
|IOBufferCopyEngine!F 1
|IONVMe!F 2.1.0
>!A!ILpssI2C 3.0.60
|IOAHCI!F 294.100.1
>usb.!UXHCIPCI 1.2
>usb.!UXHCI 1.2
>!A!ILpssGspi 3.0.60
>usb.!UHostPacketFilter 1.0
|IOUSB!F 900.4.2
>!AEFINVRAM 2.1
>!AEFIRuntime 2.1
>!ASMCRTC 1.0
|IOSMBus!F 1.1
|IOHID!F 2.0.0
$!AImage4 3.0.0
|IOTimeSync!F 985.2
|IONetworking!F 3.4
>DiskImages 493.0.0
|IO!B!F 8.0.5d7
|IOReport!F 47
|IO!BPacketLogger 8.0.5d7
$quarantine 4
$sandbox 300.0
@Kext.!AMatch 1.0.0d1
|CoreAnalytics!F 1
>!ASSE 1.0
>!AKeyStore 2
>!UTDM 511.141.1
|IOUSBMass!SDriver 184.140.2
|IOSCSIBlockCommandsDevice 436.140.1
|IO!S!F 2.1
|IOSCSIArchitectureModel!F 436.140.1
>!AMobileFileIntegrity 1.0.5
@kext.CoreTrust 1
>!AFDEKeyStore 28.30
>!AEffaceable!S 1.0
>!ACredentialManager 1.0
>KernelRelayHost 1
|IOUSBHost!F 1.2
>!UHostMergeProperties 1.2
>usb.!UCommon 1.0
>!ABusPower!C 1.0
>!ASEPManager 1.0.1
>IOSlaveProcessor 1
>!AACPIPlatform 6.1
>!ASMC 3.1.9
|IOPCI!F 2.9
|IOACPI!F 1.4
>watchdog 1
@kec.pthread 1
@kec.corecrypto 11.1
@kec.Libm 1
mp_kdp_enter() timed-out on cpu 18, NMI-ing
Panic(CPU 55, time 61833710527832): NMIPI for unresponsive processor: TLB flush timeout, TLB state:0x0
RAX: 0x0000000000000012, RBX: 0xffffffa602a9bc90, RCX: 0x0000000000000037, RDX: 0x0000000000000000
RSP: 0xffffffa602a9bb80, RBP: 0xffffffa602a9bbc0, RSI: 0x0000000000000003, RDI: 0x0000000000000006
R8: 0xffffff88ddf53000, R9: 0xffffff8018e8d86d, R10: 0x0000000000000000, R11: 0xffffffa602a9bc80
R12: 0xffffffa602a9bc90, R13: 0x0000000000000046, R14: 0xffffffa602a9bc90, R15: 0x0000000000000006
RFL: 0x0000000000000086, RIP: 0xffffff8018e8dcad, CS: 0x0000000000000008, SS: 0x0000000000000010
Backtrace (CPU 55), Frame : Return Address
0xffffffa59c518f80 : 0xffffff8018fc4bab
0xffffffa59c518fd0 : 0xffffff8018e32bdd
0xffffffa602a9bbc0 : 0xffffff8018fd4e13
0xffffffa602a9bc00 : 0xffffff8018fc540a
0xffffffa602a9bc50 : 0xffffff8018e32a2f
0xffffffa602a9bc70 : 0xffffff8018e8d86d
0xffffffa602a9bd90 : 0xffffff8018e8db63
0xffffffa602a9be00 : 0xffffff801969dc0a
0xffffffa602a9be70 : 0xffffff8018ea4696
0xffffffa602a9bee0 : 0xffffff8018eb14b7
0xffffffa602a9bf40 : 0xffffff8018eb64b0
0xffffffa602a9bf80 : 0xffffff8018eb65a8
0xffffffa602a9bfa0 : 0xffffff8018e3213e

Process name corresponding to current thread: kernel_task
mp_kdp_enter() NMI pending on cpus: 0 1 2 3 4 5 6 7 8 10 11 12 13 16 17 20 21 22 23 24 25 26 27 28 29 30 31 32 34 36 38 40 42 44 46 48 50 52
mp_kdp_enter() timed-out during locked wait after NMI;expected 56 acks but received 19 after 18504345 loops in 1246874999 ticks
panic(cpu 18 caller 0xffffff8018f9e4c1): "IPI timeout, unresponsive CPU bitmap: 0x1, NMIPI acks: 0x0, now: 0x1, deadline: 61833210354516, pre-NMIPI time: 0x383caa89dc62, current: 0x383caa8b03a8, global: 1"@/System/Volumes/Data/SWE/macOS/BuildRoots/d7e177bcf5/Library/Caches/com.apple.xbs/Sources/xnu/xnu-7195.141.2/osfmk/x86_64/pmap.c:2905
Backtrace (CPU 18), Frame : Return Address
0xffffffc619f7b210 : 0xffffff8018e8e04d
0xffffffc619f7b260 : 0xffffff8018fd4e13
0xffffffc619f7b2a0 : 0xffffff8018fc540a
0xffffffc619f7b2f0 : 0xffffff8018e32a2f
0xffffffc619f7b310 : 0xffffff8018e8d86d
0xffffffc619f7b430 : 0xffffff8018e8db63
0xffffffc619f7b4a0 : 0xffffff801969dc0a
0xffffffc619f7b510 : 0xffffff8018f9e4c1
0xffffffc619f7b5d0 : 0xffffff8018fa45dc
0xffffffc619f7b6b0 : 0xffffff8018fa53c6
0xffffffc619f7b710 : 0xffffff8018f334f5
0xffffffc619f7b860 : 0xffffff8018f32e43
0xffffffc619f7b890 : 0xffffff8018f2c511
0xffffffc619f7b8c0 : 0xffffff8019553d13
0xffffffc619f7b8e0 : 0xffffff8019600412
0xffffffc619f7b910 : 0xffffff7fb3c078bf
0xffffffc619f7b930 : 0xffffff7fb3bd593b
0xffffffc619f7b960 : 0xffffff7fb3bd5c77
0xffffffc619f7b990 : 0xffffff7fb3be042a
0xffffffc619f7b9d0 : 0xffffff801961fea1
0xffffffc619f7ba80 : 0xffffff801961e55a
0xffffffc619f7bad0 : 0xffffff7fb3be1af8
0xffffffc619f7bb20 : 0xffffff801962876b
0xffffffc619f7bc80 : 0xffffff8018f80841
0xffffffc619f7bd90 : 0xffffff8018e936cd
0xffffffc619f7be00 : 0xffffff8018e69cf5
0xffffffc619f7be60 : 0xffffff8018e81252
0xffffffc619f7bef0 : 0xffffff8018fa970d
0xffffffc619f7bfa0 : 0xffffff8018e33216
Kernel Extensions in backtrace:
com.apple.iokit.IOAcceleratorFamily2(442.9)[8F6B0D56-AFD7-38F7-8EDA-B43ACA468394]@0xffffff7fb3bb4000->0xffffff7fb3c1efff
dependency: com.apple.driver.AppleMobileFileIntegrity(1.0.5)[152D7047-0D43-3CA8-B1EA-251D3F80AC28]@0xffffff801a4c0000->0xffffff801a4d5fff
dependency: com.apple.iokit.IOGraphicsFamily(585.1)[B5241FDE-C525-39D6-9813-2BE73DD7CEE3]@0xffffff7fb3d35000->0xffffff7fb3d63fff
dependency: com.apple.iokit.IOPCIFamily(2.9)[F7AA4BAF-35CF-3784-A50C-5FD9CDCBE488]@0xffffff801b96c000->0xffffff801b994fff
dependency: com.apple.iokit.IOReportFamily(47)[AE367C5D-FEFC-390D-ABDF-86E037890F00]@0xffffff801b9a3000->0xffffff801b9a5fff
dependency: com.apple.iokit.IOSurface(290.8.1)[DCE8209F-A72D-3EBA-BE93-C0AF896AA9B5]@0xffffff801ba96000->0xffffff801bab2fff

Process name corresponding to current thread: WindowServer



[MarkC426]

Is this all stock Apple build, or have you upgraded cpu yourself?
I wouldn't be happy with a machine of that cost having kp's.



[RyanFlynn]

This is a stock build, with the exception of the memory. Im getting KP with stock memory as well



[astrorider]

Have you tried unloading/removing any kernel extensions you don't absolutely need and seeing if it resolves the problem? These three are shown at the top of your log (Google Drive, Intel Power Gadget, Universal Audio Interface):
com.google.drivefs.filesystems.dfsfuse 45.3.0
com.intel.driver.EnergyDriver 3.7.0
com.uaudio.driver.UAD2System 9.14.7



[RyanFlynn]

Yeah, I could pull power gadget, the others are essential



[Fastball32]

This is a stock build, with the exception of the memory. Im getting KP with stock memory as well

Maybe it’s the CPU? Did you get a QS or ES version? Just asking because I am wondering if upgraded CPU’s can potentially cause KP’s.



[RyanFlynn]

I own a production company and the computer with the KP is a 28core configure by apple. The computer with the Ebay 28-core is running beautifully.



[MarkC426]

Contact Apple then, and kick em up the butt....
You must be still in Warranty.



[rpmurray]

I've read that this could be caused by a bug between the OS and the GPU. Are you using the same video cards in both the Macs?



[MarkC426]

Surely not a bug between an Apple purchased GPU and the OS?



[RyanFlynn]

I've actually tried to swap video cards, I've used the MPX modules of the Pro Vega ii duo, 580 and the 6800x

R



[rpmurray]

Surely not a bug between an Apple purchased GPU and the OS?

As hard as it is to believe that Apple has QC problems with the OS there were some threads about GPU issues with Mojave that Apple ironed out in a later release.

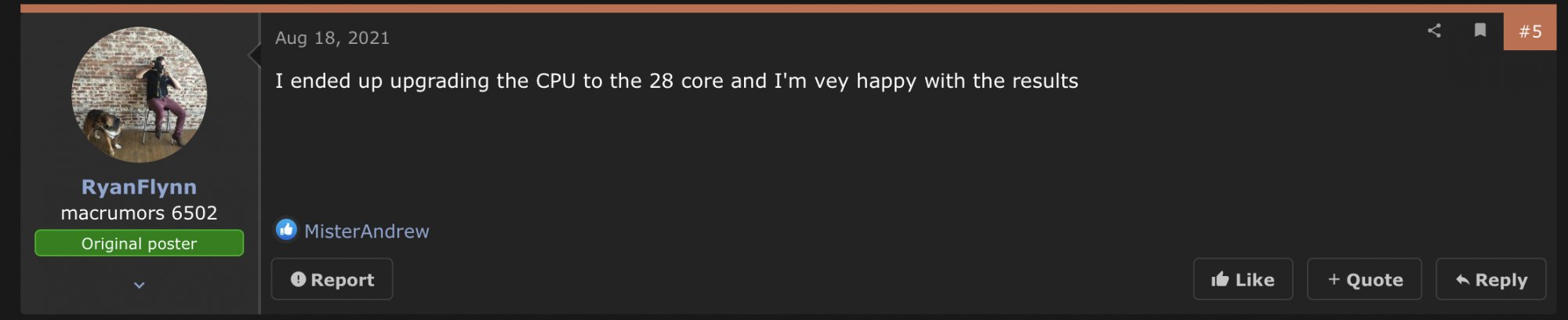

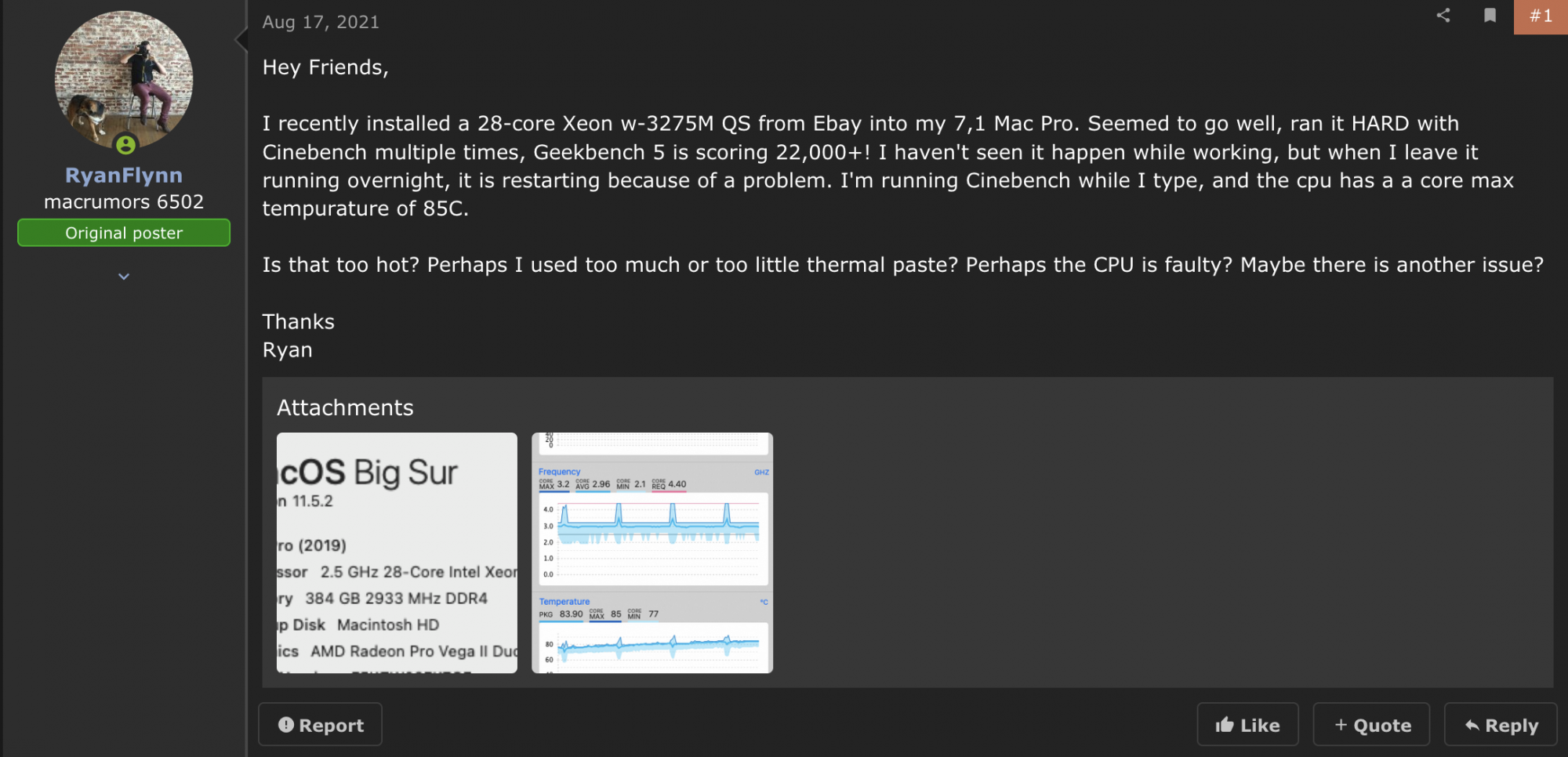

[Fastball32]

Cool. You have two exact same 2019 Mac Pro with exact same spec configurations, but one is from Apple and one is built from a QS CPU sample on eBay, and both have had random restart/shutting down issues? Your post said that resetting PRAM/NVRAM helped your eBay CPU and is now running beautifully, have you tried that for your OEM Apple CPU?

I agree with the other poster, you should contact Apple about hardware issues with the stock Mac Pro hardware. I don't decode KP's, but it mentions CPU's a couple times in the codes, so I would suspect CPU.



[rpmurray]

Have you tried running EtreCheck on both Macs and seeing if there are any differences between them?
