parisinvest

macrumors 6502
Original poster
Dec 24, 2017
263
19
Paris

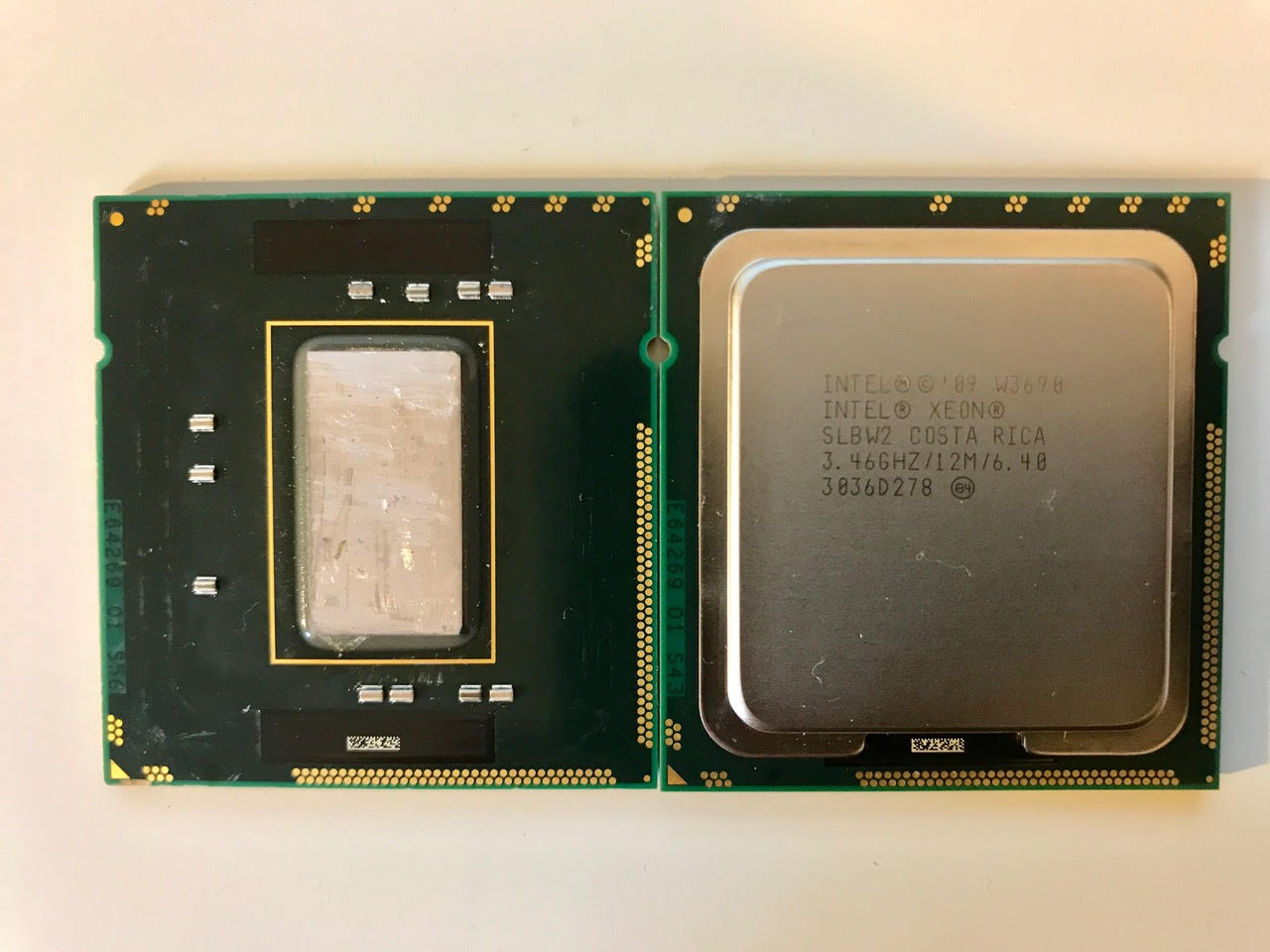

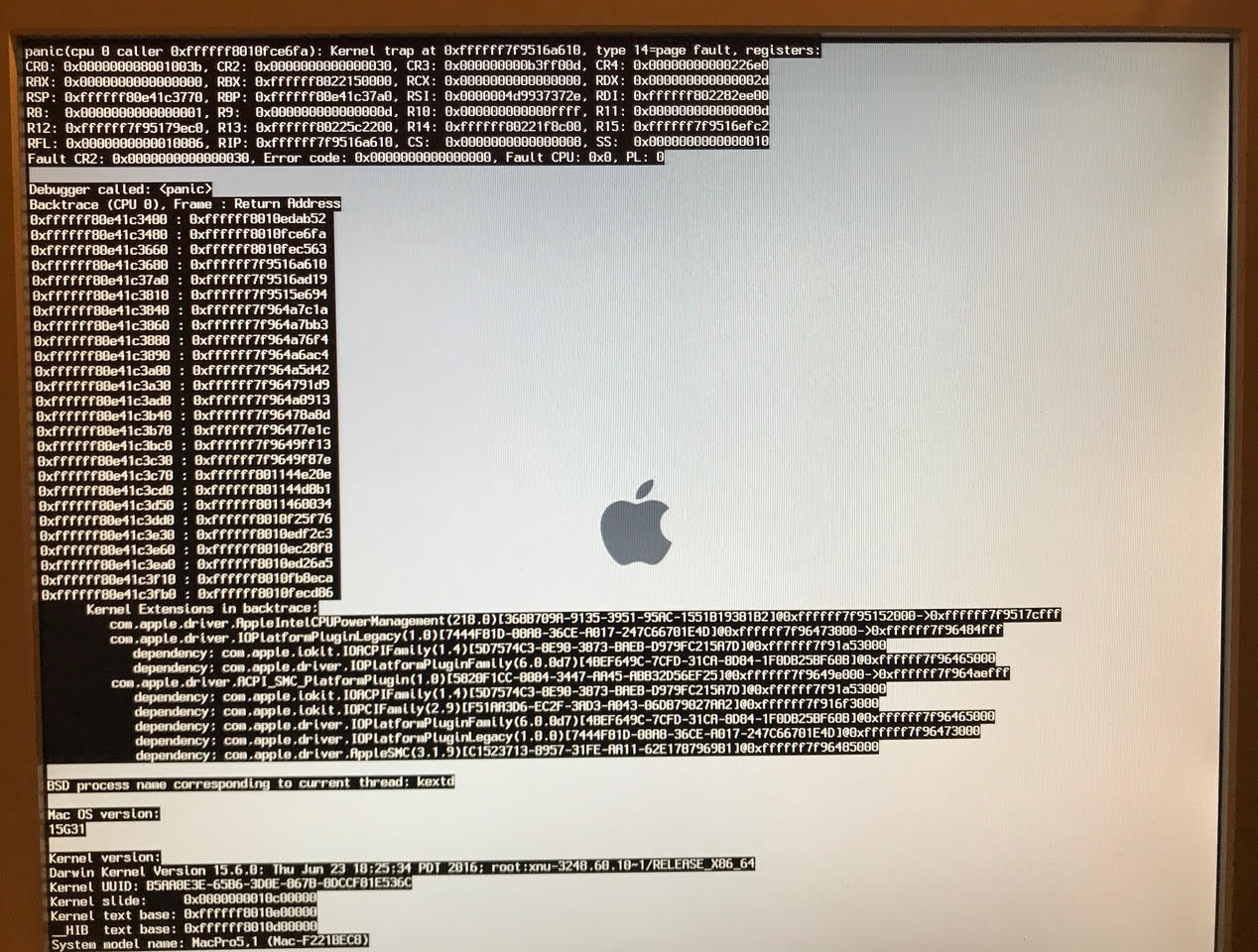

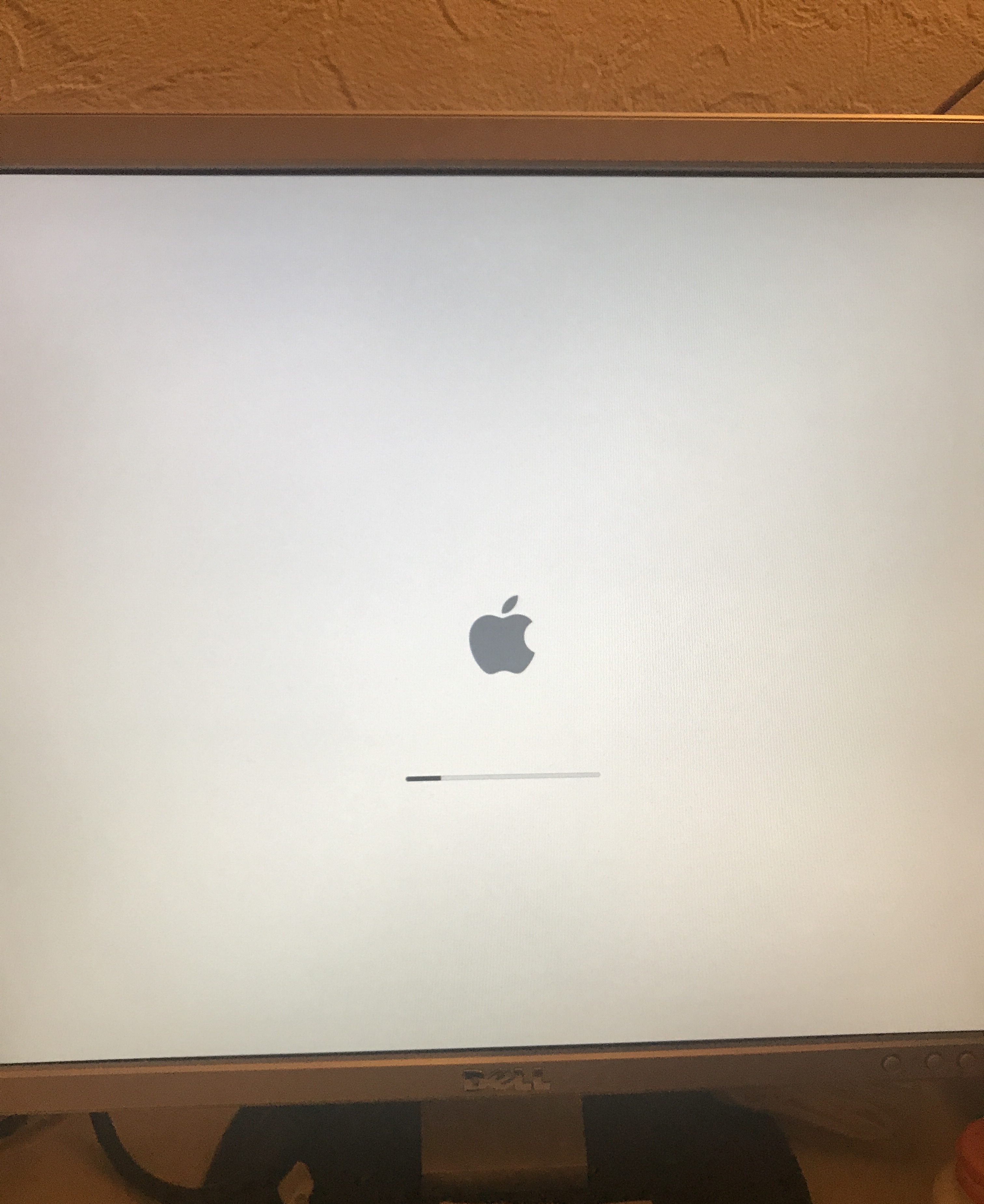

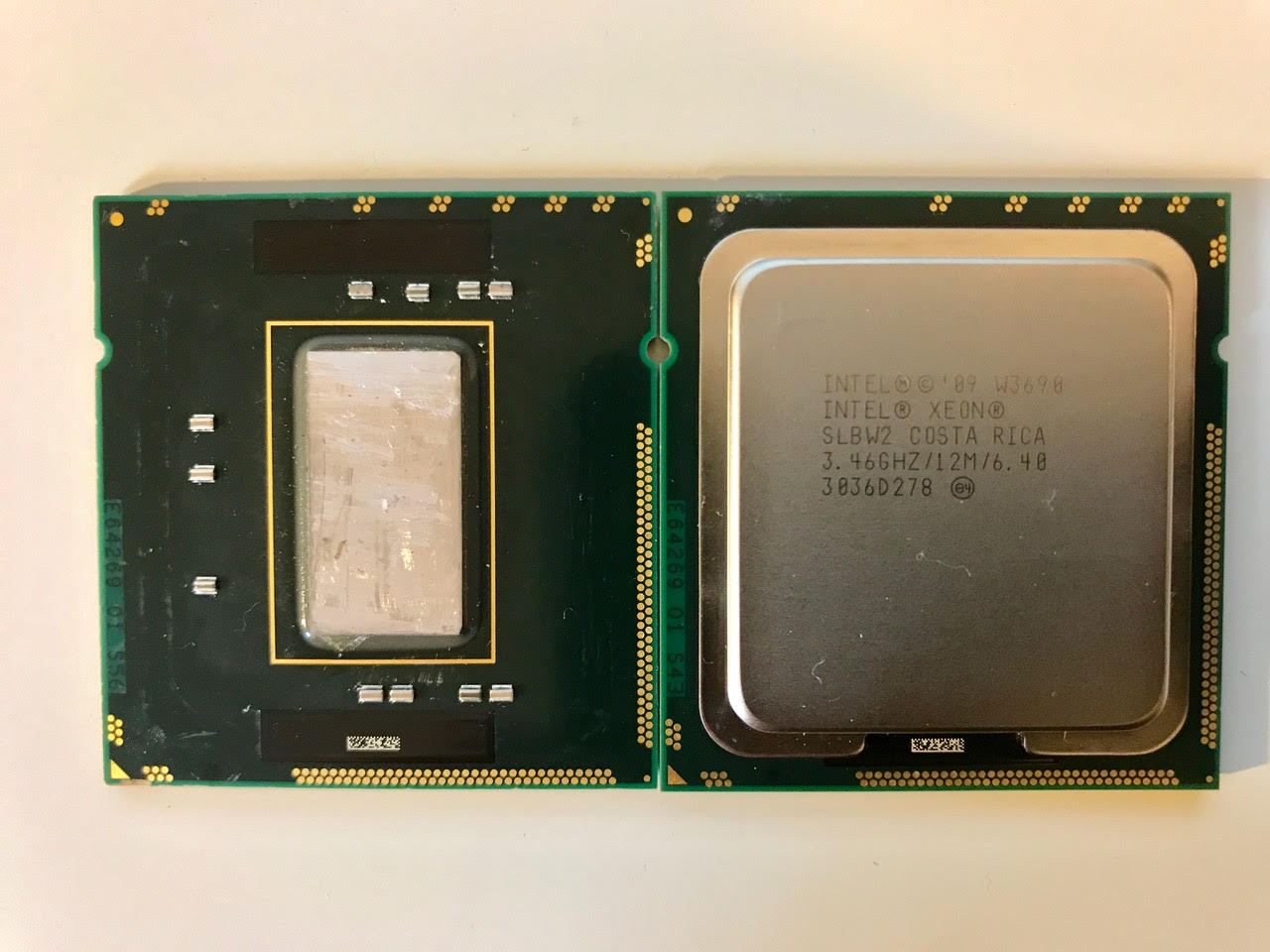

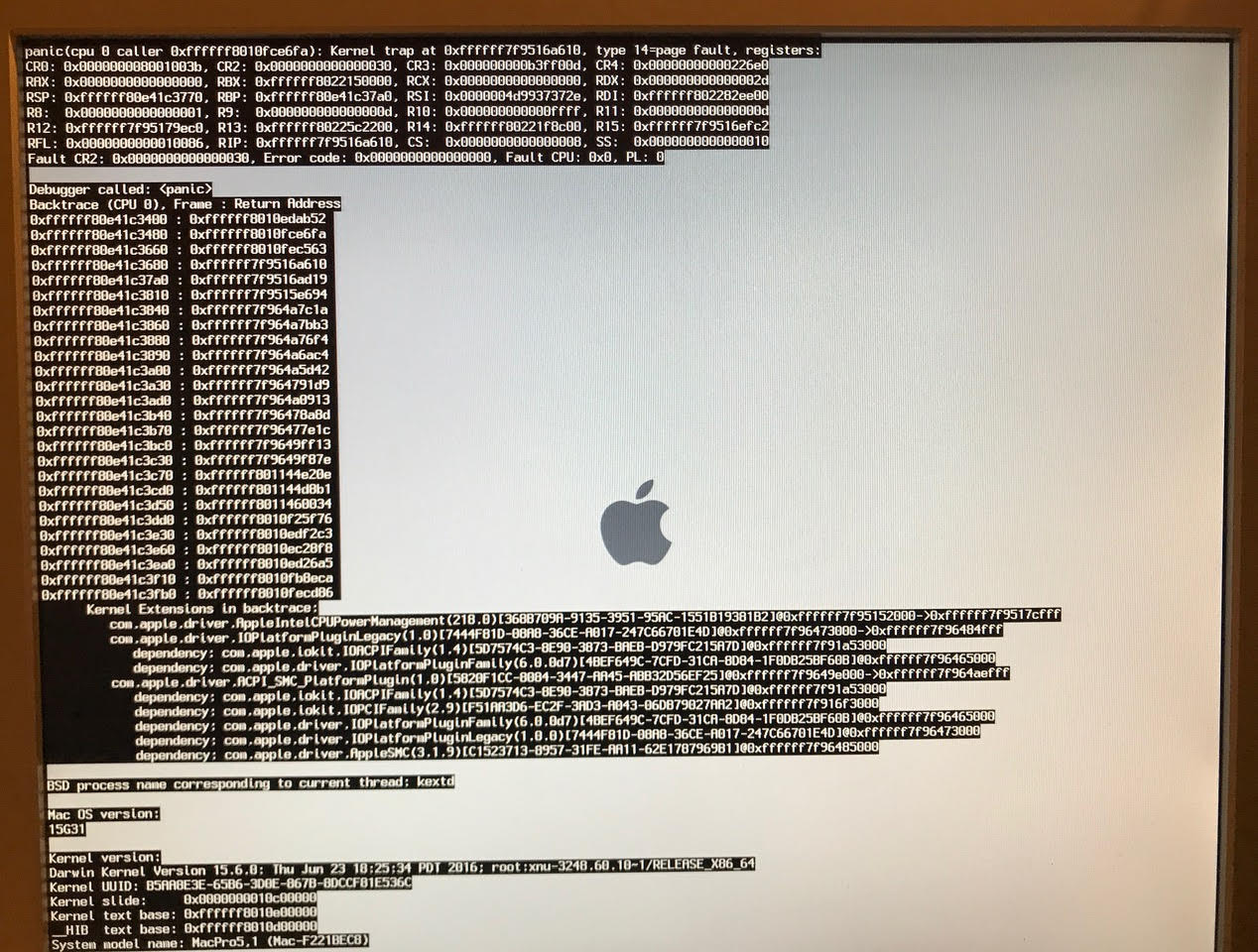

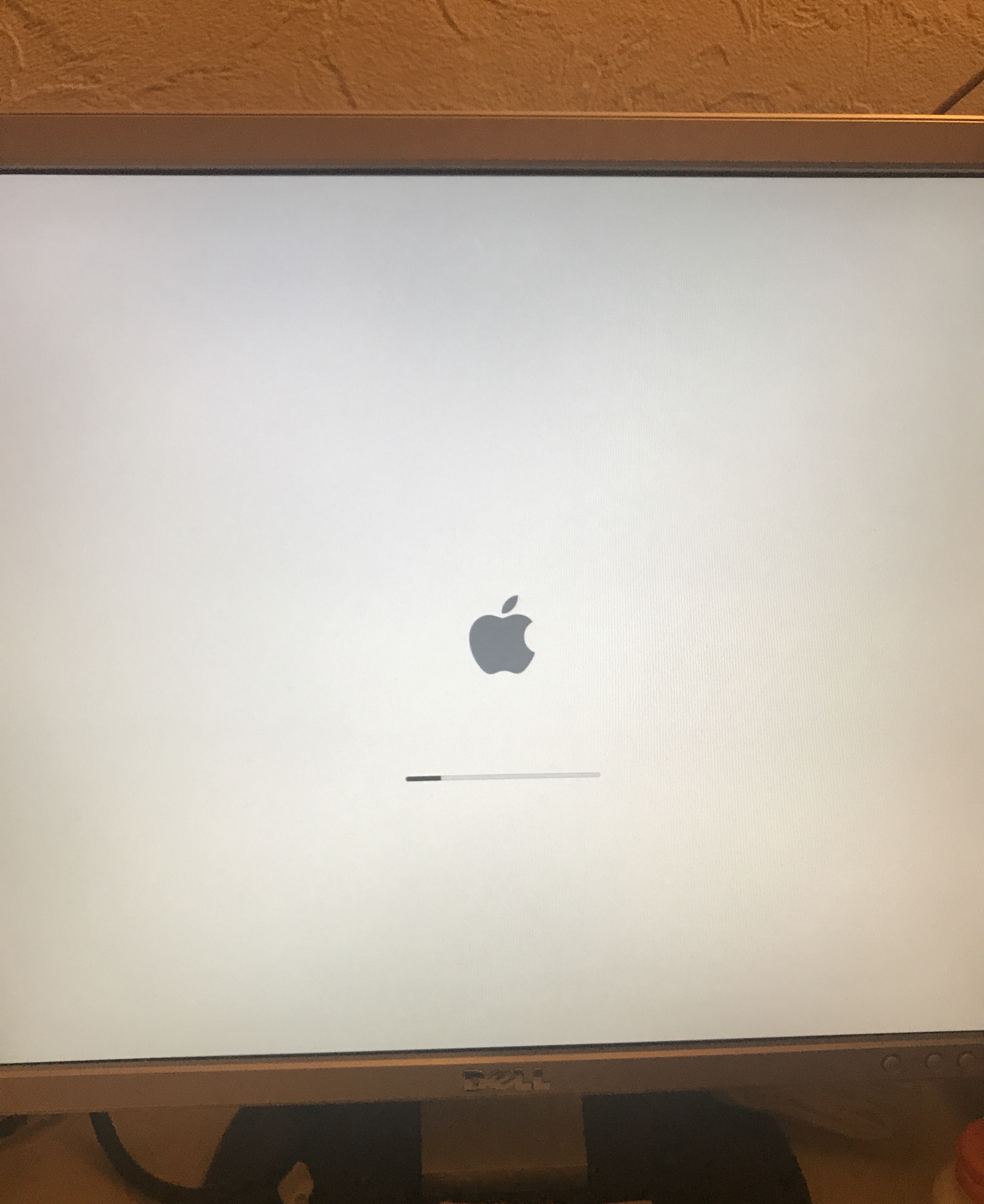

hello i've a mac pro 5.1 2010 2x2.4ghz quad, i was preparing the upgrade to 2x3.46ghz w3690, but after replaceed the cpu, the machine can start with apple diagnostic tone, but it can't go through the start to menu, not to reinstall system, when the start process bar run to about 1 third way, it shows a black screen with dos like message, and then it restart over again. can anyone help please?

i've alreday upgraded the efi firmware to install high sierra system, ram 1333 ddr3, shows in system 1066, when i put back the original cpu, it work perfectly without any issue.

btw, i've tested the same model cpu on my mac pro 4.1 upgraded 5.1, it's the same problem, i wonder if it's compatable or not, but i've seen the same serie number cpu sold on ebay with good reply. so it's shouldn't be the compatable problem. have not a clue, anyone please help! thanks.


Last edited:

bjar

macrumors regular
Feb 20, 2013
232
105
Sugar land, tx
hello i've a mac pro 5.1 2010 2x2.4ghz quad, i was preparing the upgrade to 2x3.46ghz w3690, but after replaceed the cpu, the machine can start with apple diagnostic tone, but it can't go through the start to menu, not to reinstall system, when the start process bar run to about 1 third way, it shows a black screen with dos like message, and then it restart over again. can anyone help please?

i've alreday upgraded the efi firmware to install high sierra system, ram 1333 ddr3, shows in system 1066, when i put back the original cpu, it work perfectly without any issue.

btw, i've tested the same model cpu on my mac pro 4.1 upgraded 5.1, it's the same problem, i wonder if it's compatable or not, but i've seen the same serie number cpu sold on ebay with good reply. so it's shouldn't be the compatable problem. have not a clue, anyone please help! thanks.

View attachment 748505 View attachment 748507 View attachment 748508

I could be wrong but I don’t think the w3690 works in a dual cpu configuration.


parisinvest

macrumors 6502
Original poster
Dec 24, 2017
263
19
Paris
hi many thanks guys, you've saved my ass, i supposed to buy more w3690, now i see the problem, you are so beautyful, happy new year 2018, daniel
