L1ru

macrumors newbie
Original poster
Jul 22, 2024
9
0

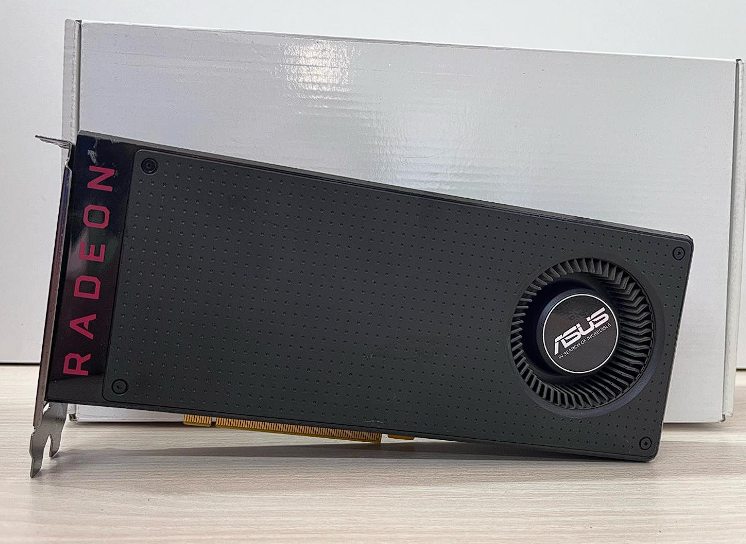

does anyone have this asus rx 480 blower in mac pro and working? im trying to upgrade from hd 5770 but i wanna be sure it will work


tsialex

Contributor
Jun 13, 2016
13,459
13,608
If this one is the reference model with just one 6-pin PCIe power connector, forget it.

Lot's of users here that damaged the PCIe slot by the excessive power draw of the RX 480 reference model.

The AMD Radeon RX 480 reference model was a so big fiasco that changed the way all GPUs draw power from the PCIe slots since then.

  • Like
Reactions: bmoraski and L1ru

L1ru

macrumors newbie
Original poster
Jul 22, 2024
9
0
oh ye it is only 6pin one **** i thought i had gold on my hands. is there any 6pin gpu that u can recommend? i heard rx560 is good and rx580 is good too but i dont have the cables for it


tsialex

Contributor
Jun 13, 2016
13,459
13,608
oh ye it is only 6pin one **** i thought i had gold on my hands. is there any 6pin gpu that u can recommend? i heard rx560 is good and rx580 is good too but i dont have the cables for it

RX 460/560 works with just one mini-PCIe 6-pin. Do not buy the versions without the PCIe power connector, won't work correctly with a MacPro5,1.

RX 480 non reference model, RX 570/580/590 require a dual 6-pin miniPCIe to 8-pin PCIe.

  • Like
Reactions: L1ru

L1ru

macrumors newbie
Original poster
Jul 22, 2024
9
0

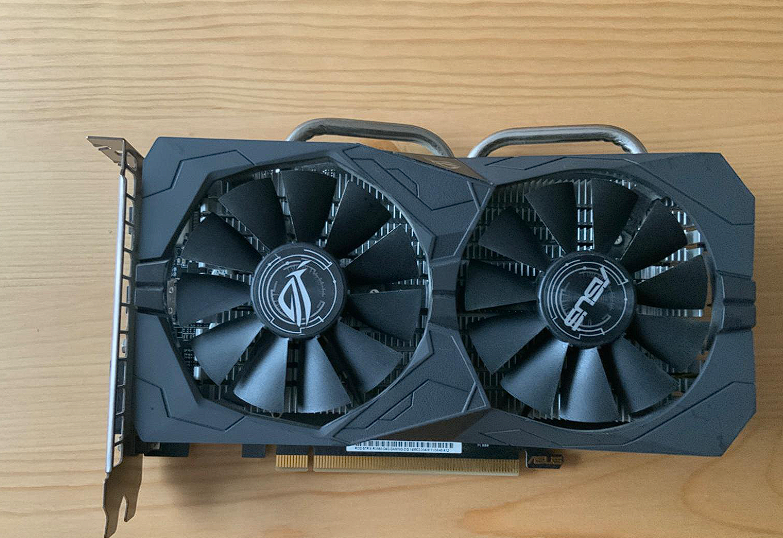

i found rx 560 strix rog that has 6pin that i can buy i seen that u posted similar gpu but the shroud is different


tsialex

Contributor
Jun 13, 2016
13,459
13,608

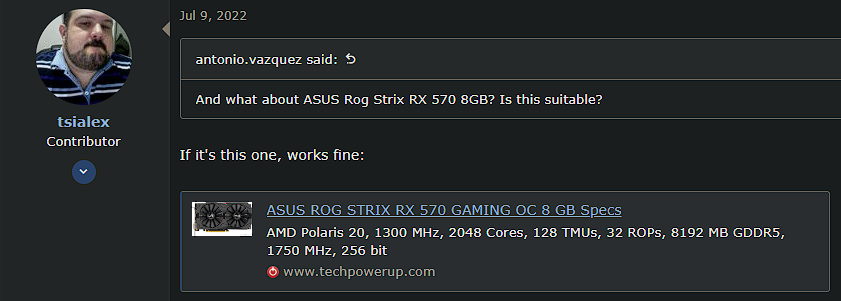

I wrote about the Asus RX 570, not the RX 560.

Anyway, the model that require one 6-pin PCIe works, the models that only require PCIe slot power, do not work correctly.

  • Like
Reactions: L1ru

L1ru

macrumors newbie
Original poster
Jul 22, 2024
9
0
thanks for your help i will buy the 560 strix one it has 6pin so it will work


benmuetsch

macrumors member
Oct 10, 2020
76
25
RX 460/560 works with just one mini-PCIe 6-pin. Do not buy the versions without the PCIe power connector, won't work correctly with a MacPro5,1.

RX 480 non reference model, RX 570/580/590 require a dual 6-pin miniPCIe to 8-pin PCIe.

I thought Apple recommended the MSI RX560 officially? I have one here working correctly in MP5.1 and even 7,1. Is this the exception? It has no PCIE power connector.


sofyan

macrumors newbie
Apr 5, 2011
13
9
I have the RX580 (from Asus?), worked perfectly smooth. I ordered the pci power connectors from eBay.


L1ru

macrumors newbie
Original poster
Jul 22, 2024
9
0
Here where i live they Are for sale dozens RX 560 Asus cards without a 6pin connector but i snatched one with connector for 34$


L1ru

macrumors newbie
Original poster
Jul 22, 2024
9
0

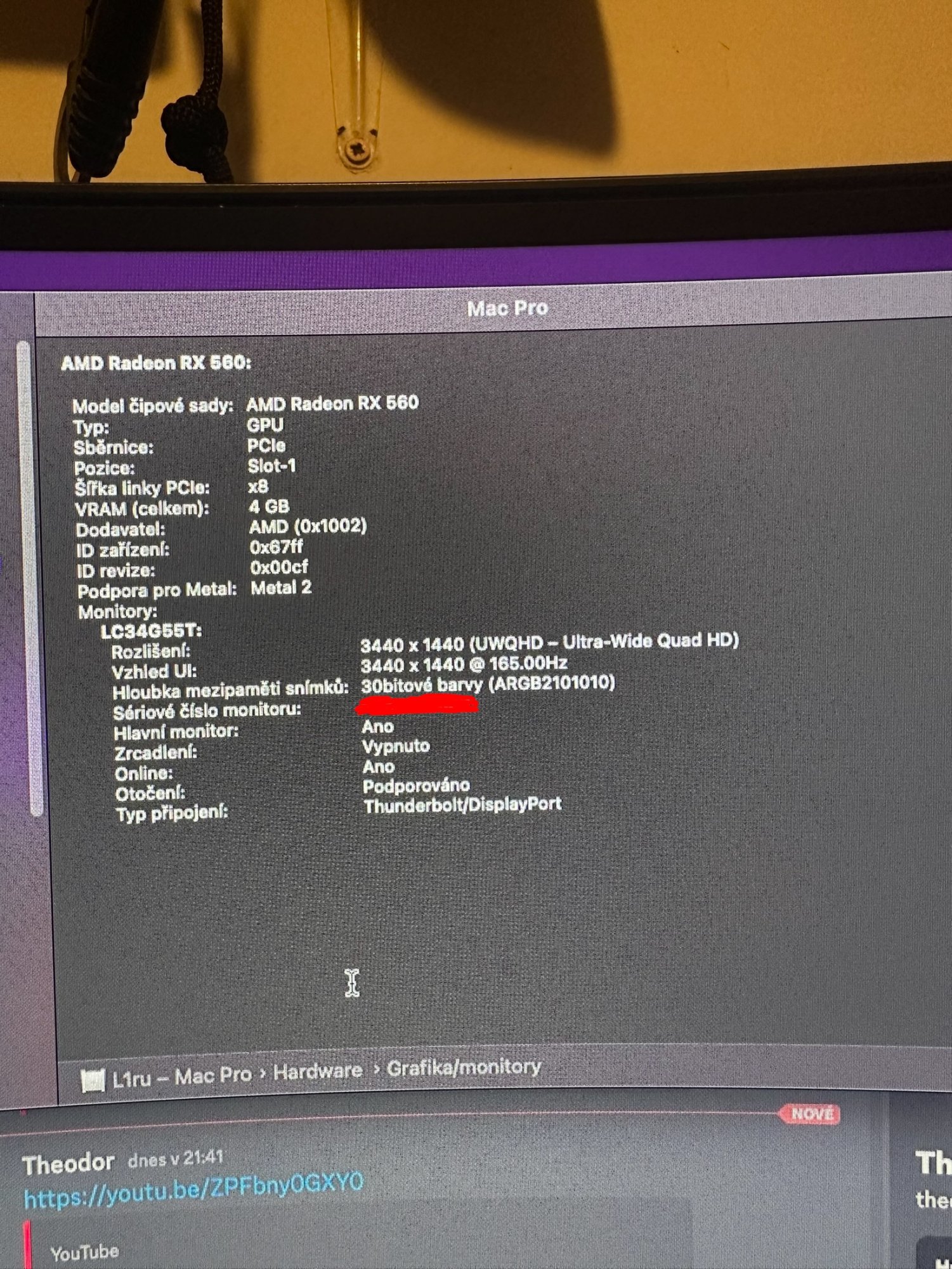

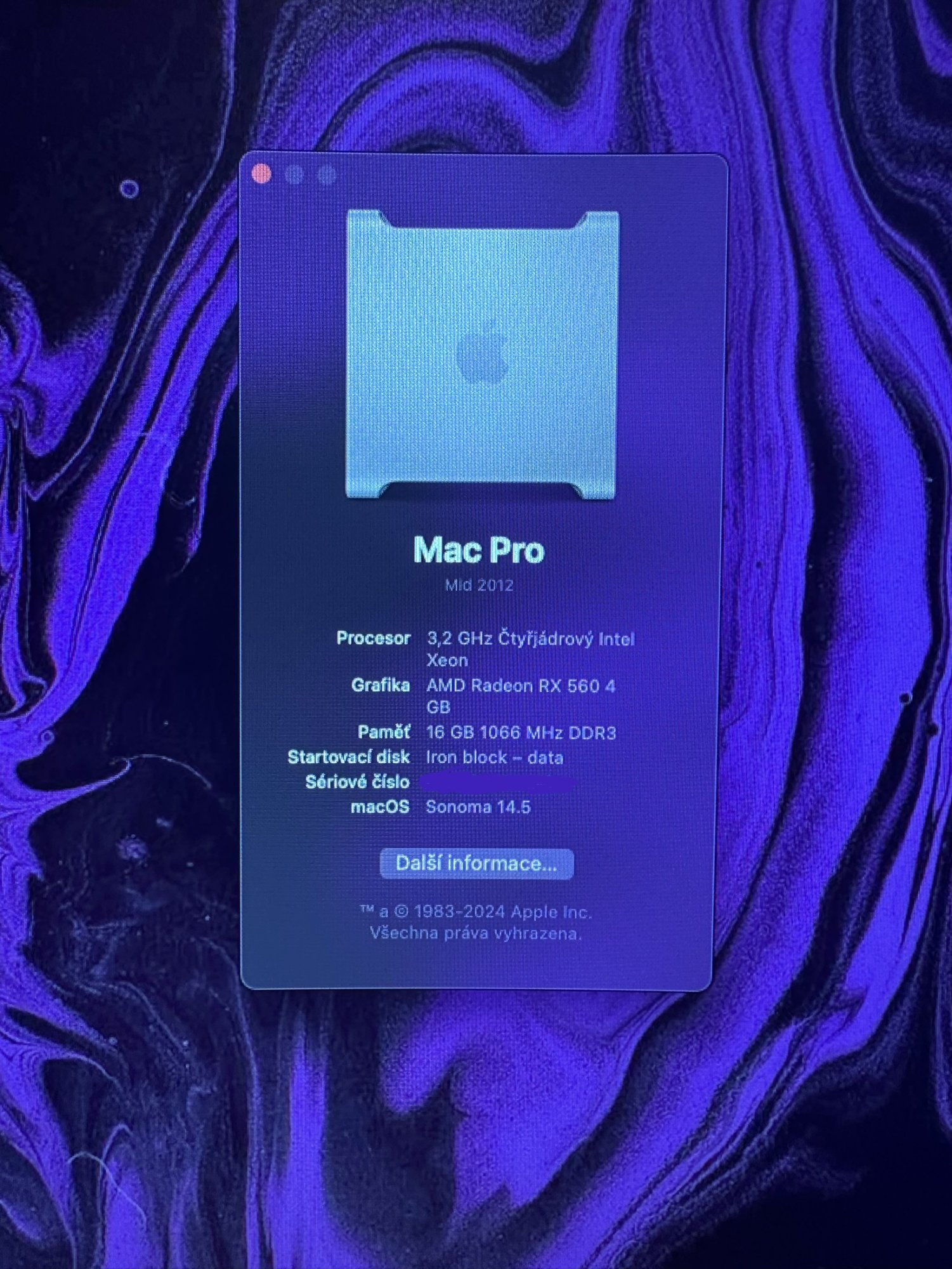

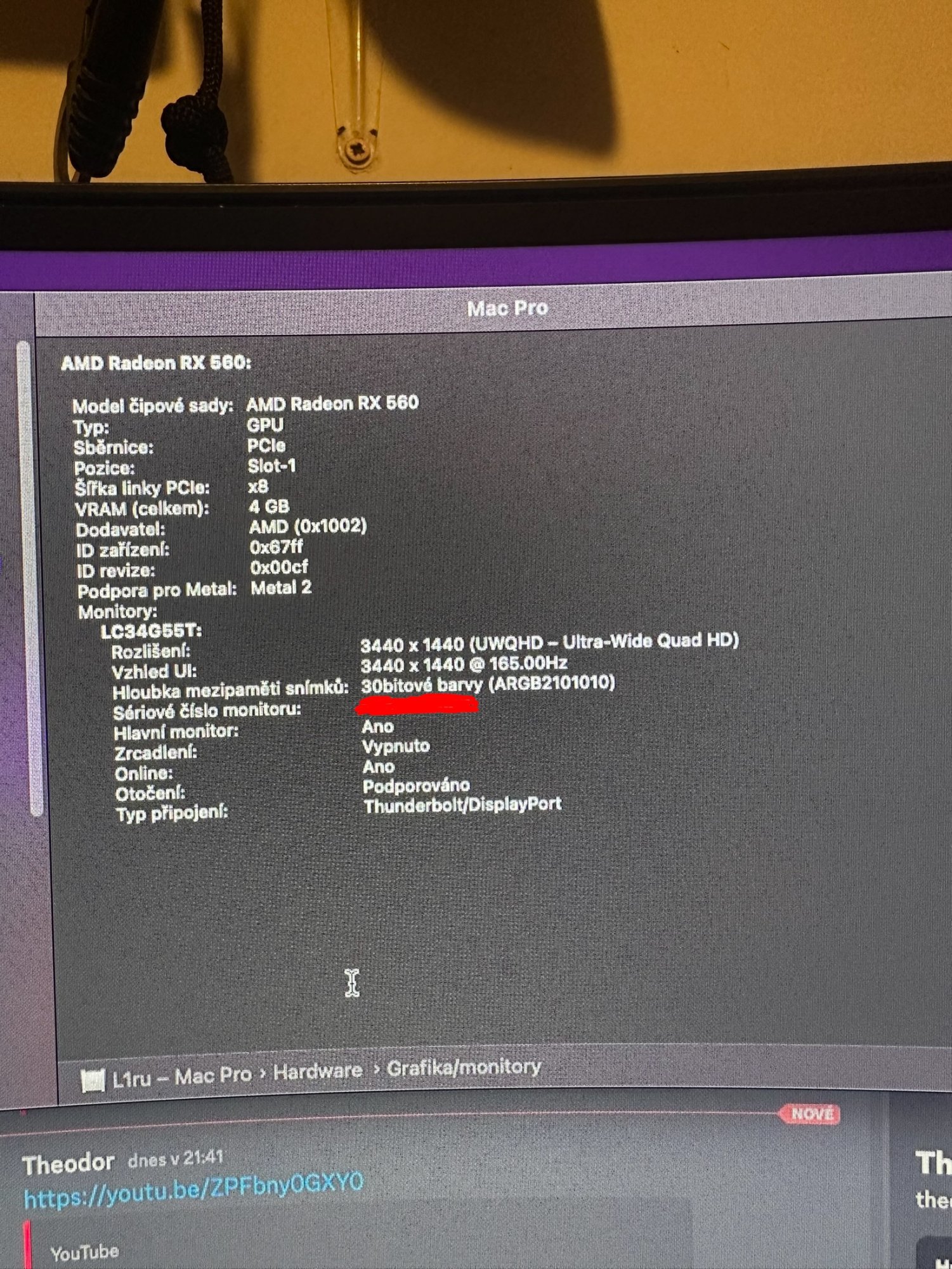

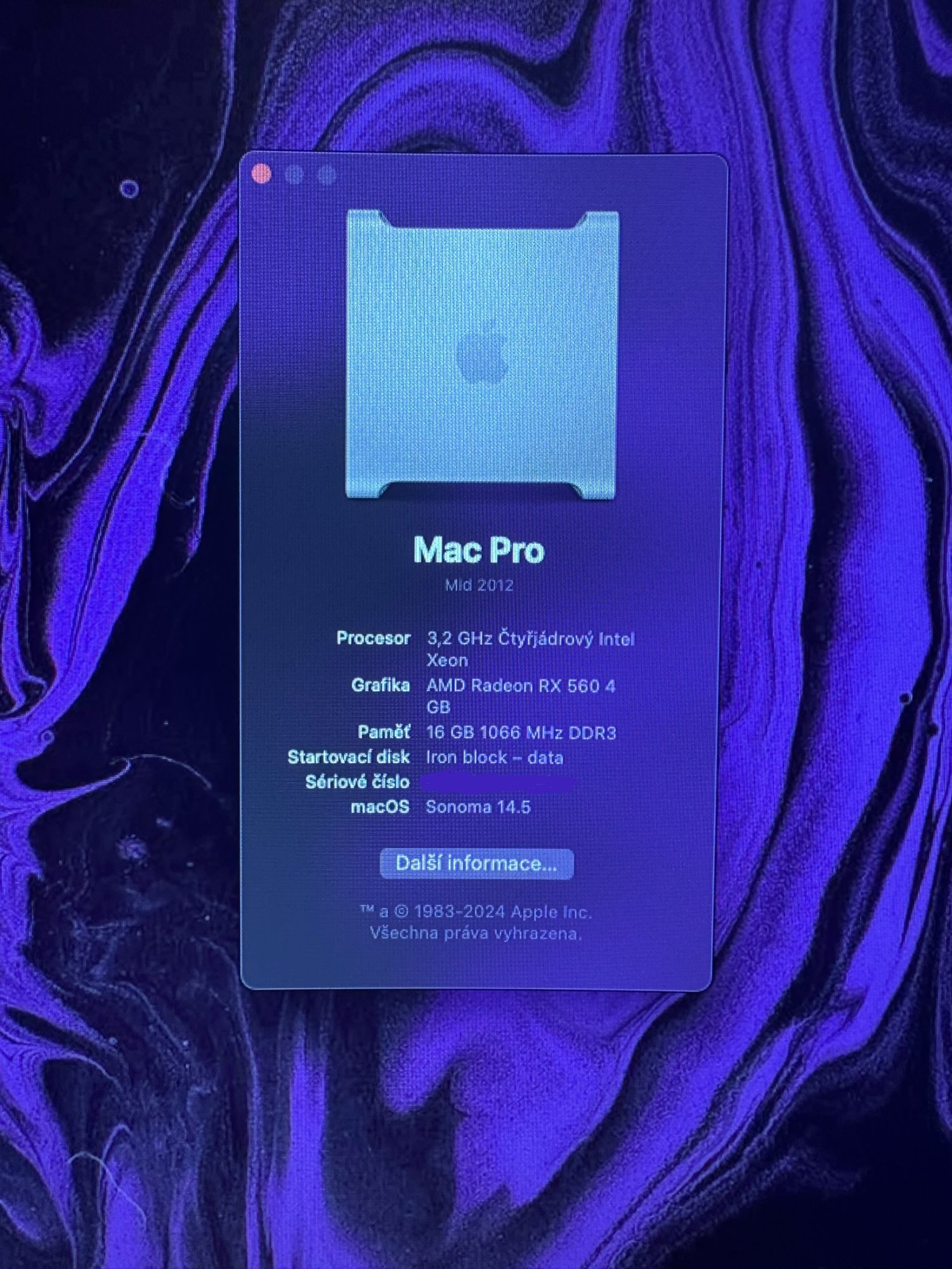

Installed gpu did pram resets And install macos And Its amazing macos on 164 Hz And 1440p ultrawide display Is gorgeous


Attachments

  • IMG_0869.jpeg
    518.7 KB · Views: 47
  • IMG_0870.jpeg
    726.9 KB · Views: 37
