MP All Models computer keep crashing- report attached

M

markooos

macrumors newbie
Original poster
Apr 15, 2025
8
0
Can someone help!

I am not very good with computers so would need a step by step, help please! idiots guide too..

BootROM upgrade??? replace GPU and upgrade to MP51.0089.Boo ?

I was told this a while ago, means absolutley nothing to me. May as well be talking chinese!

HELP!😅




Code:
Anonymous UUID:       B9B92D2B-1AEE-2A8C-C91B-F086419CCA0A

Fri Jul 18 15:23:38 2025

*** Panic Report ***
panic(cpu 6 caller 0xffffff7f95dc6312): NVRM[0/5:0:0]: Read Error 0x00000100: CFG 0xffffffff 0xffffffff 0xffffffff, BAR0 0x8a000000 0xffffff91fece7000 0x096000c1, D0, P1/2
Backtrace (CPU 6), Frame : Return Address
0xffffff91fe05ab50 : 0xffffff80150e756c
0xffffff91fe05abd0 : 0xffffff7f95dc6312
0xffffff91fe05ac90 : 0xffffff7f95e92076
0xffffff91fe05acd0 : 0xffffff7f95e920e1
0xffffff91fe05ad50 : 0xffffff7f96103fa1
0xffffff91fe05ae60 : 0xffffff7f95eb3be1
0xffffff91fe05ae80 : 0xffffff7f95dccef4
0xffffff91fe05af30 : 0xffffff7f95dca930
0xffffff91fe05b120 : 0xffffff7f95dccbd6
0xffffff91fe05b210 : 0xffffff7f9725d25c
0xffffff91fe05b290 : 0xffffff7f9725d53d
0xffffff91fe05b2b0 : 0xffffff7f9725a689
0xffffff91fe05b4e0 : 0xffffff7f97253da8
0xffffff91fe05b640 : 0xffffff7f972559a4
0xffffff91fe05b690 : 0xffffff7f97255329
0xffffff91fe05b710 : 0xffffff7f97255062
0xffffff91fe05b790 : 0xffffff7f9723d4e7
0xffffff91fe05b7f0 : 0xffffff7f9723ddd8
0xffffff91fe05b840 : 0xffffff7f9723e1bc
0xffffff91fe05b8a0 : 0xffffff7f9723e970
0xffffff91fe05b8e0 : 0xffffff7f9720c123
0xffffff91fe05ba60 : 0xffffff7f9720aaa1
0xffffff91fe05bac0 : 0xffffff80156e449e
0xffffff91fe05bb20 : 0xffffff80156e26a8
0xffffff91fe05bb80 : 0xffffff80156eb643
0xffffff91fe05bcc0 : 0xffffff80151bb2f8
0xffffff91fe05bdd0 : 0xffffff80150ec7ec
0xffffff91fe05be30 : 0xffffff80150c8fe1
0xffffff91fe05be80 : 0xffffff80150dd7a7
0xffffff91fe05bf10 : 0xffffff80151e8828
0xffffff91fe05bfb0 : 0xffffff8015098db6
      Kernel Extensions in backtrace:
         com.apple.nvidia.classic.NVDAResmanTesla(10.0.2)[C9A3682D-9EE9-3570-B8D9-2F1AE0F332F7]@0xffffff7f95d75000->0xffffff7f95fddfff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[17F821DD-EC4C-34A7-8CEE-5B435931700A]@0xffffff7f95931000
            dependency: com.apple.iokit.IONDRVSupport(516.1)[91AC4707-DCD4-35D4-81AD-9C425B63F349]@0xffffff7f95d65000
            dependency: com.apple.iokit.IOGraphicsFamily(515.3)[5EAC4E7C-6842-3DC0-A2D7-8A8BDA842179]@0xffffff7f95d1d000
         com.apple.nvidia.classic.NVDANV50HalTesla(10.0.2)[51B677B0-3288-360A-B0E7-213640716598]@0xffffff7f95fe9000->0xffffff7f96291fff
            dependency: com.apple.nvidia.classic.NVDAResmanTesla(10.0.2)[C9A3682D-9EE9-3570-B8D9-2F1AE0F332F7]@0xffffff7f95d75000
            dependency: com.apple.iokit.IOPCIFamily(2.9)[17F821DD-EC4C-34A7-8CEE-5B435931700A]@0xffffff7f95931000
         com.apple.GeForceTesla(10.0.2)[4D631526-F153-3867-ABE0-C94EDBF9A999]@0xffffff7f971f9000->0xffffff7f972bffff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[17F821DD-EC4C-34A7-8CEE-5B435931700A]@0xffffff7f95931000
            dependency: com.apple.iokit.IONDRVSupport(516.1)[91AC4707-DCD4-35D4-81AD-9C425B63F349]@0xffffff7f95d65000
            dependency: com.apple.iokit.IOGraphicsFamily(515.3)[5EAC4E7C-6842-3DC0-A2D7-8A8BDA842179]@0xffffff7f95d1d000
            dependency: com.apple.nvidia.classic.NVDAResmanTesla(10.0.2)[C9A3682D-9EE9-3570-B8D9-2F1AE0F332F7]@0xffffff7f95d75000

BSD process name corresponding to current thread: com.apple.WebKit

Mac OS version:
16G1510

Kernel version:
Darwin Kernel Version 16.7.0: Thu Jun 21 20:07:39 PDT 2018; root:xnu-3789.73.14~1/RELEASE_X86_64
Kernel UUID: CA05D43A-8B83-3114-828D-72E83BEC8DD9
Kernel slide:     0x0000000014e00000
Kernel text base: 0xffffff8015000000
__HIB  text base: 0xffffff8014f00000
System model name: MacPro5,1 (Mac-F221BEC8)

System uptime in nanoseconds: 2212939548623
last loaded kext at 278508199208: com.apple.filesystems.msdosfs    1.10 (addr 0xffffff7f962b7000, size 69632)
last unloaded kext at 339410027609: com.apple.driver.AppleUSBMergeNub    900.4.1 (addr 0xffffff7f967cd000, size 12288)
loaded kexts:
com.avast.PacketForwarder    2.1
com.avast.FileShield    4.0.0
com.apple.driver.AudioAUUC    1.70
com.apple.driver.AppleHWSensor    1.9.5d0
com.apple.driver.AGPM    110.23.17
com.apple.driver.AppleTyMCEDriver    1.0.2d2
com.apple.filesystems.autofs    3.0
com.apple.driver.AppleMikeyHIDDriver    131
com.apple.driver.AppleHDA    279.48
com.apple.driver.AppleMikeyDriver    279.48
com.apple.driver.pmtelemetry    1
com.apple.iokit.IOUserEthernet    1.0.1
com.apple.driver.AppleUpstreamUserClient    3.6.4
com.apple.driver.AppleMCCSControl    1.3.4
com.apple.iokit.IOBluetoothSerialManager    5.0.5f3
com.apple.GeForceTesla    10.0.2
com.apple.Dont_Steal_Mac_OS_X    7.0.0
com.apple.driver.AppleOSXWatchdog    1
com.apple.driver.AppleHV    1
com.apple.driver.AppleLPC    3.1
com.apple.driver.AppleIntelSlowAdaptiveClocking    4.0.0
com.apple.driver.ACPI_SMC_PlatformPlugin    1.0.0
com.apple.iokit.IOAHCIBlockStorage    295.20.1
com.apple.iokit.SCSITaskUserClient    394.50.1
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless    1.0.0d1
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib    1.0.0
com.apple.BootCache    40
com.apple.filesystems.hfs.kext    366.70.3
com.apple.driver.AppleFWOHCI    5.5.5
com.apple.driver.Intel82574LEthernet    2.7.2
com.apple.driver.AirPort.Brcm4331    800.21.30
com.apple.driver.AppleAHCIPort    326.60.1
com.apple.driver.AppleRTC    2.0
com.apple.driver.AppleHPET    1.8
com.apple.driver.AppleACPIButtons    5.0
com.apple.driver.AppleSMBIOS    2.1
com.apple.driver.AppleACPIEC    5.0
com.apple.driver.AppleAPIC    1.7
com.apple.driver.AppleIntelCPUPowerManagementClient    219.0.0
com.apple.nke.applicationfirewall    172
com.apple.security.quarantine    3
com.apple.security.TMSafetyNet    8
com.apple.driver.AppleIntelCPUPowerManagement    219.0.0
com.apple.AppleGraphicsDeviceControl    3.14.49
com.apple.kext.triggers    1.0
com.apple.driver.DspFuncLib    279.48
com.apple.kext.OSvKernDSPLib    525
com.apple.iokit.IOSurface    159.12
com.apple.iokit.IOSerialFamily    11
com.apple.nvidia.classic.NVDANV50HalTesla    10.0.2
com.apple.nvidia.classic.NVDAResmanTesla    10.0.2
com.apple.driver.AppleSMBusController    1.0.18d1
com.apple.driver.AppleSSE    1.0
com.apple.iokit.IOFireWireIP    2.2.7
com.apple.driver.AppleSMBusPCI    1.0.14d1
com.apple.iokit.IONDRVSupport    516.1
com.apple.driver.AppleHDAController    279.48
com.apple.iokit.IOGraphicsFamily    515.3
com.apple.iokit.IOHDAFamily    279.48
com.apple.iokit.IOAudioFamily    205.15
com.apple.vecLib.kext    1.2.0
com.apple.iokit.IOSlowAdaptiveClockingFamily    1.0.0
com.apple.driver.AppleSMC    3.1.9
com.apple.driver.IOPlatformPluginLegacy    1.0.0
com.apple.driver.IOPlatformPluginFamily    6.0.0d8
com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport    5.0.5f3
com.apple.iokit.IOBluetoothHostControllerUSBTransport    5.0.5f3
com.apple.iokit.IOBluetoothHostControllerTransport    5.0.5f3
com.apple.iokit.IOBluetoothFamily    5.0.5f3
com.apple.driver.usb.IOUSBHostHIDDevice    1.1
com.apple.iokit.IOSCSIBlockCommandsDevice    394.50.1
com.apple.driver.usb.AppleUSBHub    1.1
com.apple.iokit.IOUSBMassStorageDriver    131.60.1
com.apple.driver.usb.networking    5.0.0
com.apple.driver.usb.AppleUSBHostCompositeDevice    1.1
com.apple.iokit.IOSCSIMultimediaCommandsDevice    394.50.1
com.apple.iokit.IOBDStorageFamily    1.8
com.apple.iokit.IODVDStorageFamily    1.8
com.apple.iokit.IOCDStorageFamily    1.8
com.apple.filesystems.hfs.encodings.kext    1
com.apple.iokit.IOAHCISerialATAPI    266.50.1
com.apple.iokit.IOSCSIArchitectureModelFamily    394.50.1
com.apple.iokit.IOFireWireFamily    4.6.6
com.apple.iokit.IO80211Family    1200.12.2
com.apple.iokit.IONetworkingFamily    3.2
com.apple.driver.corecapture    1.0.4
com.apple.iokit.IOAHCIFamily    288
com.apple.driver.usb.AppleUSBEHCIPCI    1.1
com.apple.driver.usb.AppleUSBUHCIPCI    1.1
com.apple.driver.usb.AppleUSBUHCI    1.1
com.apple.driver.usb.AppleUSBEHCI    1.1
com.apple.driver.usb.AppleUSBHostPacketFilter    1.0
com.apple.iokit.IOUSBFamily    900.4.1
com.apple.driver.AppleUSBHostMergeProperties    1.1
com.apple.driver.AppleEFINVRAM    2.1
com.apple.driver.AppleEFIRuntime    2.1
com.apple.iokit.IOHIDFamily    2.0.0
com.apple.iokit.IOSMBusFamily    1.1
com.apple.security.sandbox    300.0
com.apple.kext.AppleMatch    1.0.0d1
com.apple.driver.AppleKeyStore    2
com.apple.driver.AppleMobileFileIntegrity    1.0.5
com.apple.driver.AppleCredentialManager    1.0
com.apple.driver.KernelRelayHost    1
com.apple.iokit.IOUSBHostFamily    1.1
com.apple.driver.AppleBusPowerController    1.0
com.apple.driver.DiskImages    444.50.17
com.apple.iokit.IOStorageFamily    2.1
com.apple.iokit.IOReportFamily    31
com.apple.driver.AppleFDEKeyStore    28.30
com.apple.driver.AppleACPIPlatform    5.0
com.apple.iokit.IOPCIFamily    2.9
com.apple.iokit.IOACPIFamily    1.4
com.apple.kec.Libm    1
com.apple.kec.pthread    1
com.apple.kec.corecrypto    1.0


Attachments

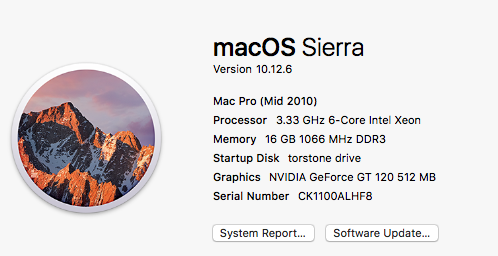

  • Screen Shot 2025-07-18 at 15.37.05.png
    Screen Shot 2025-07-18 at 15.37.05.png
    84.1 KB · Views: 113

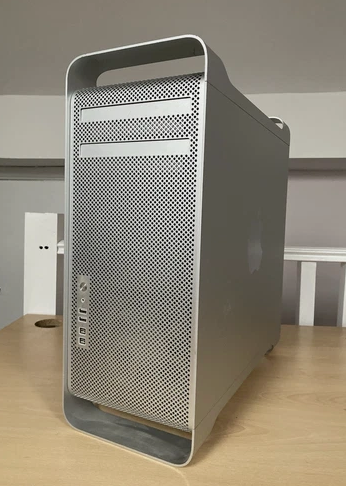

  • Screen Shot 2025-07-18 at 15.38.47.png
    Screen Shot 2025-07-18 at 15.38.47.png
    225.5 KB · Views: 79
markooos said:
Code:
      Kernel Extensions in backtrace:
         com.apple.nvidia.classic.NVDAResmanTesla(10.0.2)[C9A3682D-9EE9-3570-B8D9-2F1AE0F332F7]@0xffffff7f95d75000->0xffffff7f95fddfff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[17F821DD-EC4C-34A7-8CEE-5B435931700A]@0xffffff7f95931000
            dependency: com.apple.iokit.IONDRVSupport(516.1)[91AC4707-DCD4-35D4-81AD-9C425B63F349]@0xffffff7f95d65000
            dependency: com.apple.iokit.IOGraphicsFamily(515.3)[5EAC4E7C-6842-3DC0-A2D7-8A8BDA842179]@0xffffff7f95d1d000
         com.apple.nvidia.classic.NVDANV50HalTesla(10.0.2)[51B677B0-3288-360A-B0E7-213640716598]@0xffffff7f95fe9000->0xffffff7f96291fff
            dependency: com.apple.nvidia.classic.NVDAResmanTesla(10.0.2)[C9A3682D-9EE9-3570-B8D9-2F1AE0F332F7]@0xffffff7f95d75000
            dependency: com.apple.iokit.IOPCIFamily(2.9)[17F821DD-EC4C-34A7-8CEE-5B435931700A]@0xffffff7f95931000
         com.apple.GeForceTesla(10.0.2)[4D631526-F153-3867-ABE0-C94EDBF9A999]@0xffffff7f971f9000->0xffffff7f972bffff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[17F821DD-EC4C-34A7-8CEE-5B435931700A]@0xffffff7f95931000
            dependency: com.apple.iokit.IONDRVSupport(516.1)[91AC4707-DCD4-35D4-81AD-9C425B63F349]@0xffffff7f95d65000
            dependency: com.apple.iokit.IOGraphicsFamily(515.3)[5EAC4E7C-6842-3DC0-A2D7-8A8BDA842179]@0xffffff7f95d1d000
            dependency: com.apple.nvidia.classic.NVDAResmanTesla(10.0.2)[C9A3682D-9EE9-3570-
Click to expand...

Probably a dying Nvidia GT120 GPU, borrow one and confirm it.

When you gonna buy a new one, get a RX 560 or RX580, so you have a METAL one and will be possible to upgrade to Mojave.

i have no way of borrowing a Nvidia GT120 GPU?

Can you send me a link to a RX 560 or RX580 so i can see that this is and the cost. I have no idea exactly what it is, cheers

hi please see the attached list below, i have high lighted in red possible GPU are these best ones on the list for me?

Question
1) the gpu wants to have the largest GB as possible?
2) Changing the GPU will not effect files stored on my mac and software installed?
3) Will upgrading to Mojave effect any of the above?

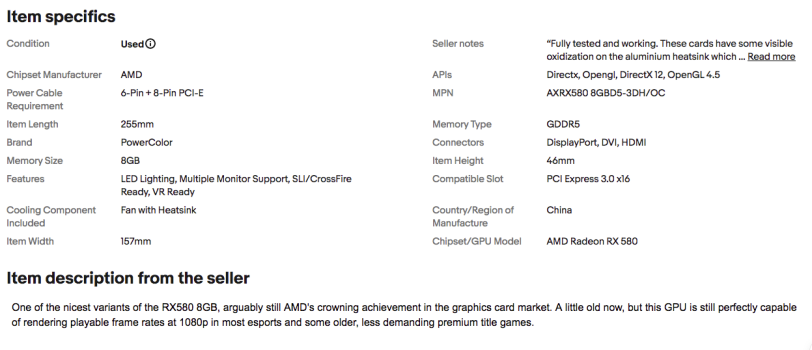

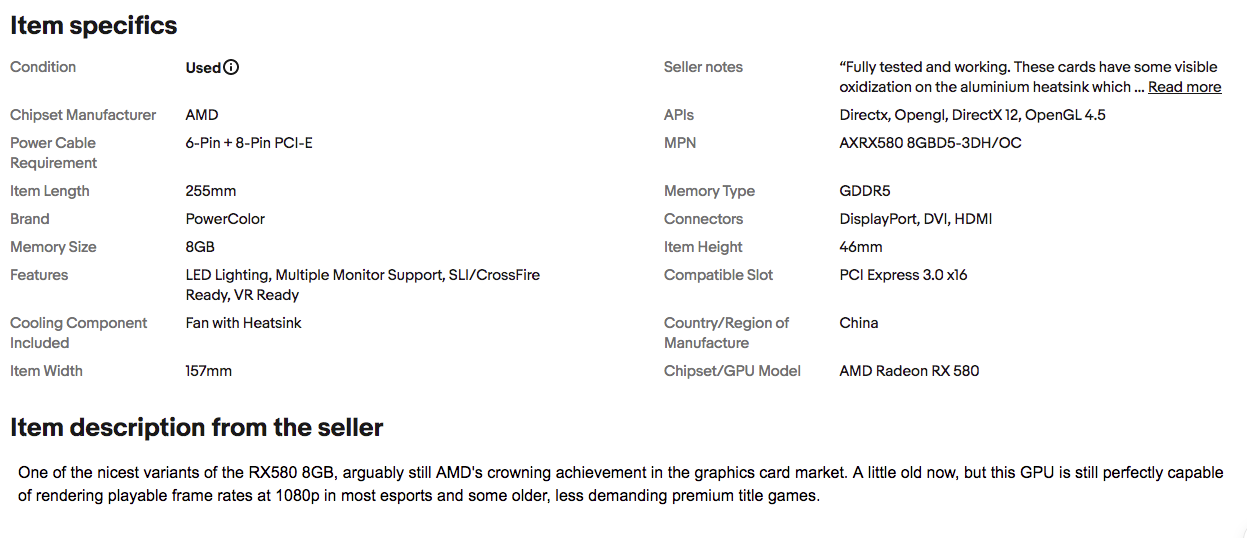

I have also place a link to a ebay listing of gpu's any of these look good?
https://www.ebay.co.uk/sch/i.html?_nkw=Radeon+HD+7950&_sacat=0&_from=R40&_trksid=p2332490.m570.l1313

Thank you for your valuable help!
------

AMD GPUMin OS SupportSupports MetalMac EFI flashablePSU Mod
Radeon HD 795010.8.3 - CurrYesYes*No
Radeon HD 797010.8.3 - 10.13.6 or CurrYesYes**No
Radeon HD 7970 (GHz Edition)10.8.3 - 10.13.6 or CurrYesYes**No
R9 280X10.12 - Curr 1YesYes**No
R9 290X10.10 - CurrYesNoNo
R9 Nano10.11 - CurrYesNoNo
R9 Fury10.12 - Curr, 1YesNoNo
R9 Fury X10.12 - Curr ?YesNoNo
Radeon RX 45010.12 - CurrYesNoNo
Radeon RX 45510.12 - CurrYesNoNo
Radeon Rx 46010.12 - Curr 1YesNoNo
Radeon RX 47010.12.6 - Curr 1YesNoNo
Radeon RX 48010.12.6 - Curr 1 2YesNoNo
Radeon RX 56010.12.6 - Curr 1YesNoNo
Radeon RX 560x10.12.6 - CurrYesNoNo
Radeon RX 57010.12.6 - CurrYesNoNo
Radeon RX 570x10.12.6 - CurrYesNoNo
Radeon RX 58010.12.6 - CurrYesNo ***No
Radeon RX 580x10.12.6 - CurrYesNoNo
Radeon Pro WX 410010.12- CurrYesNoNo
Radeon Pro WX 413010.12 - CurrYesNoNo
Radeon Pro WX 415010.12 - CurrYesNoNo
Radeon Pro WX 417010.13? - CurrYesNoNo
Radeon Pro WX 510010.13? - CurrYesNoNo
Radeon Pro WX 710010.13? - CurrYesNoNo
Radeon Pro WX 810010.13? - CurrYesNoNo
Radeon Pro WX 910010.13? - CurrYesNoNo
Radeon Pro Duo 32GB GDDR5 512-Bit
too long for Mac Pro, requires removing PCIe fans		10.13? - CurrYesNoNo
Vega 5610.13.x - CurrYesNoNo ****
Vega 6410.13.x - CurrYesNoYes
Vega Frontier Edition10.13 - CurrYesNoYes
Radeon VII10.14.5 - CurrYesNoYes
Radeon 5500 XT10.15.2 - CurrYesNoNo
Radeon 5600 XT10.15.3 - CurrYesNoNo
Radeon 570010.15.2 - CurrYesNo?
Radeon 5700 XT10.15.2 - CurrYesNoYes


* OEM/Retail ROMs are available for these cards

** Modified Netkas or Blacksheep ROMs are available for these cards

*** Mac Pro 3.1s can display bootscreens with the RX 580. See the Mac Pro 3.1s and AMD GPUs section.

**** The Vega 56 with the factory firmware does not require a Pixlas mod. However, firmware tuned for gaming or using the Vega 64 firmware does require a Pixlas Mod. See Vega 56 flashing section.

*🚫 Currently, MacVidCards (EURO) is selling flashed 6600 XT / 6800 and they can be flashed (Without a native boot screen) using Sychretic's ROM

markooos said:
Can you send me a link to a RX 560 or RX580 so i can see that this is and the cost. I have no idea exactly what it is, cheers
Click to expand...

I don't know where you are located, I doubt that sending any of my local links will help you - this is something that you need to research locally, since you'll need to get a 2nd hand GPU to have it work with Sierra/High Sierra.

markooos said:
1) the gpu wants to have the largest GB as possible?
Click to expand...

Yes, but VRAM is just one of the things that makes a GPU powerful. There are weak GPUs with loads of VRAM.

This is complex since involves several metrica, but with one example that applies to you, there are RX 560 and RX 580 with 4GB of VRAM, the RX 580 is at least 2,25x more powerful than the RX 560.

markooos said:
2) Changing the GPU will not effect files stored on my mac and software installed?
Click to expand...

If you get a GPU that is supported by Sierra, yes.

The AMD Polaris family of GPUs is supported since 10.12.6, so if you get a RX 460/560/470/570/480/580 it will work with Sierra, just need the power cable to replace the GT120.

Do not forget to get the mini-PCIe 6-pin (RX 460/560, some Rx 470/480) or dual mini-PCIe 6-pin to 8-pin power cable (RX 570/580/590), since a Mac Pro with GT 120 from factory does not need the mini-PCIe power cable. All mid-2010 have it from factory, but since someone installed an early-2009 GPU to your mid-2010, maybe the cable is not present.

Also there is the issue of width of the GPU, a lot of GPUs that are supported will block the usage of PCIe slot-2, so, be aware that not all GPUs that you can buy, you can fit inside of the Mac Pro if you have any PCIe card installed to PCIe slot-2. Even if you do not use it right now, maybe you'll need it in the future, so avoid any oversize GPUs.

Lot's of the GPUs on the list require macOS releases newer than Sierra. Do not buy a GPU older than RX 460 or even look at one made by NVIDIA. While the Radeon HD 7950 is supported, is too old (2012 released GPU), are dying like flies now and several models are oversize, do not buy one.

I don't think that the RX 590 is supported by Sierra, if remeber correctly the RX 590 support starts with 10.14.2, it was a late to the game GPU, even being just a more powerful RX 580 the RX 590 have a different PCIe ID that is not supported by Sierra AMD drivers.

markooos said:
3) Will upgrading to Mojave effect any of the above?
Click to expand...

Depends.

To keep your files and apps, you'll need to first upgrade from Sierra to High Sierra, then you can upgrade High Sierra to Mojave.

Mojave require a METAL supported GPU.

would this do the job?

PowerColor Red Devil Radeon RX 580 8GB GDDR5​



Attachments

  • Screen Shot 2025-07-19 at 17.39.29.png
    Screen Shot 2025-07-19 at 17.39.29.png
    151.1 KB · Views: 81
markooos said:
would this do the job?

PowerColor Red Devil Radeon RX 580 8GB GDDR5​

Click to expand...

Yes, but why buy an oxidated card? It will die soon. Btw, never buy any 2nd hand electronics used near the sea.

Screen Shot 2025-07-19 at 17.39.29.png


Also, there are Power Color RX 580 (also Sapphire Pulse/Nitro/Nitro+ and XFX 580, just to name a few) made for the East Asian market that are not supported by Apple.

Chinese GPU makers renamed the weaker RX 570 chips as RX 580 2048SPs, SP = Streaming Processor/Computing Processing Unit. These are fake RX 580s and not supported by Apple AMD GPU drivers.

The easiest way to identify these fakes are by the number of SP units:

  • Real AMD RX 580 have 2304 SPs
  • AMD RX 570 have 2048SPs
  • Fake RX 580 (RX 580 2048SPs) have 2048SPs

Ebay and AliExpress now sell these fake RX 580 with 2048SPs GPUs everywhere.

Yes, buying a GPU without knowledge is difficult…

You must log in or register to reply here.
Register on MacRumors! This sidebar will go away, and you'll see fewer ads.
Top Bottom
Back
