MP 1,1-5,1 computer shut down, fan runs - need solution

M

markooos

macrumors newbie
Original poster
Apr 15, 2025
2
0
computer shut down, fan runs - need solution

Do i need a new graphics card?
Not sure

Any help would be great -thank you!

The report below:
Anonymous UUID: B9B92D2B-1AEE-2A8C-C91B-F086419CCA0A

Tue Apr 15 11:05:04 2025

*** Panic Report ***
panic(cpu 2 caller 0xffffff7f993c6312): NVRM[0/5:0:0]: Read Error 0x00000100: CFG 0xffffffff 0xffffffff 0xffffffff, BAR0 0x8a000000 0xffffff9202117000 0x096000c1, D0, P1/2
Backtrace (CPU 2), Frame : Return Address
0xffffff920177bb00 : 0xffffff80186e756c
0xffffff920177bb80 : 0xffffff7f993c6312
0xffffff920177bc40 : 0xffffff7f99492076
0xffffff920177bc80 : 0xffffff7f994920e1
0xffffff920177bd00 : 0xffffff7f99703fa1
0xffffff920177be10 : 0xffffff7f994b3be1
0xffffff920177be30 : 0xffffff7f993ccef4
0xffffff920177bee0 : 0xffffff8018cbb87f
0xffffff920177bf30 : 0xffffff8018cba0e1
0xffffff920177bf80 : 0xffffff8018cb96c6
0xffffff920177bfb0 : 0xffffff8018697957
Kernel Extensions in backtrace:
com.apple.nvidia.classic.NVDAResmanTesla(10.0.2)[C9A3682D-9EE9-3570-B8D9-2F1AE0F332F7]@0xffffff7f99375000->0xffffff7f995ddfff
dependency: com.apple.iokit.IOPCIFamily(2.9)[17F821DD-EC4C-34A7-8CEE-5B435931700A]@0xffffff7f98f31000
dependency: com.apple.iokit.IONDRVSupport(516.1)[91AC4707-DCD4-35D4-81AD-9C425B63F349]@0xffffff7f99365000
dependency: com.apple.iokit.IOGraphicsFamily(515.3)[5EAC4E7C-6842-3DC0-A2D7-8A8BDA842179]@0xffffff7f9931d000
com.apple.nvidia.classic.NVDANV50HalTesla(10.0.2)[51B677B0-3288-360A-B0E7-213640716598]@0xffffff7f995e9000->0xffffff7f99891fff
dependency: com.apple.nvidia.classic.NVDAResmanTesla(10.0.2)[C9A3682D-9EE9-3570-B8D9-2F1AE0F332F7]@0xffffff7f99375000
dependency: com.apple.iokit.IOPCIFamily(2.9)[17F821DD-EC4C-34A7-8CEE-5B435931700A]@0xffffff7f98f31000

BSD process name corresponding to current thread: kernel_task

Mac OS version:
16G1510

Kernel version:
Darwin Kernel Version 16.7.0: Thu Jun 21 20:07:39 PDT 2018; root:xnu-3789.73.14~1/RELEASE_X86_64
Kernel UUID: CA05D43A-8B83-3114-828D-72E83BEC8DD9
Kernel slide: 0x0000000018400000
Kernel text base: 0xffffff8018600000
__HIB text base: 0xffffff8018500000
System model name: MacPro5,1 (Mac-F221BEC8)

System uptime in nanoseconds: 815086065259
last loaded kext at 310060969292: com.apple.filesystems.msdosfs 1.10 (addr 0xffffff7f9b435000, size 69632)
last unloaded kext at 373082502123: com.apple.filesystems.msdosfs 1.10 (addr 0xffffff7f9b435000, size 61440)
loaded kexts:
com.avast.PacketForwarder 2.1
com.avast.FileShield 4.0.0
com.apple.driver.AudioAUUC 1.70
com.apple.driver.AppleHWSensor 1.9.5d0
com.apple.driver.AppleTyMCEDriver 1.0.2d2
com.apple.driver.AGPM 110.23.17
com.apple.filesystems.autofs 3.0
com.apple.driver.AppleMikeyHIDDriver 131
com.apple.driver.AppleHDA 279.48
com.apple.driver.AppleMikeyDriver 279.48
com.apple.driver.AppleUpstreamUserClient 3.6.4
com.apple.driver.AppleMCCSControl 1.3.4
com.apple.driver.pmtelemetry 1
com.apple.iokit.IOUserEthernet 1.0.1
com.apple.GeForceTesla 10.0.2
com.apple.iokit.IOBluetoothSerialManager 5.0.5f3
com.apple.Dont_Steal_Mac_OS_X 7.0.0
com.apple.driver.AppleHV 1
com.apple.driver.AppleOSXWatchdog 1
com.apple.driver.AppleLPC 3.1
com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0
com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0
com.apple.iokit.IOAHCIBlockStorage 295.20.1
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0
com.apple.BootCache 40
com.apple.filesystems.hfs.kext 366.70.3
com.apple.iokit.SCSITaskUserClient 394.50.1
com.apple.driver.AppleFWOHCI 5.5.5
com.apple.driver.Intel82574LEthernet 2.7.2
com.apple.driver.AirPort.Brcm4331 800.21.30
com.apple.driver.AppleAHCIPort 326.60.1
com.apple.driver.AppleRTC 2.0
com.apple.driver.AppleHPET 1.8
com.apple.driver.AppleACPIButtons 5.0
com.apple.driver.AppleSMBIOS 2.1
com.apple.driver.AppleACPIEC 5.0
com.apple.driver.AppleAPIC 1.7
com.apple.driver.AppleIntelCPUPowerManagementClient 219.0.0
com.apple.nke.applicationfirewall 172
com.apple.security.quarantine 3
com.apple.security.TMSafetyNet 8
com.apple.driver.AppleIntelCPUPowerManagement 219.0.0
com.apple.AppleGraphicsDeviceControl 3.14.49
com.apple.kext.triggers 1.0
com.apple.driver.DspFuncLib 279.48
com.apple.kext.OSvKernDSPLib 525
com.apple.iokit.IOSurface 159.12
com.apple.nvidia.classic.NVDANV50HalTesla 10.0.2
com.apple.nvidia.classic.NVDAResmanTesla 10.0.2
com.apple.iokit.IOSerialFamily 11
com.apple.iokit.IONDRVSupport 516.1
com.apple.driver.AppleSSE 1.0
com.apple.driver.AppleSMBusController 1.0.18d1
com.apple.driver.AppleHDAController 279.48
com.apple.iokit.IOGraphicsFamily 515.3
com.apple.iokit.IOHDAFamily 279.48
com.apple.iokit.IOAudioFamily 205.15
com.apple.vecLib.kext 1.2.0
com.apple.driver.AppleSMBusPCI 1.0.14d1
com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0
com.apple.iokit.IOFireWireIP 2.2.7
com.apple.driver.IOPlatformPluginLegacy 1.0.0
com.apple.driver.IOPlatformPluginFamily 6.0.0d8
com.apple.driver.AppleSMC 3.1.9
com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 5.0.5f3
com.apple.iokit.IOBluetoothHostControllerUSBTransport 5.0.5f3
com.apple.iokit.IOBluetoothHostControllerTransport 5.0.5f3
com.apple.iokit.IOBluetoothFamily 5.0.5f3
com.apple.driver.usb.IOUSBHostHIDDevice 1.1
com.apple.iokit.IOSCSIBlockCommandsDevice 394.50.1
com.apple.driver.usb.AppleUSBHub 1.1
com.apple.iokit.IOUSBMassStorageDriver 131.60.1
com.apple.driver.usb.networking 5.0.0
com.apple.driver.usb.AppleUSBHostCompositeDevice 1.1
com.apple.filesystems.hfs.encodings.kext 1
com.apple.iokit.IOSCSIMultimediaCommandsDevice 394.50.1
com.apple.iokit.IOBDStorageFamily 1.8
com.apple.iokit.IODVDStorageFamily 1.8
com.apple.iokit.IOCDStorageFamily 1.8
com.apple.iokit.IOAHCISerialATAPI 266.50.1
com.apple.iokit.IOSCSIArchitectureModelFamily 394.50.1
com.apple.iokit.IOFireWireFamily 4.6.6
com.apple.iokit.IO80211Family 1200.12.2
com.apple.iokit.IONetworkingFamily 3.2
com.apple.driver.corecapture 1.0.4
com.apple.iokit.IOAHCIFamily 288
com.apple.driver.usb.AppleUSBEHCIPCI 1.1
com.apple.driver.usb.AppleUSBUHCIPCI 1.1
com.apple.driver.usb.AppleUSBUHCI 1.1
com.apple.driver.usb.AppleUSBEHCI 1.1
com.apple.driver.usb.AppleUSBHostPacketFilter 1.0
com.apple.iokit.IOUSBFamily 900.4.1
com.apple.driver.AppleUSBHostMergeProperties 1.1
com.apple.driver.AppleEFINVRAM 2.1
com.apple.driver.AppleEFIRuntime 2.1
com.apple.iokit.IOHIDFamily 2.0.0
com.apple.iokit.IOSMBusFamily 1.1
com.apple.security.sandbox 300.0
com.apple.kext.AppleMatch 1.0.0d1
com.apple.driver.AppleKeyStore 2
com.apple.driver.AppleMobileFileIntegrity 1.0.5
com.apple.driver.AppleCredentialManager 1.0
com.apple.driver.KernelRelayHost 1
com.apple.iokit.IOUSBHostFamily 1.1
com.apple.driver.AppleBusPowerController 1.0
com.apple.driver.DiskImages 444.50.17
com.apple.iokit.IOStorageFamily 2.1
com.apple.iokit.IOReportFamily 31
com.apple.driver.AppleFDEKeyStore 28.30
com.apple.driver.AppleACPIPlatform 5.0
com.apple.iokit.IOPCIFamily 2.9
com.apple.iokit.IOACPIFamily 1.4
com.apple.kec.Libm 1
com.apple.kec.pthread 1
com.apple.kec.corecrypto 1.0
Model: MacPro5,1, BootROM MP51.0087.B00, 6 processors, 6-Core Intel Xeon, 3.33 GHz, 16 GB, SMC 1.39f11
Graphics: NVIDIA GeForce GT 120, NVIDIA GeForce GT 120, PCIe, 512 MB
Memory Module: DIMM 1, 4 GB, DDR3 ECC, 1066 MHz, 0x80CE, 0x4D3339334235313730445A312D4346382020
Memory Module: DIMM 2, 4 GB, DDR3 ECC, 1066 MHz, 0x80CE, 0x4D3339334235313730445A312D4346382020
Memory Module: DIMM 3, 4 GB, DDR3 ECC, 1066 MHz, 0x80CE, 0x4D3339334235313730445A312D4346382020
Memory Module: DIMM 4, 4 GB, DDR3 ECC, 1066 MHz, 0x80CE, 0x4D3339334235313730445A312D4346382020
AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x8E), Broadcom BCM43xx 1.0 (5.106.98.102.30)
Bluetooth: Version 5.0.5f3, 3 services, 27 devices, 1 incoming serial ports
PCI Card: NVIDIA GeForce GT 120, Display Controller, Slot-1
Serial ATA Device: HL-DT-ST DVD-RW GH41N
Serial ATA Device: WDC WD1001FALS-41Y6A0, 1 TB
USB Device: USB 2.0 Bus
USB Device: BUP Slim
USB Device: USB 2.0 Bus
USB Device: USB Bus
USB Device: Hub in Apple Pro Keyboard
USB Device: USB Optical Mouse
USB Device: Apple Pro Keyboard
USB Device: USB Bus
USB Device: USB Bus
USB Device: BRCM2046 Hub
USB Device: Bluetooth USB Host Controller
USB Device: USB Bus
USB Device: USB Bus
USB Device: USB Bus
FireWire Device: built-in_hub, Up to 800 Mb/sec
Thunderbolt Bus:

Two things:

First line of the backtrace shows the GPU driver crashing:

Code:
com.apple.nvidia.classic.NVDAResmanTesla(10.0.2)[C9A3682D-9EE9-3570-B8D9-2F1AE0F332F7]@0xffffff7f99375000->0xffffff7f995ddfff

NVDAResmanTesla is the GT120 driver. Test with a known working GPU.

Second:

MP51.0087.B00 is the infamous High Sierra installed Mac Pro firmware that Apple forgot to include Intel microcodes and bricks the Mac Pro when you run UEFI installed Windows. Also known for other problems like disabling the chime.

Upgrade your Mac Pro firmware as soon as you can.

forums.macrumors.com

MacPro5,1: What you have to do to upgrade to Mojave (10.13/10.14 BootROM upgrades instructions thread)

Please fully read this first post, you will probably find that you have one or more problems described into the various notes below. Mojave will only install if you have upgraded your BootROM to the current release and your Mac Pro have a Metal capable GPU*. If you are trying to install Mojave...
forums.macrumors.com forums.macrumors.com

hi, thank you for responding.

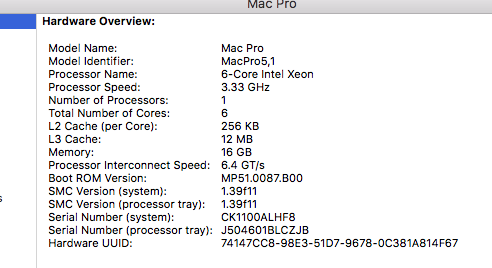

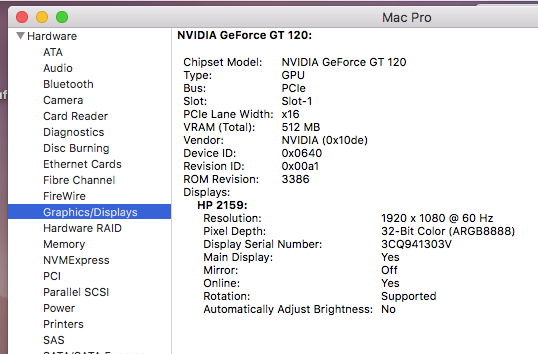

upgrade mac pro firmware - not sure i can do this on my machine see attached


Attachments

  • Screen Shot 2025-04-15 at 13.40.39.png
    Screen Shot 2025-04-15 at 13.40.39.png
    48 KB · Views: 8
  • Screen Shot 2025-04-15 at 13.40.26.png
    Screen Shot 2025-04-15 at 13.40.26.png
    84.5 KB · Views: 11
markooos said:
hi, thank you for responding.

upgrade mac pro firmware - not sure i can do this on my machine see attached
Click to expand...

Yes, you can. I've linked the stickie thread about MacPro5,1 BootROM upgrades, do your homework, replace the GPU and upgrade at least to MP51.0089.B00.

  • Like
Reactions: haralds
