Connect Caldigit TS3 and Element Hub issue

[narimangafurov]

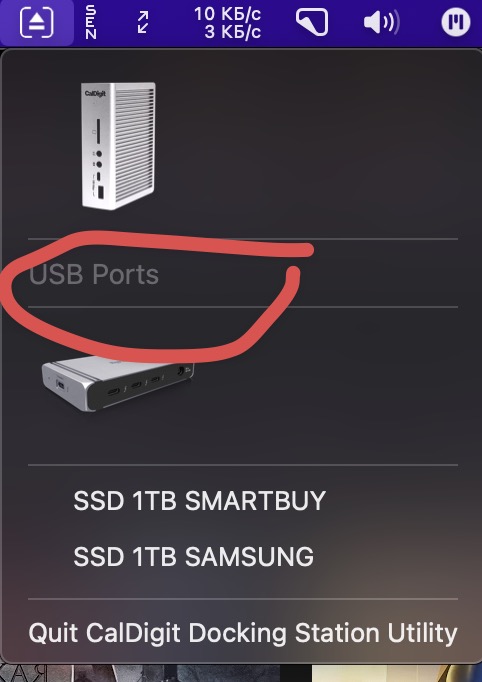

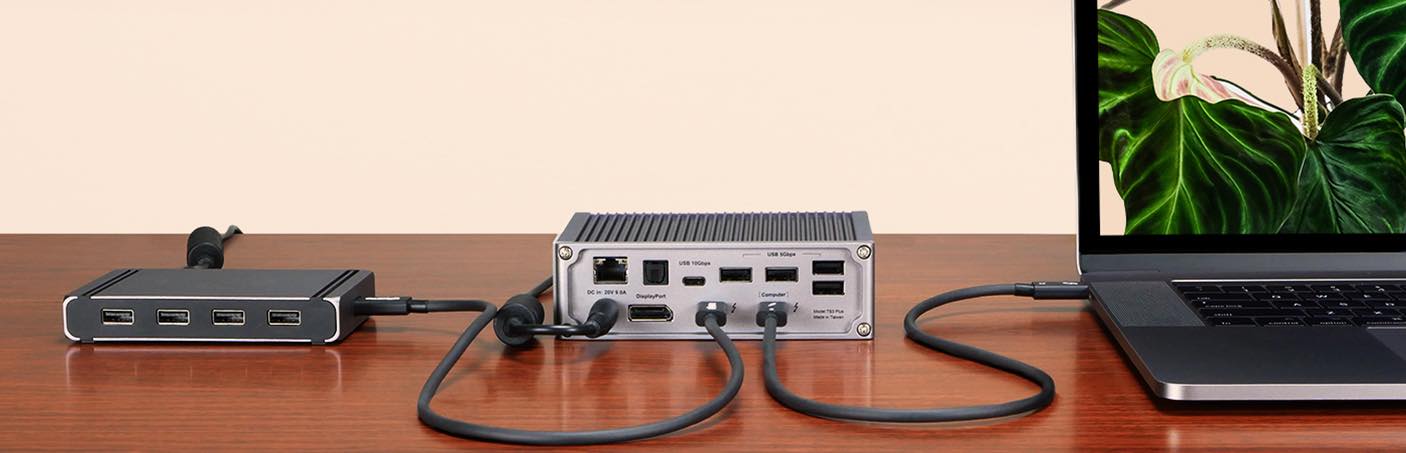

Hello all friends! I have been using Caldigit Ts3 plus for a long time (all devices, hard drives and SSDs are connected to it) and I am very happy with it, a cool product and very high quality. I used it with my Imac Pro and everything was fine! Now I have sold the Imac Pro and bought a Macbook M1 Pro Max and also bought an Caldigit element hub. Tell me how to properly connect all devices to my macbook pro? I connected them sequentially as indicated on the Caldigit website. But now I have a problem with connected disks, the Caldigit Docking utility does not see disks connected to TS3 (it displays to Element Hub), I can't understand what's the matter (I would like to use one cable to connect all devices and also extract all disks with the utility..



[joevt]

What do you care what the docking utility says if the disks work? Do the disks work? Is the Element Hub connected to the Thunderbolt port of the TS3+? If the Element Hub is connected to the USB-C port of the TS3+ instead, then the Element Hub will appear as only a USB hub.

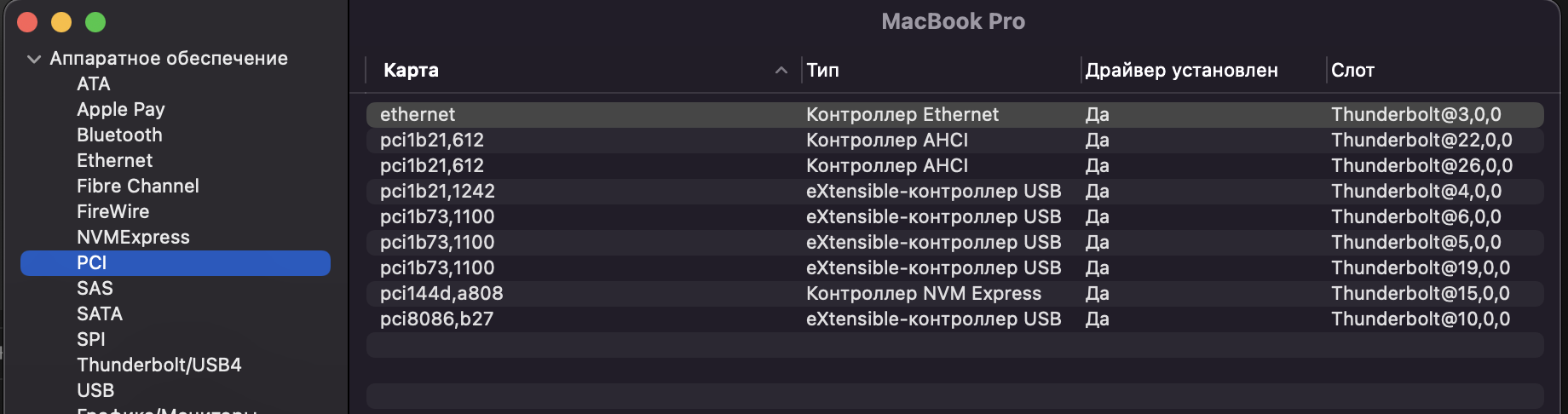

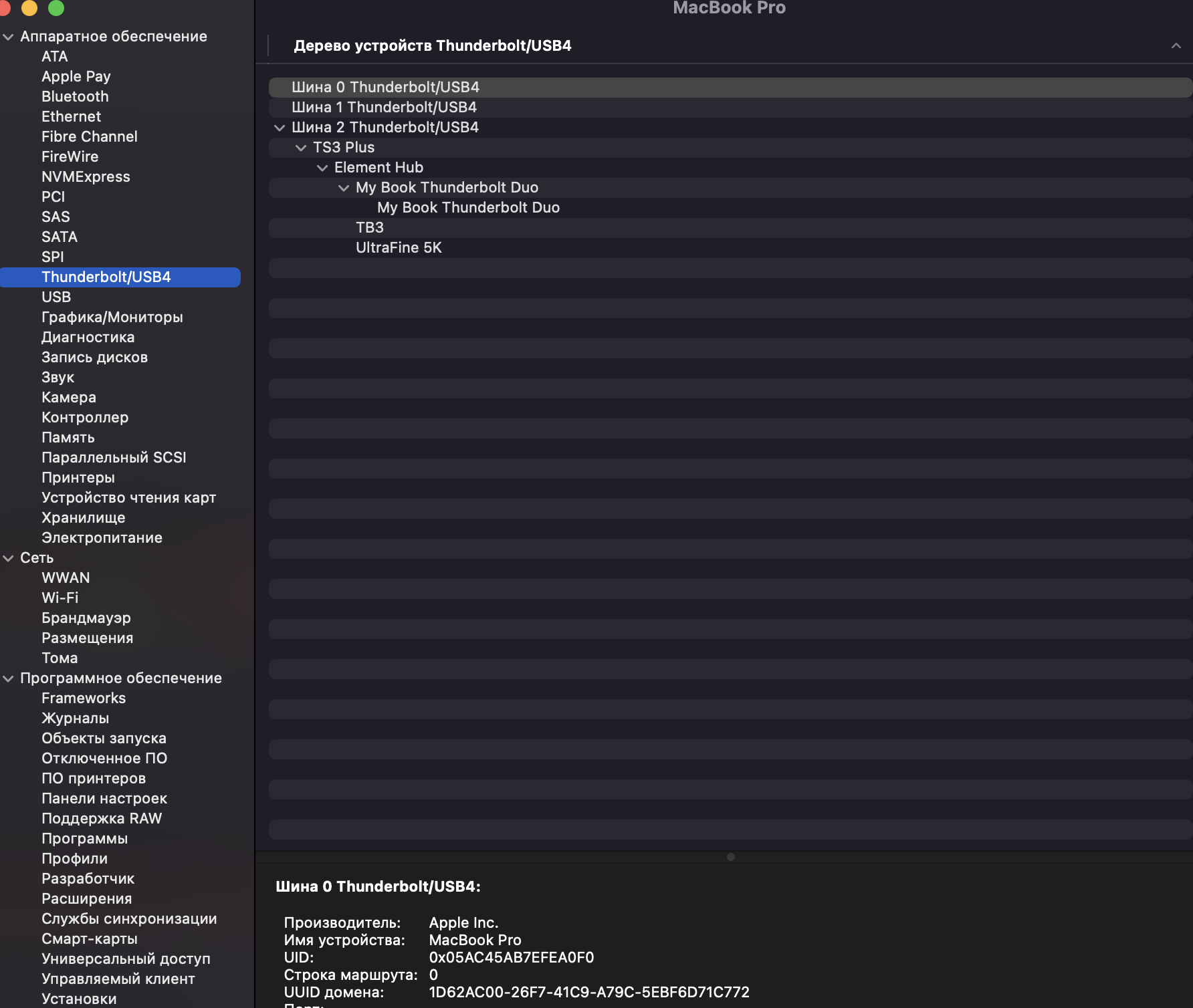

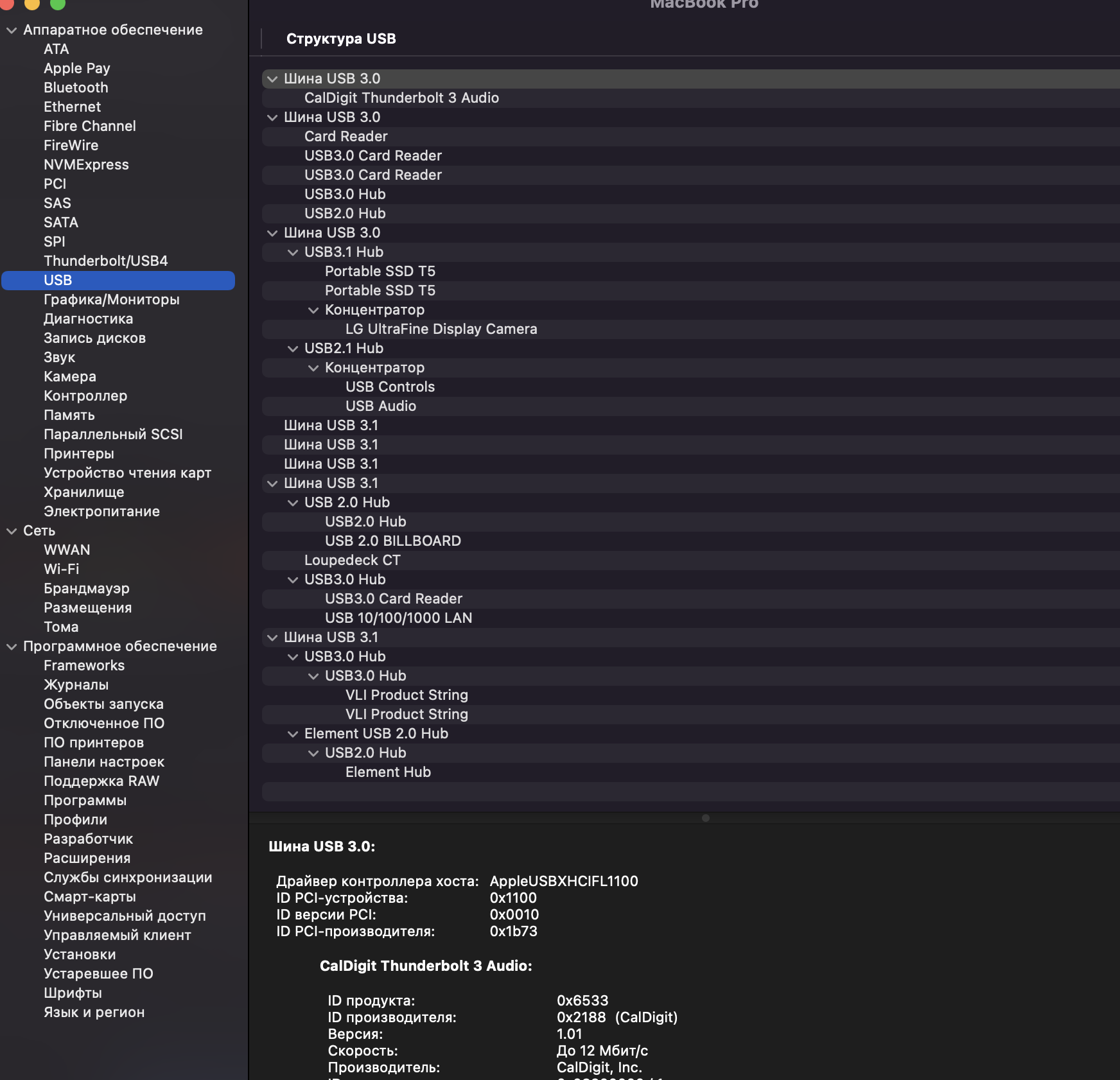

Show the PCI, USB, and Thunderbolt tabs in System Information.app.



[narimangafurov]

Какое вам дело, что говорит утилита дока, работают ли диски? Диски работают? Подключен ли Element Hub к порту Thunderbolt TS3+? Если вместо этого Element Hub подключен к порту USB-C TS3+, то Element Hub будет отображаться только как USB-концентратор.

Показать вкладки PCI, USB и Thunderbolt в System Information.app.

Yes, disks and devices are working fine. Apparently I will have to connect (TS3 plus and Hub) to separate connectors Thunderbolt on my macbook
