connect my MacMini to my oldTV
- Thread starter zoran
- Start date
- Sort by reaction score

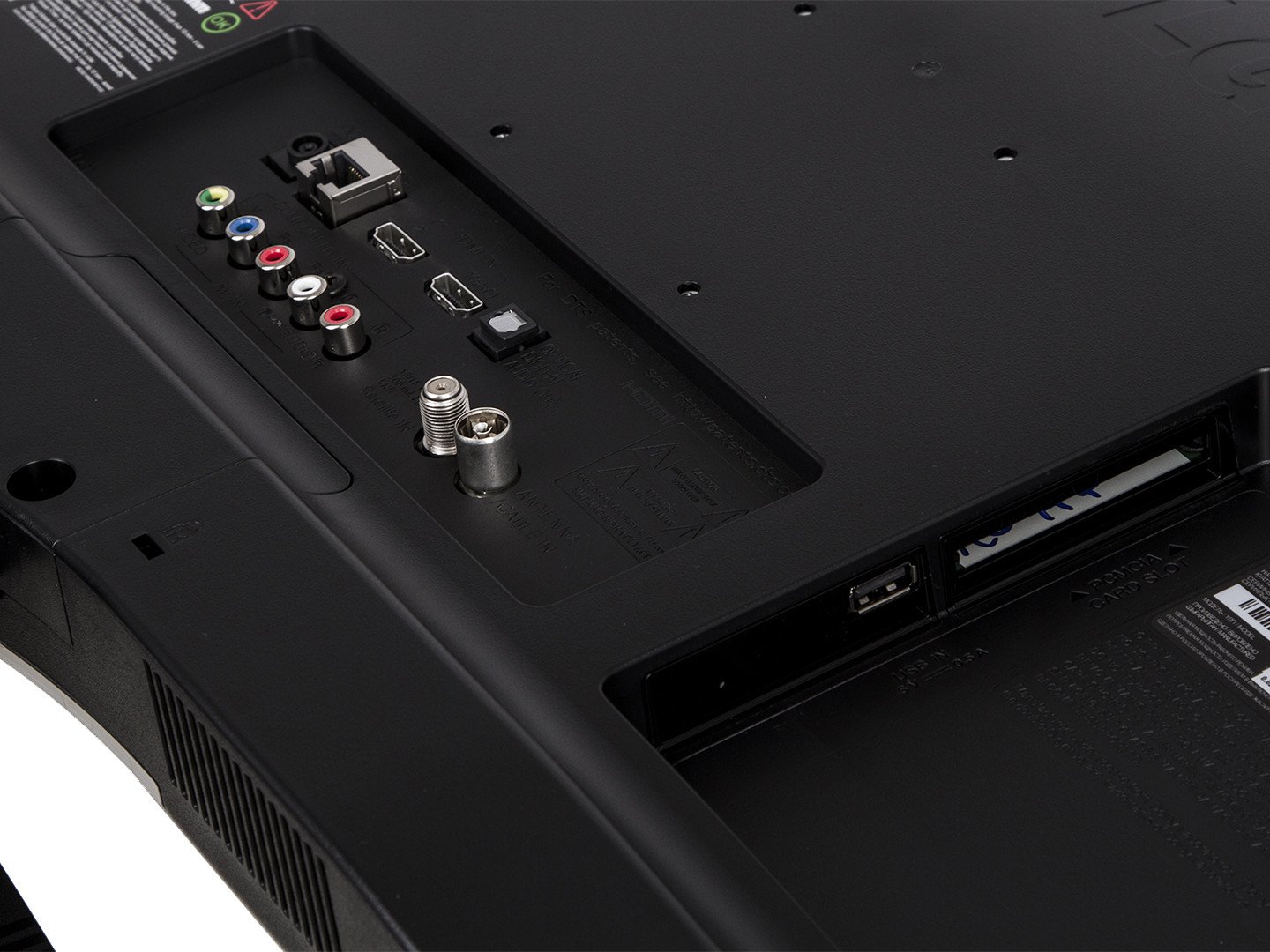

It’s difficult to say for certain without knowing the TV/display’s specs/features. If the two ports on the middle-right are HDMI, you’ll need a cable such as this for the video:
For audio, you could try the following cable connected from the Mac mini’s headphone port to the composite audio jacks (red and white below the RGB)
https://www.amazon.com/AmazonBasics-3-5mm-2-Male-Adapter-Stereo/dp/B01D5H8M18/
However, I’m doubting the TV will allow such a passthrough. Therefore, you may need to connect the Mac mini to external speakers if you also want sound.
Perhaps/hopefully someone who has used a 2009 Mac mini can shed some personal experience and suggestions.
Amazon Basics Mini DisplayPort Male to HDMI Male Cable, 1080p, Gold-Plated Plugs, 6 Foot, Black for Personal Computer
Amazon Basics Mini DisplayPort to HDMI Display Adapter Cable - 6 Feet
www.amazon.com
https://www.amazon.com/AmazonBasics-3-5mm-2-Male-Adapter-Stereo/dp/B01D5H8M18/
However, I’m doubting the TV will allow such a passthrough. Therefore, you may need to connect the Mac mini to external speakers if you also want sound.
Perhaps/hopefully someone who has used a 2009 Mac mini can shed some personal experience and suggestions.
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
Why do you think so?
One thing troubling me is the HDready resolution that the tv allows. Might it be a bad resolution as far as quality is concerned for a desktop computer?
You’ll need to check the TV’s manual/user guide. In my experience, a port would must be specifically noted for use with PCs for alternate audio input to be available — HDMI typically expects audio through the HDMI cable. I’ve primarily seen the alternate audio input option on TVs with VGA ports but sometimes a TV/monitor will have one HDMI port dedicated as such. Unfortunately, to me, it appears those audio jacks are probably reserved for the composite input. I could be mistaken though.
EDIT: As far as I’m aware, old computers can’t/don’t send audio through video ports (e.g., DVI, DP). Therefore, you’ll need more than the DP to HDMI cable no matter what if you want sound output beyond the mini’s built-in speaker.
EDIT: As far as I’m aware, old computers can’t/don’t send audio through video ports (e.g., DVI, DP). Therefore, you’ll need more than the DP to HDMI cable no matter what if you want sound output beyond the mini’s built-in speaker.
Last edited:
No TV(-type monitor) is optimum for PC use (i.e., expected viewing distances are much different). In other words, yes, your experience won’t be anything near the 5K 27” iMac, for example.
At the moment, I’m using a FHD (1080p) 27” monitor and there is a lack of crispness, I admit. I do intend to replace it with a 32” UHD (4K) model to improve the text and UI clarity. Even so, it will only be ~48% pixel density increase.
You can do comparison calculations and such using this tool:

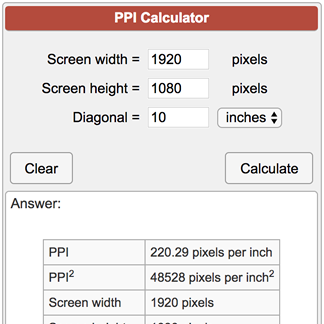

Pixels Per Inch PPI Calculator
PPI Calculator finds pixels per inch (PPI) and pixels per square inch (PPI^2). Calculate screen resolution and pixel density using width and height of display screen in pixels. Also find dot pitch and diagonal in pixels. Enter screen diagonal in inches or cm.
www.calculatorsoup.com
Ultimately, satisfaction is subjective. Some people are completely fine with a 27” FHD display and others feel anything less than 6K at 30” is unacceptable, for example.
How about an AppleTV and use AirPlay? A used ATV3 should be quite cheap and will give you audio+video over HDMI. You could use a direct ethernet connection from the Mini to the ATV or wifi (the ATV3 has 100 base-T ethernet). Don't know how well that would meet your needs, just a suggestion of something you might not have thought of.
Would not be a good solution if you plan to use that TV as a computer monitor for everyday stuff, but not a bad way to watch movies, etc.
Would not be a good solution if you plan to use that TV as a computer monitor for everyday stuff, but not a bad way to watch movies, etc.
Im just trying to make use of my late2009 mac mini and the old LG24" lcd tv i have by using them together to make a computer... with some quality drawbacks of course. But i do not want to make any more purchases and waste more money like purchasing an AppleTV.
