Connecting Mini to a TV via Component Cable

[schroder3000]

I've got a current model Mac Mini that I'd like to connect to a non-HD television via Component cable. I have an DVI-Mini Display Port adapter which was purchased from a third party as well as a DVI-Component adapter that came with it. Here are some photos:

Aside from a Component cable to connect to the TV, anything else I might need for this to work successfully?

Thanks!



[simsaladimbamba]

How to attach an image to your MR post.

I forgot, that the Mini DisplayPort is transmitting only a digital signal and Component is analog.
The DVI adapter you use is not converting from digital to analog, as DVI can also transmit analog signals and the adapter you use may "look" for the analog part, but it is not there. You may need a converter like this and a MDP to VGA adapter from MonoPrice.

Some additional info:

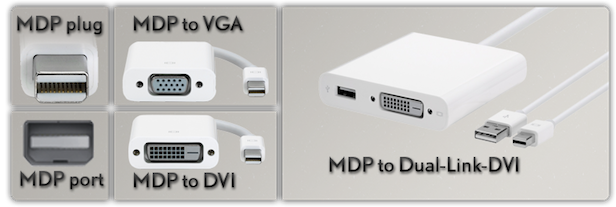

Mini DisplayPort (MDP)

Mini DisplayPort is the current digital standard on all current Macs to transfer video to an external display or TV. It has been introduced in 10/2008 with the release of the Unibody MacBook and MacBook Pros and has gradually been adopted on all other Macs.
MDP is capable of transmitting video, and since 2010, audio too. MDP is a miniaturised version of DisplayPort. It is also license free and can support resolutions of up to 2560 x 1600, which Mini DVI and Micro DVI are not able to do.

MDP adapters can be bought online from:

MDP to VGA adapter from Apple
MDP to DVI adapter from Apple
MDP to Dual-Link-DVI adapter from Apple

Moshi Mini DP to HDMI Adapter with Audio Support adapter from the Apple Online Store

Mini DisplayPort + USB to Dual-Link DVI adapter from Monoprice
Mini DisplayPort to DVI adapter from Monoprice
Mini DisplayPort to VGA adapter from Monoprice
Mini DisplayPort to HDMI adapter from Monoprice - *NOTE* This product does NOT support audio for Macs that outputs audio through the Mini DisplayPort.
Mini Displayport Male and USB Male/Toslink Audio to HDMI Female Converting adapter from Monoprice
Mini Displayport Male and USB Male Audio to HDMI Female Converting adapter from Monoprice - *NOTE* Will only support 2 channel stereo. Will not support 5.1 Dolby Surround like the above adapter.

Mini DisplayPort to Mini DisplayPort Cables from Monoprice
Mini DisplayPort to VGA Cables from Monoprice
Mini DisplayPort to DVI Cables from Monoprice
Mini DisplayPort to HDMI Cables from Monoprice​

Also of interest: "What is "Mini DisplayPort"? Is it an industry-standard? How is it different from or better than Mini-DVI and Micro-DVI?"
​

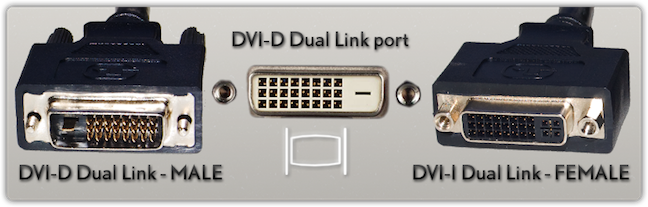

DVI (Digital Visual Interface)

The successor of VGA, which is capable of analog and digital video transfer, though Apple restricted their adapters to DVI-D, which is purely digital.

DVI cables can be bought online from:

Monoprice - DVI cables​

Also of interest: "Understanding the DVI Connector and Video Cable"
​
