hello chaps,

I’m looking to construct a test bench using alu profile bars for testing the Mac Pro 4,1/5,1 logic boards. Appreciate any advice you have.

Some queries:
1. Are the standoff screws sized M3.5?
2. Is there a power extension cable available on the market? I’m looking to rest the PSU on the bottom while maintaining the Logic Board in its normal upright position.

  • Like
Reactions: Reclzz

Macschrauber

macrumors 68030
Dec 27, 2015
2,987
1,494
Germany

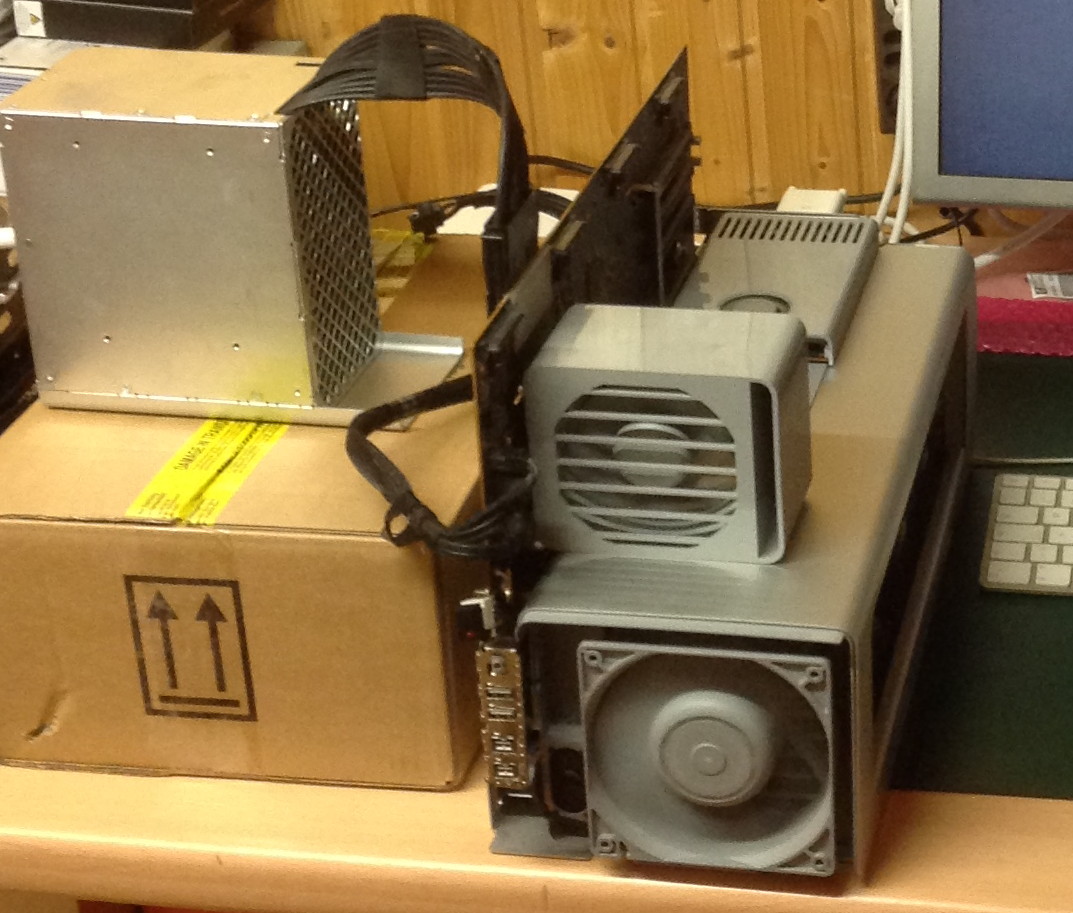

I do it that way or with the Backplane lying flat on the table.

IMG_7105 copy.jpeg


On this photo is the PSU fan missing, I just put it before the PSU for long term tests.

CPU Cage is not needed but help support.

If you want to do mass tests I'd butcher a bent Mac Pro case. Handling the CPU Board is very delicate not to bend pins on the backplane

Screws are 3,5 mil MP 1,1-5,1 Backplane mounting screws 922-8896


yakult121

macrumors member
Original poster
Dec 15, 2011
85
15
This is excellent! I’m doing mass tests - I might have overengineered my ideal setup before your reply.
