Core Duo/Core 2 Duo MacBook CPU Upgrading

[dosdude1]

Just recently, I completed a project based on an idea I've had for quite some time now... Upgrading the CPU in a MacBook. In theory it should be possible, as long as the CPU is compatible with the chipset in the machine, and has the same front side bus speed. Well, it turns out that is indeed the case. I successfully upgraded the CPU on a MacBook5,2 (Mid-2009) from its stock 2.13 GHz P7450 to a 2.53 GHz T9400 from a Late-2008 MacBookPro5,1 logic board. Both machines have the same chipset (nVidia MCP79).

The Process

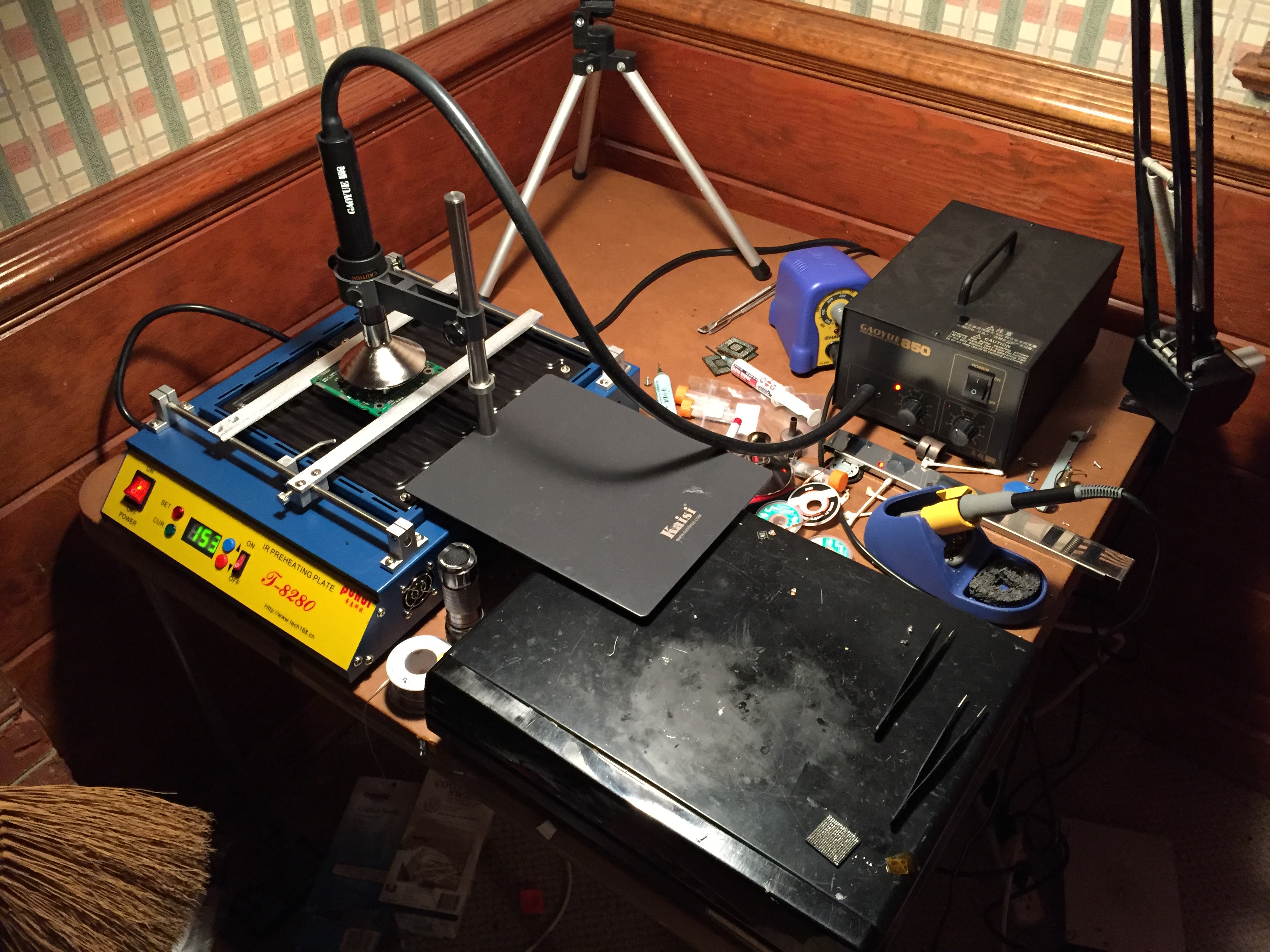

To begin, I had to remove the T9400 from the donor board. Like all my other BGA swaps, I used my hot air rework station with a special nozzle, with the board placed on a board preheater. Here's a picture of my setup. Definitely not the best, but hey, it gets the job done.

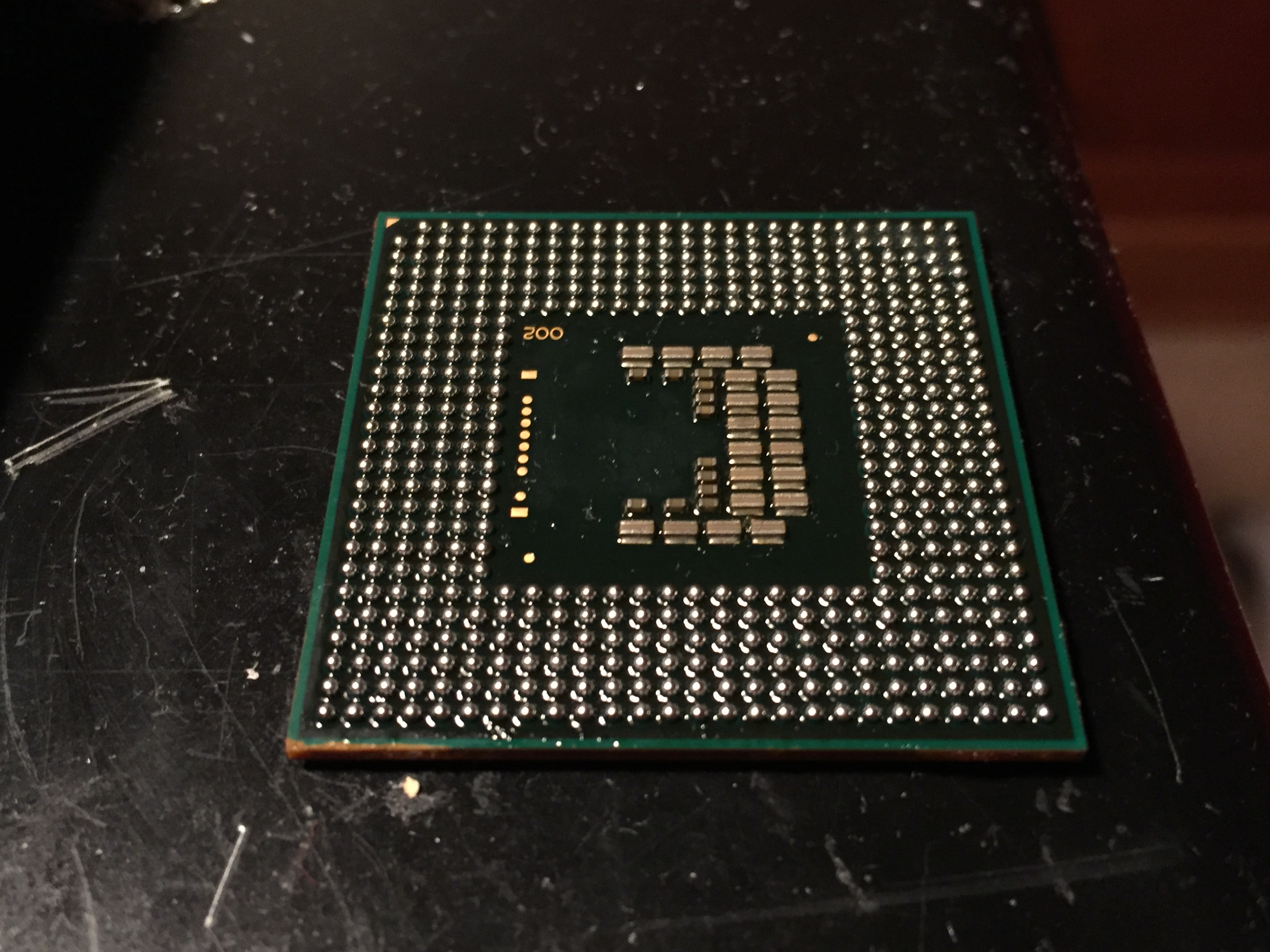

Once the CPU has been removed from the donor board, the re-balling process can begin. This can be quite tedious, as you have to manually pick and place quite a few solder balls into the stencil, but it's not too bad. Here's the T9400 after re-balling it.

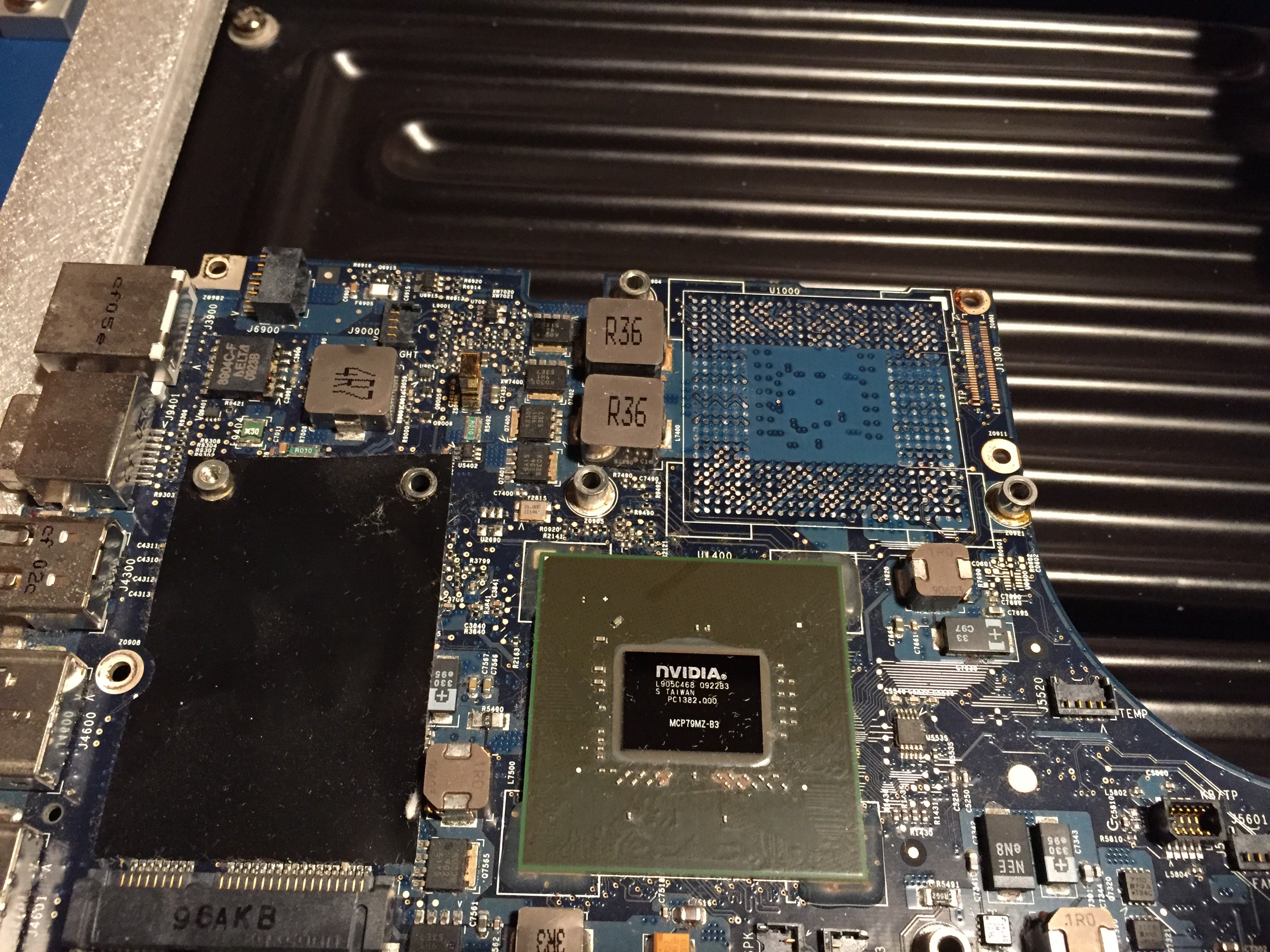

The next step is to remove the original CPU off the MacBook5,2 logic board. Here's a picture of the board after removing the P7450 and cleaning it up.

Lastly, the T9400 is aligned properly on the board, then heated and soldered on.

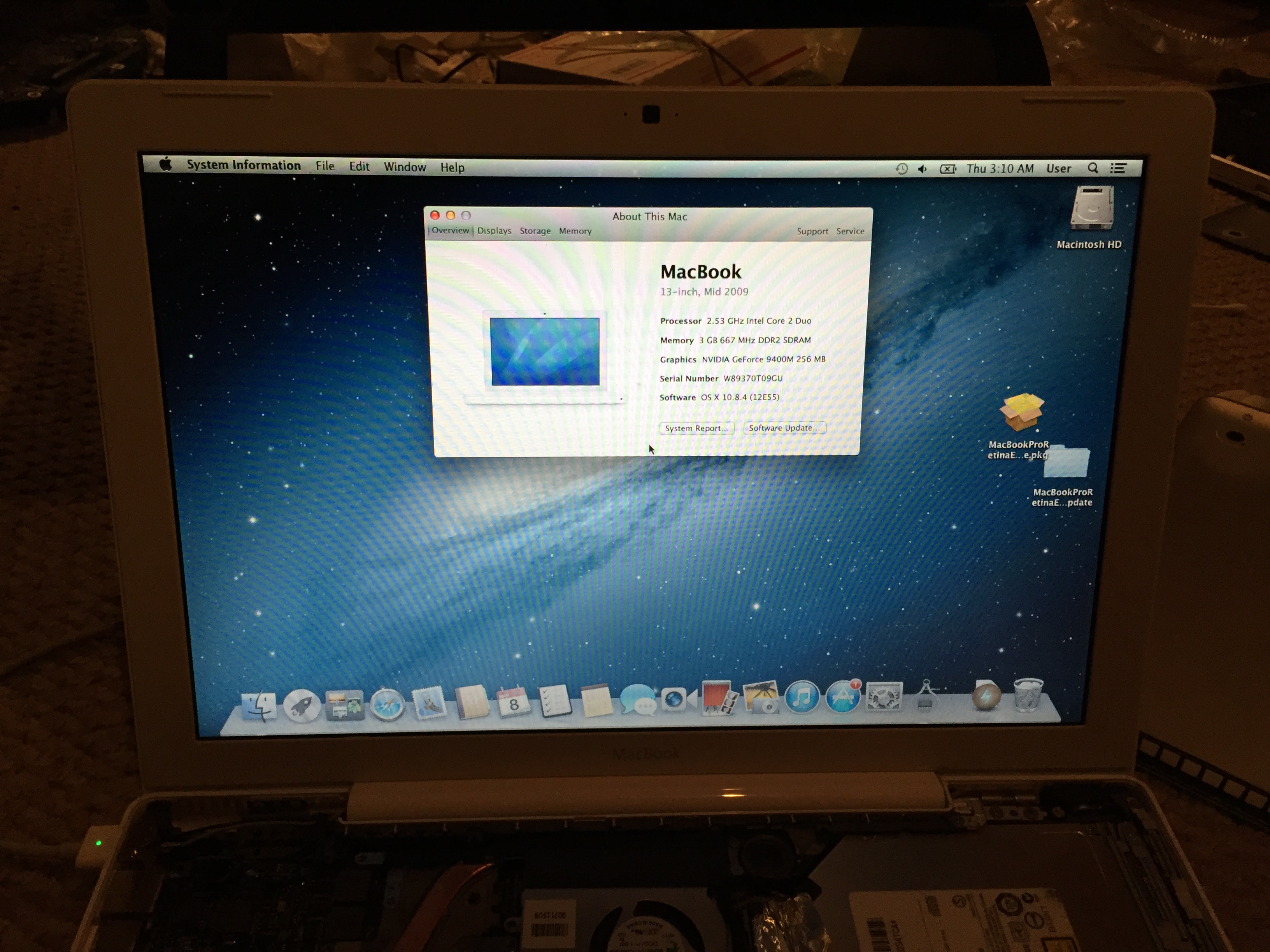

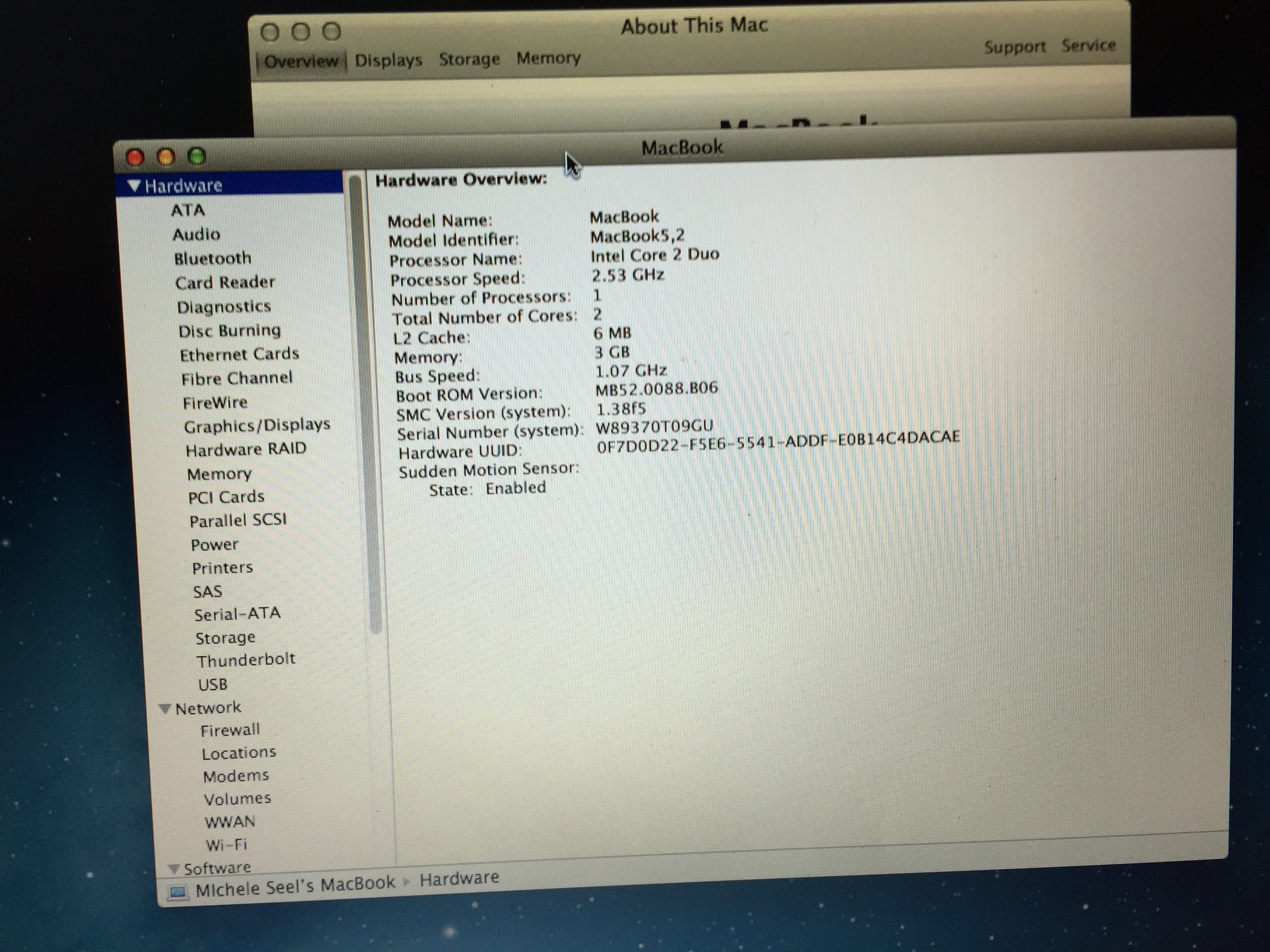

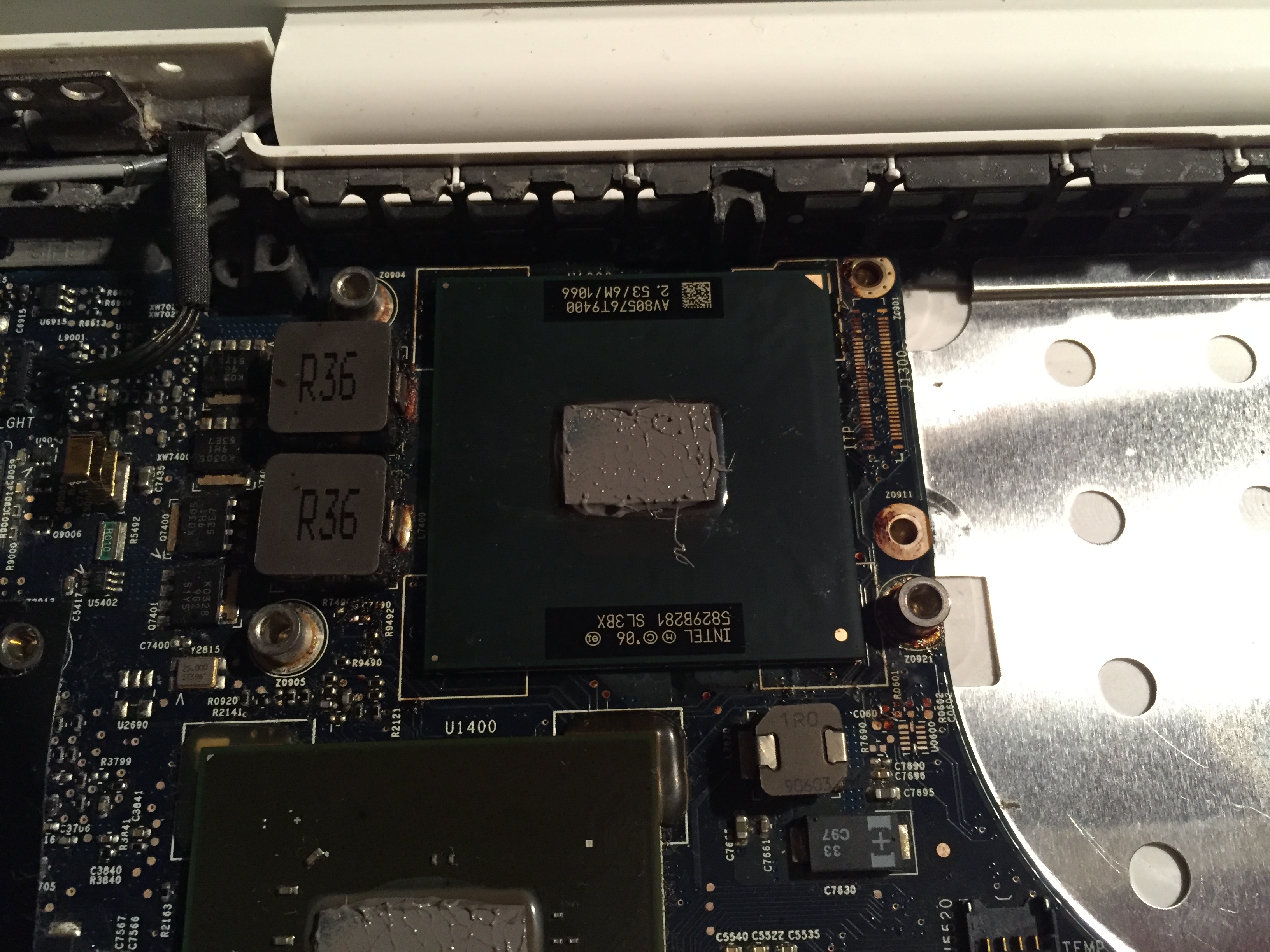

Now, we test the machine, and it works, with the 2.53 GHz T9400 detected properly and working perfectly!

If you want to see this in more detail, feel free to check out my YouTube video, where I go over the whole process.

In the future, I plan on upgrading more MacBook CPUs, including swapping Core Duos on MacBook1,1 and MacBookPro1,1 logic boards with Core 2 Duo CPUs, allowing them to run Lion. I'm definitely looking forward to these future projects!



[dosdude1]

Well, just recently I've made an even more ridiculous advancement in my experimentation with MacBook CPU upgrading... I soldered on a CPU socket. Yes, that's right, a SOCKET... I'm serious. And yes... It actually works.

The main reason I performed this modification was to allow for a way to easily test CPUs on a MacBook 5,2 logic board, without the need to solder the actual CPU. I found some PGA479 sockets on eBay, so I figured it could be done relatively easily.

The Process

Somewhat surprisingly, the process of soldering on a CPU socket is almost identical to that of soldering on a normal BGA chip. The sockets I got even came pre-balled, so I didn't even have to do any re-balling.

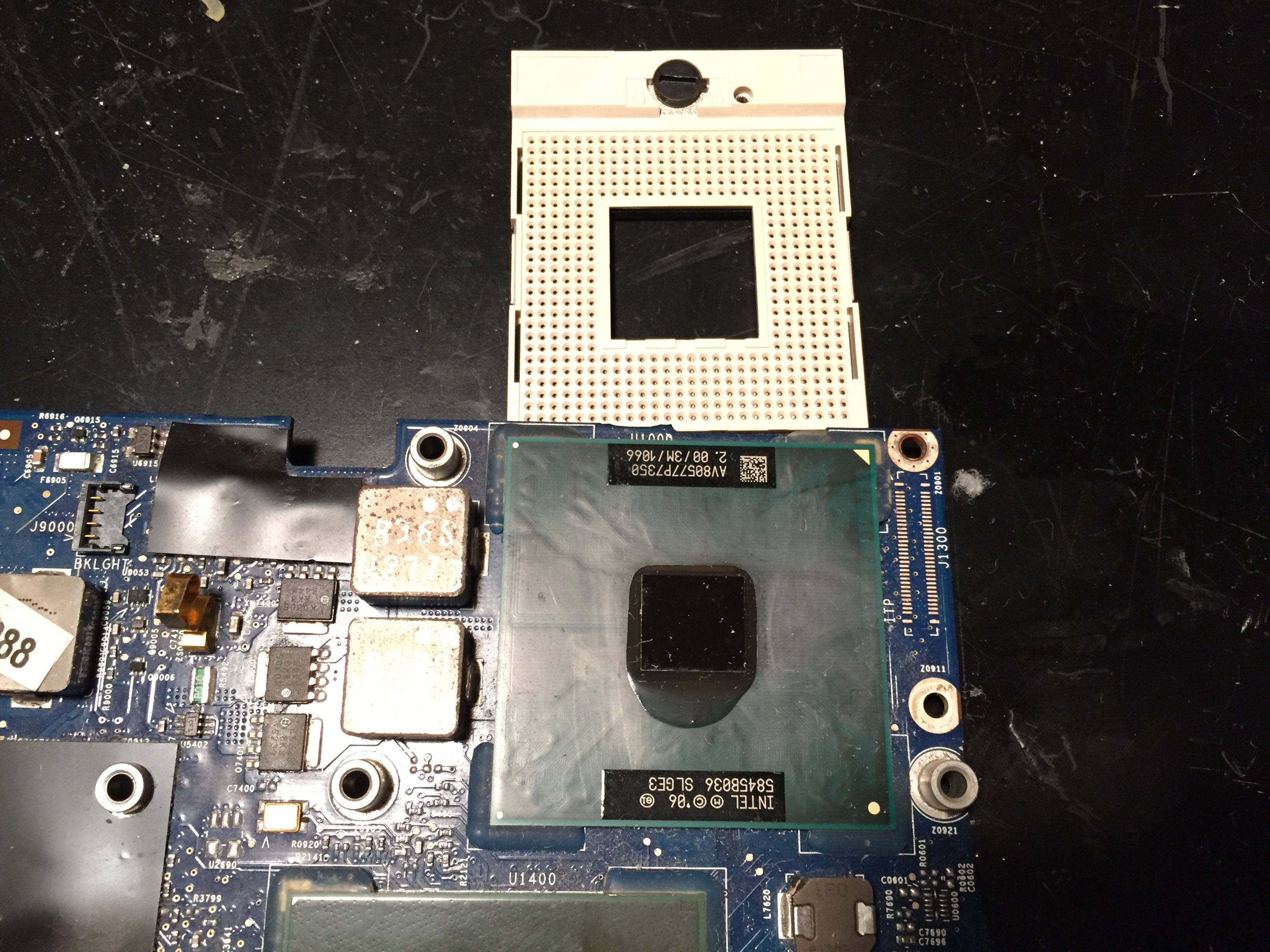

First off, here's a picture of the MacBook 5,2 logic board before removing the original CPU:

To begin the process, of course, I used my BGA rework setup to remove the CPU, just as shown in my previous post. Next, all I needed to do was clean up the pads on the board, clean it, apply a small layer of flux, and solder the socket on. Here's an image of the CPU socket in place, before soldering:

The most difficult part about doing this was properly aligning the socket onto the board... Since the markings around the CPU pads are not designed to guide you in soldering on a socket, I simply had to do some eyeballing and careful nudging around with a pair of tweezers. Once I got it in what I think was an aligned position, I began the soldering process.

Now, when soldering the socket on, I had to do it in such a way that the plastic of the socket wouldn't melt. So, I turned my board preheater on to a very high temperature (220 degrees C), to provide most of the heating needed to melt the solder to the bottom of the board. I then positioned the hot air nozzle over the top of the socket, and set it at around 250 degrees C (right below the melting point (I think) of the high-temp plastic used on these sockets), and began heating it. I heated it until it appeared that all the solder balls had become shiny, and flattened down slightly.

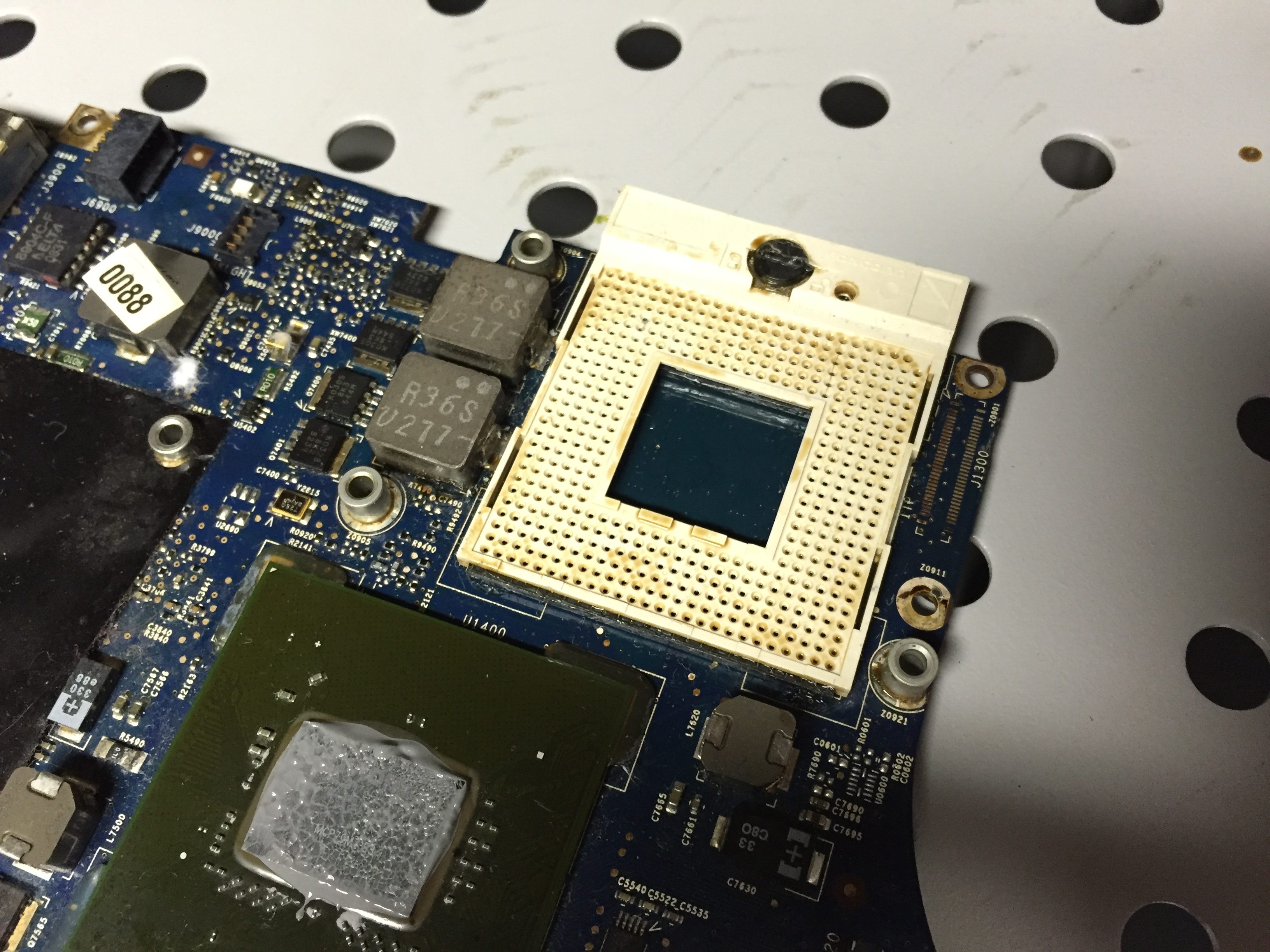

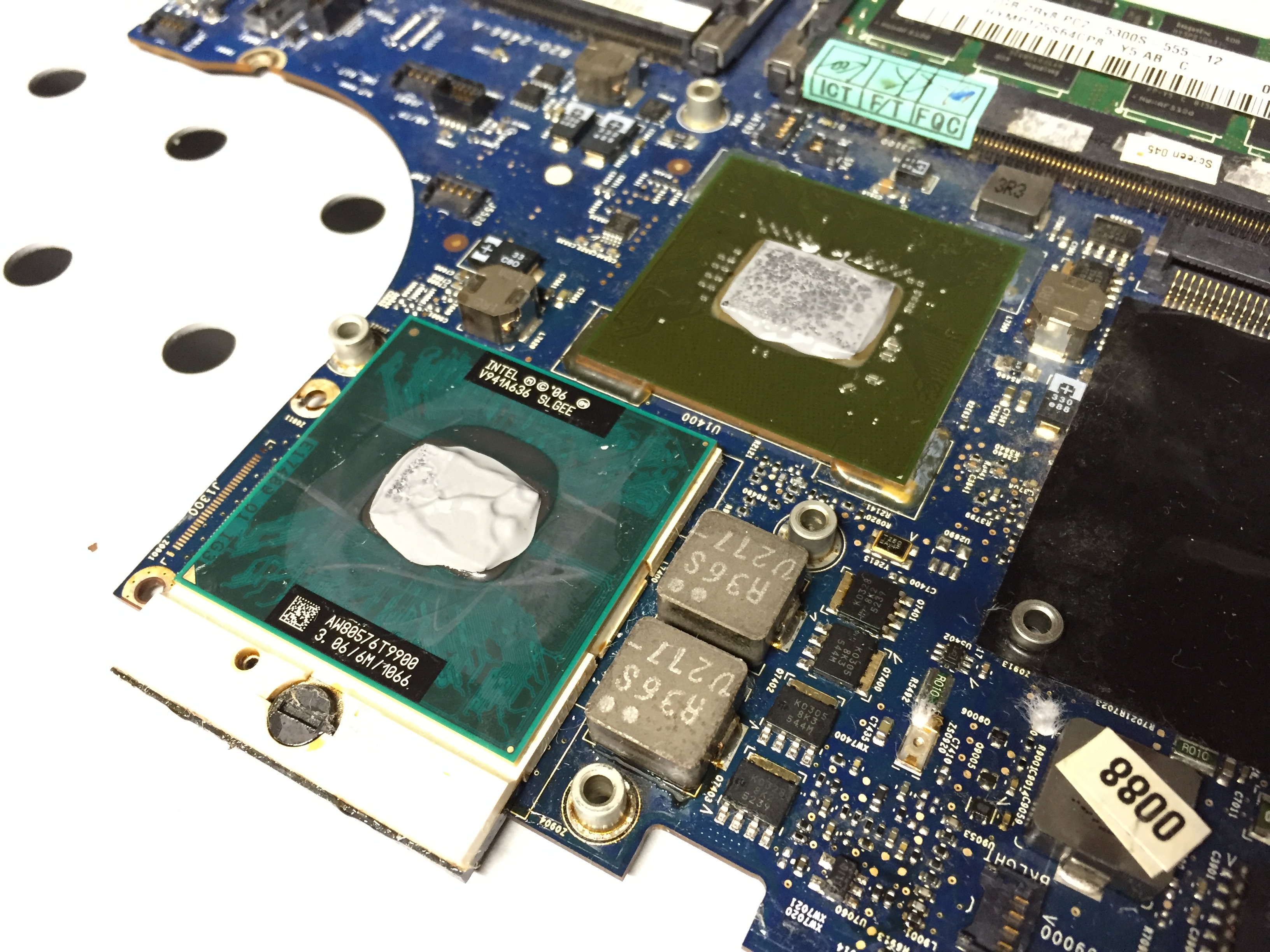

After a few minutes, it was soldered on. Here's a picture of the socket right after soldering it onto the board:

As you can see, the holes in the socket sucked the flux up like a straw, but it still soldered down just fine... It was an absolute pain to clean (I ended up having to use an ultrasonic cleaner to get it all off). Not to mention it also caused the locking mechanism of the socket to lock up. After getting it cleaned, though, it was ready for testing. Here's a shot with a Core 2 Duo T9900 CPU installed:

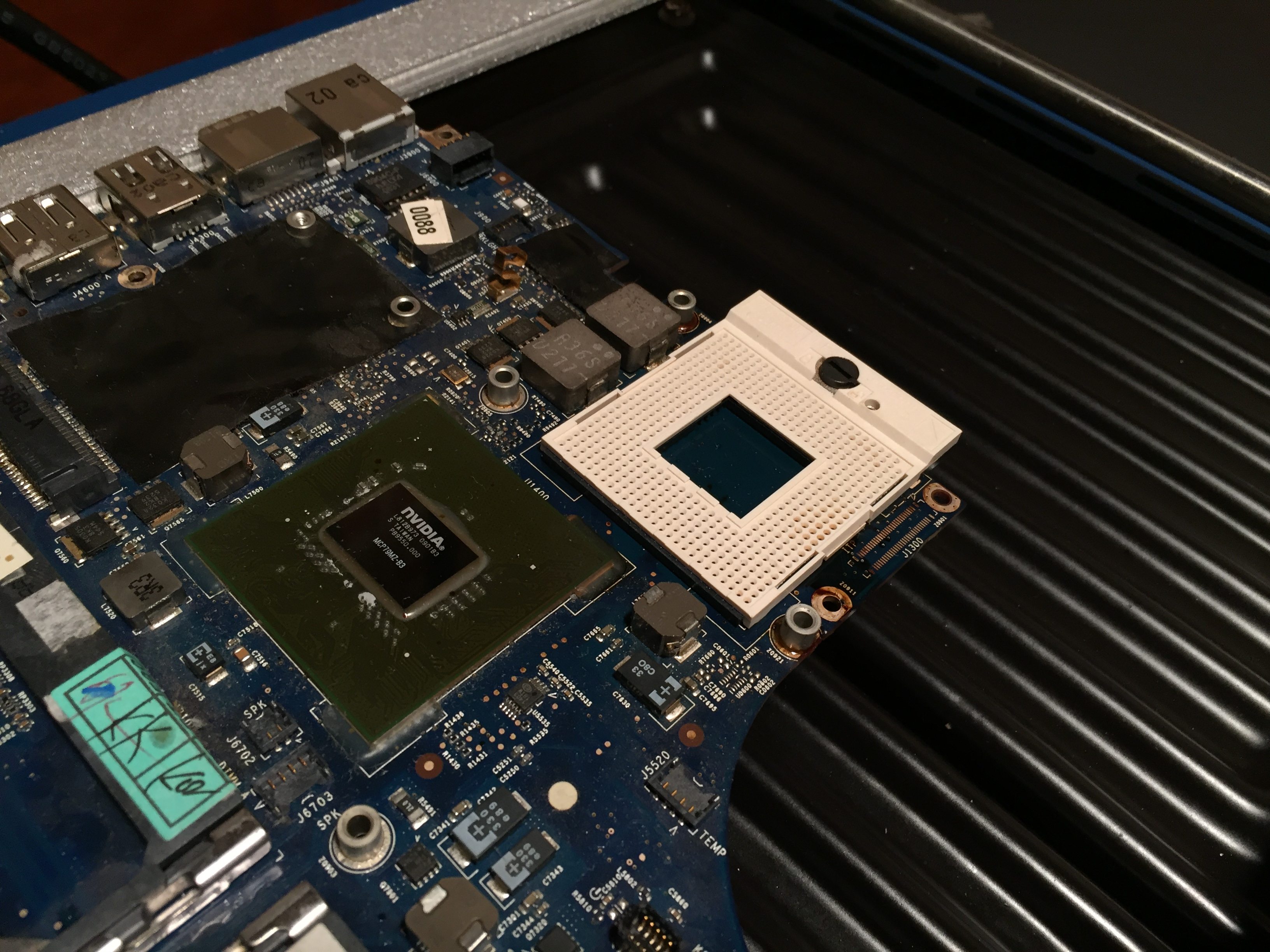

You can also see in this picture how the socket hangs off the board by quite a bit... This makes it impossible to fit back into the MacBook's casing without modifying it.

Anyways, now with a CPU installed, it can now be tested. And... It works!

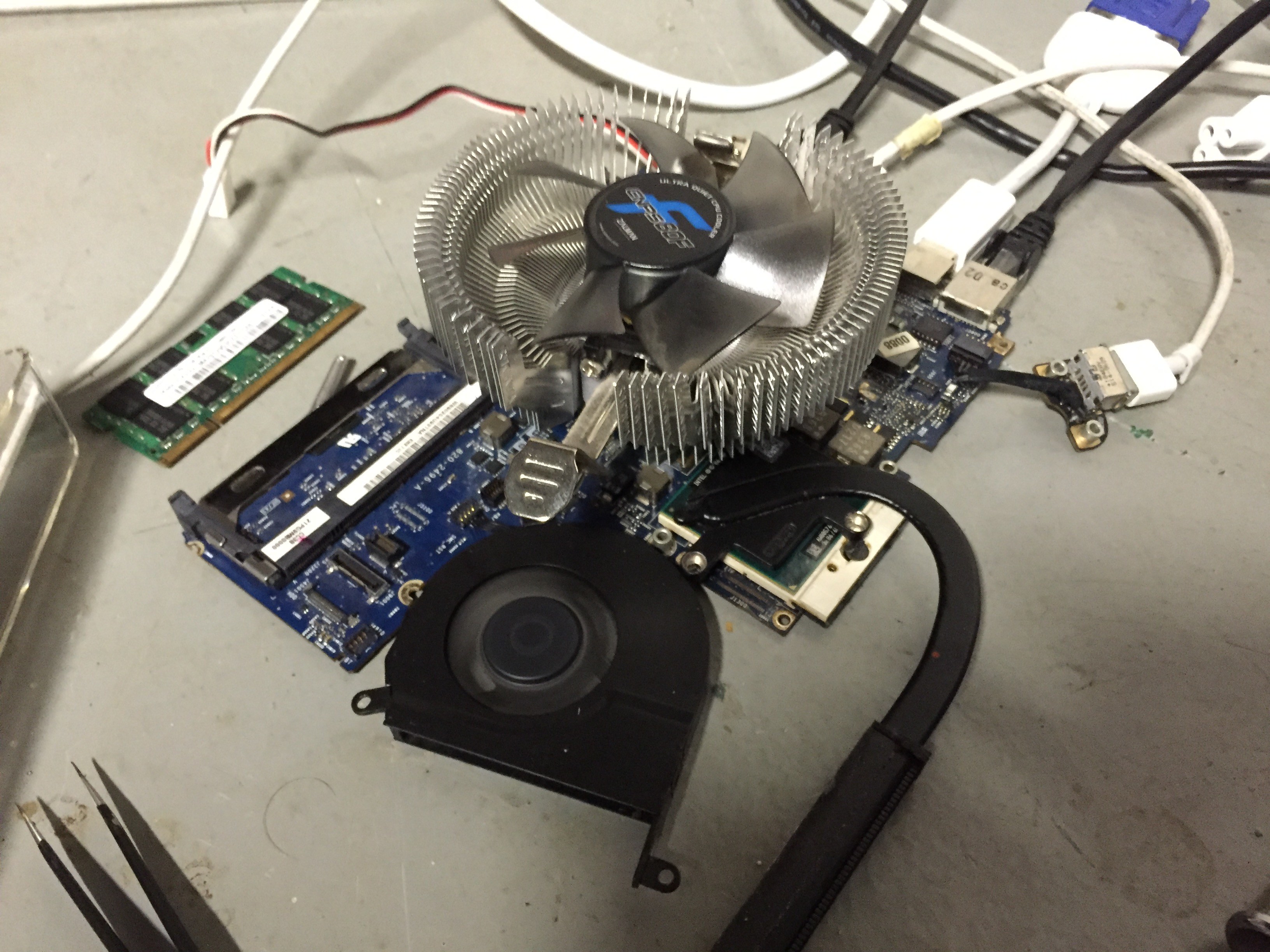

I did have to use a very ghetto cooling solution, as the original heatsink would now no longer make any contact with both the MCP79 and the CPU, but hey, it works for testing!

So, with all that said and done, would I recommend performing this modification?

No, definitely not. At least, not unless you plan on significantly modifying your MacBook case.

There are a few modifications that would need to be made to have this actually be usable:
- A significantly thick copper shim would have to be placed in between the MCP79 northbridge and the heatsink to be able to use the original heatsink
- A portion of the back section of the MacBook casing would have to be removed to make room for the overhang of the CPU socket off the back of the board
- The top case assembly would have to be slightly raised (or slightly bowed up in the middle) to accommodate the taller heatsink
- Slightly longer screws would be needed to secure the heatsink to the logic board
