Fcis

macrumors member
Original poster
Jun 23, 2020
73
5

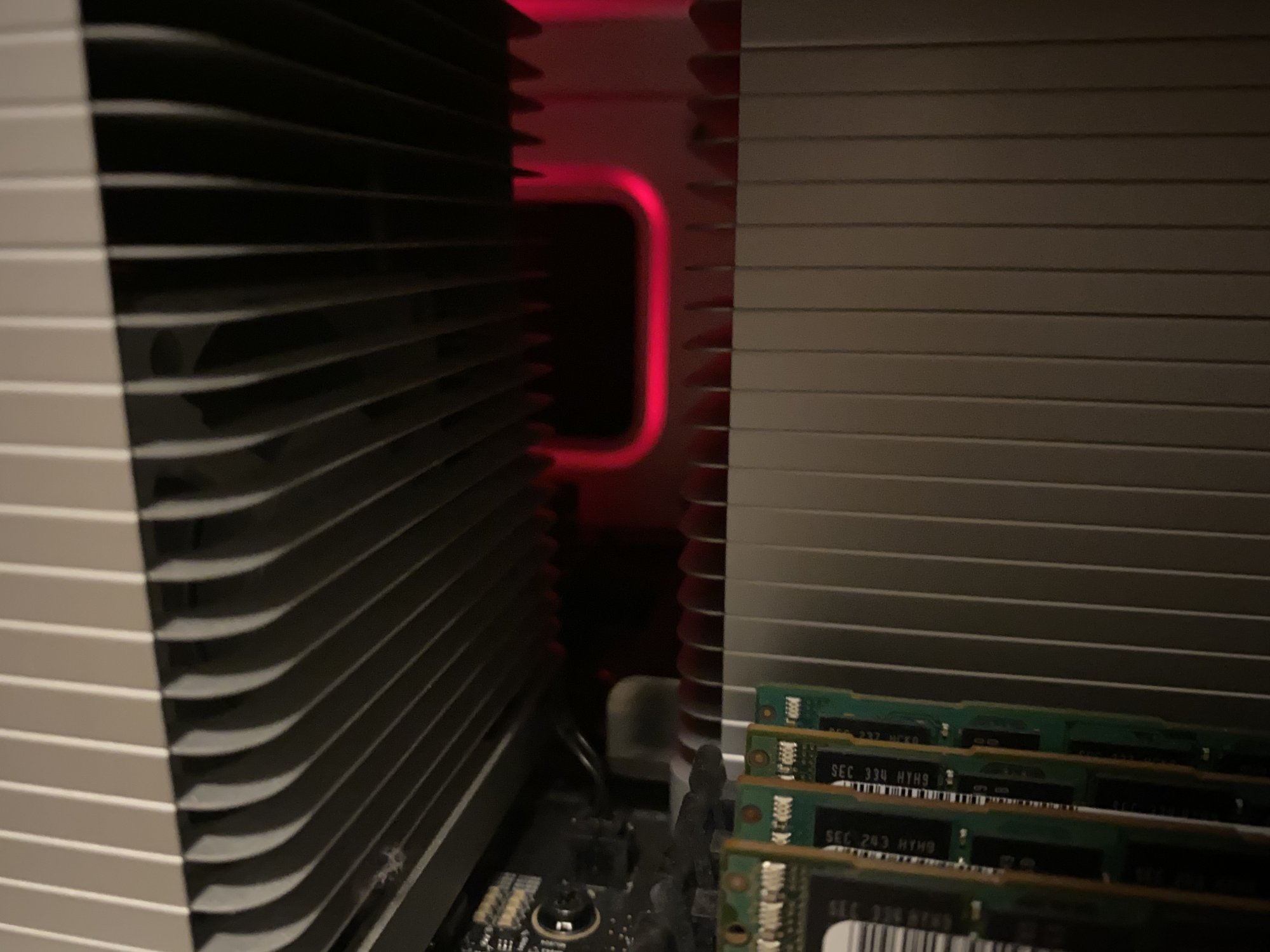

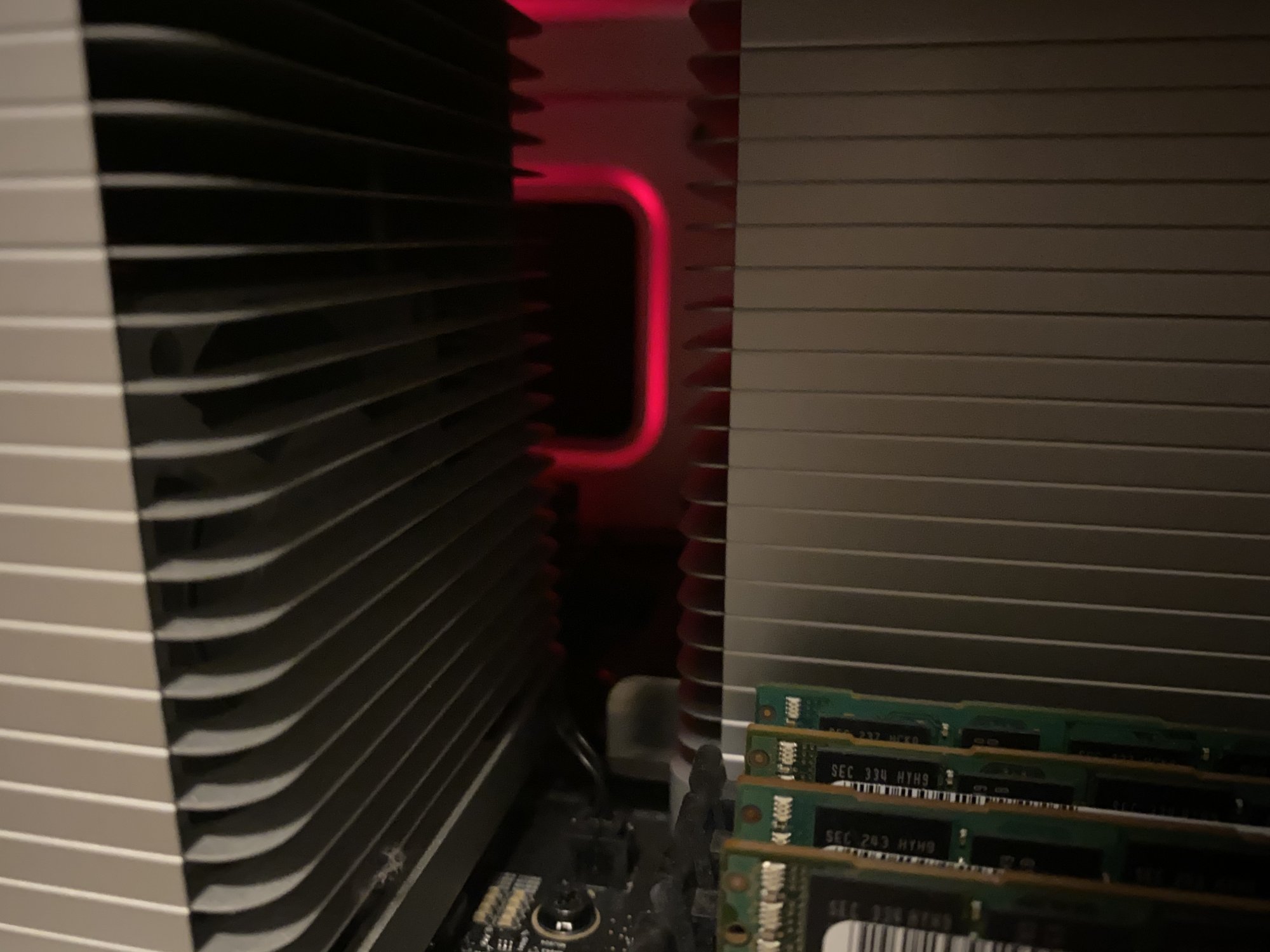

I've just replaced my old CPUs and installed new CPUs Intel Xeon X5690 and ran Geekbennch and here are the results https://browser.geekbench.com/v5/cpu/2739066 Could anyone have a look and advise if it's okay? and while it was running intensively I can see right light blinking as shown in the below photo, is that normal or it indicates a problem? The red light normally doesn't flash when running the machine normally. I mean how to know that I've done the right thing and applied correct amount of thermal paste for example?

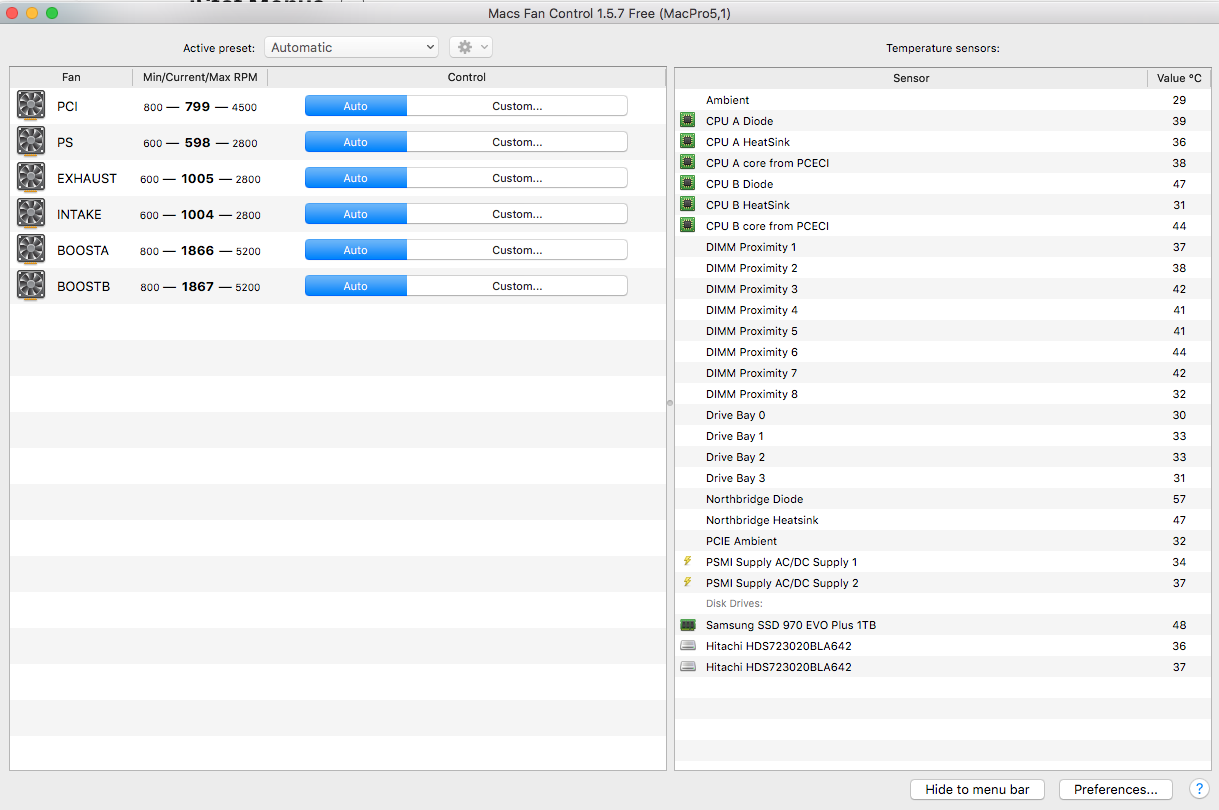

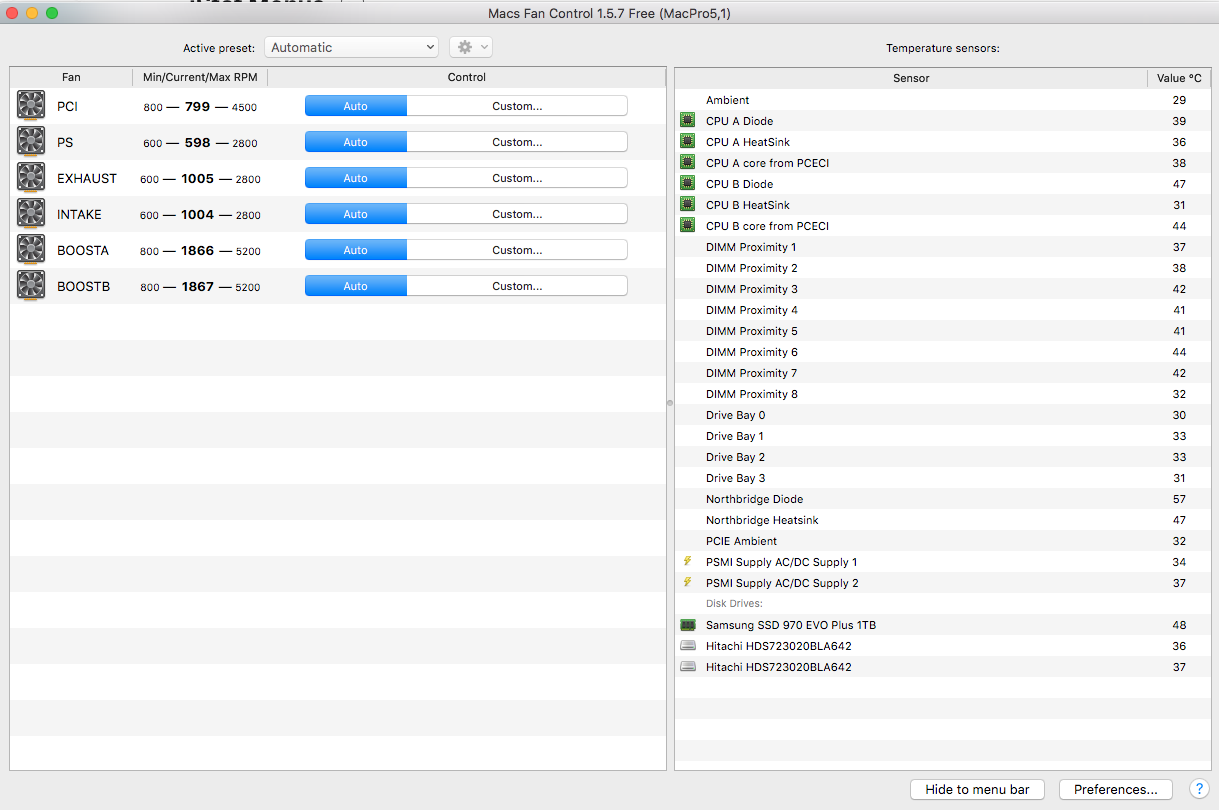

Below is also the Macs Fan Control results of normal use not during benchmark. Also what is the best way to track the CPU temperature?


View attachment 929178

View attachment 929177


t8er8

macrumors 6502
Dec 4, 2017
252
100
Quebec, Canada
the geekbench score is very off putting and there is likely something wrong with one or both of the CPU’s or the way you installed them. Normally, a dual cpu X5690 geekbench score is around 25-30,000. There is a set of those red diagnostic lights that indicate different issues. If you can find the exact one flashing, it should tell you the issue.


Fcis

macrumors member
Original poster
Jun 23, 2020
73
5
I've checked and I found that I didn't tighten the heatsink enough until the end so I tightened them without opening them. Now on Macs Fan Control this is the result. What do you think? I see that now CPU A is the higher one and B is lower, is that normal? and what in terms of the temperature of both is this is a normal temperature? and shall I run any tests Or shall I open the heatsinks and do the process all over again?

View attachment 929189
[automerge]1593469537[/automerge]
the geekbench score is very off putting and there is likely something wrong with one or both of the CPU’s or the way you installed them. Normally, a dual cpu X5690 geekbench score is around 25-30,000. There is a set of those red diagnostic lights that indicate different issues. If you can find the exact one flashing, it should tell you the issue.

Replied.


t8er8

macrumors 6502
Dec 4, 2017
252
100
Quebec, Canada
Do another geekbench test before anything else. See if its in the normal range for multithreading (25-30,00) Those are much more normal cpu temperature results and that was at least half the issue, did the blinking lights stop? If not, then you should find out which one the diagnostic lights is so we can find the actual issue. If anything, I’m guessing either you didn't apply enough thermal paste, Or one of your heatsink screws is either too loose or it wasn't inserted properly.


Fcis

macrumors member
Original poster
Jun 23, 2020
73
5
Do another geekbench test before anything else. See if its in the normal range for multithreading (25-30,00) Those are much more normal cpu temperature results and that was at least half the issue, did the blinking lights stop? If not, then you should find out which one the diagnostic lights is so we can find the actual issue. If anything, I’m guessing either you didn't apply enough thermal paste, Or one of your heatsink screws is either too loose or it wasn't inserted properly.


Thanks. I just did another one and no red lights were blinking and the CPU fans were kinda running normal not boosting like first time and here are the results https://browser.geekbench.com/v5/cpu/2740306

If you could advise what you think?

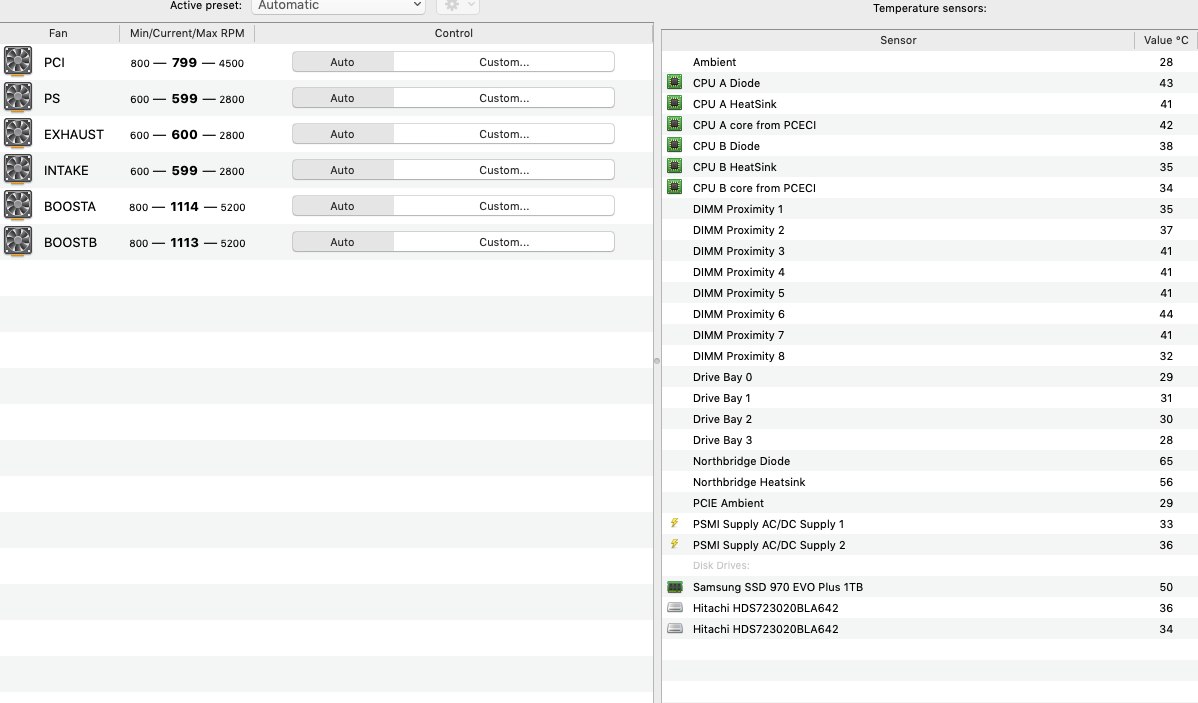

This is the Macs Fan Control current temperature:

Screenshot 2020-06-30 at 00.55.54.png


owbp

macrumors 6502a
Jan 28, 2016
719
245
Belgrade, Serbia
You are using geekbench 5.
25-30k multicore results are in the previous versions (3 and 4, iirc).

Edit: Temps are fine in your last post. Nothing wrong there.


flyproductions

macrumors 65816
Jan 17, 2014
1,089
466
Normally, a dual cpu X5690 geekbench score is around 25-30,000.
Yes...for GeekBench 3 or 4. For Geekbench 5, which he most likely tested, results are not impressive but ok.
[automerge]1593472830[/automerge]
I see that now CPU A is the higher one and B is lower, is that normal?
Yes...as A gets his air pre-heated by B as well as the northbridge.


Fcis

macrumors member
Original poster
Jun 23, 2020
73
5
Yes...for GeekBench 3 or 4. For Geekbench 5, which he most likely tested, results are not impressive but ok.
[automerge]1593472830[/automerge]

Yes...as A gets his air pre-heated by B as well as the northbridge.

These are the results of GeekBench 4 : https://browser.geekbench.com/v4/cpu/15596792

and these are results of GeekBench 5:


Could you check and let me know what you think? And advise me if I should do anything? Thank you.


flyproductions

macrumors 65816
Jan 17, 2014
1,089
466
Could you check and let me know what you think? And advise me if I should do anything? Thank you.
6600 for GeekBench 5 looks way better than what you posted first! :)

No need to do anything. Results are just in range. CPU-temps as well.

Last edited:

t8er8

macrumors 6502
Dec 4, 2017
252
100
Quebec, Canada
Sorry about that, wasn’t aware they changed scoring in geekbench 5, everything looks good in the geekbench 4 bench, nothing to worry about


Fcis

macrumors member
Original poster
Jun 23, 2020
73
5
So after a couple of days since the upgrade. Are these temperatures good?

Screenshot 2020-07-03 at 14.28.34.png
