Hi, sorry for the double post, maybe some readers will only get it here
Hi everyone, new to this forum.
Mac pro 2009 mono cpu (stock mono 2,66) updated to 5.1, high sierra with bootrom MP51.0089.B00 BootROM
CPU update fail !! Trying to install a x5675 bought on ebay
After cpu change and new thermal paste, at first boot I had a apple logo + progress bar stuck at 75%.
Did a pram and smc resest (several times, event 10 times pram reset) no success.

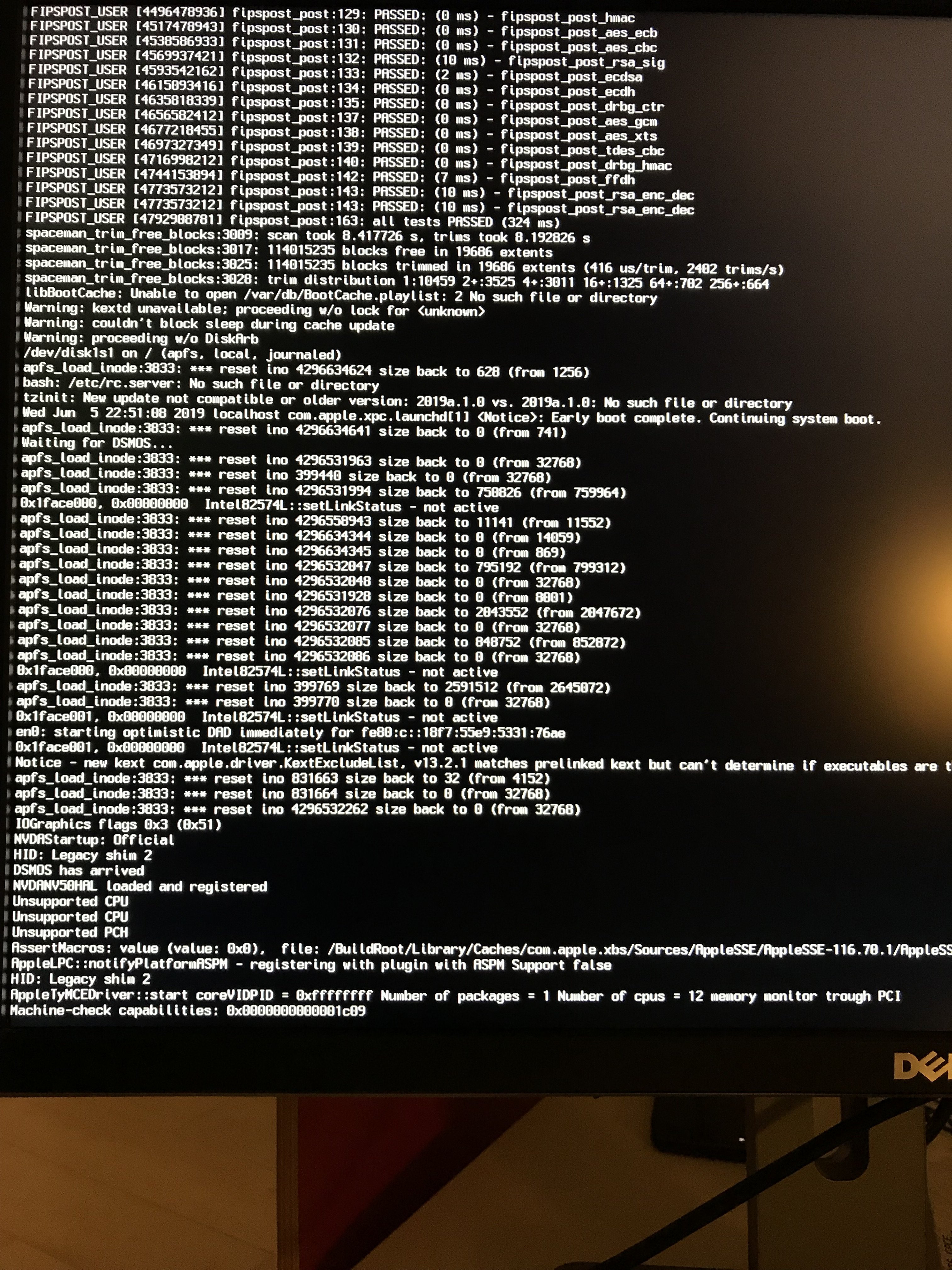

verbose mode says "unsupported cpu unsupported pch"

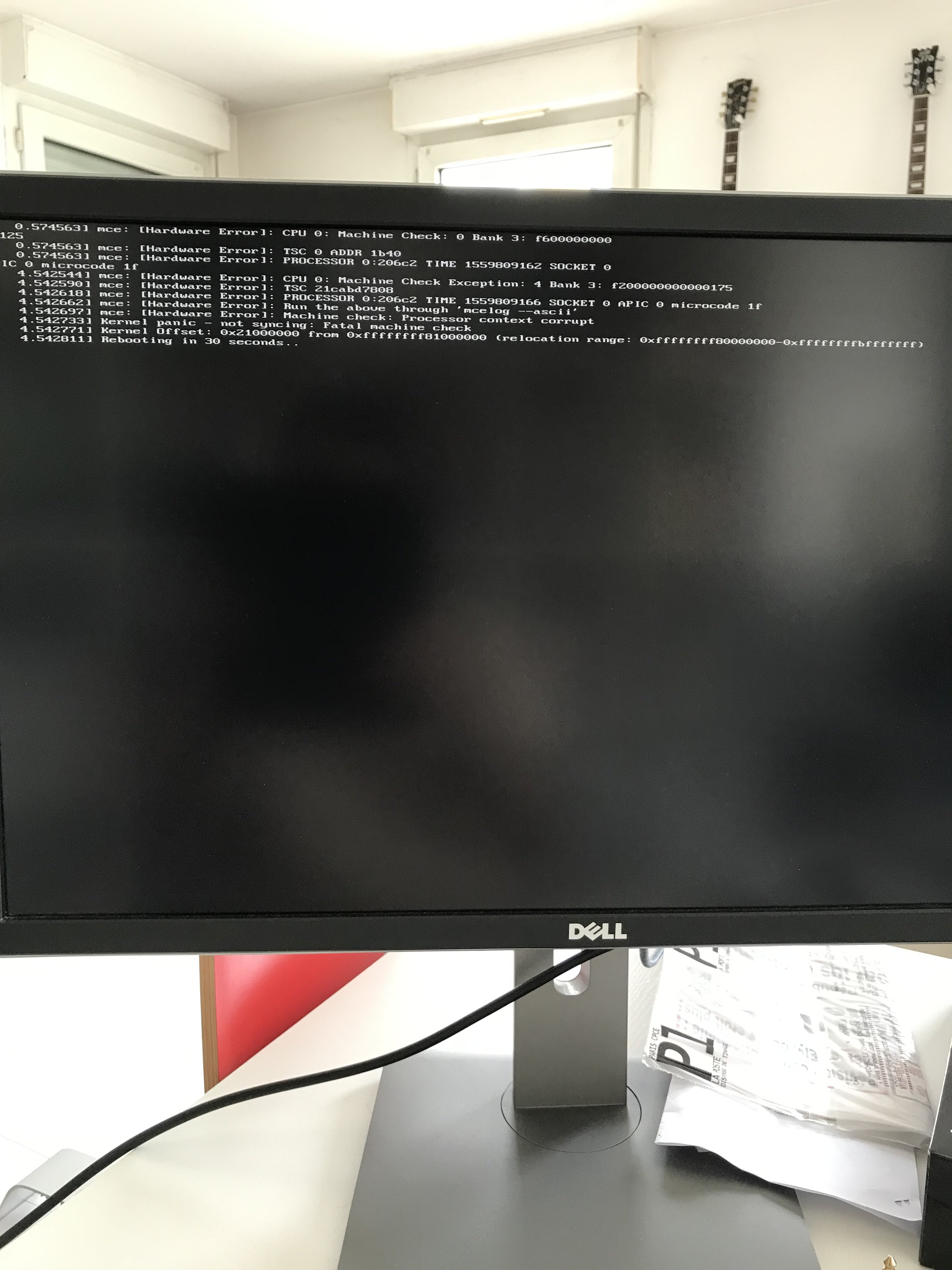

Tried to boot with latest sysrescuecd linux live, gave me a kernel panic at boot with cpu blabla problem
No red light in the cpu tray board
Pictures for the verbose mode
Strange thing : after the FIRST pram reset the verbose told about the cpu family, model number and speed, never after that.
Any clue ?
IMG_0018.jpg IMG_0020.jpg


alphaod

macrumors Core
Feb 9, 2008
22,183
1,245
NYC
Try updating the bootrom to latest version with full Mavericks installer (no need to actually install the OS) with the old CPU installed.


bobitavu

macrumors newbie
Original poster
Jun 6, 2019
21
1
Lyon , France
which bootrom version ? a 140 or newer ? I thougt those bootrom were only with mojave installer
[doublepost=1559820846][/doublepost]pics of the x5675 and the w3520 original

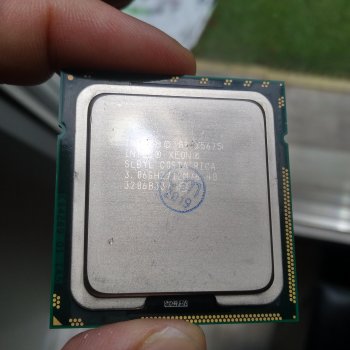

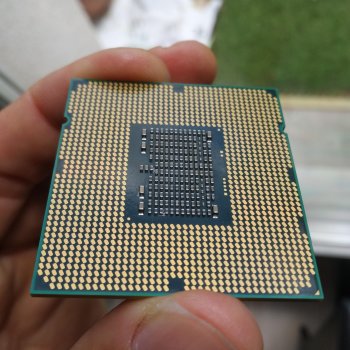

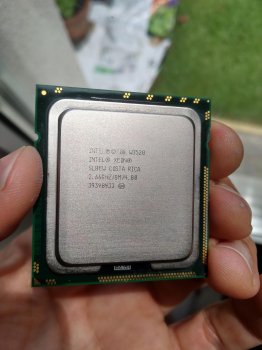

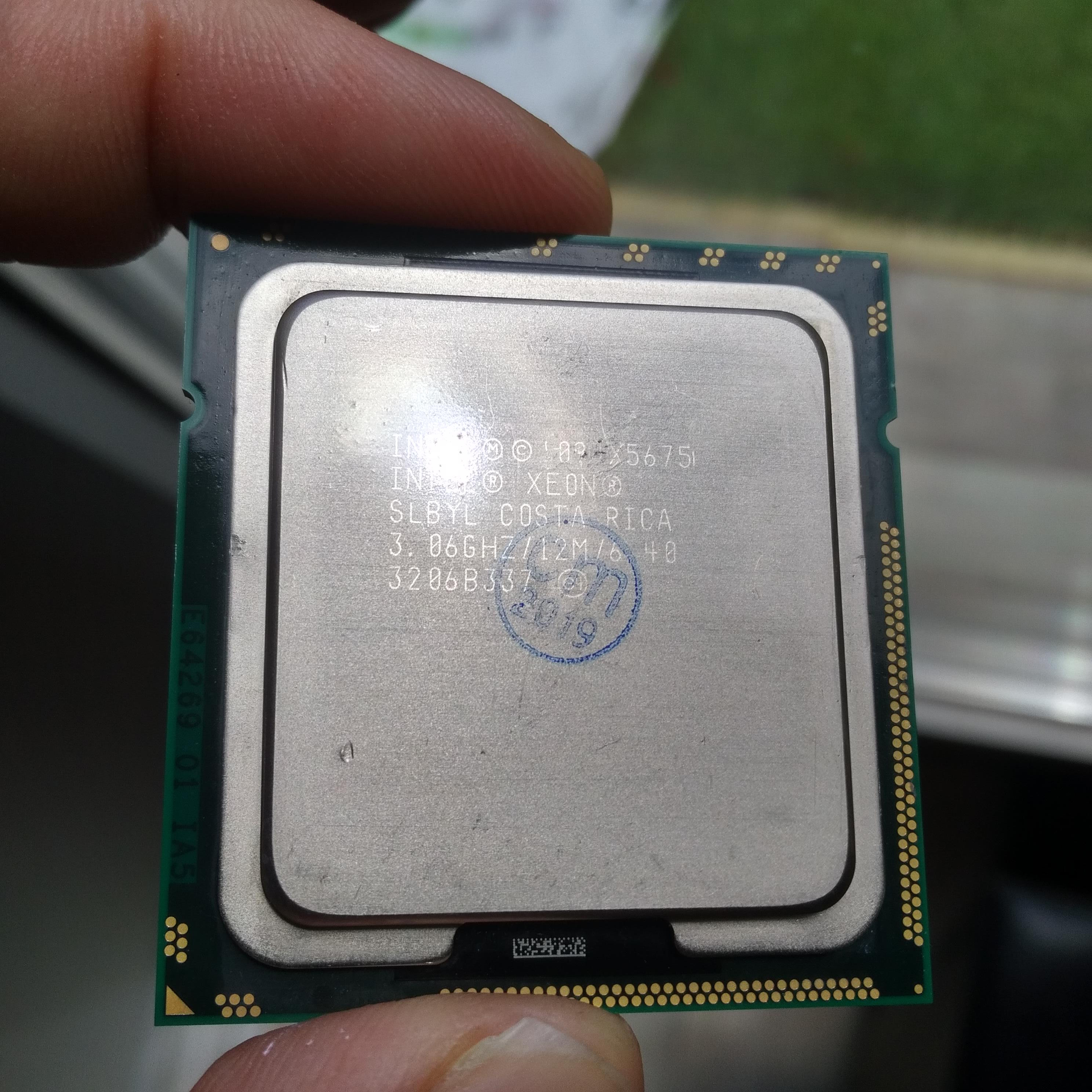

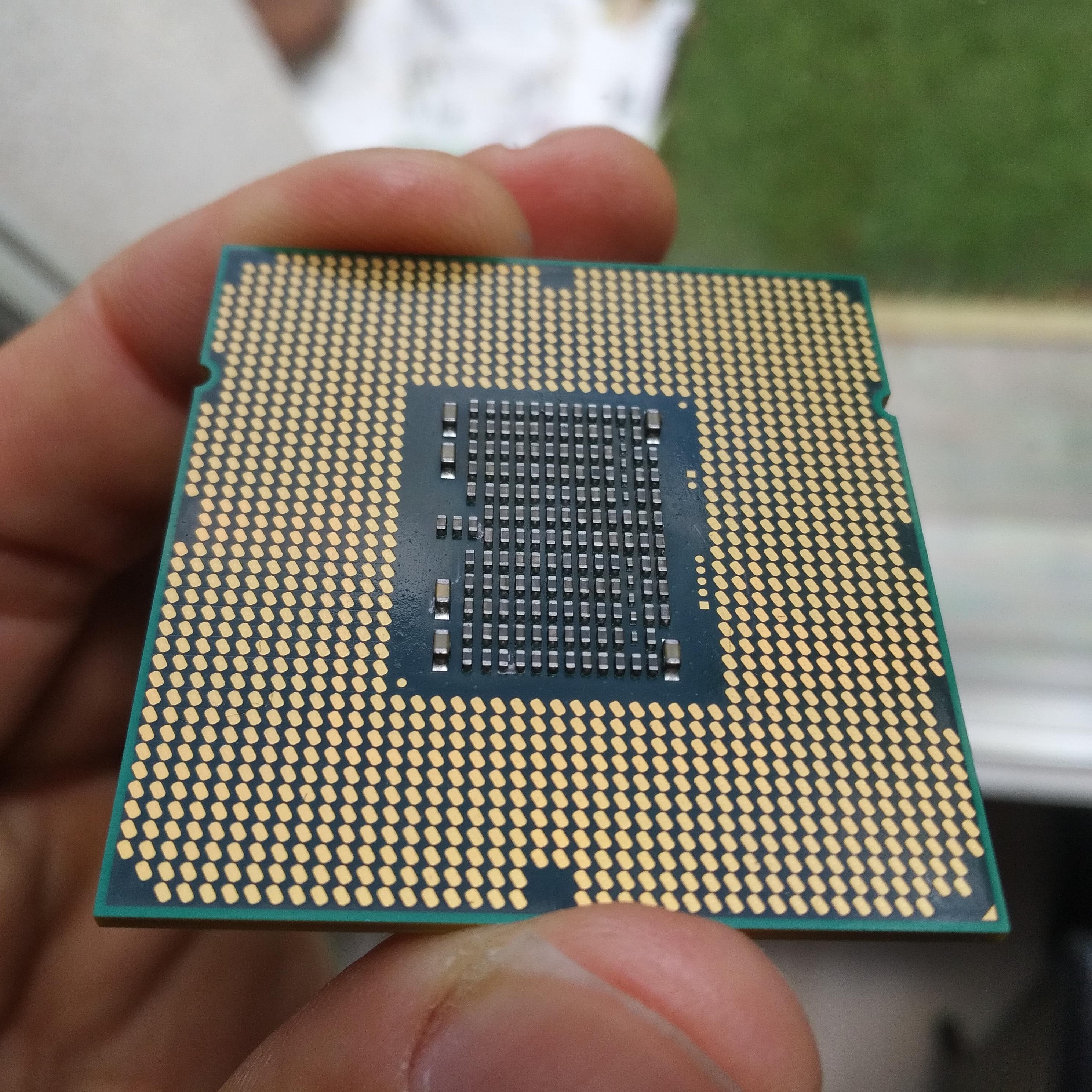

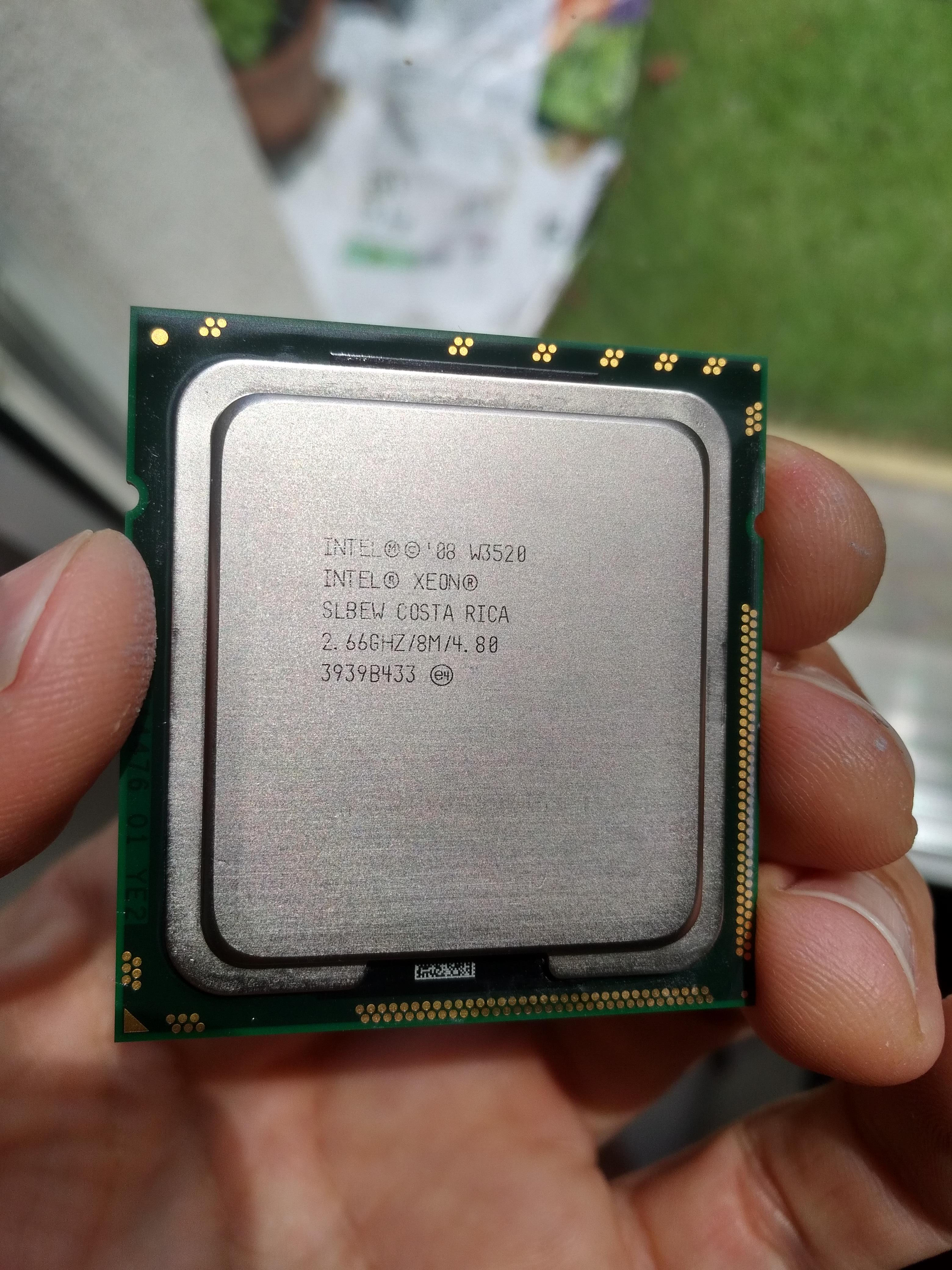

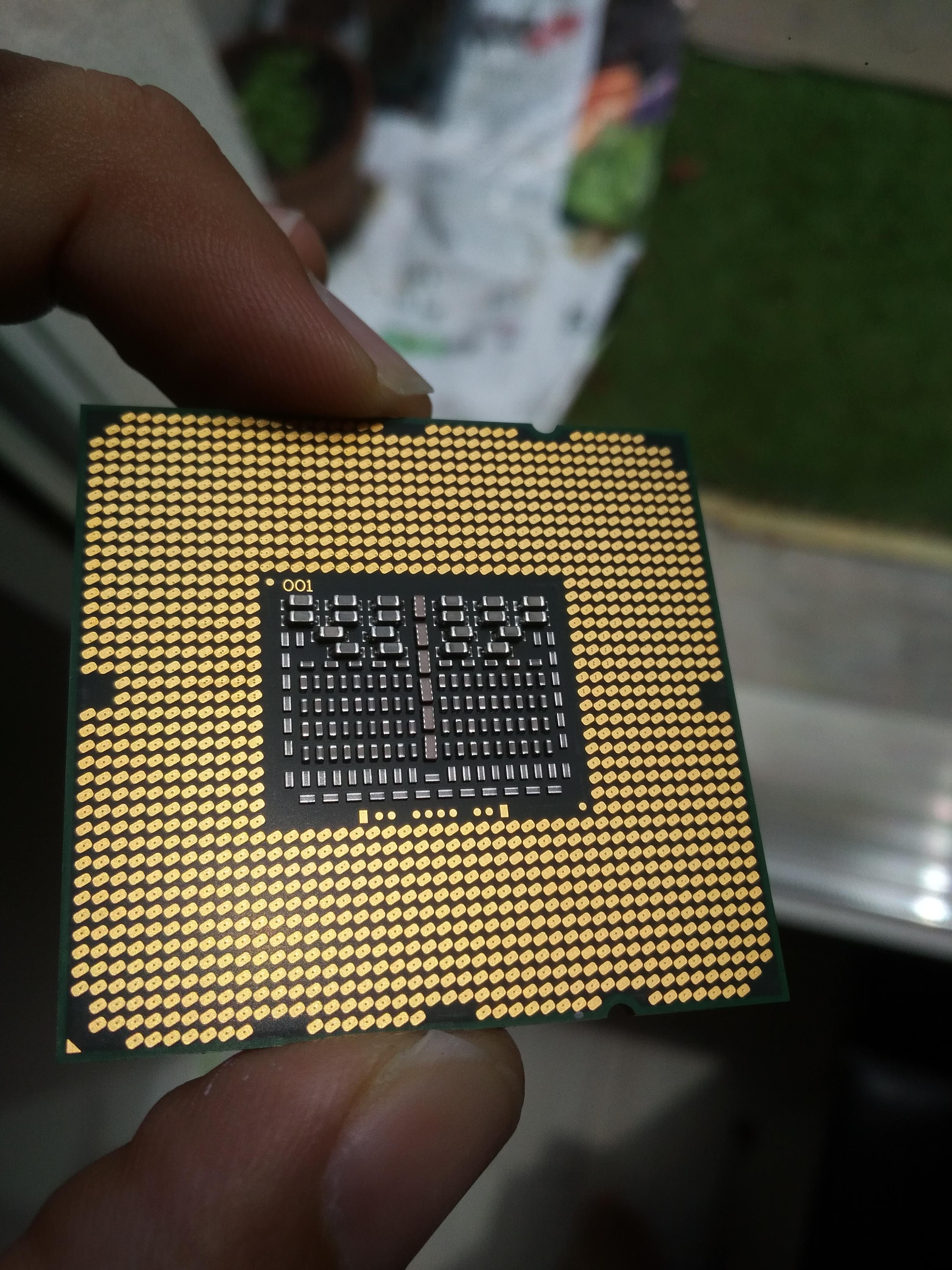

x5675.jpg w3520.jpg w3520-back.jpg x5675-back.jpg


tsialex

Contributor
Jun 13, 2016
13,459
13,608
Try updating the bootrom to latest version with full Mavericks installer (no need to actually install the OS) with the old CPU installed.
Mavericks? Apple started to send BootROM updates for MP5,1 with High Sierra.

It's not BootROM related anyway, all MP5,1 BootROMs have full X5670 support.

  • Like
Reactions: alphaod

Nabru50

macrumors member
Aug 24, 2017
42
61
United States
I'd try re-seating your RAM, maybe it got knocked when you did the CPU swap. The RAM in mine can be pretty touchy.
I have the same MP and CPU as you, and my X5675 swap worked with no problem. Is it possible to have a bad CPU with no diagnostic LED lit?


Macschrauber

macrumors 68030
Dec 27, 2015
2,987
1,494
Germany
I get pensive when I see people touching processors with bare fingers.

Clean the underside with alcohol like isopropyl and reseat the processor.

Finger grease would make contacts worse. Most of the time when ram is not recognised it leads to bad contacts of the Xeon.


h9826790

macrumors P6
Apr 3, 2014
16,656
8,587
Hong Kong
Put the W3520 back in. Make sure the cMP still ops normal. (Rule out other hardware failure / damage)

If OK, clean the X5675 and try again.

If still fail, contact seller ask for replacement. (In fact, you should call him now to alert him possible require CPU replacement / refund.


bobitavu

macrumors newbie
Original poster
Jun 6, 2019
21
1
Lyon , France
this is what I did , still waiting for an answer of the ebay seller ... who told me to wash with alcool ( I did it three times) And I gripped the cpu only by his thin sides of course ...
