Daisy chaining firewire devices

[reddrag0n]

Earlier i tried turning on my external hard drive that was attached to my QS. now the drive is connected to the mac with a firewire cable. i turned on my other drive that's daisy chained to the first hard drive but it wouldn't show up on the desktop. is there something about the firewire drives i need to be aware of in order for them to work simultaneously? i even reversed the cables to go from the mac to the second drive and then the first drive being daisy chained. no difference on having the other drive show up on the desktop.
for testing sake, i even tried a drive and my ads pyro box daisy chained and the mac didn't see the pyro.

maybe it's a mac issue, or even an os issue?

FYI os is 9.2.2 on a Quicksilver 2002 DP 1ghz



[B S Magnet]

Earlier i tried turning on my external hard drive that was attached to my QS. now the drive is connected to the mac with a firewire cable. i turned on my other drive that's daisy chained to the first hard drive but it wouldn't show up on the desktop. is there something about the firewire drives i need to be aware of in order for them to work simultaneously? i even reversed the cables to go from the mac to the second drive and then the first drive being daisy chained. no difference on having the other drive show up on the desktop.
for testing sake, i even tried a drive and my ads pyro box daisy chained and the mac didn't see the pyro.

maybe it's a mac issue, or even an os issue?

FYI os is 9.2.2 on a Quicksilver 2002 DP 1ghz

So to be clear:

When you reversed the cables to go from the Mac to the second drive, full-stop, the second drive wouldn’t show up in either the Finder desktop or in Disk Utility, but when adding the first drive behind the second drive in the daisy chain, the first drive does appear on the Finder desktop/Disk Utility whilst the second does not?



[Project Alice]

Are they bus powered?
I have had problems in the past daisy chaining FW hard drives because of power issues. The FW port on the Mac doesn’t have enough power for more than a single drive normally.



[reddrag0n]

B S Magnet : best way to show it is in a mini diagram..

Mac__D1__D2 (D2 doesn't show on desktop)
Mac__D2__D1 (D1 doesn't show on desktop)
Mac__D1 or D2__Pyro (Pyro doesn't show on desktop)

Project Alice : all firewire devices are wall powered. Each have their own power plug.



[reddrag0n]

ok, so i tried something different. i plugged both externals into the mac, each on their own cable going into the back and then i daisy chained the pyro into the first external. nothing on any recording program. i tried switching the dip switch settings on the back of the pyro to no avail.

then i tried my hollywood dv bridge using the same method and it's seen. so i'm wondering if the pyro unit needs it's own firewire port with nothing else sharing it.



[rampancy]

Perhaps a Firewire hub is what you'd need...



[Tratkazir_the_1st]

Firewire hub

Please show me such thing . Never seen this IRL.



[joevt]

Please show me such thing . Never seen this IRL.

They may be called Repeaters. Search for 1394 hub. Or 1394b for FireWire 800.

FireWire HUB | 5 port IEEE 1394b FireWire 800 HUB | 1394R-B5



[rampancy]

Please show me such thing . Never seen this IRL.

They're expensive and not commonly seen because they're very niche devices, but they are out there:

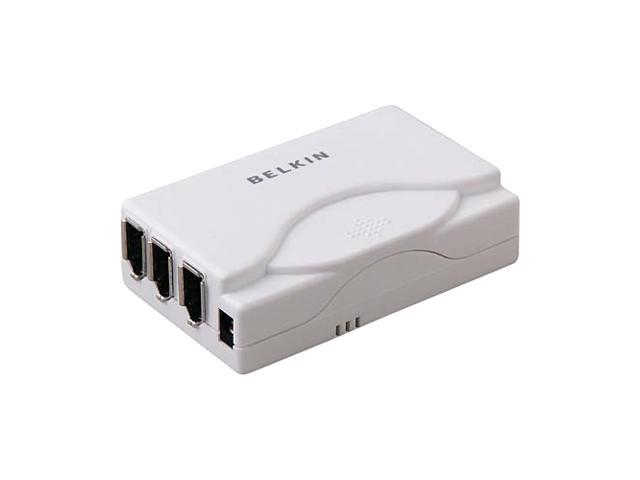

BELKIN F5U526-APL FireWire 6-Port Hub - Newegg.com

Buy BELKIN F5U526-APL FireWire 6-Port Hub with fast shipping and top-rated customer service. Once you know, you Newegg!

www.newegg.com

And for FireWire 800:

LINDY 3 Port FireWire 800 Repeater Hub (32911)

Connects to a FireWire 800 or 400 port on your PC or Mac ; Supports speeds of up to 800Mbps when connected between a dedicated FireWire 800 port on your computer and a FireWire 800 device ; Bus-powered or self-powered using the included power supply

www.amazon.com



[Tratkazir_the_1st]

I wonder if there exists such thing as Ethernet to FW Hub\switch.



[pacmania1982]

I tried this once before with limited success. I did read somewhere that you shouldn't really daisy chain disks in this manner. You should plug it into one machine, put a firewire cable between the two computers then share out the drive from the one machine to the other using File Sharing.



[Amethyst1]

FWIW, I had no issues daisy-chaining two hard drives and a DVD burner off my G4 mini's single Firewire port. All drives were wall-powered.

(Just running one of them in a stripeset with the mini's interval hard drive was not a good idea.)



[reddrag0n]

i have seen those hubs out there before, something like 120 firewire devices can be run off of a single firewire hub as usb can run 126 devices off of a usb hub.

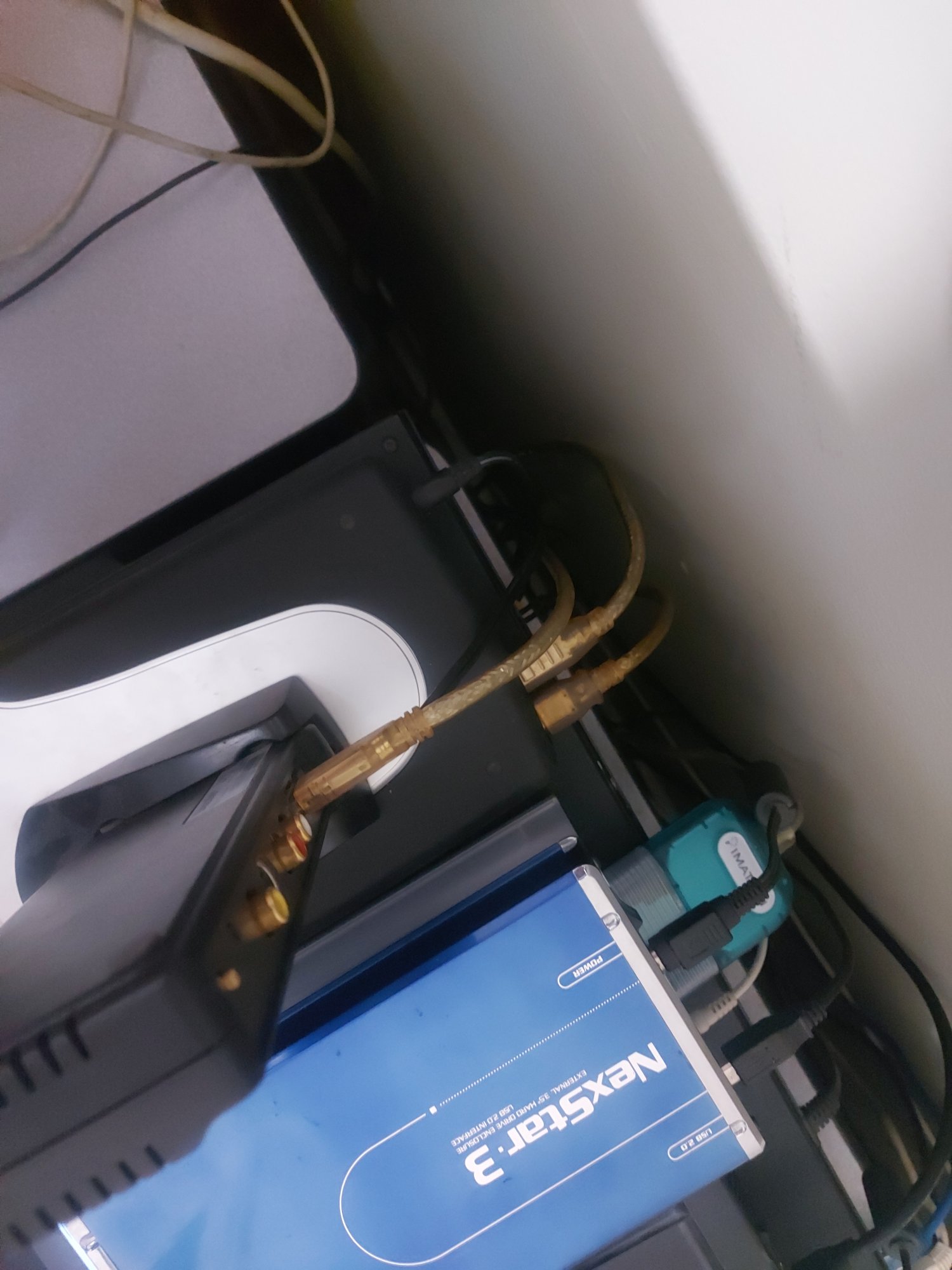

how i have it set up right now it the hollywood dv bridge daisy chained into an external hdd which is then plugged into the mac. the second external hdd is just plugged into the other firewire port on the mac. so far everything is working as it should. i was able to copy over a vhs film to digital and have it copied to the external afterwards.
i just wish i could run the pyro because it has component input for recording.



[Tratkazir_the_1st]

@reddrag0n
What is second external drive, under NexStar3? "Imation" & triangle force me to think about LS120 USB . (My favourite floppy drives . Got 2 with IDE connection in pair of my old PCs.)



[reddrag0n]

@reddrag0n
What is second external drive, under NexStar3? "Imation" & triangle force me to think about LS120 USB . (My favourite floppy drives . Got 2 with IDE connection in pair of my old PCs.)

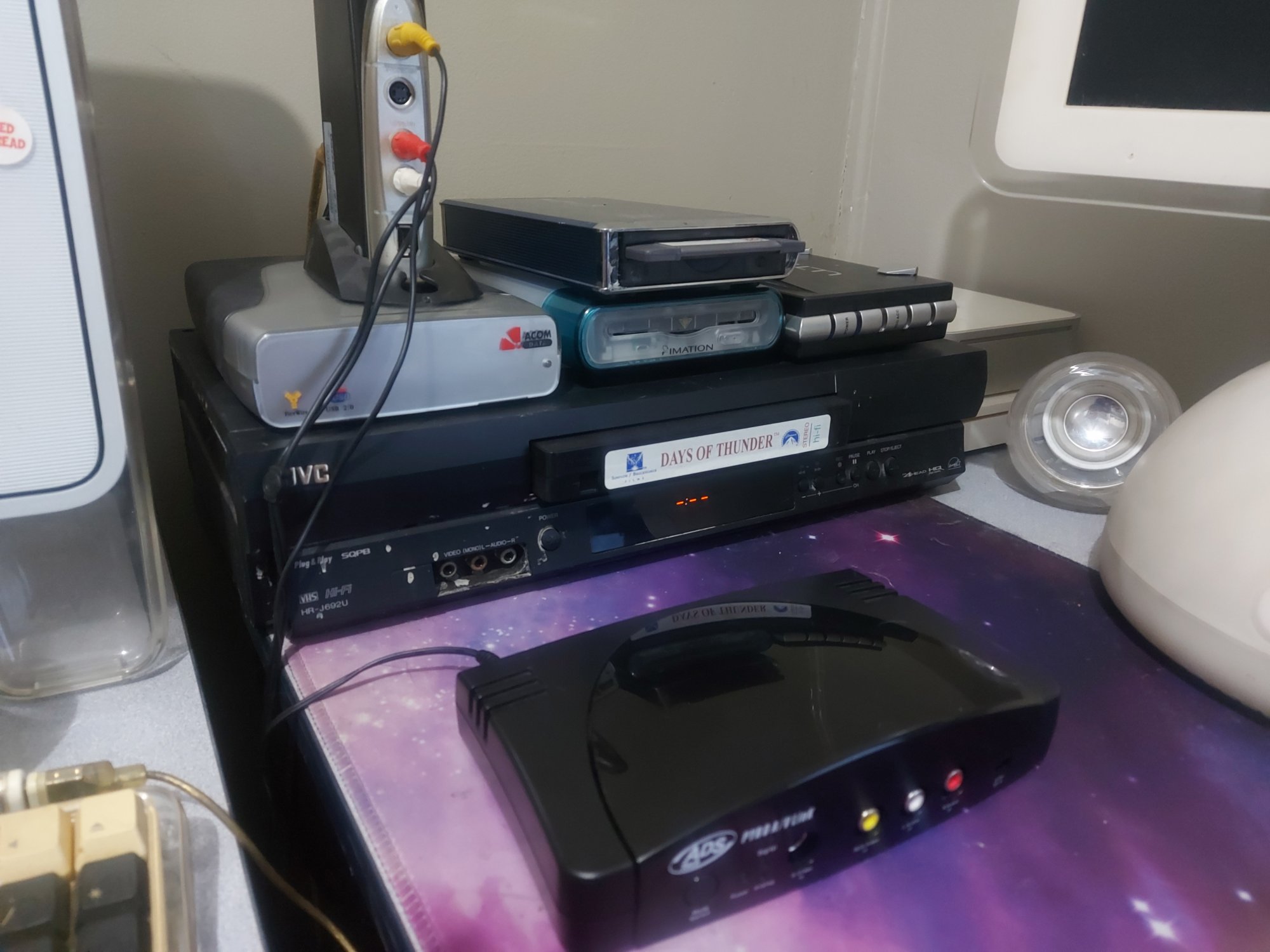

first gray one is an unknown firewire to ide external case, then its a nexstar usb/esata to ide (modded cut front to hold a 250 zip) under that is an imation LS120, then the far black is a noname firewire to ide



[Amethyst1]

first gray one is an unknown firewire to ide external case, then its a nexstar usb/esata to ide (modded cut front to hold a 250 zip) under that is an imation LS120, then the far black is a noname firewire to ide

That's very cool. Are you using the LS120 and Zip drives for data retrieval/recovery purposes or...?



[reddrag0n]

I have them because i can, i guess.... i have a few floppies that i use to swap files to my classic, and the zip drive because i have 30 zip disks that are on a shelf. Other than that, i have other odds and ends i have collected over the years. Still have my old imate for adb peripherals...
