DefaultKeyBinding.dict broken for backslash?

[ghost82]

Hi, Big Sur 11.4 on intel.
In the latest update to 11.4 my third party keyboard swapped a pair of keys, less than and more than are swapped with backslash and |.
I always used the DefaultKeyBinding.dict files to map my keys, and it worked, and it still works, but not for the backslash.
I would avoid third party apps, I prefer built-in solutions
Here is my DefaultKeyBinding.dict:

{
    "#," = ("insertText:", ".");
    "$|" = ("insertText:", ">");
    "$>" = ("insertText:", "|");
    "<" = ("insertText:", "\\");
    "\\" = ("insertText:", "<");
}

first rule is to write "." instead of comma when pressed in the numpad ---> OK
second rule is to write more than for shift+| ---> OK
third rule is to write | for shift+more than ---> OK
fourth rule is to write backslash for less than ---> OK
fifth rule is to write less than for backslash --> NOT OK

Oh well...with the last rule if I press the backslash it writes less than, but the problem is that all the letters and numbers are mapped to less than.....: note that I have a password to login, and the password is accepted, but I don't know if the mapping works at the login screen or not.
I also tried with "\U05C" = ("insertText:", "<"); --> same result, no difference.

Is this totally broken or is it my fault?
Can anyone try to map the backslash?

Thanks



[ghost82]

Apart this I think that's something wrong with the italian layout:

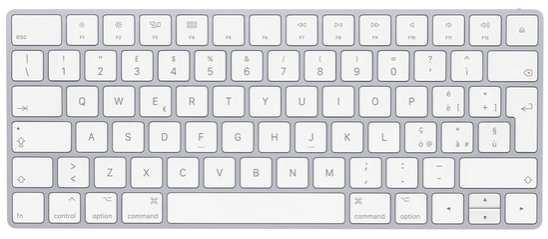

Apple keyboard layout italian:

Note next to Z and next to 1: I have this layout on my third party keyboard.

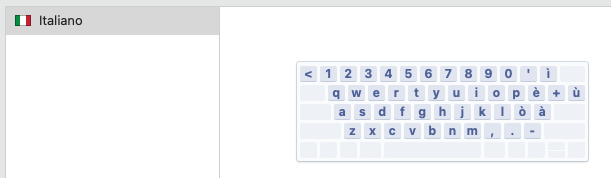

This is the layout in system preferences on big sur 11.4:

Why the less than next to 1????
My god...why do they touch the keyboard layouts???



[ghost82]

Solved..for some strange reason setting again the keyboard with the assistant keyboard solved all the issue, as I need to map only the comma key on the numpad, less than and more than keys are in the right place now.
To make the assistant reappear I had to remove file in /Library/Preferences/com.apple.keyboardtype.plist
The image of the layout in system preferences is still wrong.



[frou]

You may also be interested in the built-in hidutil approach: https://developer.apple.com/library/archive/technotes/tn2450/_index.html

Personally I use that for direct key swaps, and DefaultKeyBinding.dict for adding custom movement commands etc.
