I would really like to know if it is possible to (temporarily) disable the four performance cores of Apple Silicon M1. so far I could not find anything (pmset). how fast (or slow) would the whole system become? the gain in battery life though would be stratospheric I assume...


gymrat2k

macrumors member
Jul 28, 2012
32
10
Stockholm, Sweden
Yeah, me also! I've disabled turboboost on my MacBookPro 15" mid 2015, and it helps a lot with heat and the RPM of the fans. Lowers the temperature up to 20º C, also save up to a 25% of battery depending on model & load.

The featured conditions for getting 18 and 20 hours out of MBA and MBP: The Apple TV app movie playback test measures battery life by playing back HD 1080p content with display brightness set to 8 clicks from bottom.

That workload should be handled by the efficiency cores, so expect that kind of battery life for all tasks with the same display brightness?

From Marco Arment: https://marco.org/2015/06/07/disabling-turbo-boost

Disabling Turbo Boost hurts performance of CPU-intensive tasks by about a third, but doesn’t significantly slow down lighter tasks. The MacBook Pro also runs noticeably cooler, and gains about 25% more battery life.

Last edited:

MK500

macrumors 6502
Aug 28, 2009
434
550
I would really like to know if it is possible to (temporarily) disable the four performance cores of Apple Silicon M1. so far I could not find anything (pmset). how fast (or slow) would the whole system become? the gain in battery life though would be stratospheric I assume...
I think the battery life increase would be substantially less than you think. I'm drawing 2 to 5 watts TOTAL most of the time working on my MacBook Air. My guess is a large percentage of that is the screen. This is nothing like turbo on Intel.

I think the OS is doing a really good job using appropriate cores.


mikeboss

macrumors 68000
Original poster
Aug 13, 2009
1,544
860
switzerland
@MK500

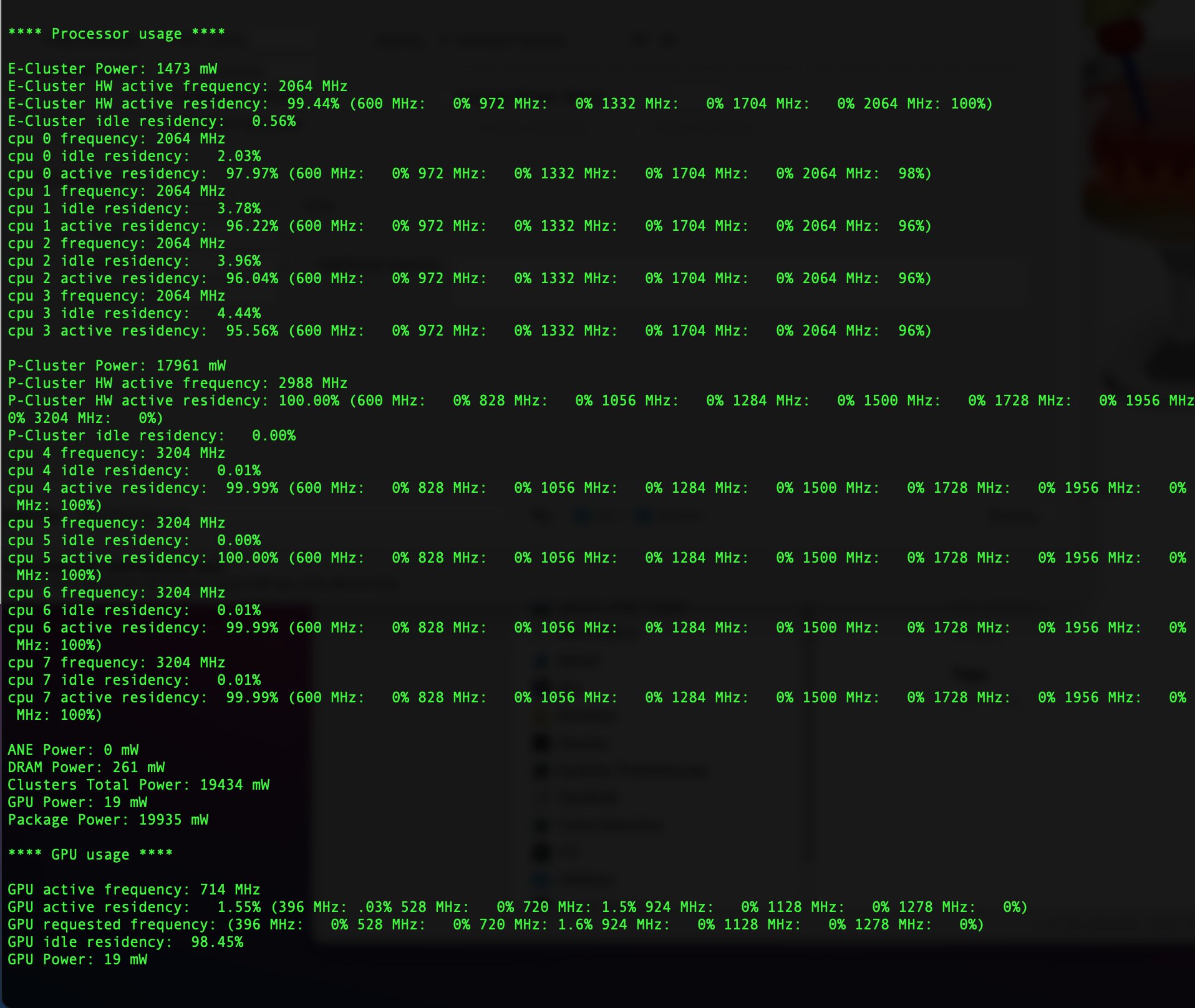

I'd agree with you about macOS Big Sur doing an exceptional job with deciding what to run on what kind of core (efficiency or performance). but:all four efficiency cores together draw ~1.5 W with 100%CPU load. the performance cores on the other hand can draw up to ~18 W. I checked this on Macmini9,1. don't know yet if the MacBook (Air) would draw less power under full load.


  • Like
Reactions: MK500

MK500

macrumors 6502
Aug 28, 2009
434
550
I checked this on Macmini9,1. don't know yet if the MacBook (Air) would draw less power under full load.
Interesting data. If you want to walk me through running the same test on my 16/512 Air I would be happy to do so and post results.


mikeboss

macrumors 68000
Original poster
Aug 13, 2009
1,544
860
switzerland
  • Like
Reactions: MK500

Makosuke

macrumors 604
Aug 15, 2001
6,748
1,437
The Cool Part of CA, USA
I think the battery life increase would be substantially less than you think. I'm drawing 2 to 5 watts TOTAL most of the time working on my MacBook Air. My guess is a large percentage of that is the screen. This is nothing like turbo on Intel.

I think the OS is doing a really good job using appropriate cores.
I'm with you on this. The only time I can see this making a big difference would be if you were doing something CPU intensive, in which case you'd be slowing it down by a lot in order to improve battery life. I'm assuming here (I haven't seen benchmarks, but the vague graph Apple published implied this) that the efficiency cores do indeed provide better performance-per-Watt, otherwise you'd just use the same total Wh of energy spread over a longer period to complete the same task.

The whole point of the architecture is if the CPU isn't doing much, then neither are the performance cores. It obviously works well, otherwise iPhones would have miserable battery life.

Food for thought mental experiment:

Let's say the screen, SSD, and other components draw 5W (I've seen older measurements that indicate it's in that ballpark for an MBA). And let's say the efficiency cores are in the ballpark of 10x slower than the performance cores (you can kind of suss out the general speed from multicore benchmarks, they're probably somewhat faster than that but not wildly so). We'll round up a bit from your measurements to make the math easier and assume the efficiency cores use up to 2W and the performance cores up to 20W.

If you're doing light-duty tasks that are not really CPU bound, but the MacOS ramps up the performance cores, say, 10% of the time, your average power draw is going to be 5W + 2W + 2W = 9W. If you disabled the performance cores, it's going to feel less "snappy" because some operations take longer, but power draw will decrease to 5W + 2W = 7W. So you'd get maybe 20-25% longer battery life in that hypothetical. In reality I doubt it'll be that much difference, since I suspect that at low load the screen is using the vast majority of the power.

Your best case scenario is a garbage web page that has some background task doing stupid, useless things and maxing out an entire core. Having it run slower loses you nothing, so instead of 5W + 2W + 5W (one core) = 12W, you only use 7W and get close to double the battery life for the same amount of reading.

But in the other direction, let's say you're doing something processor intensive that takes an hour on the efficiency cores and 6 minutes on the performance cores. You're going to use (5W + 2W ) * 1hr = 7Wh versus (5W + 2W + 20W) * 0.1hr = 2.7Wh. The power to run all the other stuff in the computer is the same either way, so the faster the task gets finished, the better off your battery is when it's finished.

Essentially, it comes down to what your goal with the battery life is. If your goal is to just "sit there using the computer", then the best-case web-browsing scenario kicks in and you come out ahead. Sometimes that's a realistic use case. If however your goal is to complete tasks, then it's entirely possible you come out ahead with higher battery drain as long as the tasks are completed faster.

Web browsing on inefficient pages are a good example of the former, handbrake encoding is a perfect example of the latter--who cares what the instantaneous power draw is, your goal is to get the video encode done, so if you use less Watt-hours at the end of the encode you come out ahead (not to mention user time saved).

A variant of this paradox came up when ultra-fast SSDs first came out. They drew substantially more power instantaneously than other storage. But since they also read data exponentially faster, the actual goal--to get data on or off storage--was completed much faster, letting them sit at idle most of the time. In some cases it appeared to have a negative impact on battery life, but in reality you were getting the same tasks done much faster so even with reduced battery life you got more done.
