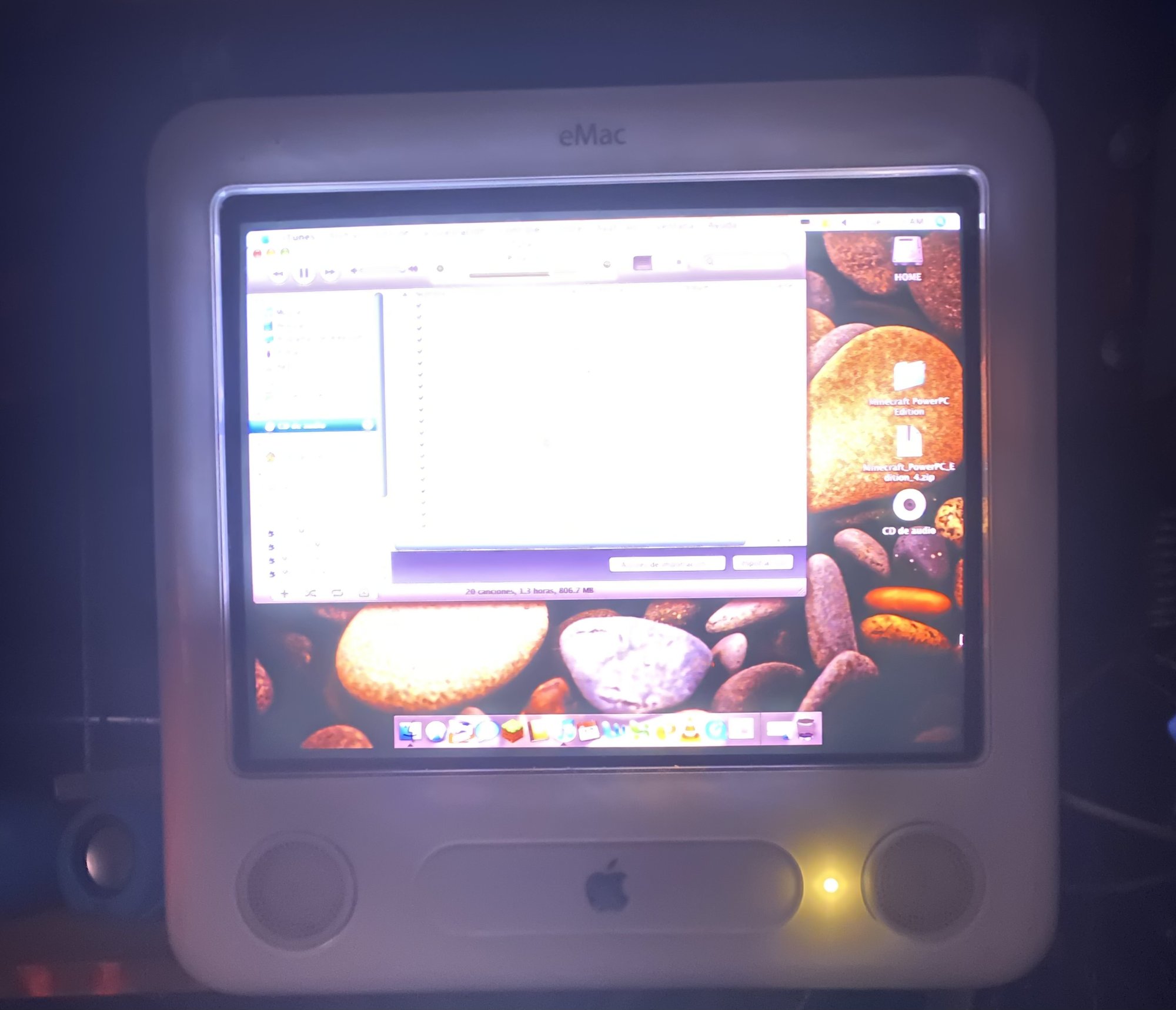

I have an eMac G4 (CRT), it loses image (black screen witout light) but of I gently tap the monitor, the image comes back.
What could be the cause?


Attachments

  • IMG_3256.jpeg
    232.8 KB · Views: 64
Usually a problem like this with any CRT means bad solder joints on the analog board. eMacs are also known to have capacitor issues. Hard to say for certain without more in-depth testing though.

These issues are fixable but require some technical skills to do so. Opening up CRTs with high voltage components inside can be dangerous.

Last edited:
  • Like
Reactions: BmcMaxz
Usually a problem like this with any CRT means bad solder joints on the analog board. eMacs are also known to have capacitor issues. Hard to say for certain without more in-depth testing though.

These issues are fixable but require some technical skills to do so. Opening up CRTs with high voltage components inside can be dangerous.

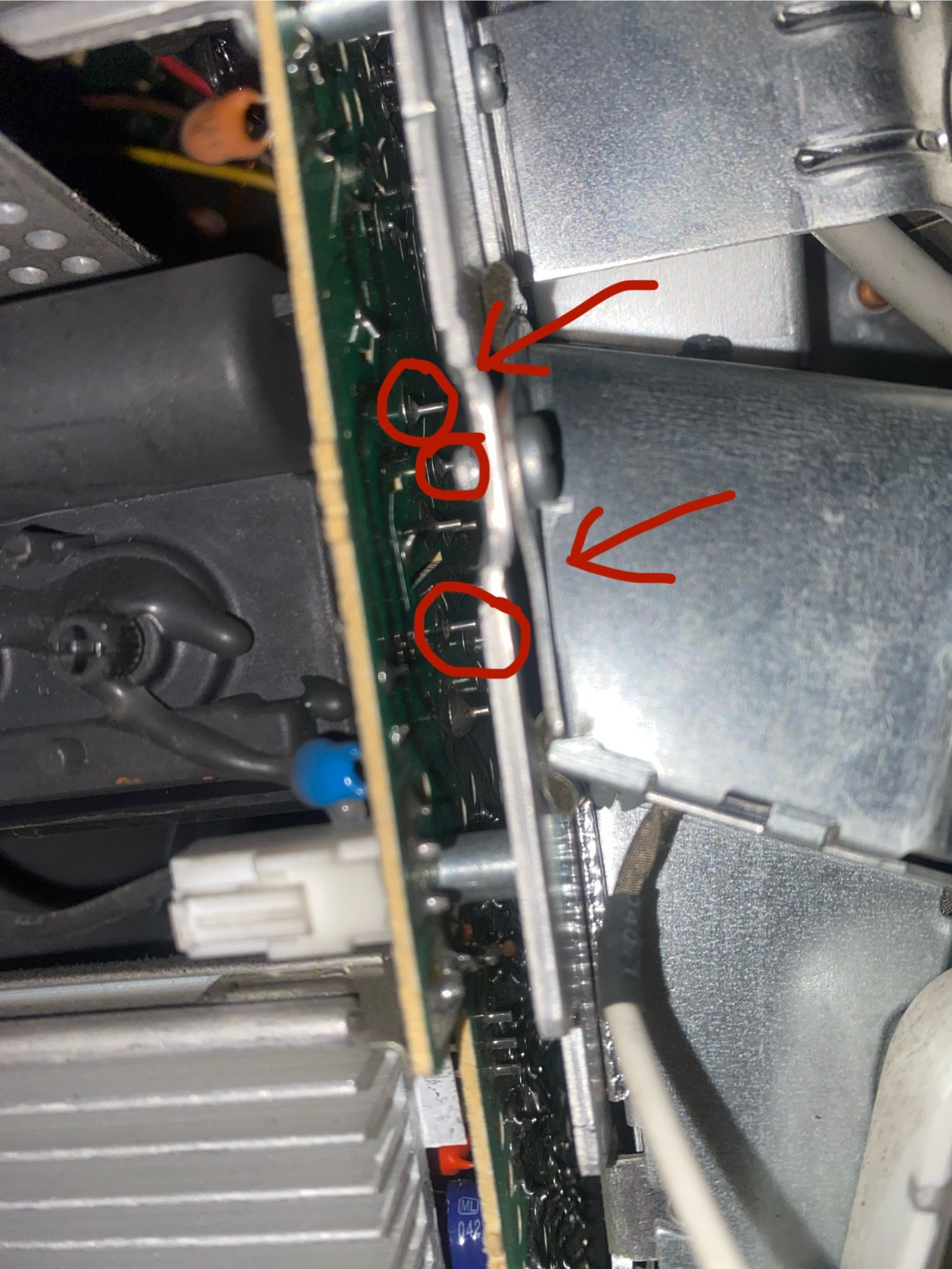

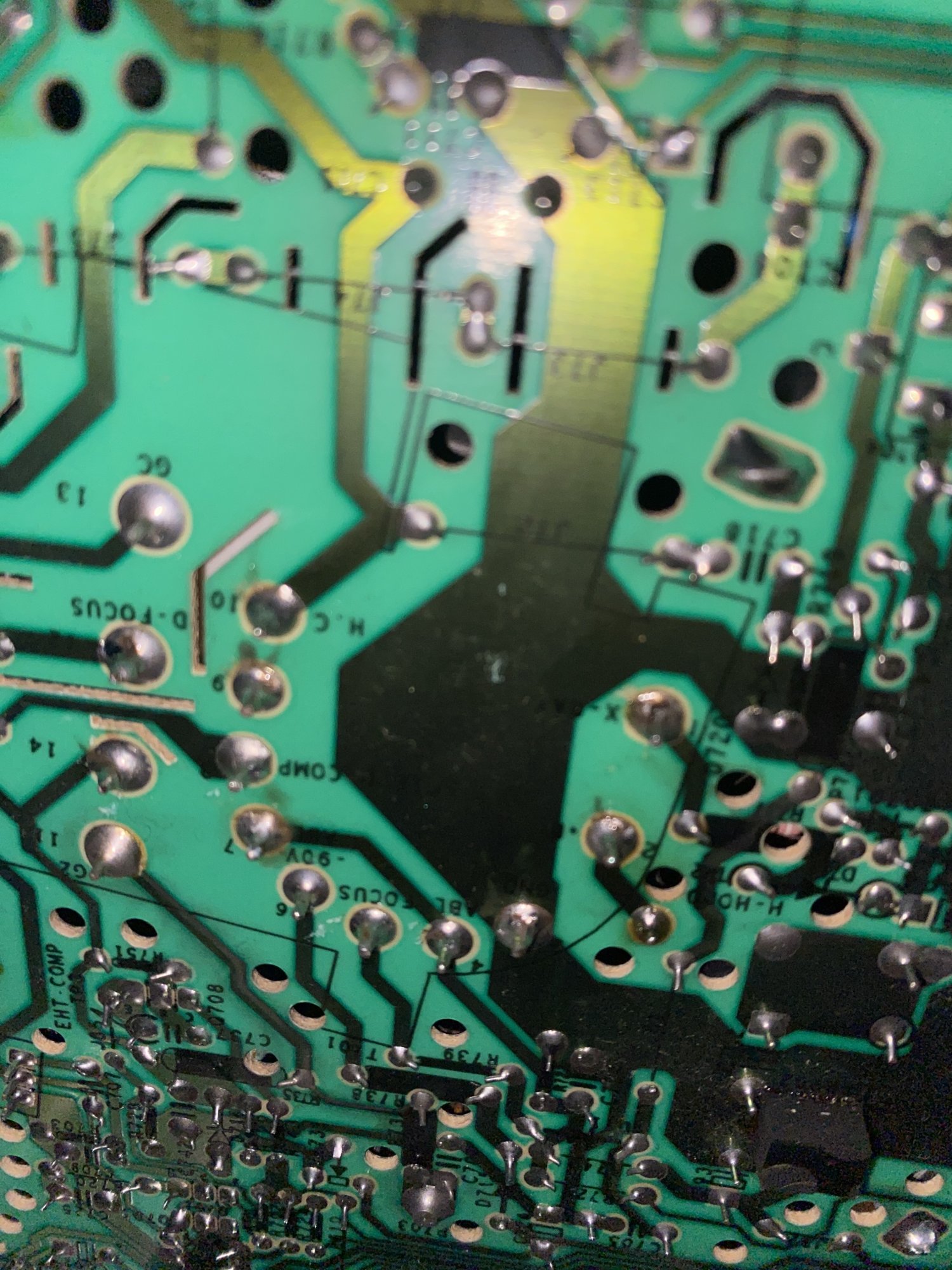

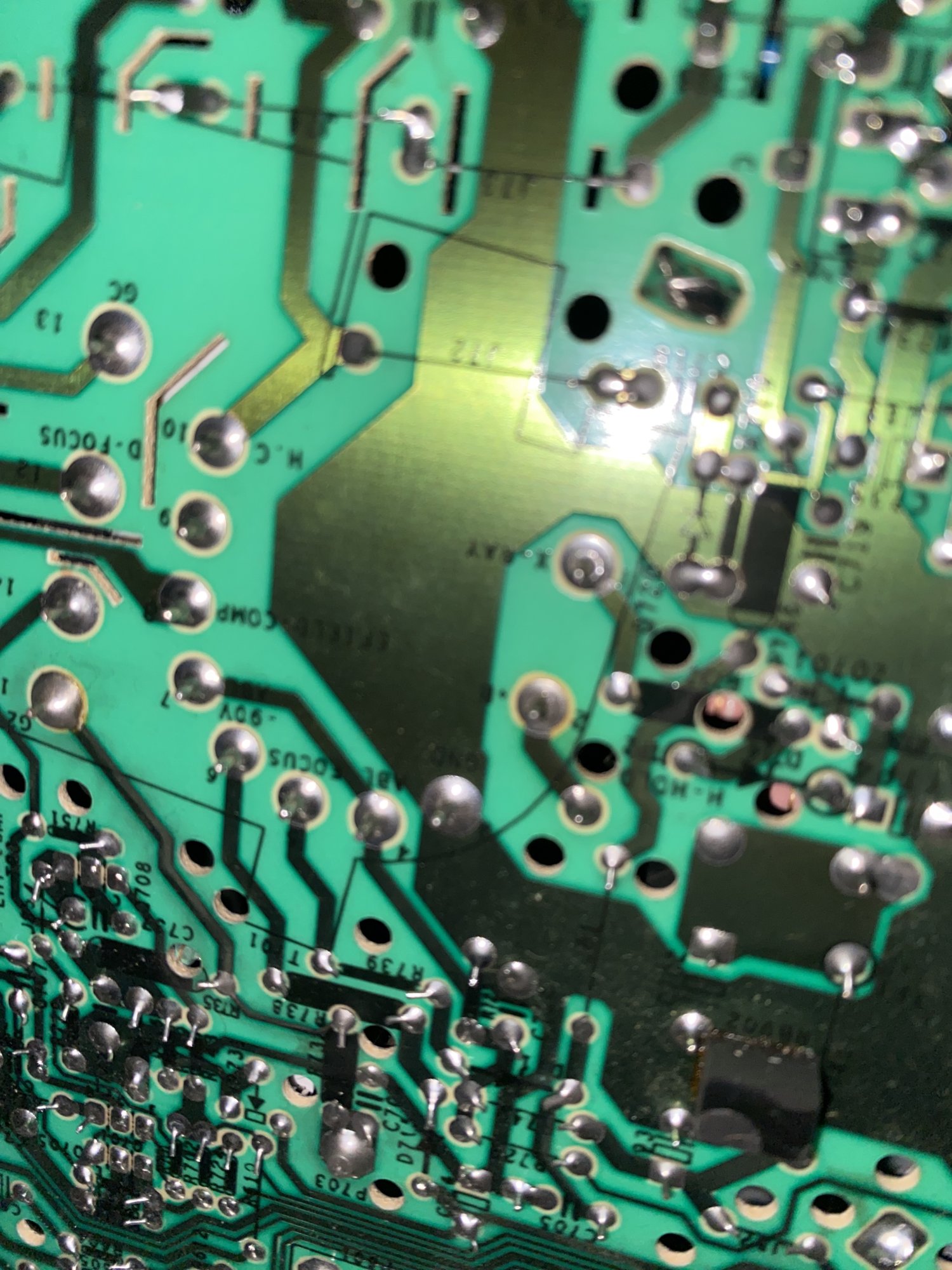

I found the guilty, the flyback transformer is unsoldered of the image board.

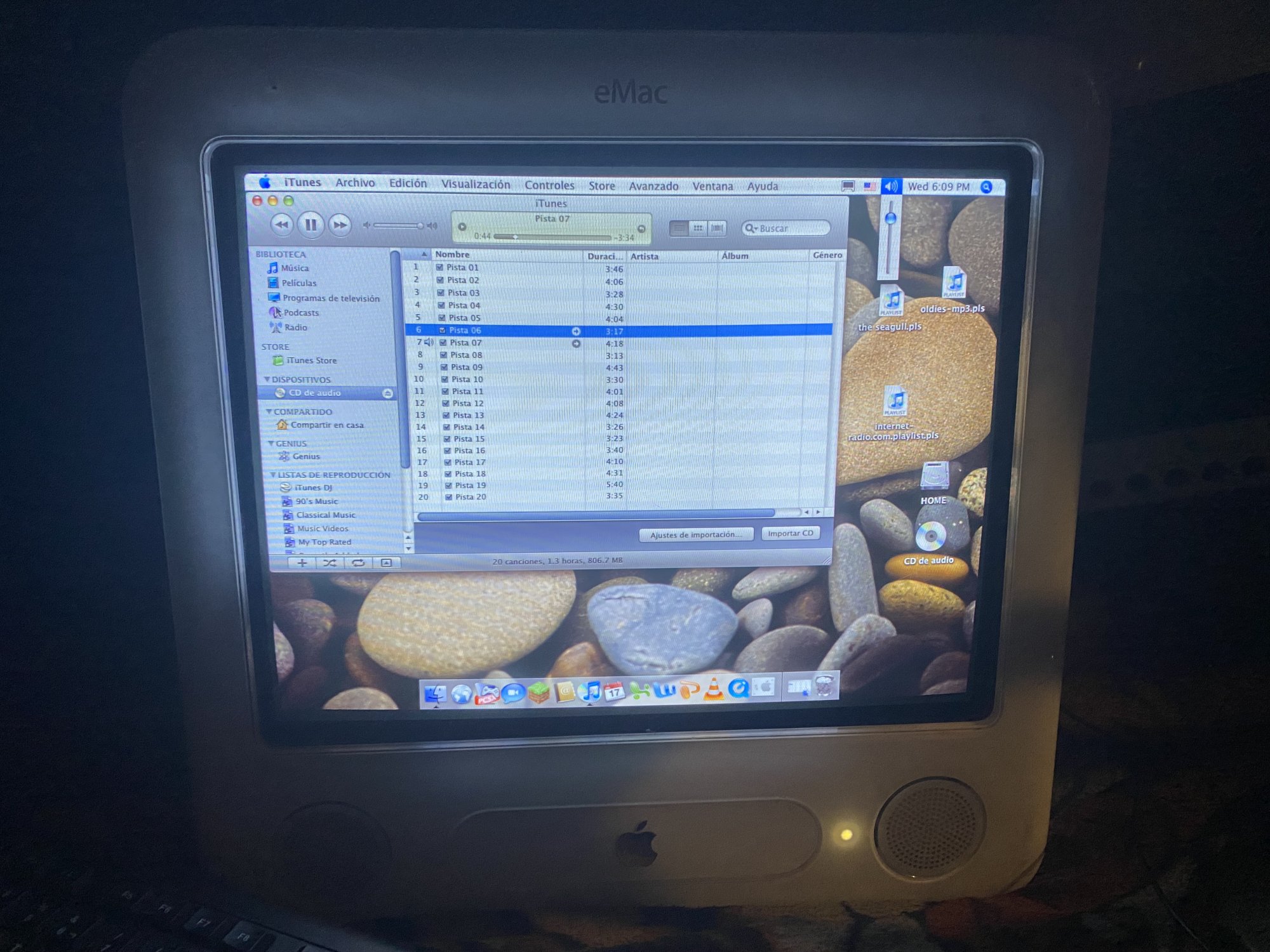

I soldered the flyback after a tedious disassembly an it's working again, it's my first repair (xd)


Attachments

  • IMG_3260.jpeg
    400.6 KB · Views: 42
  • IMG_3266.jpeg
    478.7 KB · Views: 43
  • IMG_3261.jpeg
    426.5 KB · Views: 35
  • IMG_3268.jpeg
    483.4 KB · Views: 36
Last edited:
