Fusion or external SSD?

Julien

Julien

macrumors G4
Original poster
Jun 30, 2007
11,875
5,452
Atlanta
Just ordered a base 27". Have been using a 2012 MINI with an USB SSD as my drive (not using internal HD). Don't really like the Fusion drive and think it should have been retired but......

Should I use my external SSD and use the internal as a Time Machine?

Why didn’t you order it with ssd? Fusion drive is not practical. Even an external usb ssd will be faster.

OP you could cancel order and re-order with internal SSD? Small one if you need to be careful of $. Then use external HDD via USB for your large files.
ondert said:
Why didn’t you order it with ssd? Fusion drive is not practical. Even an external usb ssd will be faster.
Click to expand...
I think people like the fusion because of practicality / simplicity TBH. Get some advantages of SSD plus space of HDD but just appears as one simple drive. Personally I’m not a fusion fan (have rolled by own in Mac Pro in the past to try it) but I can see why. Also I’m not sure any external SSD would be faster then internal fusion drive just for booting and app launch, as if its running of files from internal SSD part that will be fast, but limited in size.

  • Like
Reactions: Julien and Glockworkorange
ondert said:
Why didn’t you order it with ssd? Fusion drive is not practical. Even an external usb ssd will be faster.
Click to expand...
For most iMac users a FD is not only perfectly practicable it's a great cost effective solution. Although I already own an iMac with full SSD I opted for the FD with my 2019 5K iMac. A great decision and not one I have any regrets over. The system is fast and never even gets close to breaking into a sweat. Far to much hyperbole around the benefits of SSD.

  • Like
Reactions: mj_, Brian33, Julien and 1 other person
Lankyman said:
For most iMac users a FD is not only perfectly practicable it's a great cost effective solution. Although I already own an iMac with full SSD I opted for the FD with my 2019 5K iMac. A great decision and not one I have any regrets over. The system is fast and never even gets close to breaking into a sweat. Far to much hyperbole around the benefits of SSD.
Click to expand...

This. I got the 2017 27” 1tb fusion and haven’t ever had many issues but I see people talking about how terrible they are all the time on here. It’s been more than suitable for my needs.

  • Like
Reactions: Julien and Lankyman
ondert said:
Why didn’t you order it with ssd? Fusion drive is not practical. Even an external usb ssd will be faster.
Click to expand...
Fusion is pretty practical if your funds are limited and you have need for a lot of storage.

Only worth it if the SSD is at least 128 GB though; those 24 or 32 GB SSD's on the smaller fusion are a joke.
[automerge]1581255704[/automerge]
wardie said:
OP you could cancel order and re-order with internal SSD? Small one if you need to be careful of $. Then use external HDD via USB for your large files.

I think people like the fusion because of practicality / simplicity TBH. Get some advantages of SSD plus space of HDD but just appears as one simple drive. Personally I’m not a fusion fan (have rolled by own in Mac Pro in the past to try it) but I can see why. Also I’m not sure any external SSD would be faster then internal fusion drive just for booting and app launch, as if its running of files from internal SSD part that will be fast, but limited in size.
Click to expand...
My first iMac was the original 5K with a 1TB HD and a 128 GB SSD fusion.

I didn't have a lot of files and almost my whole system (OS, Apps, and storage) fit on the SSD.

As time went on, I accrued more stuff and started using the HD---I noticed no slow downs.

The fusion drive is smart and fine for a lot of basic users, especially if they don't want to spend a lot of money and might have a lot of material they want to keep internally.

Who wants drives hanging off their pretty iMac?

  • Like
Reactions: Brian33 and Lankyman
ondert said:
Why didn’t you order it with ssd? Fusion drive is not practical. Even an external usb ssd will be faster.
Click to expand...
On sale ($200 off) from Amazon and SSD was not an option. Also I already own several (including 1TB) SSDs. So the ONLY question is which to use: A or B. Also has anyone done any objective testing on both like the Blackmagic Disk Speed Test?

A) Use the Fusion as my main/boot and the USB SSD for Time Machine or CCC

B) Use the USB SSD as my main/boot and the Fusion for Time Machine or CCC

Julien said:
On sale ($200 off) from Amazon and SSD was not an option. Also I already own several (including 1TB) SSDs. So the ONLY question is which to use: A or B. Also has anyone done any objective testing on both like the Blackmagic Disk Speed Test?

A) Use the Fusion as my main/boot and the USB SSD for Time Machine or CCC

B) Use the USB SSD as my main/boot and the Fusion for Time Machine or CCC
Click to expand...
Black Magic reports some excellent scores from my Fusion Drive - no complaints whatsoever. I doubt you would see little if any improvement using an SSD as an external boot drive. I posted a Youtube link in another thread a couple of weeks ago from a serious professional user who thought the FD did a first class job.

  • Like
Reactions: Julien
wardie said:
Or similar with an external Thunderbolt 3 based fast SSD...
Click to expand...
Looking at maybe getting this M.2 NVME SSD case and a disk. Looks like this should give me very near the same speed as an internal OEM SSD.

www.newegg.com

ORICO Thunderbolt 3 40Gbps M.2 NVME SSD Enclosure 2TB - Newegg.com

Buy ORICO 40Gbps M.2 NVME SSD Enclosure 2TB Transparent USB C SSD Case with 40Gbps C to C Cable For Mac Windows with fast shipping and top-rated customer service. Once you know, you Newegg!
www.newegg.com www.newegg.com

I'm getting 410 write and 1939 read speeds with my FD according to Black Magic. That's more than enough for my needs.

Be aware that external Thunderbolt3 drives, and external USB3.1 gen2 drives, both tend to run "on the hot side".
Some get VERY hot with heavy usage.
May or may not concern you -- but again, something to be aware of.

My experiences with 2.5" SATA SSDs used as external USB3 boot drives is they barely get warm at all.

  • Like
Reactions: BigMcGuire
As pointed out above, external USB3 won’t get you top speeds. It is a solution from yesterday, as is SATA. The difference is several X.

so, your “several drives” are all obsolete, at least with respect to modern Macs.

jtara said:
As pointed out above, external USB3 won’t get you top speeds. It is a solution from yesterday, as is SATA. The difference is several X.

so, your “several drives” are all obsolete, at least with respect to modern Macs.
Click to expand...
Read my Post #12. This is what I'm doing and have ordered.

Julien said:
Looking at maybe getting this M.2 NVME SSD case and a disk. Looks like this should give me very near the same speed as an internal OEM SSD.

www.newegg.com

ORICO Thunderbolt 3 40Gbps M.2 NVME SSD Enclosure 2TB - Newegg.com

Buy ORICO 40Gbps M.2 NVME SSD Enclosure 2TB Transparent USB C SSD Case with 40Gbps C to C Cable For Mac Windows with fast shipping and top-rated customer service. Once you know, you Newegg!
www.newegg.com www.newegg.com
Click to expand...
To much obsession with speeds - always been the same with tech as it's how manufactures reel you in. I suspect you would have been better served going with the FD.

Lankyman said:
To much obsession with speeds - always been the same with tech as it's how manufactures reel you in. I suspect you would have been better served going with the FD.
Click to expand...

julien didn’t state what he uses his Mac for - would have been useful to know.

myself, I’m a software developer - I develop mobile apps. there is a significant “build time” any time I make a change and want to test - several minutes.

Using Activity Monitor it is clear that for my build processes the limiting factor is storage speed, because CPU utilization does not come anywhere close to saturation.

And in fact timed builds confirm lower build times roughly proportionate to storage throughput.

so, for me at least, this is hardly an issue of slick marketing but a real difference that makes my job easier as it allows more build cycles per day.

There certainly are other workloads where storage throughput is the limiting performance factor. I’d imagine For example that SOME video and audio processing tasks might apply (others are likely to be CPU and/or GPU limited).

  • Like
Reactions: EmmEff
jtara said:
julien didn’t state what he uses his Mac for - would have been useful to know.

myself, I’m a software developer - I develop mobile apps. there is a significant “build time” any time I make a change and want to test - several minutes.

Using Activity Monitor it is clear that for my build processes the limiting factor is storage speed, because CPU utilization does not come anywhere close to saturation.

And in fact timed builds confirm lower build times roughly proportionate to storage throughput.

so, for me at least, this is hardly an issue of slick marketing but a real difference that makes my job easier as it allows more build cycles per day.

There certainly are other workloads where storage throughput is the limiting performance factor. I’d imagine For example that SOME video and audio processing tasks might apply (others are likely to be CPU and/or GPU limited).
Click to expand...
I did state a number of posts ago I thought that for “the average” Mac user a FD was more than than adequate. Obviously, “average” doesn’t apply in your case.

I’ve been running off Samsung X5 with my base 2019 iMac. Works great and R/W speed is almost comparable to internal Apple SSD. For $200 (500GB model) I highly recommend that instead of FD.

  • Like
Reactions: EmmEff
fwiw, I just got a base 2019 27" tonight. In benchmarking with the BlackMagic benchmark tool, I am seeing about 200MB/s with the 1TB Fusion drive. I get ~500MB/s with a Samsung T5 (USB 3.0) on my 2012 Mini. I'm going to get a Thunderbolt 3 1TB drive, but even with the T5, there will be real performance benefit.

The bad thing about the Fusion Drive is that Apple reduced the SSD portion on the lower tier 1TB Fusion Drive option down to 32GB (24GB usable?) instead of the previous 128GB SSD portion. The 2TB/3TB Fusion drives still have the 128GB SSD portion.

I have a late 2012 iMac (i7/32GB/680MX) with 1TB Fusion Drive (128GB SSD portion) and it runs fine from the limited use that I'm using it for. (My main Mac is a 2019 15" MBP.)
If you do a lot more heavy usage with your system then the Fusion Drive will probably be limiting and slow your system down, especially on the smaller SSD 1TB FD version.

  • Like
Reactions: Ryo@ryomac and EmmEff

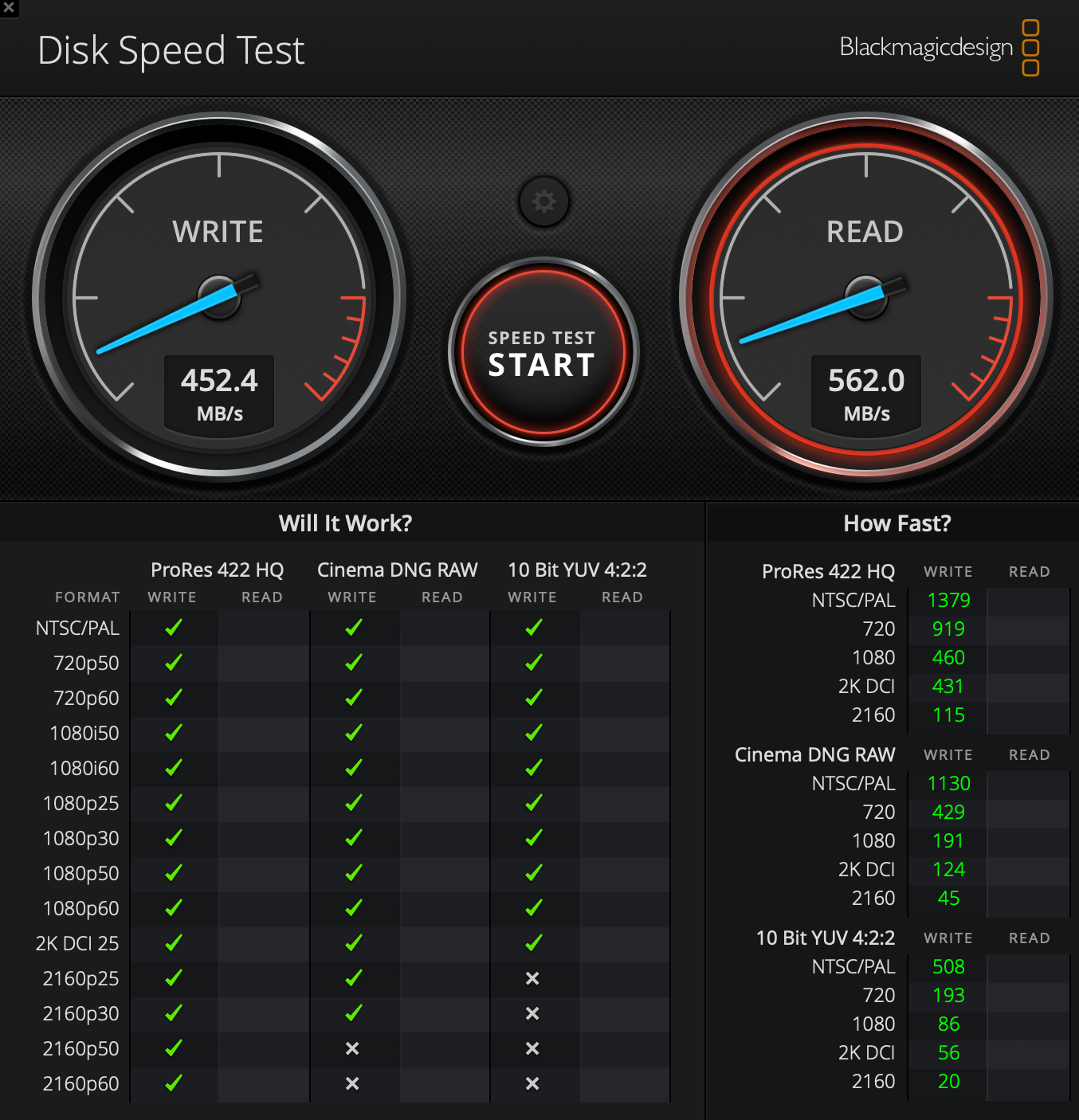

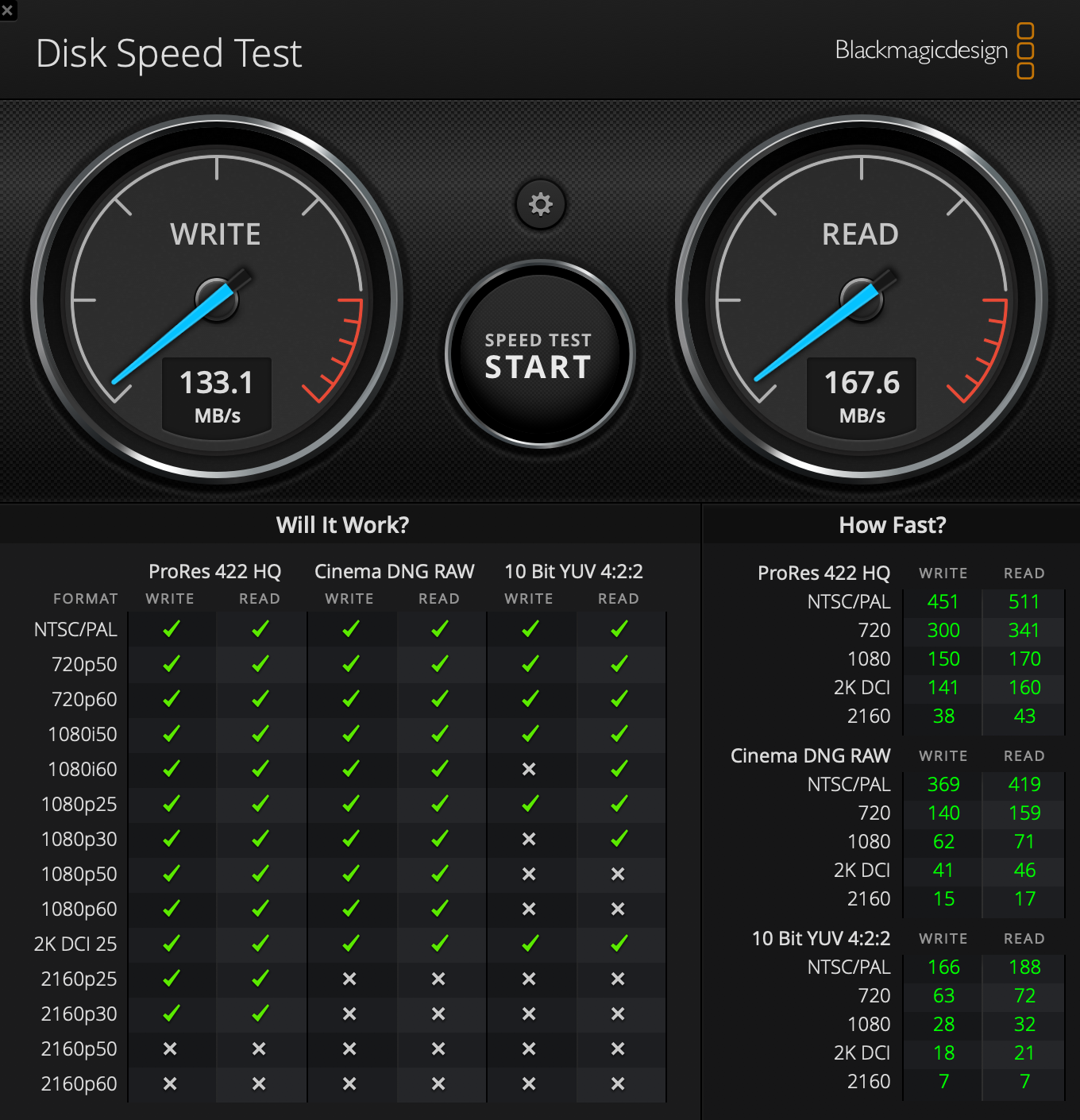

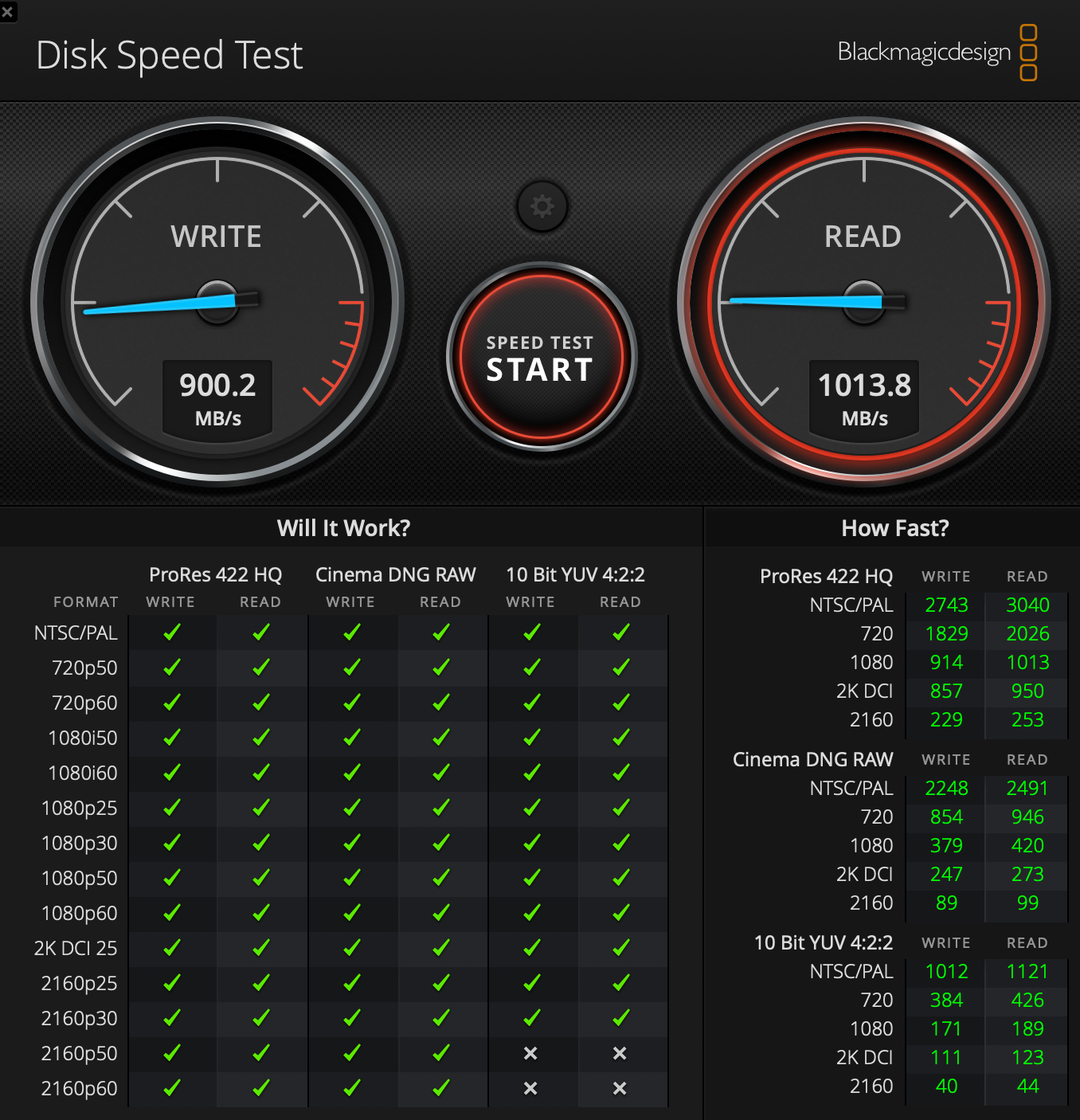

Here is a little info. On the Fusion HD on the first pass of Blackmagic it starts in the 900MBps and then in a couple of seconds is down in the mid 400/500 range (pic 1 after 1 pass). Then on subsequent passes it is down below 200. My Thunderbolt/M.2 SSD consistency in the 900s.

Screen Shot 2020-02-15 at 9.08.10 AM.png

Screen Shot 2020-02-15 at 9.04.55 AM.png

Screen Shot 2020-02-15 at 9.06.57 AM.png

  • Like
Reactions: EmmEff
