Hi,

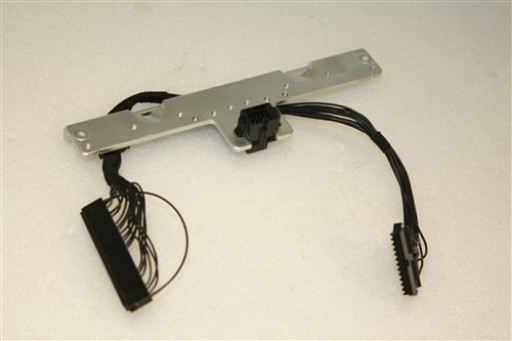

Can anyone help me with quad support bar cable wiring? I don't have original cable, just regular dual version that is missing LCS connector. I'm going to add missing cables myself but need some help.


I need to know where 12 LCS connector cables go to 26pin lobo connector.
I was looking for the schematic but couldn't find it. Can anyone with quad G5 and multimeter help me?

Kind Regards,
Peter
