So this is a total long shot, and it goes well beyond my limited wheelhouse of making un[der]documented things work nicely. It also means inviting those cosy with under-bonnet stuff to chime in.

The magnificent open-source utility, Charge Limiter (which does what other, more proprietary battery management utilities can do), is what I began to use a while back for setting maximum charge settings for my MacBook Pro batteries. Because of this, I’m keeping OEM batteries alive and healthy a lot longer than I’d be able to otherwise.

Across my Core iX MacBook Pro models (and, ostensibly, the same applies for Core iX MBAs and MBs), the utility worked as designed and described. As Charge Limiter’s description denotes, it alters two System Management Controller keys/parameters: BCLM (“Battery Charge Level Max”) and BFCL (“Battery Final Charge Level”).

Enter the Core 2 Duo MacBook Pro — specifically, the early A1260/A1261 2008 models. The utility runs the script, as usual, but troubles appear before setting a value:

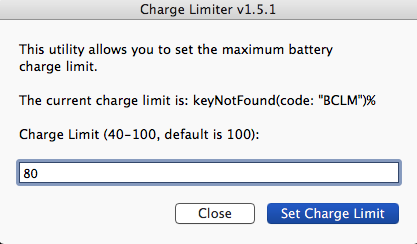

As seen above, “ keyNotFound(code: "BCLM") ” displays because the utility cannot get a value from the SMC. The script continues to run and complete, as expected.

Of course, this override setting maps to nothing the utility that revision of the SMC is aware of, suggesting one of two things:

1) the SMC keys used with the pre-Core-iX Macs is probably different. I’d imagine it’s not too different, considering communication between MagSafe adapter and Mac behaves the same, regardless whether the MagSafe adapter is connected to a C2D MacBook or a later Core iX MacBook. Or,

2) the SMCs of pre-Core iX MacBooks simply lack anything like a BCLM/BFCL key, behaving in a more basic, “dumb”, all-or-nothing SMC key, a binary 1 or 0 — with one being “fully charged” and the other “not fully charged.”

This is where my technical knowledge trails off, as I don’t exactly know how to poll the SMC to reveal its keys/parameters (namely, to explore whether BCLM and BFCL functions happen under differently-named keys/parameters for the C2D Macs, which I have a hunch they do). Try as I have, it seems there are staggeringly few discussions elsewhere which discuss SMC keys/parameters or ho to know what a certain Mac uses for its specific SMC.

It’s 2024. Why does this matter, B S Magnet?”

I want to buy a new-in-box OEM battery for my A1261. (I know somebody who knows somebody who knows a grasshopper…) I would like to get it, but only provided I can find a way to cap the charge on it to 80 per cent, to extend the battery’s lifetime (as finding another, years from now, will likely be next-door-to-impossible). Yes, I do keep my A1261 running 24/7, as I use it daily for various dedicated tasks.

I also want to keep A1261 running on said potential Apple battery without re-dealing with the problem of battery bloat endemic to all the aftermarket trash I’ve bought, paid for, and watched fail, over and over, since 2021. Even if I wasn’t looking at an OEM battery, it could also come in useful for keeping B-grade aftermarket batteries, such as those from NewerTech, in “good health” for longer than they might otherwise.

With Charge Limiter, I could make changes to source code, to point to and to adjust the correct SMC keys/parameters specific to pre-Core iX MacBooks, to then build a version of it for my C2D Mac — if I knew how to find the C2D-specific keys.

But I don’t. So I defer to the many brilliant minds around here, if they’re up for a challenge. :)

Last edited:

Amethyst1

macrumors G3
Oct 28, 2015
9,843
12,260
This is where my technical knowledge trails off, as I don’t exactly know how to poll the SMC to reveal its keys/parameters (namely, to explore whether BCLM and BFCL functions happen under differently-named keys/parameters for the C2D Macs, which I have a hunch they do).
smckit has an option to check if a given SMC key is "valid". A list of all SMC keys supported by the system would be better though...

  • Like
Reactions: B S Magnet

B S Magnet

macrumors 603
Original poster
smckit has an option to check if a given SMC key is "valid". A list of all SMC keys supported by the system would be better though...

If only I could code my way out of a shoebox, I might have been able to write some kind of script to run through every four-character combination on a particular device — sort of like this, except this was only for the BCL* variants:

Code:
sh-3.2# smckit -k BCLA && smckit -k BCLB && smckit -k BCLC && smckit -k BCLD && smckit -k BCLE && smckit -k BCLF && smckit -k BCLG && smckit -k BCLH && smckit -k BCLI && smckit -k BCLJ && smckit -k BCLK && smckit -k BCLL && smckit -k BCLM && smckit -k BCLN && smckit -k BCLO && smckit -k BCLP && smckit -k BCLQ && smckit -k BCLR && smckit -k BCLS && smckit -k BCLT && smckit -k BCLU && smckit -k BCLV && smckit -k BCLW && smckit -k BCLX && smckit -k BCLY && smckit -k BCLZ && smckit -k BCL0 && smckit -k BCL1 && smckit -k BCL2 && smckit -k BCL3 && smckit -k BCL4 && smckit -k BCL5 && smckit -k BCL6 && smckit -k BCL7 && smckit -k BCL8 && smckit -k BCL9
BCLA is a invalid SMC key on this machine
BCLB is a invalid SMC key on this machine
BCLC is a invalid SMC key on this machine
BCLD is a invalid SMC key on this machine
BCLE is a invalid SMC key on this machine
BCLF is a invalid SMC key on this machine
BCLG is a invalid SMC key on this machine
BCLH is a invalid SMC key on this machine
BCLI is a invalid SMC key on this machine
BCLJ is a invalid SMC key on this machine
BCLK is a invalid SMC key on this machine
BCLL is a invalid SMC key on this machine
BCLM is a invalid SMC key on this machine
BCLN is a invalid SMC key on this machine
BCLO is a invalid SMC key on this machine
BCLP is a invalid SMC key on this machine
BCLQ is a invalid SMC key on this machine
BCLR is a invalid SMC key on this machine
BCLS is a invalid SMC key on this machine
BCLT is a invalid SMC key on this machine
BCLU is a invalid SMC key on this machine
BCLV is a invalid SMC key on this machine
BCLW is a invalid SMC key on this machine
BCLX is a invalid SMC key on this machine
BCLY is a invalid SMC key on this machine
BCLZ is a invalid SMC key on this machine
BCL0 is a invalid SMC key on this machine
BCL1 is a invalid SMC key on this machine
BCL2 is a invalid SMC key on this machine
BCL3 is a invalid SMC key on this machine
BCL4 is a invalid SMC key on this machine
BCL5 is a invalid SMC key on this machine
BCL6 is a invalid SMC key on this machine
BCL7 is a invalid SMC key on this machine
BCL8 is a invalid SMC key on this machine
BCL9 is a invalid SMC key on this machine
sh-3.2#

Even so, such a script wouldn’t necessarily tell the user what that four-character key represented.

Last edited:

f54da

macrumors 6502a
Dec 22, 2021
505
186
You can list all the smc keys by sending "SMC_CMD_READ_INDEX" to smc with the ordinal index. See smcPrintall under https://github.com/informationsea/smc/blob/master/smc.c

Also see Ionescu's talk "Smc the place to be, definitely"- youtube.com/watch?v=nSqpinjjgmg
If you have the smc firmware dump you could reverse it

Yes you won't necessarily know what it represents, but type should be integral and value of BCLM should be 100 and there are very few keys with that value which can easily narrow it down.

  • Like
Reactions: B S Magnet

B S Magnet

macrumors 603
Original poster
You can list all the smc keys by sending "SMC_CMD_READ_INDEX" to smc with the ordinal index. See smcPrintall under https://github.com/informationsea/smc/blob/master/smc.c

Bear in mind I don’t code.

The source code in smc.c appears to have a list of known keys under "SMCTempKeyList_t". This is a step in the right direction, although the keys in that list pertaining to power management, according to smckit, are not valid keys on the C2D Penryn MBP.

As to what I can do with the smc.c file and the makefile in the smc git repository, I don’t know how to compile this into anything I can use (i.e., it’s not something I can run a configure/make/make install, or a cmake, or an Xcode build to compile into something I can use, such as a cli command).

I apologize for not having those skills, and I’m mindful that the absence of those probably means my original question may not be something I’ll be able to figure out.

Also see Ionescu's talk "Smc the place to be, definitely"- youtube.com/watch?v=nSqpinjjgmg

I’ve queued this and have watched his initial introduction (including its pronenance as a TI ARM Cortex processor which runs even when the system is totally powered down [!!!]). I’ll continue to watch the rest of his talk later this evening. Cheers!


If you have the smc firmware dump you could reverse it

This is on the level of the kind of thing which someone with a thorough understandings of low-level board functions, like @dosdude1 [side note to Colin: please forgive me for cc:ing you on this, especially where it might not be of any interest or curiosity], [EDIT NOTE: struck, after the following two posts happened] could have the means to do — both in terms of technical competency and in the equipment to, say, extract a firmware dump.

It‘s probably two steps beyond both my technical ability and/or firmware/EFI/SPI-ROM/SMC-type dumping equipment I lack.


Yes you won't necessarily know what it represents, but type should be integral and value of BCLM should be 100 and there are very few keys with that value which can easily narrow it down.

I expect a full list of valid keys for the C2D MBP probably lacks full documentation one would need to know what all the verified-to-exist keys signify (several, especially temperature sensor keys, seem to be reasonably documented by others, including the smc repo’s mention of reverse-engineering/decompiling iStat Menus). That’s something to explore once the bridge can be crossed to get there.

I can now verify, thanks to smckit polling, how both BCLM and BFCL are not valid keys for the C2D MBP’s SMC and, thus, their functions are either designated as alternately named keys (yet to be determined), or they don’t have any kind of analogue whatsoever (as the ability to set battery charging parameters to anything other than, conjectured, “charged / not-charged” may not yet have been implemented for that SMC revision and didn’t appear as keys until the SMC revision used with Core iX Sandy Bridge-and-later models — once Intel had revised the CPU for more advanced polling and configuring, à la Intel Power Gadget).

Last edited:

f54da

macrumors 6502a
Dec 22, 2021
505
186
>The source code in smc.c appears to have a list of known keys under "SMCTempKeyList_t".
That's only a list of temperature keys. The set of available smc keys varies by model, and the only way to know specific for yours is to query the smc to dump all keys as that code does


>I don’t know how to compile this into anything I can use
Don't you just run make, then you have a CLI tool output into the same directory?

>This is on the level of the kind of thing which someone with a thorough understandings of low-level board functions, li
I don't think you have to dump it directly from board, you could also take the firmware update blob and put that through ghidra I think. Not sure if they are encrypted or not though.

  • Like
Reactions: B S Magnet

B S Magnet

macrumors 603
Original poster
>The source code in smc.c appears to have a list of known keys under "SMCTempKeyList_t".
That's only a list of temperature keys. The set of available smc keys varies by model, and the only way to know specific for yours is to query the smc to dump all keys as that code does

Got it. Keep reading.

>I don’t know how to compile this into anything I can use
Don't you just run make, then you have a CLI tool output into the same directory?

Hello I am le dumb and I hadn’t paused to think no configuring would be needed. I learnt something minor, but new tonight. Thank you.

That output (unannotated, obviously):
