sines

macrumors newbie
Original poster
Apr 4, 2014
9
1
I'm trying to solve sleep issues with my MSI z590 MPG Carbon Gaming Wifi build on Ventura 13.6.7 on NVMe 1, Windows 11 on NVMe 2 on a McFiver card; I have 2 4TB WD SN850x striped as a 8TB RAID 0 for Resolve playback in M2_1 + M2_3 slots, which still allow SATA ports 3+4 and 5+6 to function. dGPU is AMD Radeon RX6800XT, with a dual slot BlackMagic 4K Extreme 12G card + daughter card for SDI/4K HDMI video playback.

Using Opencore 1.0.1, EFI was built originally by Hackintosh.Expert which I have incrementally modded. Mapped USB Ports in USBMap, complied SSDT-AdOn.aml from SSDT-AdOn.dsl. (has no effect), tried this as well.
Windows 11 has no issues waking from sleep when the NVMe is on the McFiver card. To alleviate pulling a card every time I need to tweak the config.plist I have the NVMe in a SSK USB 3.2 enclosure which I mount on a nearby Mac Mini in case 💩 hits the 🪭

I can "force" Sleep from the Apple menu, but cannot wake up if the machine sleeps longer than a minute or so. My only way around it is to have the machine do something CPU intensive, like playing a 11-hour long 4K timeline in Davinci Resolve. Just looping a song in Music causes it to 💩 out.
Would like to get working WiFI and BT and use Handoff, etc., but not the biggest deal in the world if not.

Please help! 🙏🏽

I currently cannot attach the EFI due to file size limitation so I posted it here


Attachments

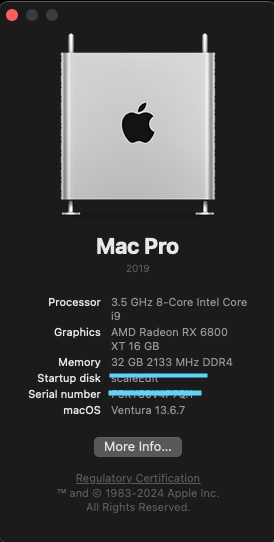

  • MacPro2019.jpg
    32.5 KB · Views: 66

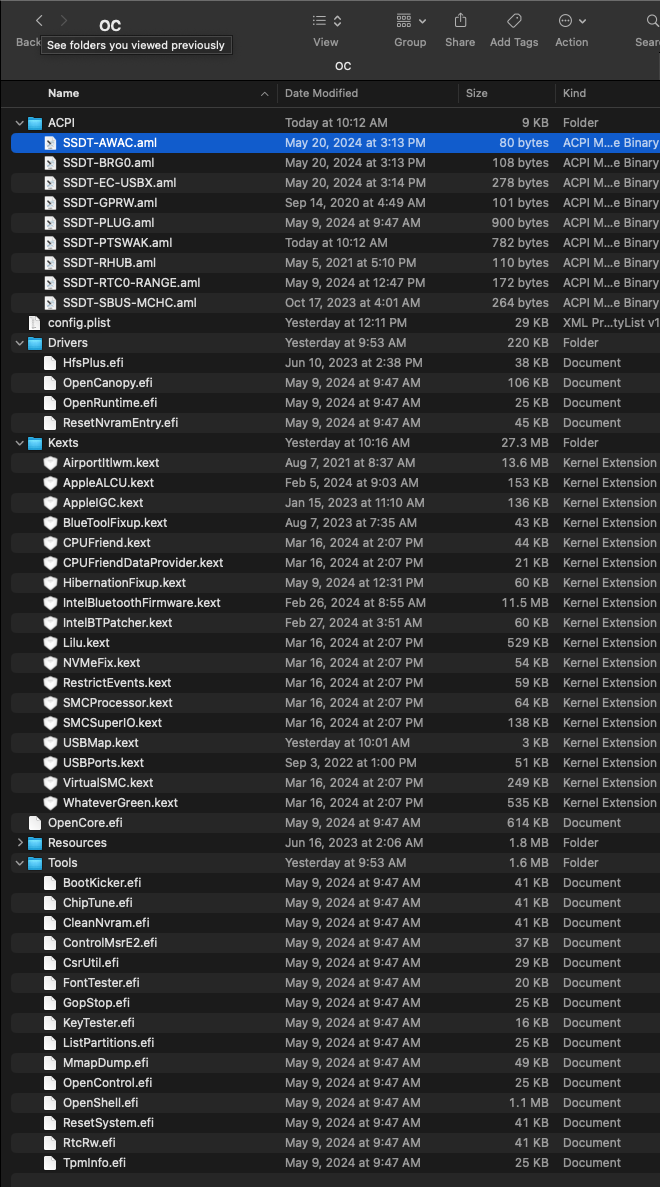

  • OC_folder.png
    282.7 KB · Views: 41
