how do we know if a ssd is ahci supported?

[parisinvest]

hi you all,

i've recentely want to upgrade my mac pro 5.1 (2009 upgraded), with a ssd sm951 nvme ahci with a pcie adaptor, i've bought a nvme with pn number is 00000, it's doesn't work as a start up disk, and i've checked on ebay, they are a lot different types, baiscly two type: one with "pcie ahci" printed but very expensive, on without "ahci" printed, but claimed by seller they are ahci, i want to know how do we know if the ssd is ahci supported without "pcie ahci" print, thank you so much.

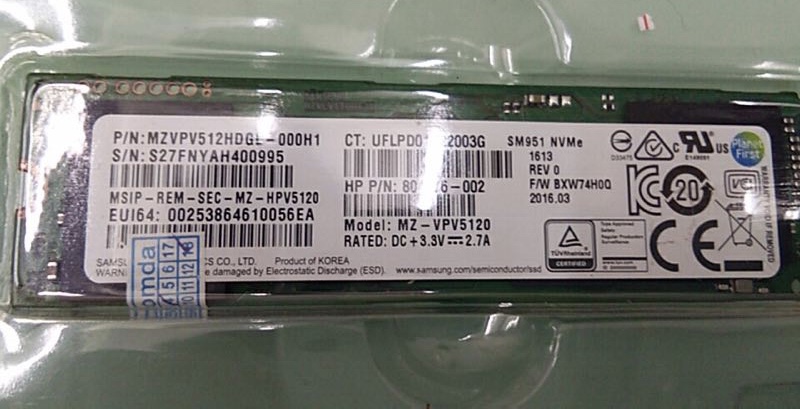

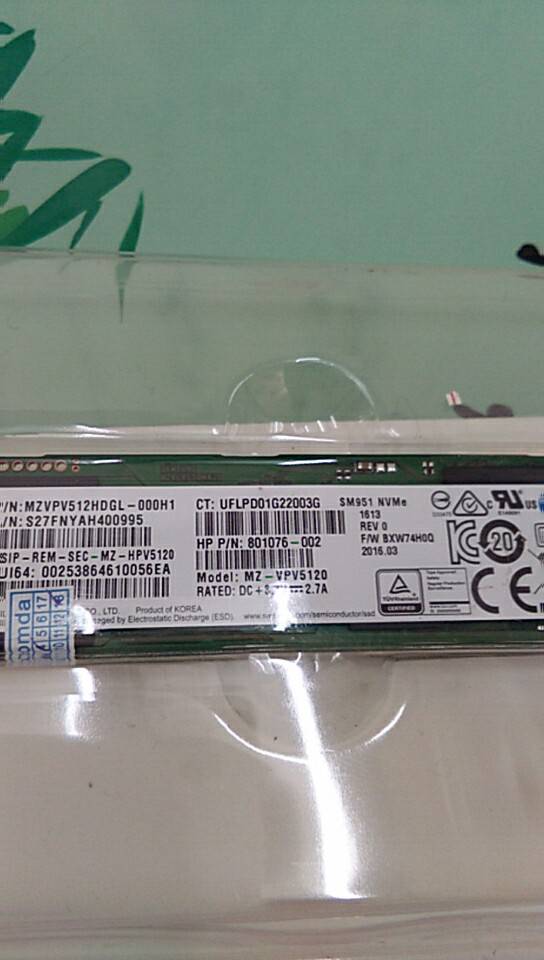

i post my ssd on the attach, may anyone tell if they are ahci supported please? thank you.



[saulinpa]

Go by part number. MZHPV256HDGL is ACHI while MZVPV256HDGL is NVMe. See the 3rd letter?



[parisinvest]

super, thank you for your explanation, it's aide a lot, thank you again.



[parisinvest]

Go by part number. MZHPV256HDGL is ACHI while MZVPV256HDGL is NVMe. See the 3rd letter?

btw, is it only type of ahci ssd accepted by mac pro please? or we can have other choice?



[h9826790]

btw, is it only type of ahci ssd accepted by mac pro please? or we can have other choice?

Sorry for my poor English. What do you mean?

All AHCI SSD should work on the Mac Pro.

If NVMe, should work natively as data ONLY drive in High Sierra.

Or you can pair it up with a bootable (e.g. a SATA SSD) to form a Fusion Drive, then it will also bootable (still need High Sierra, otherwise, 3rd party driver is required).



[parisinvest]

Sorry for my poor English. What do you mean?

All AHCI SSD should work on the Mac Pro.

If NVMe, should work natively as data ONLY drive in High Sierra.

Or you can pair it up with a bootable (e.g. a SATA SSD) to form a Fusion Drive, then it will also bootable (still need High Sierra, otherwise, 3rd party driver is required).

sorry, i mean is this samsung sm951 ahci ssd is the only compatible to mac pro as a start up disk? or we have other m2 ssd can do that? the ssd 2.5 doesn't count. thank you



[h9826790]

sorry, i mean is this samsung sm951 ahci ssd is the only compatible to mac pro as a start up disk? or we have other m2 ssd can do that? the ssd 2.5 doesn't count. thank you

AFAIK, all AHCI SSD can boot on cMP, e.g. XP941, HyperX Predator, Wings MX2, etc.

Also, m.2 SATA SSD can also boot on cMP. e.g. Accelsior E2, WD Blue, UV500, etc.



[saulinpa]

Also: Not m.2 but the Apple SSUAX and SSUBX SSDs will work as a startup disk as they are AHCI.



[Squuiid]

Wings MX2

Nice! Hadn’t come across that one. Slower than an SM951 but great to have another option, and readily available.



[h9826790]

Nice! Hadn’t come across that one. Slower than an SM951 but great to have another option, and readily available.

In fact, I am not 100% sure if the SSD inside the MX2 is PCIe AHCI SSD or hardware RAIDed SATA SSD.
