iMac 20" early 2009 (EMC 2266) SSD upgrade?

[Minipudding]

Is it a standard SATA port in there that will happily accept any regular SATA device, or will I need an adapter of some sort? I know about the mounting frame, just asking about the SATA connector/interface itself.

Alternately, does this model allow booting from the SATA port the SuperDrive is connected to, in case I choose that route?

(ps. sorry, I just found the correct forum to post this in - mods can delete this thread)



[Nguyen Duc Hieu]

Is it a standard SATA port in there that will happily accept any regular SATA device, or will I need an adapter of some sort? I know about the mounting frame, just asking about the SATA connector/interface itself.

Alternately, does this model allow booting from the SATA port the SuperDrive is connected to, in case I choose that route?

(ps. sorry, I just found the correct forum to post this in - mods can delete this thread)

From the experience of my iMac 24" early 2009 (similar to your iMac 20", but with bigger display)
- The internal HDD uses standard SATA port, a SATA SSD will fit just right in. (I swapped SSD to my iMac 24" 2009)
- The internal ODD uses laptop SATA port, you will need to use a cheap SATA bay (or adapter) to replace the ODD with common SATA SSD. They are usually called "caddy".

I used to see those caddies offered at 2-3$, but they seem to be rarer now. Check carefully for the thickness (3 types of thickness available 7mm, 9mm and 12mm)

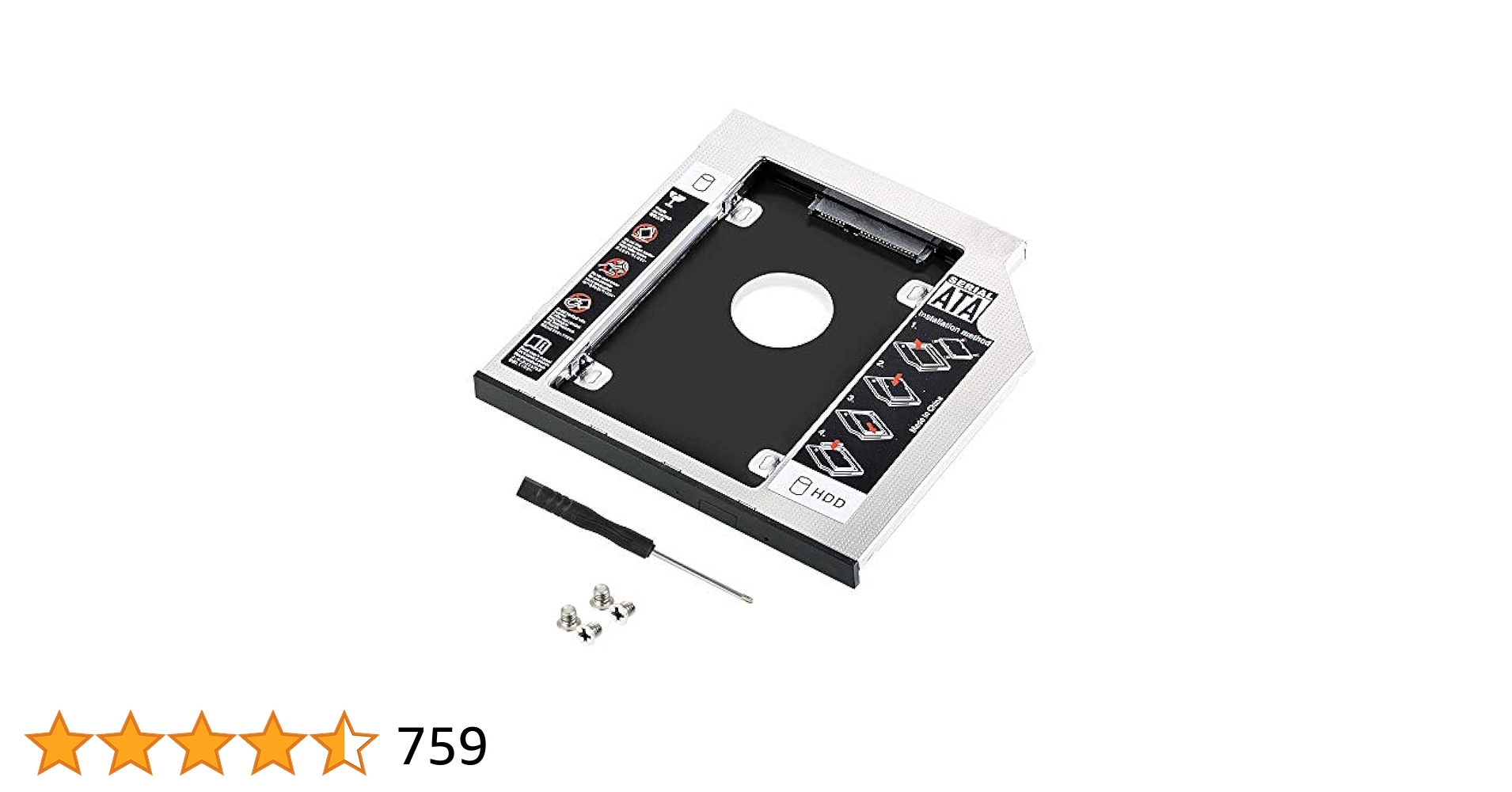

CODIRATO Hard Drive Frame for HDD/SSD, 9.5 mm SATA, CD, DVD Drive Bay, Hard Drive Bay Compatible with Universal Notebook

CODIRATO 9.5mm Hard Drive Tray for 2.5" Hard Drive (7mm, 9.5mm High) with Hard Drive Screws Compatible with many popular notebooks. Features: - Hard drive frame made of aluminium alloy, which contributes to heat dissipation and is durable and fully protects your hard drive - Drive bay suitab...

www.amazon.sg



[Minipudding]

From the experience of my iMac 24" early 2009 (similar to your iMac 20", but with bigger display)
- The internal HDD uses standard SATA port, a SATA SSD will fit just right in. (I swapped SSD to my iMac 24" 2009)
- The internal ODD uses laptop SATA port, you will need to use a cheap SATA bay (or adapter) to replace the ODD with common SATA SSD. They are usually called "caddy".

Thank you! For anyone else who may be wondering, I can confirm it's a regular SATA interface. I plugged a bog standard SATA SSD in there and it was recognized just fine. I simply reattached the HDD temperature sensor with a strip of double-sided tape, and used Macs Fan Control to regain some control over the fan RPM which was a bit off compared to the readings it gets from the original mechanical HDD.
