Hi guys,

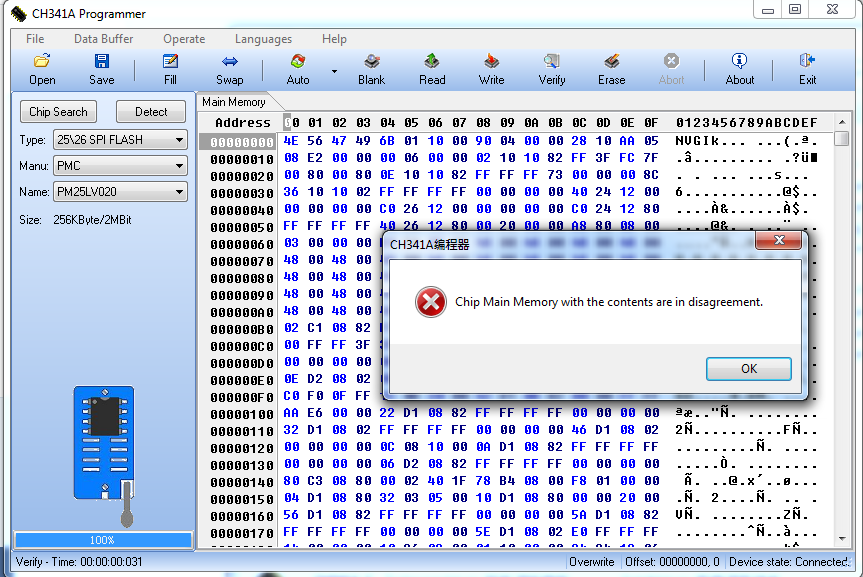

i bought a Dell GTX770M, modified the cooler and flashed it with the bios of Nick (I thought so). The problem is, if i insert the graphics card, theres a blank screen but i can hear the chime. The motherboard status leds 1 and 2 are on, 3 and 4 are off. That means that the graphics card is not detected properly. I flashed with a CH341A. But I cant find the right chip there and it says chip main memory with the contents are in disagreement. I have a PM25LD020 (CE1320, =669XG) thats whats written on the bios chip, but in the programmer software I can't find a chip with PM25LD020. Can you help me fixing this? Thanks and with best regards. Its a Mid2011 27inch Imac with I7 2600 and 16GB RAM. The bios i tried to flash is attached.
Manuel


Attachments

  • Unbenannt.PNG
    124.7 KB · Views: 207
  • Kepler Beta3.zip
    562.9 KB · Views: 151
