Hello everyone! I'm starting an experiment with finalizing the cooling system
(who doesn't know me, I've already worked on a dual fan for iMac)

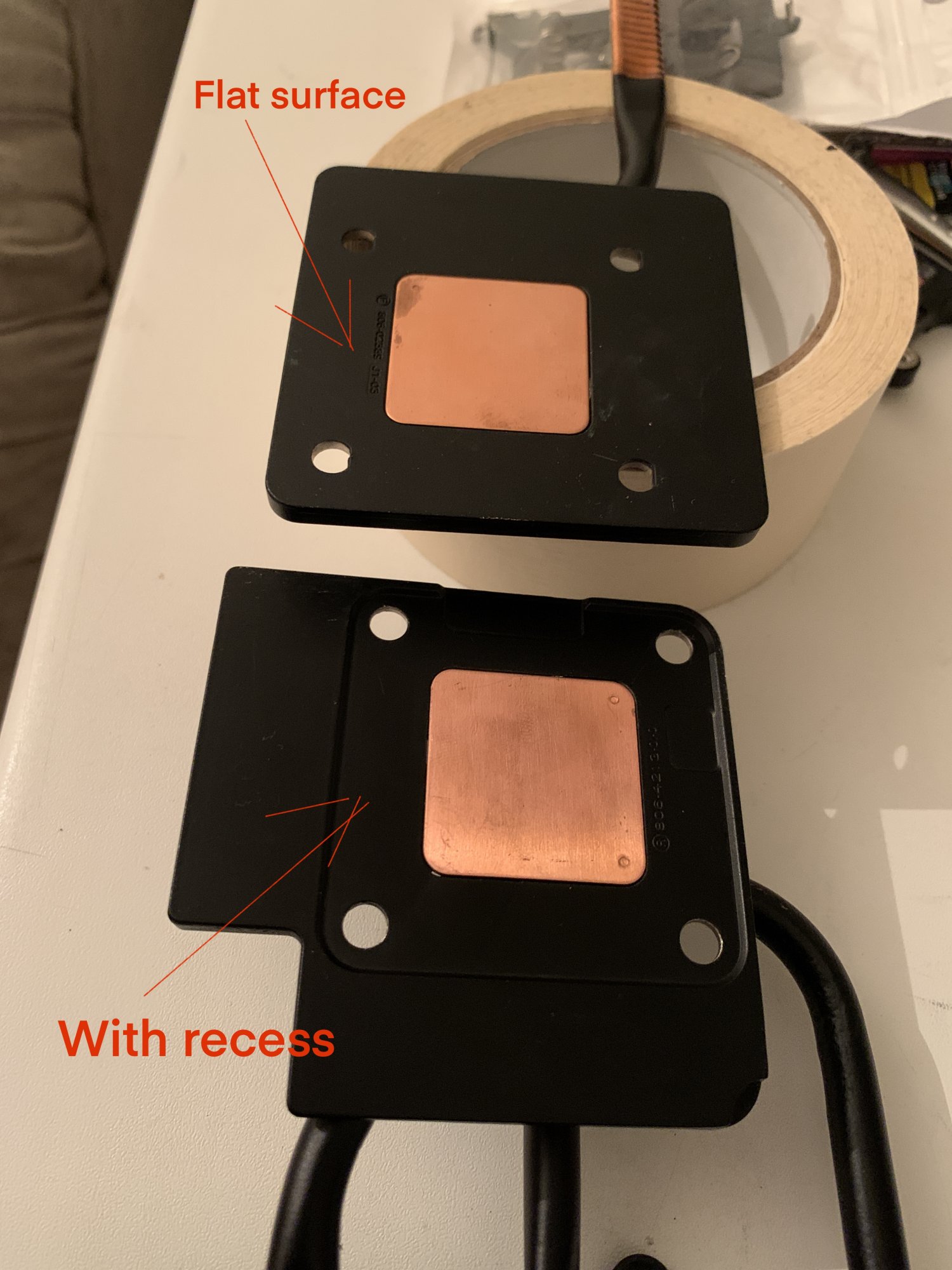

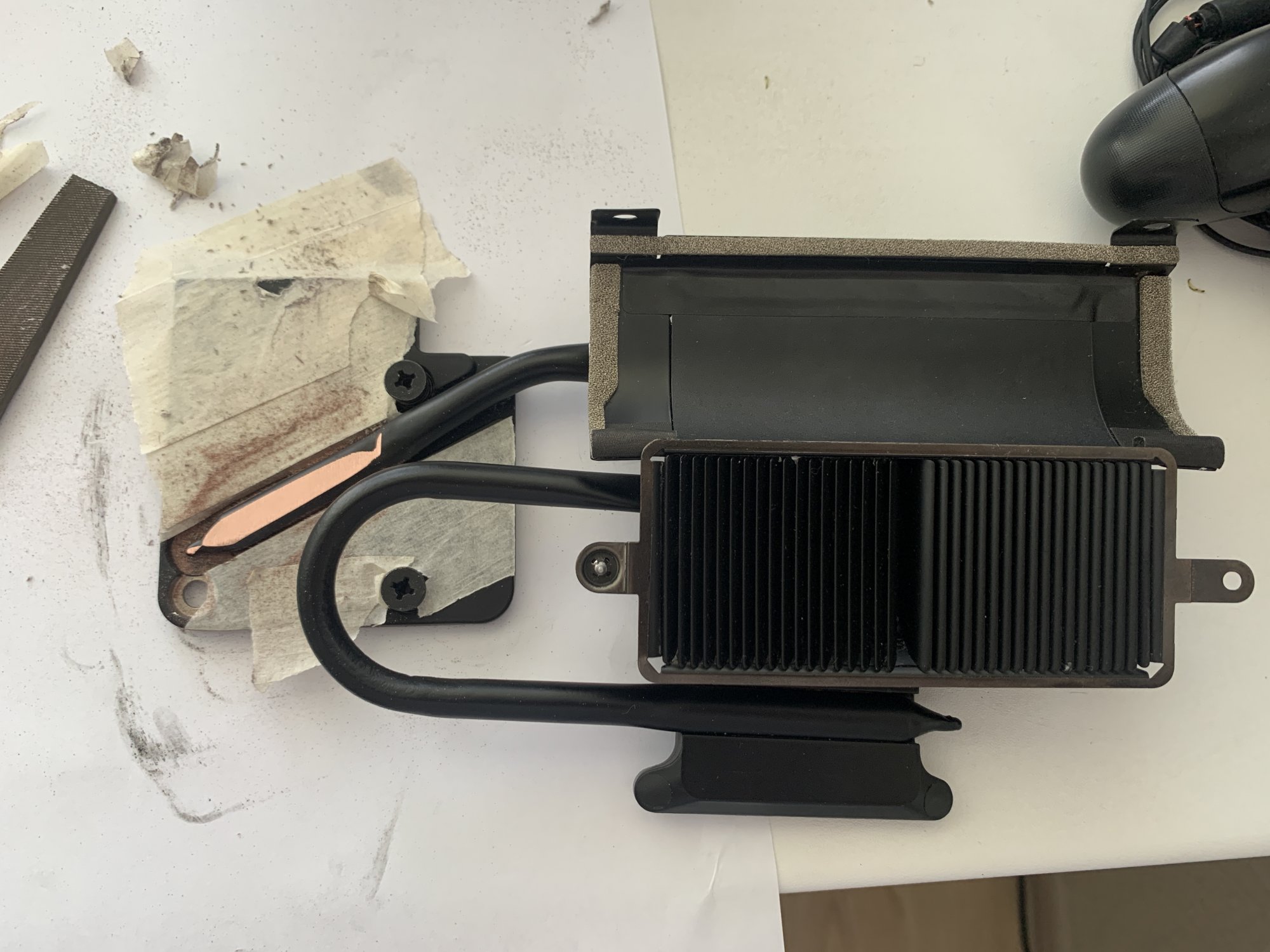

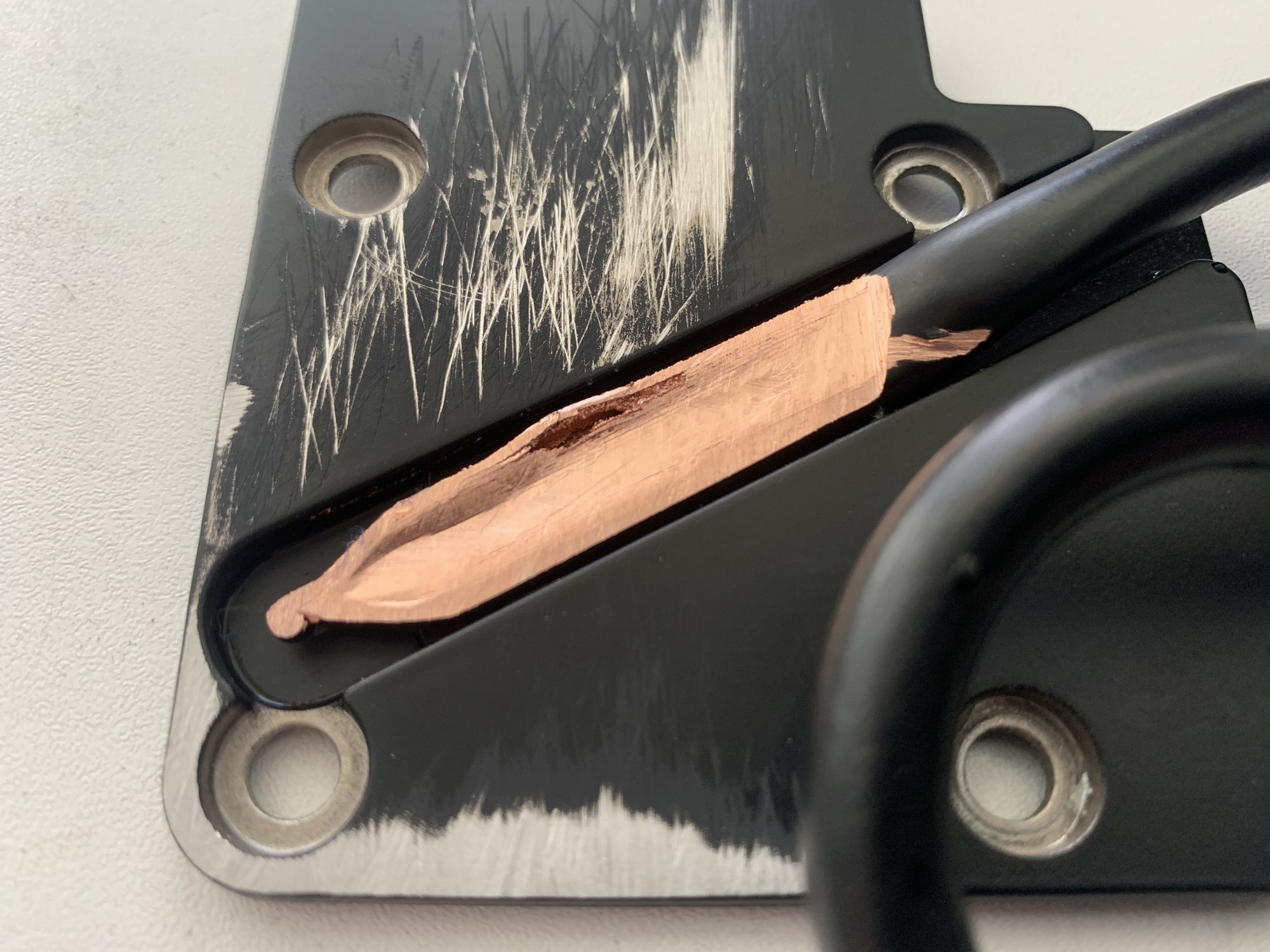

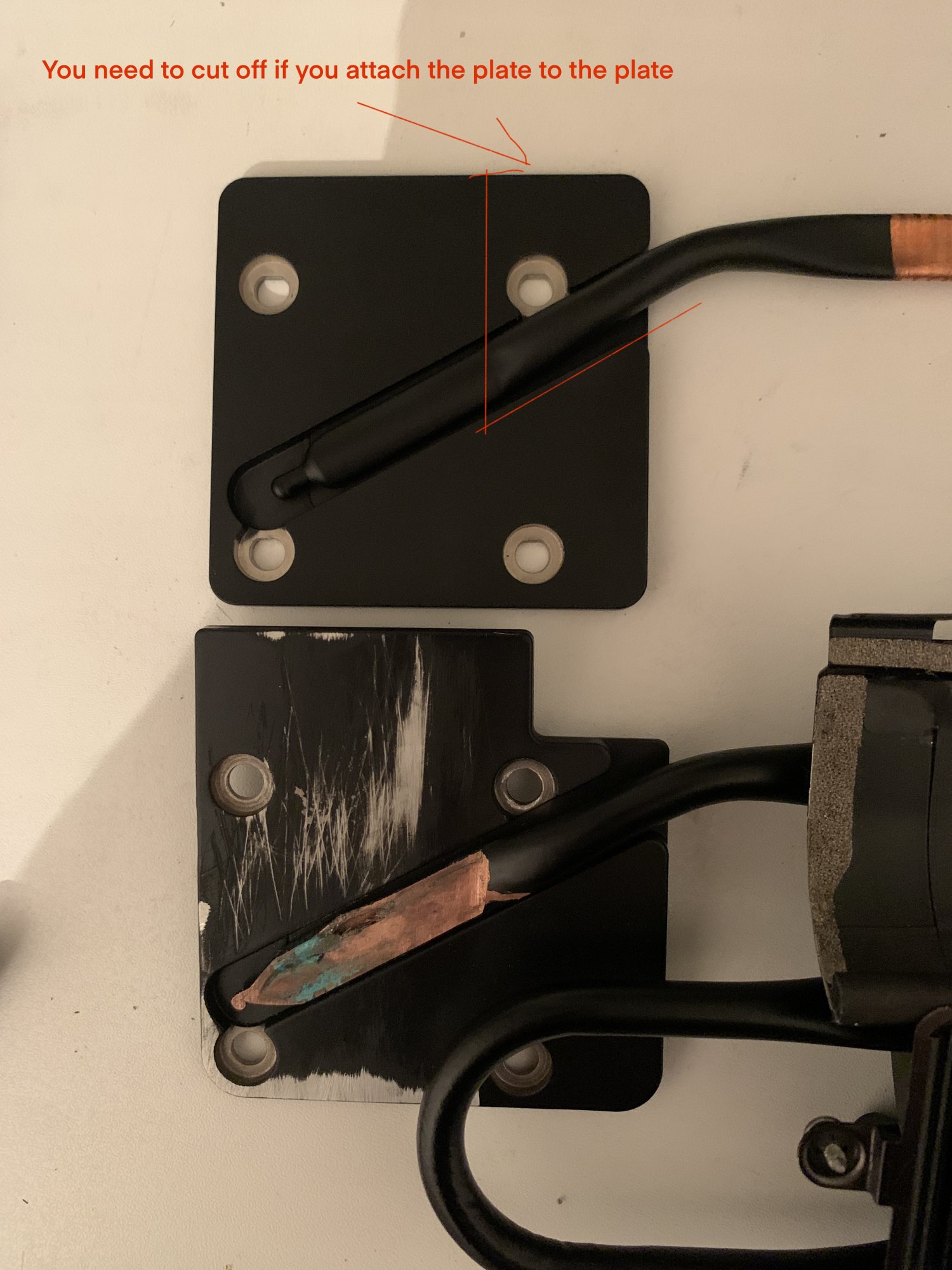

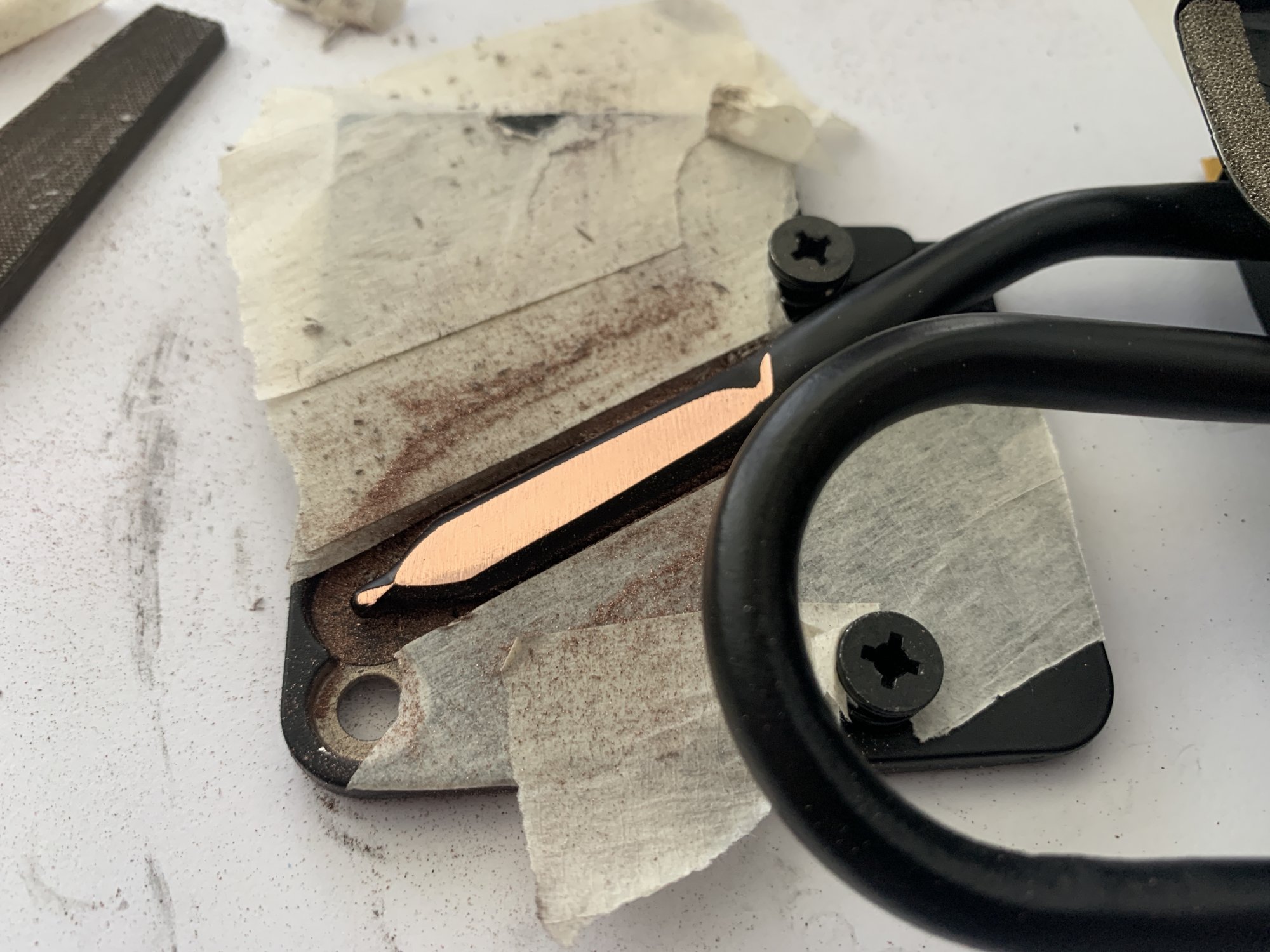

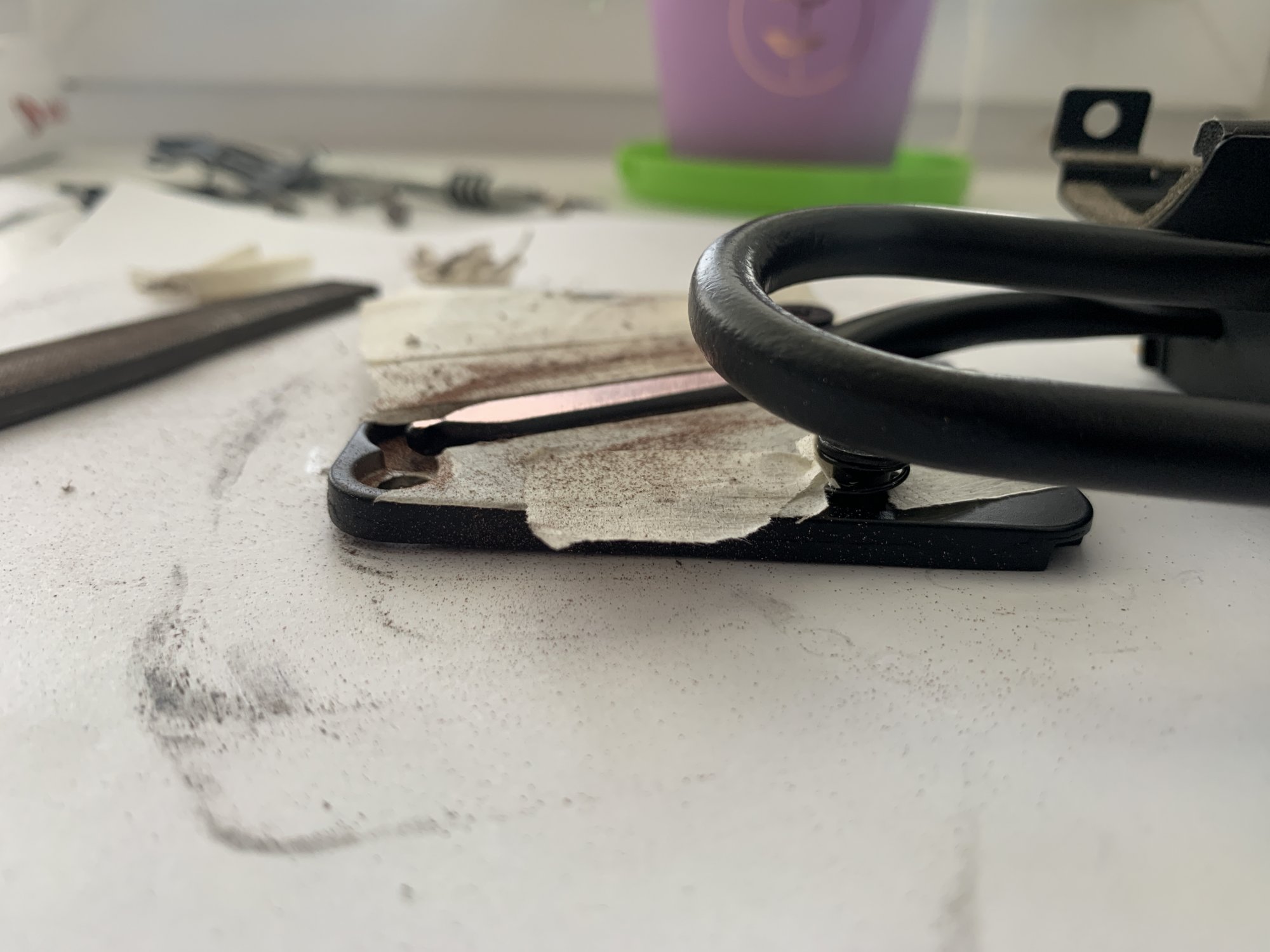

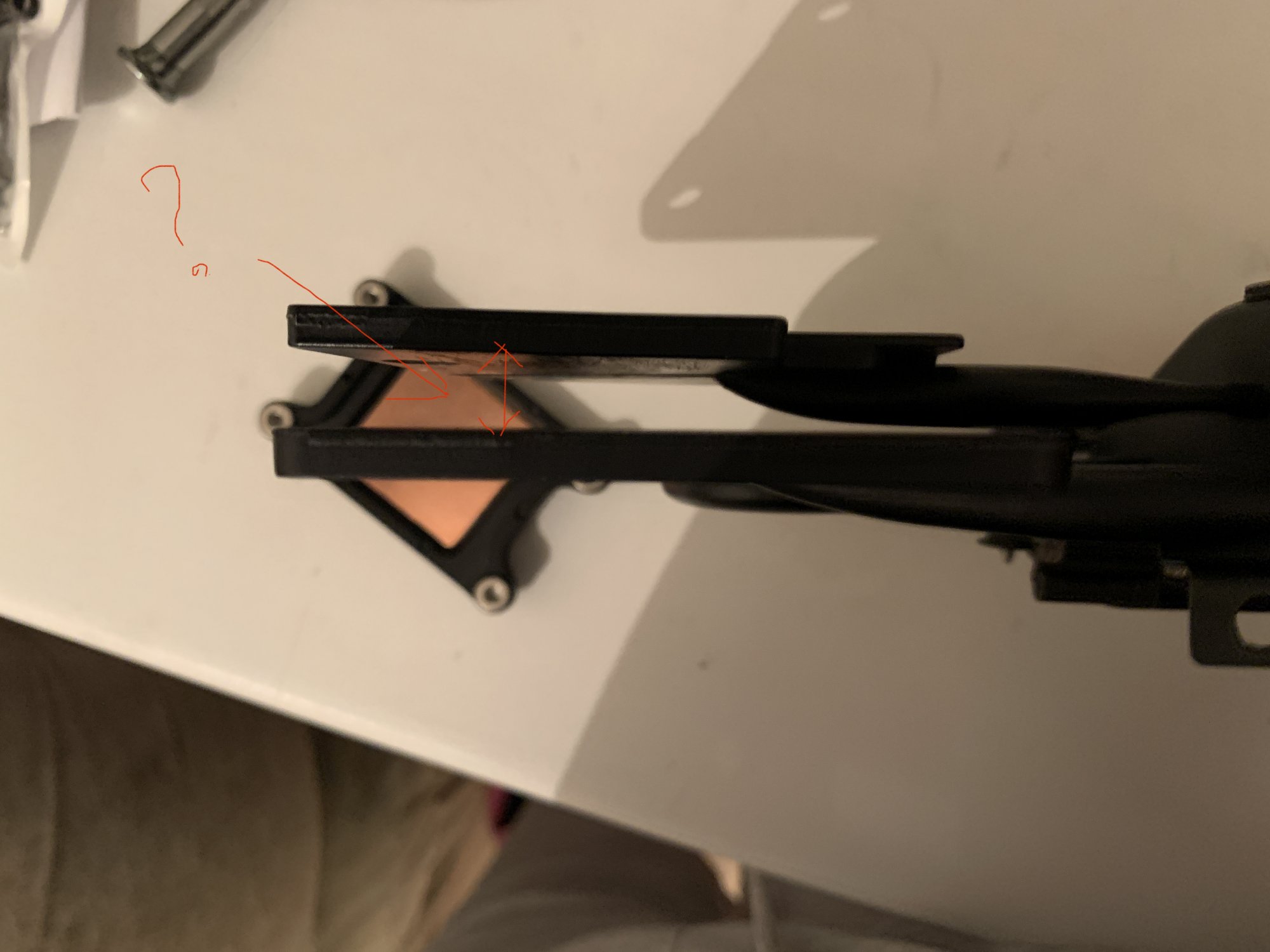

1.While I'm thinking! how to make a video chip heatsink, I only thought of laying a plate on a plate, but a problem arose! The tubes inside are empty and it is not possible to make a flat surface!

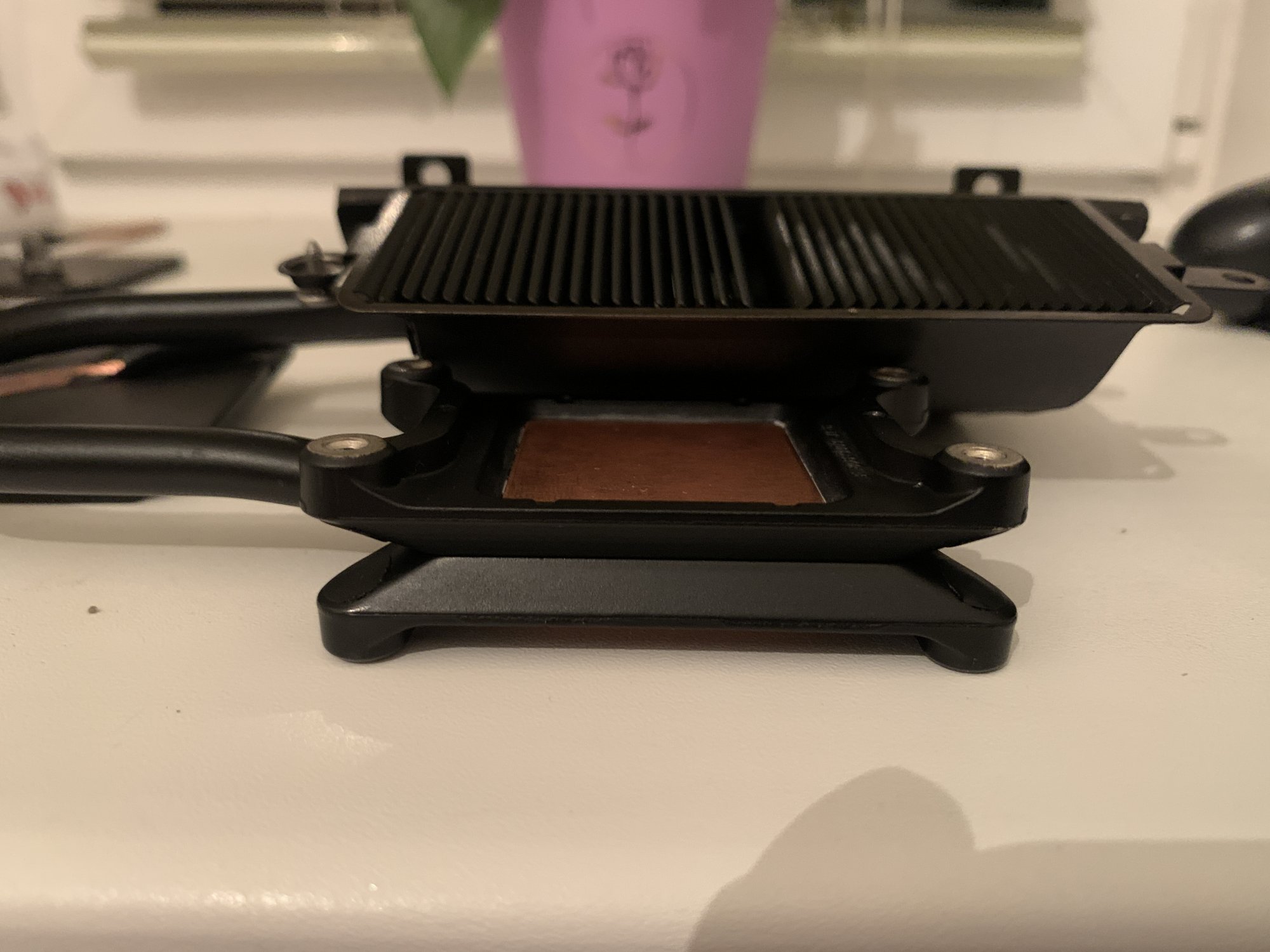

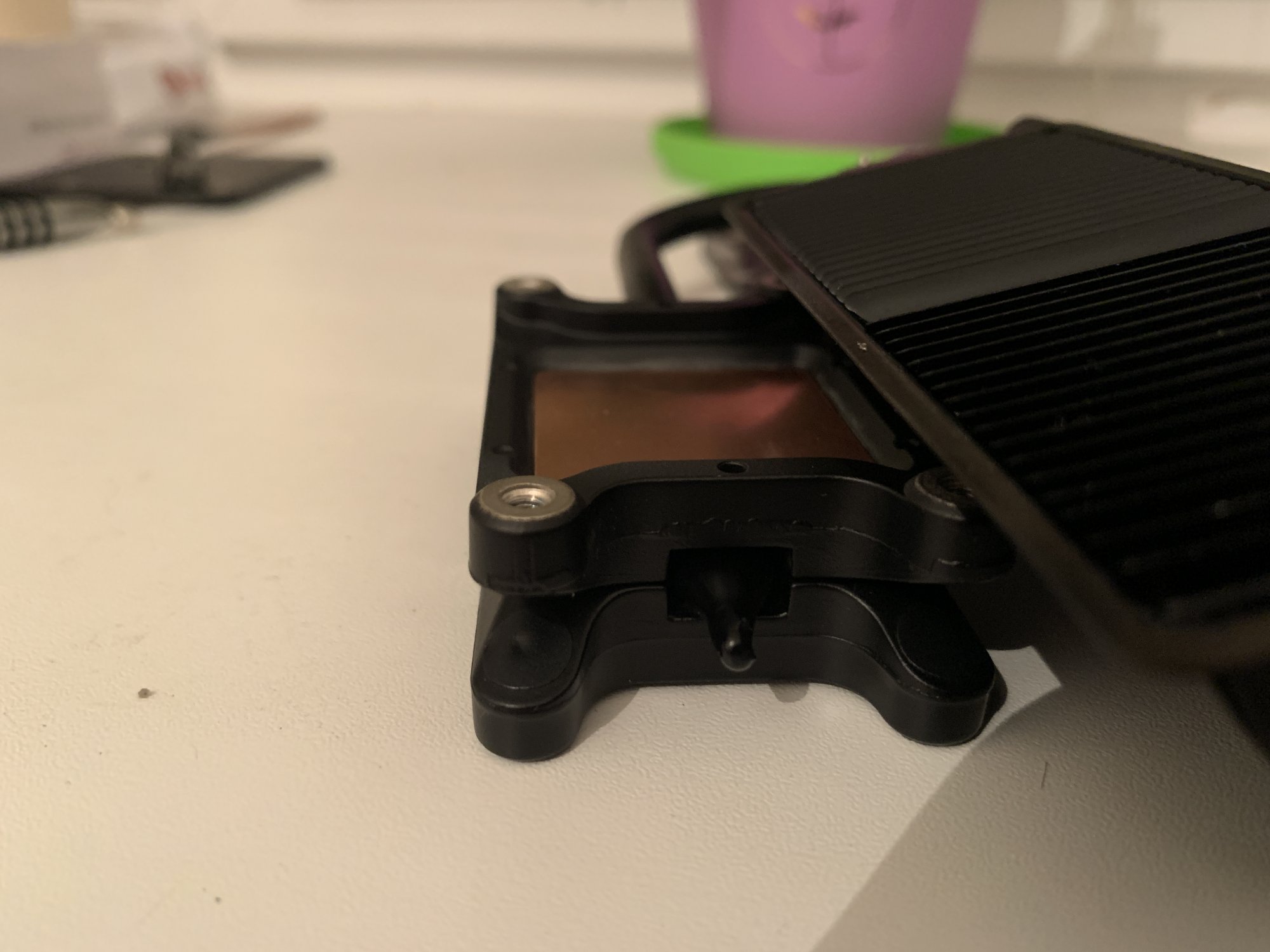

2.The CPU heatsink can be used two together and put a thick copper plate on top,the heatsink can be fastened with screws,there are THREADED HOLES!

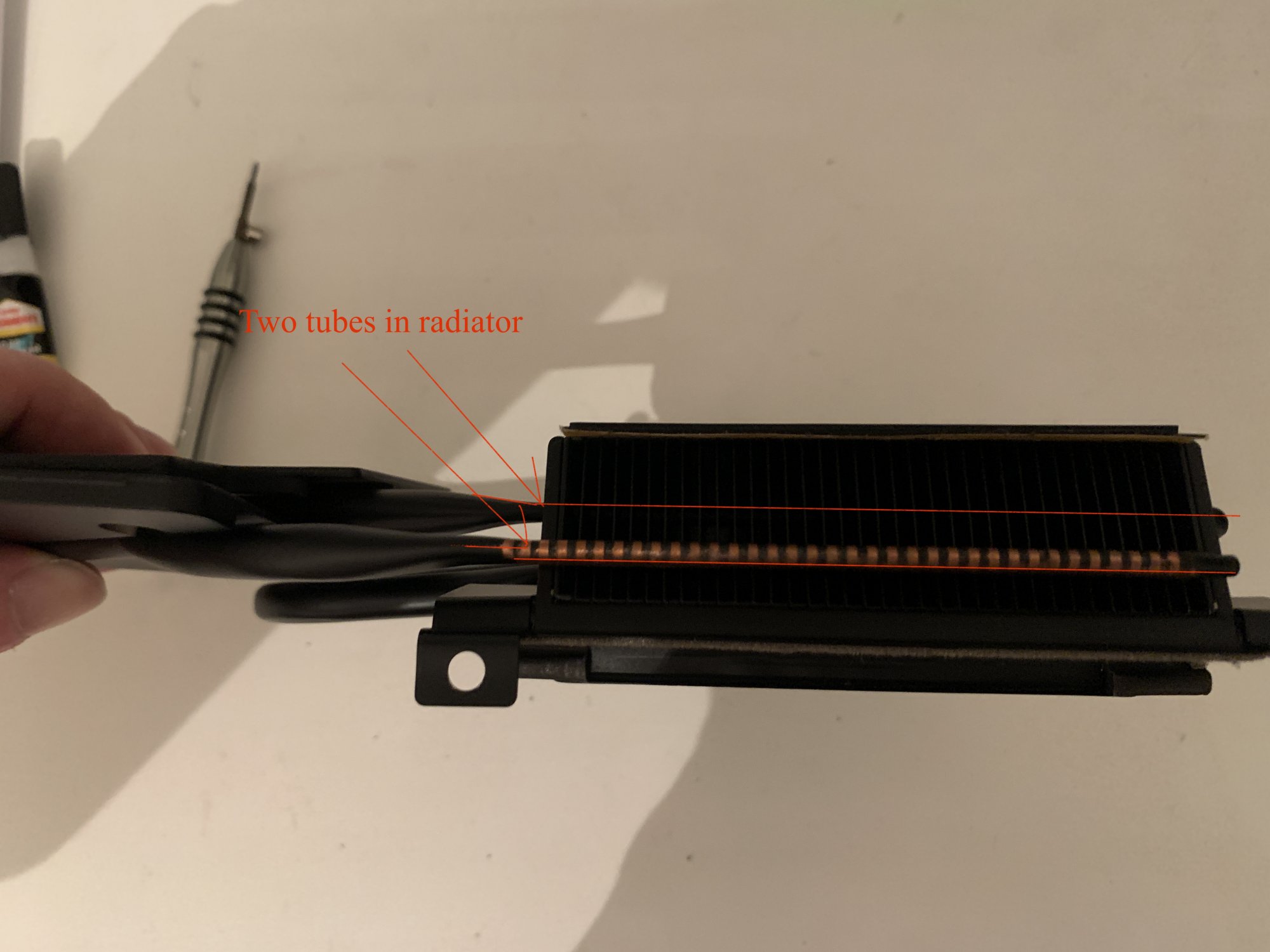

PS.Initially, I thought to put a second tube into the radiator


Attachments

  • IMG_0417.jpg
    325.3 KB · Views: 272
  • IMG_0418.jpg
    371 KB · Views: 106
  • IMG_0419.jpg
    248 KB · Views: 98
  • IMG_0420.jpg
    405.2 KB · Views: 106
  • Иллюстрация_без_названия 1.jpg
    Иллюстрация_без_названия 1.jpg
    180.7 KB · Views: 131
  • Иллюстрация_без_названия 2.jpg
    Иллюстрация_без_названия 2.jpg
    335 KB · Views: 124
  • Иллюстрация_без_названия 3.jpg
    Иллюстрация_без_названия 3.jpg
    181.3 KB · Views: 119
  • Иллюстрация_без_названия 4.jpg
    Иллюстрация_без_названия 4.jpg
    219.6 KB · Views: 117
  • Иллюстрация_без_названия.jpg
    356.5 KB · Views: 123
  • IMG_0431.jpg
    274.8 KB · Views: 100
  • IMG_0433.jpg
    212.5 KB · Views: 108
  • IMG_0434.jpg
    239.1 KB · Views: 105
