mbosse

macrumors 6502a
Original poster
Apr 29, 2015
629
199
Vienna, Austria
Hallo,

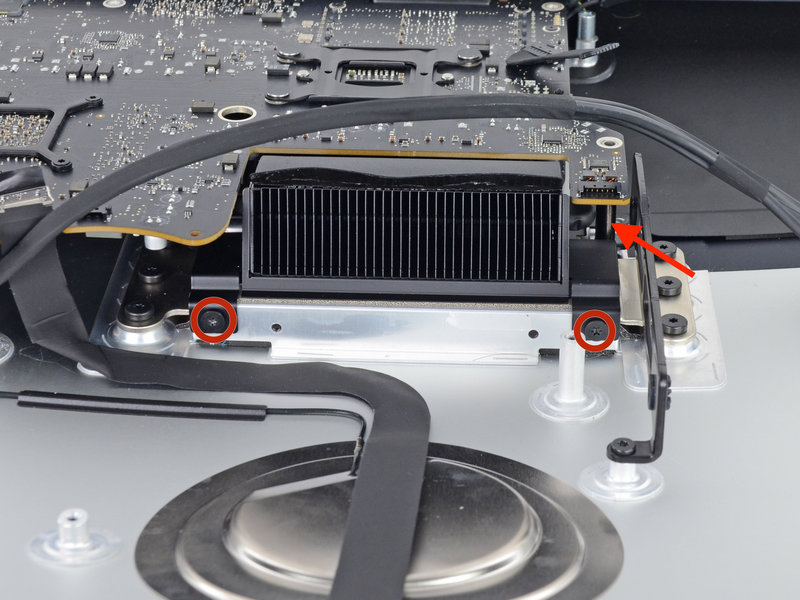

I have a question for the iMac specialists/upgraders amongst you: I am wondering about a very specific logic board screw (arrow in the image below), which secures both the bracket for the HDD as well as the logic board (image taken originally from iFixit):

imac-27-zoll-late-2013-pcb-post-jpg.208422


iFixit states that this screw has a length of 23.7 mm. According to my knowledge all iMac versions without HDD and with only the SSD lack this bracket entirely. This implies that there is a gap of about 1.5mm which prevents securely fixing the logic board.

What I would like to know is how Apple addresses this gap. Do they use a different, longer screw? Or a spacer? Or am I mistaken and the HDD bracket is still there?

I am asking because I am currently upgrading my iMac (27", Late 2013) with an Apple Blade SSD. I took out the HDD including both brackets and I noticed the 1.5mm gap.

Thanks a lot,
Magnus


mbosse

macrumors 6502a
Original poster
Apr 29, 2015
629
199
Vienna, Austria
I have found out in the meantime that Apple apparently uses two different spacing screws on the iMacs with and without hard drive. I wonder if anybody here would know the Apple parts number?


BTW, for no obvious reason the display hinge seems different as well...


mbosse

macrumors 6502a
Original poster
Apr 29, 2015
629
199
Vienna, Austria
I have found out in the meantime that Apple apparently uses two different spacing screws on the iMacs with and without hard drive. I wonder if anybody here would know the Apple parts number?

BTW, for no obvious reason the display hinge seems different as well...
I got additional information from a German iMac user (and model ;-)) who notified me that my initial information is wrong and that Apple indeed uses only one type of spacing screws. Also, regardless of whether a HDD is installed or not, the HDD mounting brackets are always there.

Best,
Magnus
