boto

macrumors 6502
Original poster
Jun 4, 2012
437
28
Is it an inherent flaw that all LG panels dating back from late 2012 iMacs to the new models including the iMac Pro all suffer image retention/persistence/ghosting? I noticed my late 2012 iMac 27", returned iMac Pro, and current iMac Pro with upgraded RAM seem to all be affected. I can easily reproduce small signs of this from normal usage from simply browsing the web for 5 minutes or more with my dock shown and shortly spot very subtle outlines of my dock icons at the bottom after opening Final Cut Pro in full screen mode.

I have found multiple users experiencing the same issue on other iMac models online and I just want to know if this is normal to have. I want to get a definitive answer as I keep finding mixed answers with some stating its normal and apart of the technology, while others reporting it a defect that shouldn't happen. I'm worried later down the line the ghosting effects will get worse and I would hate to have to visit the Apple Store for this issue so soon, especially after spending over $8,000.

Only had the machine for 1 week.


maflynn

macrumors Haswell
May 3, 2009
73,682
43,740
That doesn't seem normal and as such, I'd take it back.

I've had my iMac since 2015 and I've not had any IR

It does seem that your iMac displays the logon screen for periods of time, is there anything you can do to mitigate the risk? I'm not blaming you, but if there are steps you can take to minimize the risk, then I recommend such actions.


boto

macrumors 6502
Original poster
Jun 4, 2012
437
28
I could hide the menu bar and dock to mitigate this issue, but I rather not as the animation delays would slow down my work.


maflynn

macrumors Haswell
May 3, 2009
73,682
43,740
I could hide the menu bar and dock to mitigate this issue, but I rather not as the animation delays would slow down my work.
I was thinking of that big spot in the middle that I presume is your login screen.


boto

macrumors 6502
Original poster
Jun 4, 2012
437
28
I was thinking of that big spot in the middle that I presume is your login screen.

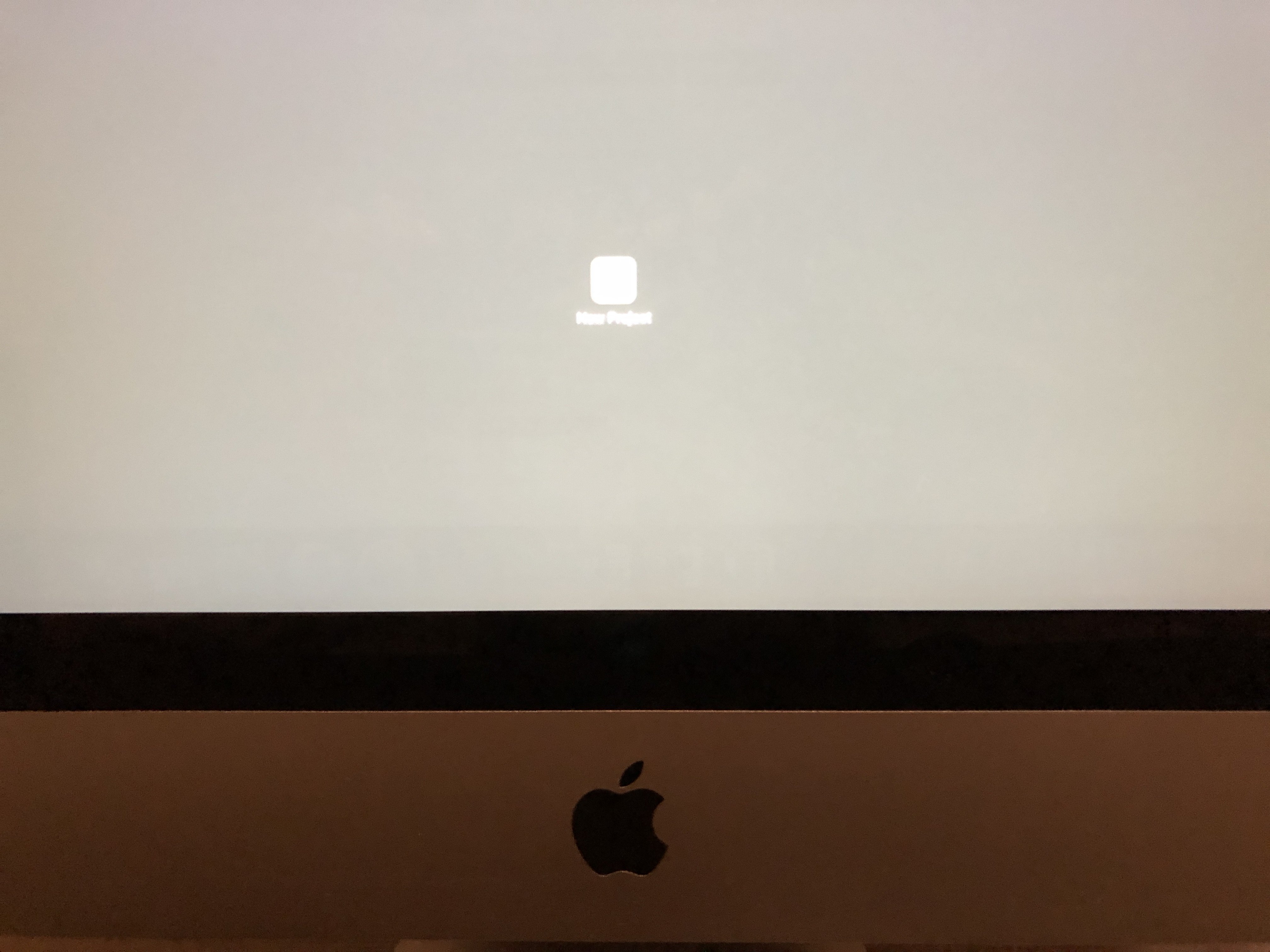

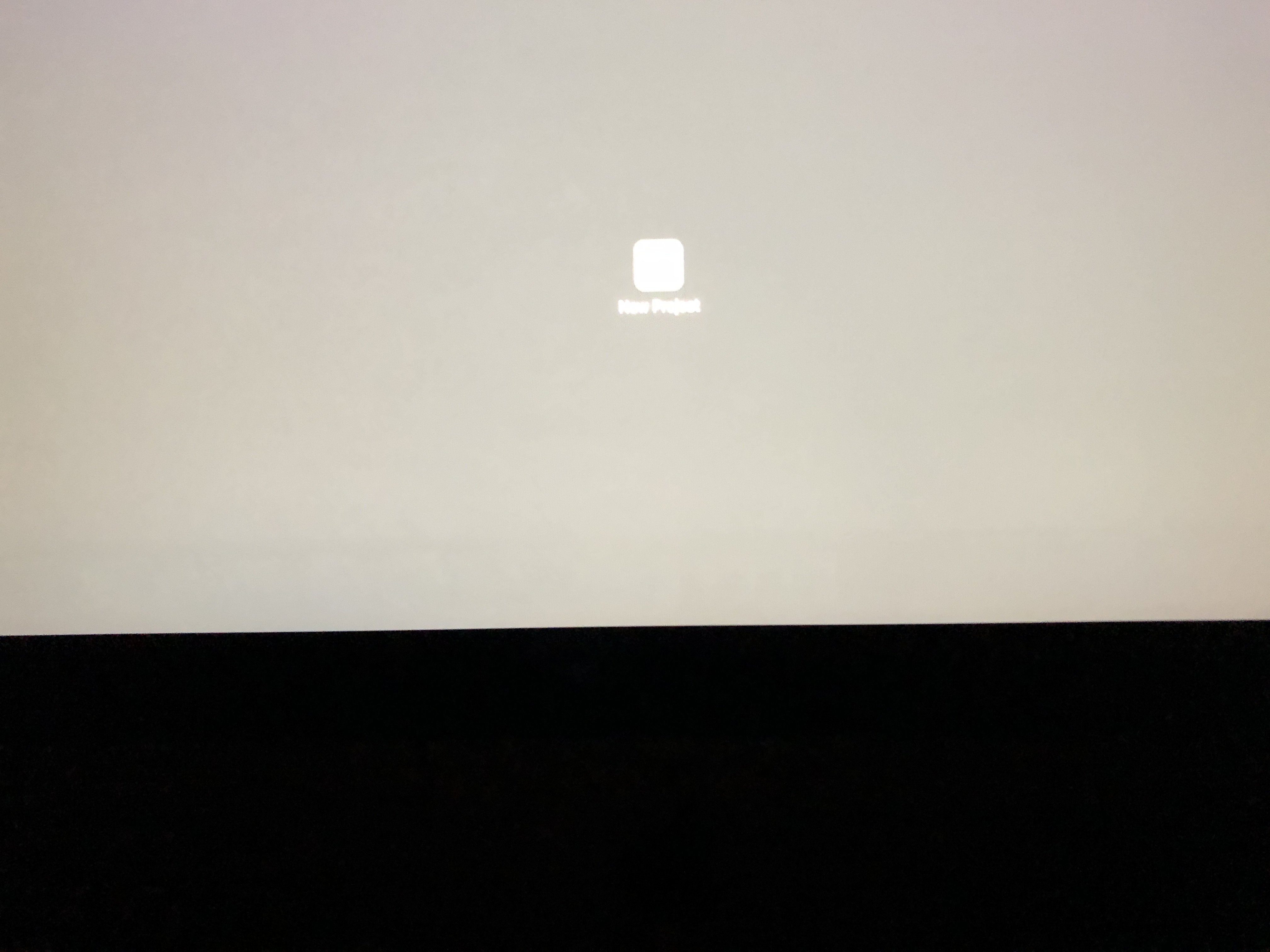

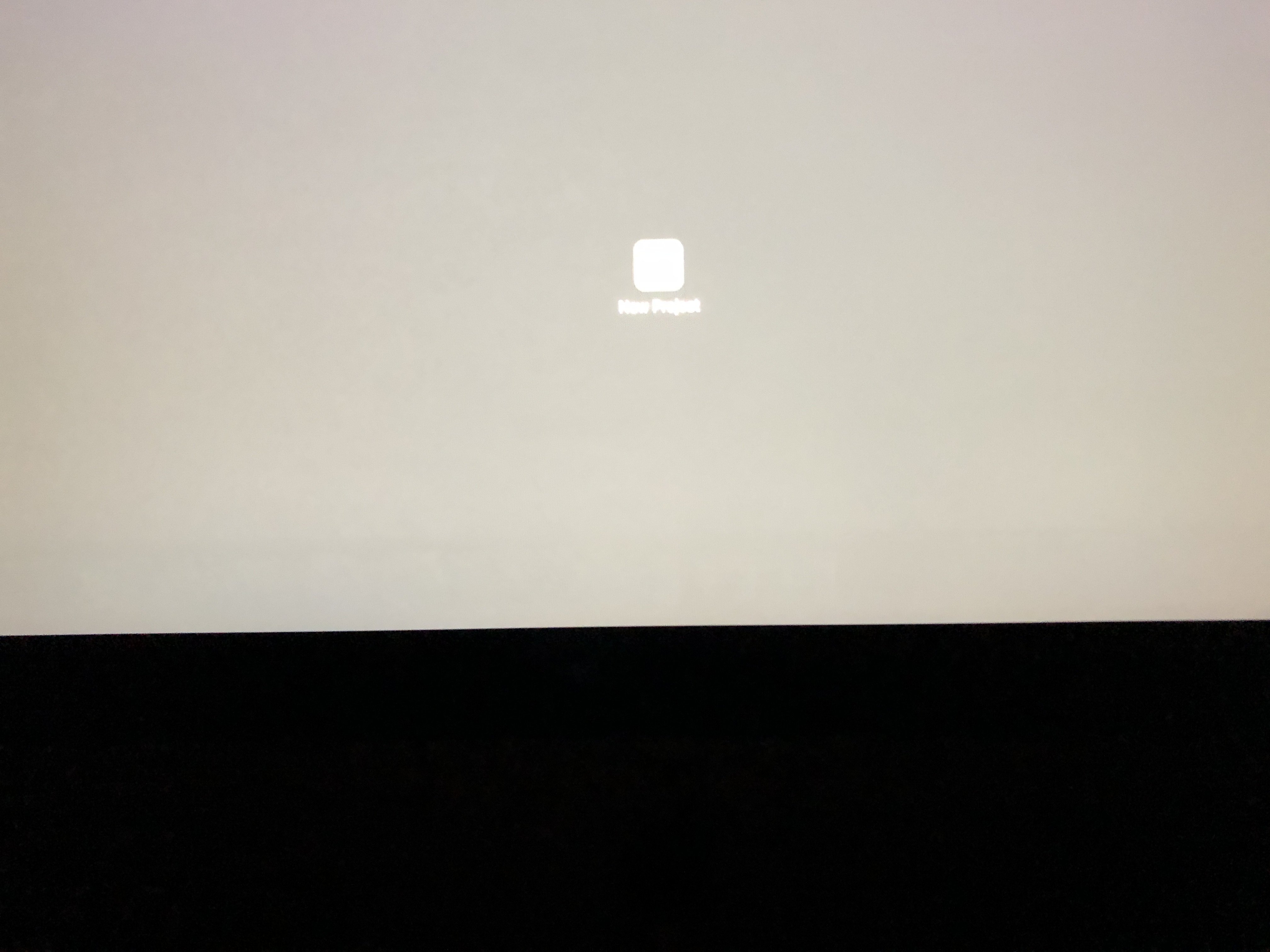

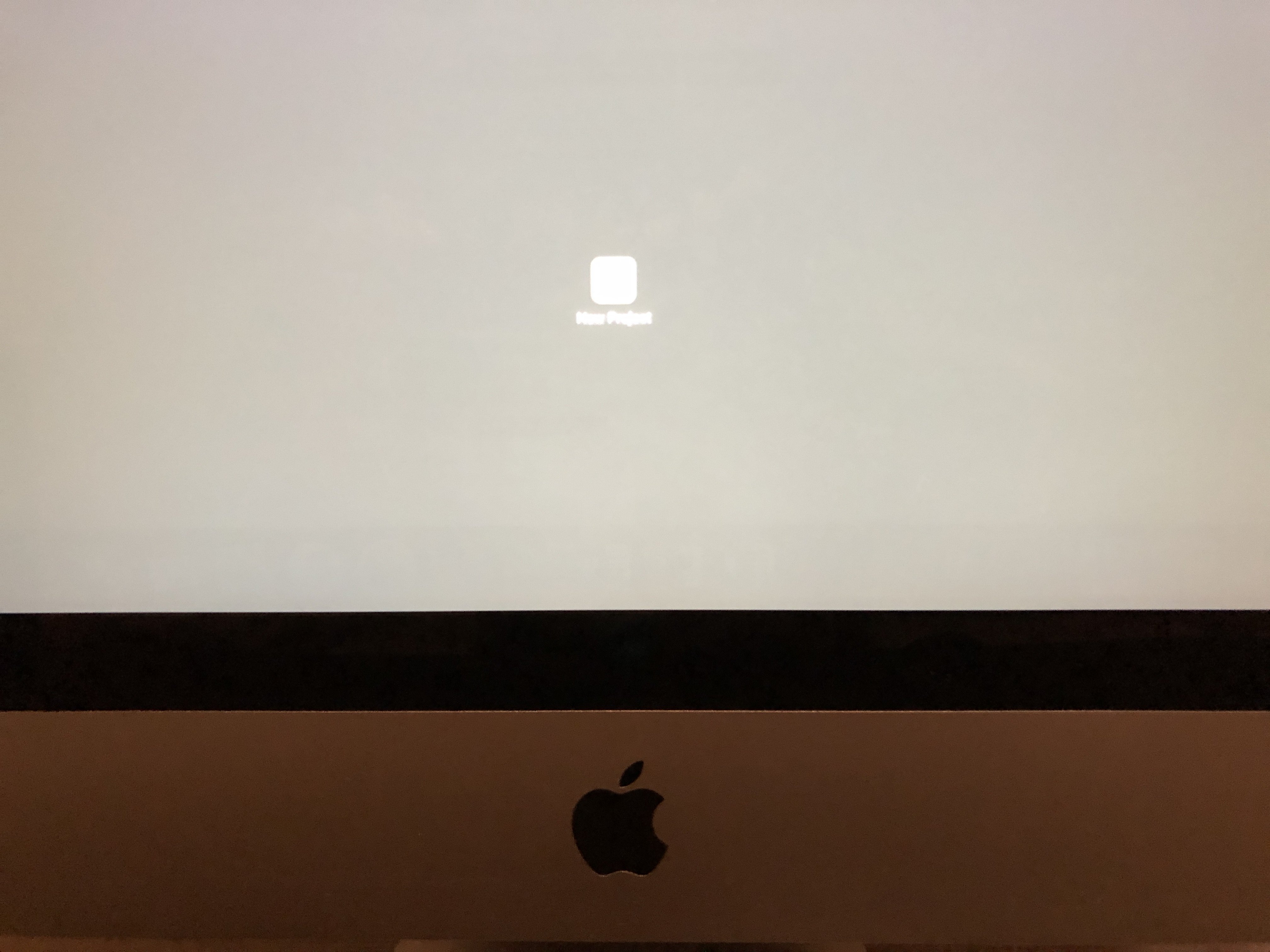

That is actually the Final Cut Pro screen with the "New Project" box. The IR I'm referring to is the very very subtle blurs on the bottom of the gray screen when opening FCP.


Karnicopia

macrumors 6502
Mar 27, 2015
483
507
You would probably be more likely to mitigate this in picture settings so playing with things like brightness or contrast could have a good impact on this. Like you said you already returned a iMac pro that had similar behavior. I do have a LG 5k that has some IR as well so I think this is just part of them cranking out so much brightness on these. The IR didn't really bug me all that much in normal usage but I did notice it from time to time on backgrounds. May not have to be huge differences either like if the contrast is pegged at max back it off a little bit and see if that helps any. A lot of times with TV's they put them into torch mode so they look good compared to everything else so you may have some room on the settings to adjust things.

Last edited:

Redneck1089

macrumors 65816
Jan 18, 2004
1,211
467
I have been worried about Image Retention on my iMac Pro too, however, so far I have not experienced it *knock on wood*.

I have three screens in operation and I have all three switch desktop images every five minutes. I also keep my brightness relatively low for photography and printing.

I’d complain to Apple if I were in your situation.


spikerules

macrumors regular
Jun 17, 2012
214
6
boto slightly off topic sorry. But what iMac Pro do you have and do you also have creative cloud? I’m trying to get to the bottom of something and you might be able to help.

As for image retention I haven’t noticed an issue myself. I will keep and eye out though!


boto

macrumors 6502
Original poster
Jun 4, 2012
437
28
My screensaver is set to 5 minutes and it does remove IR temporarily when away, but I'm baffled why its happening so quickly. I thought it would take several months of usage before showing signs.

Yes, I have creative cloud installed and I could help you figure out whatever you need.

I don't want to make another thread on this but does anyone else experience static noises when raising/lowering audio feedback with a headset plugged into the headphone jack? I tested on multiple headphones and I could reproduce the same sound effects on each of them and on very rare occasions the right earphones would output sound as if the balance slider was set all the way to the right.


spikerules

macrumors regular
Jun 17, 2012
214
6
My screensaver is set to 5 minutes and it does remove IR temporarily when away, but I'm baffled why its happening so quickly. I thought it would take several months of usage before showing signs.

Yes, I have creative cloud installed and I could help you figure out whatever you need.

I don't want to make another thread on this but does anyone else experience static noises when raising/lowering audio feedback with a headset plugged into the headphone jack? I tested on multiple headphones and I could reproduce the same sound effects on each of them and on very rare occasions the right earphones would output sound as if the balance slider was set all the way to the right.

I have not noticed the noise but I have noticed that in Win 10 my audio randomly cuts out for no reason. A restart is the only fix.

As for the creative cloud thing. Thank you! You help me out greatly. If you have premiere installed can you please download the motorbike file from RED here. It is the first video on the second row. Create a new timeline using the same resolution as the source file with 23.976fps. Jump down to 1/2 resolution and hit play. Do you get dropped frames on first playback? If so then my iMac is working the same as yours, but if not then I'm beginning to think something is wrong with my setup!

PS - To get the dropped frame symbol click on the spanner at the bottom right (or top depending on which version you're running) and select dropped frame indicator. If the symbol stays green you have no dropped frames, but if it goes yellow hover over it at the end and it will tell you how many you dropped.

Thanks!


boto

macrumors 6502
Original poster
Jun 4, 2012
437
28
I have not noticed the noise but I have noticed that in Win 10 my audio randomly cuts out for no reason. A restart is the only fix.

As for the creative cloud thing. Thank you! You help me out greatly. If you have premiere installed can you please download the motorbike file from RED here. It is the first video on the second row. Create a new timeline using the same resolution as the source file with 23.976fps. Jump down to 1/2 resolution and hit play. Do you get dropped frames on first playback? If so then my iMac is working the same as yours, but if not then I'm beginning to think something is wrong with my setup!

PS - To get the dropped frame symbol click on the spanner at the bottom right (or top depending on which version you're running) and select dropped frame indicator. If the symbol stays green you have no dropped frames, but if it goes yellow hover over it at the end and it will tell you how many you dropped.

Thanks!
I'm using a 10c/2TB/64GB RAM/64 Vega.

I tested the 8k footage in premiere and I'm experiencing the same yellow dropped frames on the first playback, while the 2nd playback and onwards appear to indicate green. Looks like you have nothing to worry about as it's normal.

  • Like
Reactions: spikerules

spikerules

macrumors regular
Jun 17, 2012
214
6
I'm using a 10c/2TB/64GB RAM/64 Vega.

I tested the 8k footage in premiere and I'm experiencing the same yellow dropped frames on the first playback, while the 2nd playback and onwards appear to indicate green. Looks like you have nothing to worry about as it's normal.

Brilliant thanks for helping me out! Much appreciated! Just to confirm that on 1/2 quality, right?


floridaman

macrumors member
Nov 8, 2011
93
35
Florida
My screensaver is set to 5 minutes and it does remove IR temporarily when away, but I'm baffled why its happening so quickly. I thought it would take several months of usage before showing signs.

Yes, I have creative cloud installed and I could help you figure out whatever you need.

I don't want to make another thread on this but does anyone else experience static noises when raising/lowering audio feedback with a headset plugged into the headphone jack? I tested on multiple headphones and I could reproduce the same sound effects on each of them and on very rare occasions the right earphones would output sound as if the balance slider was set all the way to the right.

The static noise you are referring to also happens without headphones and is very evident when adjusting volume during a video. I had to return my IMac Pro for this and a bad screen. Got the new IMac Pro and the screen is almost perfect but the audio issue is still there. Must be a bug and Apple will have to address this hopefully sooner then later. Also to mitigate this you can turn off the volume feedback sound in system preferences.

Last edited:

shadow82x

macrumors 6502
Jul 11, 2012
445
193
New Jersey
I haven't noticed any IR on my iMac Pro I exchanged (for backlight bleed) and my new one. I'll test it a little bit more.

I have the same exact build.


spikerules

macrumors regular
Jun 17, 2012
214
6
Boto have you got more examples of the IR and after how much time does it show up? Does it disappear quickly etc? You say 5 minutes, but is that universal?


boto

macrumors 6502
Original poster
Jun 4, 2012
437
28
The static noise you are referring to also happens without headphones and is very evident when adjusting volume during a video. I had to return my IMac Pro for this and a bad screen. Got the new IMac Pro and the screen is almost perfect but the audio issue is still there. Must be a bug and Apple will have to address this hopefully sooner then later. Also to mitigate this you can turn off the volume feedback sound in system preferences.
Thanks for this info, I really thought this was a defect on both my returned and current units. Hopefully Apple pushes out a software update to resolve this.
Boto have you got more examples of the IR and after how much time does it show up? Does it disappear quickly etc? You say 5 minutes, but is that universal?
The IR shows up for less than 5 minutes as long as a screensaver (I use animated art) or full screen video is being played to move the pixels around. I can only notice this at max brightness and the ghosting gradually becomes more apparent over time with very minimal marks starting at 3 minutes after bootup, but only at the bottom where the dock lies as well as a subtle apple logo on the top left corner of the menu bar. Other than those areas it doesn't get much worse than the images I posted above under normal use.


thefriendshipmachine

macrumors 6502
Apr 14, 2017
308
215
I had like 4 different 2014 iMacs with the image retention issue. Go here:

https://marco.org/rmbp-irtest.html

and do the test for 5 minutes. Put the screen at full brightness and do not look at the screen as the test is going or your eyes wont be able to tell the difference at the end between retention or not. Remember to turn your screensaver to 5 minutes so it doesnt interrupt the test.

After the end (set a timer for 5 min) click on the "switch to gray" button and look to see if you can still see the checkered pattern anywhere. IF YOU CAN then please post an image here.

I would not be surprised if the 2017 iMac Pro has image retention. The retention problem and the thermal problems with iMacs seem to have stayed around for years now. It would be tragic for customers if the iMac Pro suffers from these issues too so I look forward to seeing the results of your test.
[doublepost=1515904097][/doublepost]
That doesn't seem normal and as such, I'd take it back.

I've had my iMac since 2015 and I've not had any IR

It does seem that your iMac displays the logon screen for periods of time, is there anything you can do to mitigate the risk? I'm not blaming you, but if there are steps you can take to minimize the risk, then I recommend such actions.

This looks like the classic image retention problem I've seen on nearly every iMac I've looked at since 2014.


alanterra

macrumors newbie
Sep 30, 2006
3
0
Oakland, CA
In response to thefriendshipmachine's request, this is what my Late 2014 iMac 5K w/ Mojave looks like after 30 seconds of displaying the image on the screen. I had my screen at about 70% brightness.

That's 30 seconds of display! (The bright stripe is a reflection. Photographed with my phone, resized but not enhanced in Photoshop).

Echoing his comments, I'd love to see what 2017 iMacs or iMac Pros look like. I'm definitely getting AppleCare with my next computer — it is crazy to have to trade in a computer after 4 years because of an issue like this.


redheeler

macrumors G3
Oct 17, 2014
8,656
9,324
Colorado, USA
In response to thefriendshipmachine's request, this is what my Late 2014 iMac 5K w/ Mojave looks like after 30 seconds of displaying the image on the screen. I had my screen at about 70% brightness.

That's 30 seconds of display! (The bright stripe is a reflection. Photographed with my phone, resized but not enhanced in Photoshop).

Echoing his comments, I'd love to see what 2017 iMacs or iMac Pros look like. I'm definitely getting AppleCare with my next computer — it is crazy to have to trade in a computer after 4 years because of an issue like this.
Image retention is basically inevitable on the Late 2014 models, and even the Late 2015 models to a lesser extent. I've seen fewer complaints regarding the 2017 models.


ThatSandWyrm

macrumors 6502
Oct 30, 2017
251
214
Indianapolis
T
Is it an inherent flaw that all LG panels dating back from late 2012 iMacs to the new models including the iMac Pro all suffer image retention/persistence/ghosting? I noticed my late 2012 iMac 27", returned iMac Pro, and current iMac Pro with upgraded RAM seem to all be affected. I can easily reproduce small signs of this from normal usage from simply browsing the web for 5 minutes or more with my dock shown and shortly spot very subtle outlines of my dock icons at the bottom after opening Final Cut Pro in full screen mode.

I have found multiple users experiencing the same issue on other iMac models online and I just want to know if this is normal to have. I want to get a definitive answer as I keep finding mixed answers with some stating its normal and apart of the technology, while others reporting it a defect that shouldn't happen. I'm worried later down the line the ghosting effects will get worse and I would hate to have to visit the Apple Store for this issue so soon, especially after spending over $8,000.

Only had the machine for 1 week. View attachment 746496 View attachment 746497
This is a known problem with all IPS panels, regardless of manufacturer. You can reduce the burn-in by creating a full-screen white image and letting it sit for a few hours.

Yeah I know... It feels so 1998.


_Kiki_

macrumors 6502a
Aug 13, 2017
961
281
T

This is a known problem with all IPS panels, regardless of manufacturer. You can reduce the burn-in by creating a full-screen white image and letting it sit for a few hours.

Yeah I know... It feels so 1998.
you can still buy MVA/SPVA instead especially for a second monitor
