Intel i9 MBP 16" - Constant kernel panics after upgrading to Sonoma

[SirThanksalot]

Hi guys,

I have had a problem with my MBP 16" for a few days now and I can't find the problem. So it started, when I updated to Ventura. My MBP wouldn't recognise my TB-display while it was in clamshell mode. I had to manually open the MacBook, connect the display and close it again. This was incredibly annoying, but oh boy, did I not see, what would come later. After doing this for a while, I thought of maybe upgrading to Sonoma to see, if this problem might be mitigated. This made everything so much worse.

Now, I get constant kernel panics multiple times a day. The MBP just freezes and restarts. (I will attach the report in the post)

At first it looked, like it was a problem when the MBP is connected to anything TB. However, after leaving the Mac on to do a backup and only connecting it to power, it still crashed a few times. Took me 5 tries to do a backup to my server.

I tried going back to Ventura, but this is not possible without losing all my data. My last backup is a bit old, so if possible, I wanted to find a solution without restoring the backup. (And no, I did not backup before upgrading 😢). Now I read that a lot of outdated software might cause this and also some anti-virus, firewall, anti-malware tools. I do not use anything like that (aside from AppCleaner, but it's not even running in the background) and have removed all I could and don't need. Does anybody see something in the log, that might be of help? I looked through it, but I am not the wiser.

panic(cpu 0 caller 0xffffff800cfde6eb): [kalloc.type.var4.8192]: element modified after free (off:112, val:0x0000400000000000, sz:8192, ptr:0xffffffa2286fa000)
  112: 0x0000400000000000
Panicked task 0xffffff8f06980638: 3 threads: pid 5566: com.apple.Driver
Backtrace (CPU 0), panicked thread: 0xffffff9d6d2cc598, Frame : Return Address
0xffffffa899ba7350 : 0xffffff800c836c41
0xffffffa899ba73a0 : 0xffffff800c995310
0xffffffa899ba73e0 : 0xffffff800c984a5c
0xffffffa899ba7460 : 0xffffff800c7d3971
0xffffffa899ba7480 : 0xffffff800c836f2d
0xffffffa899ba7570 : 0xffffff800c8365d3
0xffffffa899ba75d0 : 0xffffff800cfd8bcb
0xffffffa899ba76c0 : 0xffffff800cfde6eb
0xffffffa899ba7b20 : 0xffffff800c8a90b3
0xffffffa899ba7b90 : 0xffffff800c8454fb
0xffffffa899ba7bb0 : 0xffffff800c80e585
0xffffffa899ba7be0 : 0xffffff800cf6cea6
0xffffffa899ba7c70 : 0xffffff800cf6cc0c
0xffffffa899ba7ca0 : 0xffffff800c80f4df
0xffffffa899ba7d60 : 0xffffff800c8276b8
0xffffffa899ba7dd0 : 0xffffff800c827d28
0xffffffa899ba7ef0 : 0xffffff800c96a052
0xffffffa899ba7fa0 : 0xffffff800c7d3dd6

Process name corresponding to current thread (0xffffff9d6d2cc598): com.apple.DriverKit.AppleUserECM

Mac OS version:
23C71

Kernel version:
Darwin Kernel Version 23.2.0: Wed Nov 15 21:54:10 PST 2023; root:xnu-10002.61.3~2/RELEASE_X86_64
Kernel UUID: F73CFE5A-7EF6-3C21-AFA7-742645B733CC
roots installed: 0
KernelCache slide: 0x000000000c400000
KernelCache base:  0xffffff800c600000
Kernel slide:      0x000000000c4e0000
Kernel text base:  0xffffff800c6e0000
__HIB  text base: 0xffffff800c500000
System model name: MacBookPro16,1 (Mac-E1008331FDC96864)
System shutdown begun: NO
Hibernation exit count: 0

System uptime in nanoseconds: 6974697745682
Last Sleep:           absolute           base_tsc          base_nano
  Uptime  : 0x00000657ec61b461
  Sleep   : 0x0000063330028bd8 0x0000000467bc943c 0x0000000000000000
  Wake    : 0x0000063345bc83ee 0x0000120a5702b934 0x0000063343bac615
Compressor Info: 0% of compressed pages limit (OK) and 0% of segments limit (OK) with 0 swapfiles and OK swap space
Zone info:
  Zone map: 0xffffff8898d57000 - 0xffffffa898d57000
  . PGZ   : 0xffffff8898d57000 - 0xffffff88a0d58000
  . VM    : 0xffffff88a0d58000 - 0xffffff8d6c6f1000
  . RO    : 0xffffff8d6c6f1000 - 0xffffff8f05a24000
  . GEN0  : 0xffffff8f05a24000 - 0xffffff93d13bd000
  . GEN1  : 0xffffff93d13bd000 - 0xffffff989cd56000
  . GEN2  : 0xffffff989cd56000 - 0xffffff9d686ef000
  . GEN3  : 0xffffff9d686ef000 - 0xffffffa234089000
  . DATA  : 0xffffffa234089000 - 0xffffffa898d57000
  Metadata: 0xffffff805fae7000 - 0xffffff807fae7000
  Bitmaps : 0xffffff807fae7000 - 0xffffff808bae7000
  Extra   : 0 - 0

last started kext at 6822804449977: @UVCService    1 (addr 0xffffff7fa19e3000, size 4096)
last stopped kext at 307068448593: >!AThunderboltEDMSink    5.0.3 (addr 0xffffff7fa142e000, size 32768)
loaded kexts:
com.intel.driver.EnergyDriver    3.6.2
@UVCService    1
@filesystems.smbfs    5.1
>AudioAUUC    1.70
|SCSITaskUserClient    492
>!UMass!SInterfaceNub    556
>usb.realtek8153patcher    5.0.0
>!APlatformEnabler    2.7.0d0
>X86PlatformShim    1.0.0
>AGPM    135
>!AHIDALSService    1
>!ATopCaseHIDEventDriver    7400.26
@filesystems.autofs    3.0
>!AUpstreamUserClient    3.6.11
@kext.AMDRadeonX6000    5.0.2
@kext.AMDRadeonServiceManager    5.0.2
>!AGFXHDA    300.1
>!ABridgeAudio!C    400.1
>!A!IKBLGraphics    22.0.1
>!AGraphicsDevicePolicy    8.1.9
>!AMuxControl2    8.1.9
@AGDCPluginDisplayMetrics    8.1.9
>pmtelemetry    1
@filesystems.nfs    1
|IOUserEthernet    1.0.1
>usb.!UUserHCI    1
>!ASunrise    1
>AGDCBacklightControl    8.1.9
>!AHV    1
>!A!IPCHPMC    2.0.1
>BridgeAudioCommunication    400.1
>!AAVEBridge    6.1
>!A!ICFLGraphicsFramebuffer    22.0.1
>!AMCCSControl    1.17
>!AThunderboltIP    4.0.3
>!A!ISlowAdaptiveClocking    4.0.0
>BCMWLANFirmware4388.Hashstore    1
>BCMWLANFirmware4387.Hashstore    1
>BCMWLANFirmware4378.Hashstore    1
>BCMWLANFirmware4377.Hashstore    1
>BCMWLANFirmware4364.Hashstore    1
>BCMWLANFirmware4355.Hashstore    1
>!AFileSystemDriver    3.0.1
@filesystems.tmpfs    1
@filesystems.lifs    1
@filesystems.hfs.kext    650.0.2
@BootCache    40
@!AFSCompression.!AFSCompressionTypeZlib    1.0.0
@!AFSCompression.!AFSCompressionTypeDataless    1.0.0d1
@filesystems.apfs    2235.60.6
>!ABCMWLANBusInterfacePCIeMac    1
@private.KextAudit    1.0
>!ASmartBatteryManager    161.0.0
>!AACPIButtons    6.1
>!ASMBIOS    2.1
>!AACPIEC    6.1
>!AAPIC    1.7
@!ASystemPolicy    2.0.0
@nke.applicationfirewall    404
|IOKitRegistryCompatibility    1
|EndpointSecurity    1
@Dont_Steal_Mac_OS_X    7.0.0
>!ADiskImages2    273
@kec.!AEncryptedArchive    1
>usb.cdc.acm    5.0.0
>usb.serial    6.0.0
>usb.!UHub    1.2
>!AThunderboltPCIUpAdapter    4.1.1
>!AActuatorDriver    7400.42
>!AHIDKeyboard    7400.2
>!AMultitouchDriver    7400.42
>!AInputDeviceSupport    7410.1
>!AHS!BDriver    7400.26
>IO!BHIDDriver    9.0.0
@kext.AMDRadeonX6100HWLibs    1.0
>!UAudio    610.3
>!AAudioClockLibs    300.1
@kext.AMDRadeonX6000HWServices    5.0.2
|IOAudio!F    500.4
@vecLib.kext    1.2.0
>!A!ILpssUARTv1    3.0.60
>!A!ILpssUARTCommon    3.0.60
>!AOnboardSerial    1.0
>!AGraphicsControl    8.1.9
@kext.AMDRadeonX6000Framebuffer    5.0.2
@kext.triggers    1.0
>IOHIDPowerSource    1
>!ACallbackPowerSource    1
@kext.AMDSupport    5.0.2
|IOAVB!F    1220.1
>!ARSMChannel    1
|IORSM!F    1
>!AIPAppender    1.0
>X86PlatformPlugin    1.0.0
>IOPlatformPlugin!F    6.0.0d8
@plugin.IOgPTPPlugin    1200.91
|IOAccelerator!F2    481.0.1
>driverkit.serial    6.0.0
>!ABacklightExpert    1.1.0
|IONDRVSupport    598
>!ASMBus!C    1.0.18d1
>!AThunderboltDPOutAdapter    8.5.1
@!AGPUWrangler    8.1.9
@!AGraphicsDeviceControl    8.1.9
|IOGraphics!F    598
|IOSlowAdaptiveClocking!F    1.0.0
>usb.IOUSBHostHIDDevice    1.2
>usb.cdc.ecm    5.0.0
>usb.cdc.ncm    5.0.0
>usb.cdc    5.0.0
>usb.networking    5.0.0
>usb.!UHostCompositeDevice    1.2
>!AThunderboltPCIDownAdapter    4.1.1
>!AThunderboltDPInAdapter    8.5.1
>!AThunderboltDPAdapter!F    8.5.1
>!AHPM    3.4.4
>!A!ILpssI2C!C    3.0.60
>!A!ILpssI2C    3.0.60
>!A!ILpssDmac    3.0.60
>!ABSDKextStarter    3
|IOSurface    352.0.3
@filesystems.hfs.encodings.kext    1
>!ASyntheticGame!C    11.2.3
>!AXsanScheme    3
>!AThunderboltNHI    7.2.81
|IOThunderbolt!F    9.3.3
>usb.!UVHCIBCE    1.2
>usb.!UVHCICommonBCE    1.0
>usb.!UVHCI    1.2
>usb.!UVHCICommon    1.0
>!AEffaceableNOR    1.0
|IOBufferCopy!C    1.1.0
|IOBufferCopyEngine!F    1
|IONVMe!F    2.1.0
>!ABCMWLANCoreMac    1.0.0
|IO80211!F    1200.13.0
>IOImageLoader    1.0.0
>!AOLYHALMac    1
|IOSerial!F    11
>corecapture    1.0.4
>usb.!UHostPacketFilter    1.0
|IOUSB!F    900.4.2
>usb.!UXHCIPCI    1.2
>usb.!UXHCI    1.2
>!AEFINVRAM    2.1
>!AEFIRuntime    2.1
>!ASMCRTC    1.0
|IOSMBus!F    1.1
|IOHID!F    2.0.0
|IOTimeSync!F    1200.91
|IOSkywalk!F    1.0
>mDNSOffloadUserClient    1.0.1b8
|IONetworking!F    3.4
>DiskImages    493.0.0
|IO!B!F    9.0.0
|IOReport!F    47
$quarantine    4
$sandbox    300.0
@kext.!AMatch    1.0.0d1
>!ASSE    1.0
>!ALockdownMode    1
>!AKeyStore    2
>!UTDM    556
|IOUSBMass!SDriver    243
|IOSCSIBlockCommandsDevice    492
|IOSCSIArchitectureModel!F    492
>!AFDEKeyStore    28.30
>!AEffaceable!S    1.0
|IO!S!F    2.1
>!ACyrus    1
>!ACredentialManager    1.0
>KernelRelayHost    1
|IOUSBHost!F    1.2
>!UHostMergeProperties    1.2
>usb.!UCommon    1.0
>!AMobileFileIntegrity    1.0.5
$!AImage4    5.0.0
@kext.CoreTrust    1
|CoreAnalytics!F    1
>!ABusPower!C    1.0
>!ASEPManager    1.0.1
>IOSlaveProcessor    1
>!AACPIPlatform    6.1
>!ASMC    3.1.9
|IOPCI!F    2.9
|IOACPI!F    1.4
>watchdog    1
@kec.pthread    1
@kec.XrtHostedXnu    1
@kec.Libm    1
@kec.Compression    1.0
@kec.corecrypto    14.0

Cheers,
AnotherGuyver



[Elusi]

Did you do a backup while truly only connected to power or did you connect an ethernet cable to it somehow as well?



[chrfr]

I have had a problem with my MBP 16" for a few days now and I can't find the problem. So it started, when I updated to Ventura.

So if I'm reading this correctly, the problem existed before Sonoma was installed but now seems worse. Is that correct?
It looks like you may have a USB-Ethernet adapter connected. Is that correct, and if so, does the problem occur when the adapter is disconnected?
Have you run Apple's diagnostics on the computer?

Use Apple Diagnostics to test your Mac - Apple Support

Apple Diagnostics, formerly known as Apple Hardware Test, can check your Mac for hardware issues.

support.apple.com



[SirThanksalot]

Did you do a backup while truly only connected to power or did you connect an ethernet cable to it somehow as well?

Good question. So I made it a point to only connect the necessary adapters (Ethernet). When this also caused a kernel panic, I just connected to power and did everything over Wifi. Was still getting kernel panics.

So if I'm reading this correctly, the problem existed before Sonoma was installed but now seems worse. Is that correct?
It looks like you may have a USB-Ethernet adapter connected. Is that correct, and if so, does the problem occur when the adapter is disconnected?
Have you run Apple's diagnostics on the computer?

Use Apple Diagnostics to test your Mac - Apple Support

Apple Diagnostics, formerly known as Apple Hardware Test, can check your Mac for hardware issues.

support.apple.com

Yes, kind of. So the problem before was, that the display was not connecting. I have an LG ultra wide, that has basically everything attached to it (Ethernet, USB Soundcard and so on). It connects with a TB cable to my MBP and acts as a hub. After upgrading to Ventura, it would not connect to the display until I opened the Mac or attached a separate power cable (USB-C) and then connected the display. Then it would usually connect. However, I never had any kernel panics, just the annoyance with the screen in the morning. After that, the system ran fine.

Edit: I did the diagnostic check and it came up without any problems.

Cheers,
SirThanksalot



[chrfr]

Good question. So I made it a point to only connect the necessary adapters (Ethernet). When this also caused a kernel panic, I just connected to power and did everything over Wifi. Was still getting kernel panics.


Yes, kind of. So the problem before was, that the display was not connecting. I have an LG ultra wide, that has basically everything attached to it (Ethernet, USB Soundcard and so on). It connects with a TB cable to my MBP and acts as a hub. After upgrading to Ventura, it would not connect to the display until I opened the Mac or attached a separate power cable (USB-C) and then connected the display. Then it would usually connect. However, I never had any kernel panics, just the annoyance with the screen in the morning. After that, the system ran fine.

Edit: I did the diagnostic check and it came up without any problems.

Cheers,
SirThanksalot

The panic points to the driver for the Ethernet adapter. I'd try a different adapter. If you still get a panic with nothing but power and wifi attached, it'd be useful to see what that panic log looks like.
I'd also uninstall the Intel Power Gadget even though that doesn't seem to be related; the version you have installed is out of date and it's no longer supported or available from Intel.



[SirThanksalot]

The panic points to the driver for the Ethernet adapter. I'd try a different adapter. If you still get a panic with nothing but power and wifi attached, it'd be useful to see what that panic log looks like.
I'd also uninstall the Intel Power Gadget even though that doesn't seem to be related; the version you have installed is out of date and it's no longer supported or available from Intel.

Yeah, I did get the panics even without anything connected.

On a different forum, somebody pointed out, that the problem might be the Intel Power Gadget. I have tried to remove it, but there was only one .sh file in the login items. There seems to be an uninstaller for the app. However, I do not have the app installed anymore and you can't download it, since it doesn't seem to be supported by intel anyway...

The log is attached to the first post. Or are there different log files for kernel panics?

Cheers,
SirThanksalot



[chrfr]

Yeah, I did get the panics even without anything connected.

On a different forum, somebody pointed out, that the problem might be the Intel Power Gadget. I have tried to remove it, but there was only one .sh file in the login items. There seems to be an uninstaller for the app. However, I do not have the app installed anymore and you can't download it, since it doesn't seem to be supported by intel anyway...

The log is attached to the first post. Or are there different log files for kernel panics?

Cheers,
SirThanksalot

The Power Gadget uninstall script deletes these files/folders:
/Applications/Intel Power Gadget
/Library/Extensions/EnergyDriver.kext
/Library/Frameworks/IntelPowerGadget.framework
~/Library/Preferences/com.intel.PowerGadget.plist

You can manually delete all of these, if they're still installed, and then restart.
As for the panic log, I was asking about one when nothing except power is connected to the computer. The one you posted here shows that other devices were connected. As such, the panic log should look different.



[SirThanksalot]

The Power Gadget uninstall script deletes these files/folders:
/Applications/Intel Power Gadget
/Library/Extensions/EnergyDriver.kext
/Library/Frameworks/IntelPowerGadget.framework
~/Library/Preferences/com.intel.PowerGadget.plist

You can manually delete all of these, if they're still installed, and then restart.
As for the panic log, I was asking about one when nothing except power is connected to the computer. The one you posted here shows that other devices were connected. As such, the panic log should look different.

Thanks, did just that! I will restart and let the Mac run for a while. Hopefully that has fixed it.

Ah, I see what you mean. Yes, that is true. I have saved them all in a file. Might be, that this one was still from the time the adapter was attached. Do you have any idea, where the logs might be stored? I tried /Library/Logs/DiagnosticReports, but the ips files here seem to be a little bit different from what is shown after the crash on boot (the report popup).

Cheers,
SirThanksalot



[SirThanksalot]

The Power Gadget uninstall script deletes these files/folders:
/Applications/Intel Power Gadget
/Library/Extensions/EnergyDriver.kext
/Library/Frameworks/IntelPowerGadget.framework
~/Library/Preferences/com.intel.PowerGadget.plist

You can manually delete all of these, if they're still installed, and then restart.
As for the panic log, I was asking about one when nothing except power is connected to the computer. The one you posted here shows that other devices were connected. As such, the panic log should look different.

Ok, so this did in fact solve the issue of kernel panics while the Mac is running, as far as I can see. However, it introduced a different kind of kernel panic. This one occurs, when the Mac wakes up from sleep. I connected the external display today and it picked it up fairly quickly. However, it booted to show me the kernel panic popup again and I had to reopen all apps. Interestingly, I got 2 reports, so one might be from before I deleted the Extension. I will attach both. Do you see anthing?

-------------------------------------
Translated Report (Full Report Below)
-------------------------------------

Process:               WindowServer [42250]
Path:                  /System/Library/PrivateFrameworks/SkyLight.framework/Versions/A/Resources/WindowServer
Identifier:            WindowServer
Version:               ???
Code Type:             X86-64 (Native)
Parent Process:        launchd [1]
User ID:               88

Date/Time:             2024-01-03 06:13:13.9897 +0100
OS Version:            macOS 14.2.1 (23C71)
Report Version:        12
Bridge OS Version:     8.2 (21P2057)
Anonymous UUID:        F2EFB311-B1E3-C45C-02B2-0C35C4AE896C

Sleep/Wake UUID:       82C952F2-4486-456B-8DD2-058DBAC1DEB8

Time Awake Since Boot: 23000 seconds
Time Since Wake:       16 seconds

System Integrity Protection: enabled

Crashed Thread:        0  ws_main_thread  Dispatch queue: com.apple.main-thread

Exception Type:        EXC_BAD_ACCESS (SIGBUS)
Exception Codes:       KERN_MEMORY_ERROR at 0x000000010676c000
Exception Codes:       0x000000000000000a, 0x000000010676c000

Termination Reason:    Namespace SIGNAL, Code 10 Bus error: 10
Terminating Process:   exc handler [42250]

VM Region Info: 0x10676c000 is in 0x1065dc000-0x106d10000;  bytes after start: 1638400  bytes before end: 5914623
      REGION TYPE                    START - END         [ VSIZE] PRT/MAX SHRMOD  REGION DETAIL
      dyld private memory         105740000-105741000    [    4K] ---/--- SM=NUL
      GAP OF 0xe9b000 BYTES
--->  __TEXT                      1065dc000-106d10000    [ 7376K] r-x/rwx SM=COW  ...s/CursorAsset
      __DATA_CONST                106d10000-106d14000    [   16K] rw-/rw- SM=COW  ...s/CursorAsset

Kernel Triage:
APFS - (arg = 0x300001) Encountered a compressed data hash mismatch
VM - (arg = 0x0) Page has restart bit set
VM - (arg = 0x0) Page has restart bit set
VM - (arg = 0x0) Page has restart bit set
VM - (arg = 0x0) Page has restart bit set


Thread 0 Crashed:: ws_main_thread Dispatch queue: com.apple.main-thread
0   libsystem_platform.dylib              0x7ff806ae6a09 _platform_memmove$VARIANT$Haswell + 41
1   SkyLight                              0x7ff80c2f72b7 CGXCursorAddCursorBitmap + 187
2   SkyLight                              0x7ff80c2319a3 CGXUpdateHardwareColorCursors + 261
3   SkyLight                              0x7ff80c43ed02 CGXSessionEventUpdate + 615
4   SkyLight                              0x7ff80c2522f9 (anonymous namespace)::ServerNotifier::invoke_callbacks(unsigned int, void*, unsigned long) const + 385
5   SkyLight                              0x7ff80c251950 WSPostLocalNotification + 46
6   SkyLight                              0x7ff80c2705e2 invocation function for block in CGSessionSendCreationNotification(CGXSession*) + 44
7   SkyLight                              0x7ff80c26ecec createSessionWithOwner(__CFDictionary const*, CGXCredentials, void*, unsigned long, bool, unsigned int, unsigned int*) + 821
8   SkyLight                              0x7ff80c348ac9 WSInitialize + 3468
9   SkyLight                              0x7ff80c46af39 SLXServer + 1254
10  WindowServer                             0x1050f648c 0x1050f3000 + 13452
11  dyld                                  0x7ff806730386 start + 1942

Thread 1:: com.apple.coreanimation.render-server
0   libsystem_kernel.dylib                0x7ff806a7ba2e mach_msg2_trap + 10
1   libsystem_kernel.dylib                0x7ff806a89e3a mach_msg2_internal + 84
2   libsystem_kernel.dylib                0x7ff806a82b62 mach_msg_overwrite + 653
3   libsystem_kernel.dylib                0x7ff806a7bd1f mach_msg + 19
4   QuartzCore                            0x7ff80f0aed1c CA::Render::Server::server_thread(void*) + 534
5   QuartzCore                            0x7ff80f0aeaf9 thread_fun(void*) + 25
6   libsystem_pthread.dylib               0x7ff806abb202 _pthread_start + 99
7   libsystem_pthread.dylib               0x7ff806ab6bab thread_start + 15

Thread 2:
0   libsystem_pthread.dylib               0x7ff806ab6b88 start_wqthread + 0

Thread 3:
0   libsystem_pthread.dylib               0x7ff806ab6b88 start_wqthread + 0

Thread 4:
0   libsystem_pthread.dylib               0x7ff806ab6b88 start_wqthread + 0


Thread 0 crashed with X86 Thread State (64-bit):
  rax: 0x00007fc650008048  rbx: 0x00007fc650008048  rcx: 0x00000000005a4000  rdx: 0x0000000000697800
  rdi: 0x00007fc6500fb848  rsi: 0x000000010676c000  rbp: 0x00007ff7bae0ba70  rsp: 0x00007ff7bae0ba70
   r8: 0x011d800000000001   r9: 0x0000000105137268  r10: 0x9e3779b97f4a7c55  r11: 0x00007fc54998f848
  r12: 0x00007fc650008000  r13: 0x00000000000000f0  r14: 0x0000600001e18600  r15: 0x0000000000697800
  rip: 0x00007ff806ae6a09  rfl: 0x0000000000010206  cr2: 0x000000010676c000

Logical CPU:     12
Error Code:      0x00000004 (no mapping for user data read)
Trap Number:     14

Thread 0 instruction stream:
  c1 48 83 c1 10 3d ff ff-00 00 74 db f7 d0 0f bc  .H...=....t.....
  c0 48 01 c1 48 0f b6 44-0f f0 4c 0f b6 44 0e f0  .H..H..D..L..D..
  4c 29 c0 5d c3 90 90 90-90 90 90 90 90 90 90 90  L).]............
  90 90 90 90 90 90 90 55-48 89 e5 49 89 fb 49 29  .......UH..I..I)
  f3 48 89 f8 49 39 d3 72-1b 48 83 fa 60 76 2f 48  .H..I9.r.H..`v/H
  81 fa 00 40 00 00 0f 82-cb 00 00 00 48 89 d1 fc  ...@........H...
 [f3]a4 5d c3 48 39 fe 74-f9 48 01 d6 48 01 d7 48  ..].H9.t.H..H..H    <==
  83 fa 60 0f 82 8c 01 00-00 e9 a9 01 00 00 48 83  ..`...........H.
  fa 10 76 56 c5 f8 10 4c-16 f0 48 83 ea 20 76 2a  ..vV...L..H.. v*
  c5 fc 10 06 c5 fc 11 07-48 83 c6 20 48 83 c7 20  ........H.. H..
  48 83 ea 20 72 14 c5 fc-10 06 c5 fc 11 07 48 83  H.. r.........H.
  c6 20 48 83 c7 20 48 83-ea 20 48 83 c2 10 7e 0c  . H.. H.. H...~.

Binary Images:
       0x1065dc000 -        0x106d0ffff CursorAsset (*) <5e315191-af2e-38a0-830d-dbf628293159> /System/Library/PrivateFrameworks/SkyLight.framework/Versions/A/Resources/CursorAsset
       0x1050f3000 -        0x1050f6fff WindowServer (*) <a8fa780e-30fe-313c-b55d-c9a1d5aefac3> /System/Library/PrivateFrameworks/SkyLight.framework/Versions/A/Resources/WindowServer
    0x7ff806ae6000 -     0x7ff806aeffff libsystem_platform.dylib (*) <0f4e02db-a99c-353a-a9ec-3fa83ce01236> /usr/lib/system/libsystem_platform.dylib
    0x7ff80c104000 -     0x7ff80c55bffa com.apple.SkyLight (1.600.0) <2c47c41f-ba8a-3c0a-8ff7-e7eeb2895115> /System/Library/PrivateFrameworks/SkyLight.framework/Versions/A/SkyLight
    0x7ff80672a000 -     0x7ff8067c63bf dyld (*) <ab17bf63-259b-3b48-8d70-863166a2191c> /usr/lib/dyld
               0x0 - 0xffffffffffffffff ??? (*) <00000000-0000-0000-0000-000000000000> ???
    0x7ff806a7a000 -     0x7ff806ab4ff7 libsystem_kernel.dylib (*) <9927a0a9-dfa8-3ffa-88d8-62055f37a137> /usr/lib/system/libsystem_kernel.dylib
    0x7ff80f066000 -     0x7ff80f40dff9 com.apple.QuartzCore (1.11) <d6c8f60e-bec6-3f16-a6b4-11f1045d65db> /System/Library/Frameworks/QuartzCore.framework/Versions/A/QuartzCore
    0x7ff806ab5000 -     0x7ff806ac0fff libsystem_pthread.dylib (*) <a9ba8a53-d774-3fe9-8bde-64187bff7ea9> /usr/lib/system/libsystem_pthread.dylib

External Modification Summary:
  Calls made by other processes targeting this process:
    task_for_pid: 0
    thread_create: 0
    thread_set_state: 0
  Calls made by this process:
    task_for_pid: 0
    thread_create: 0
    thread_set_state: 0
  Calls made by all processes on this machine:
    task_for_pid: 0
    thread_create: 0
    thread_set_state: 0

VM Region Summary:
ReadOnly portion of Libraries: Total=382.0M resident=0K(0%) swapped_out_or_unallocated=382.0M(100%)
Writable regions: Total=1.3G written=0K(0%) resident=0K(0%) swapped_out=0K(0%) unallocated=1.3G(100%)

                                VIRTUAL   REGION
REGION TYPE                        SIZE    COUNT (non-coalesced)
===========                     =======  =======
Activity Tracing                   256K        1
Kernel Alloc Once                    8K        1
MALLOC                             1.2G       49
MALLOC guard page                   48K       12
STACK GUARD                       56.0M        5
Stack                             10.5M        5
VM_ALLOCATE                         16K        3
__CGSERVER                          16K        1
__DATA                            12.4M      235
__DATA_CONST                     10000K      160
__DATA_DIRTY                       429K       85
__FONT_DATA                        2352        1
__LINKEDIT                       181.2M        4
__OBJC_RO                         71.1M        1
__OBJC_RW                         2169K        2
__SLSERVER                          16K        1
__TEXT                           200.8M      257
dyld private memory                260K        2
shared memory                       40K        4
===========                     =======  =======
TOTAL                              1.8G      829



-----------
Full Report
-----------

{"app_name":"WindowServer","timestamp":"2024-01-03 06:13:16.00 +0100","app_version":"","slice_uuid":"a8fa780e-30fe-313c-b55d-c9a1d5aefac3","build_version":"","platform":1,"share_with_app_devs":0,"is_first_party":1,"bug_type":"309","os_version":"macOS 14.2.1 (23C71)","roots_installed":0,"incident_id":"96D19F65-3275-4C3E-9BE8-239A4D30E46E","name":"WindowServer"}
{
  "uptime" : 23000,
  "procRole" : "Graphics",
  "version" : 2,
  "userID" : 88,
  "deployVersion" : 210,
  "modelCode" : "MacBookPro16,1",
  "coalitionID" : 143,
  "osVersion" : {
    "train" : "macOS 14.2.1",
    "build" : "23C71",
    "releaseType" : "User"
  },
  "captureTime" : "2024-01-03 06:13:13.9897 +0100",
  "codeSigningMonitor" : 0,
  "incident" : "96D19F65-3275-4C3E-9BE8-239A4D30E46E",
  "pid" : 42250,
  "cpuType" : "X86-64",
  "roots_installed" : 0,
  "bug_type" : "309",
  "procLaunch" : "2024-01-03 06:13:03.9460 +0100",
  "procStartAbsTime" : 23201339994720,
  "procExitAbsTime" : 23201530330139,
  "procName" : "WindowServer",
  "procPath" : "\/System\/Library\/PrivateFrameworks\/SkyLight.framework\/Versions\/A\/Resources\/WindowServer",
  "parentProc" : "launchd",
  "parentPid" : 1,
  "coalitionName" : "com.apple.WindowServer",
  "crashReporterKey" : "F2EFB311-B1E3-C45C-02B2-0C35C4AE896C",
  "throttleTimeout" : 10,
  "codeSigningID" : "com.apple.WindowServer",
  "codeSigningTeamID" : "",
  "codeSigningFlags" : 570522369,
  "codeSigningValidationCategory" : 1,
  "codeSigningTrustLevel" : 4294967295,
  "wakeTime" : 16,
  "bridgeVersion" : {"build":"21P2057","train":"8.2"},
  "sleepWakeUUID" : "82C952F2-4486-456B-8DD2-058DBAC1DEB8",
  "sip" : "enabled",
  "vmRegionInfo" : "0x10676c000 is in 0x1065dc000-0x106d10000;  bytes after start: 1638400  bytes before end: 5914623\n      REGION TYPE                    START - END         [ VSIZE] PRT\/MAX SHRMOD  REGION DETAIL\n      dyld private memory         105740000-105741000    [    4K] ---\/--- SM=NUL  \n      GAP OF 0xe9b000 BYTES\n--->  __TEXT                      1065dc000-106d10000    [ 7376K] r-x\/rwx SM=COW  ...s\/CursorAsset\n      __DATA_CONST                106d10000-106d14000    [   16K] rw-\/rw- SM=COW  ...s\/CursorAsset",
  "exception" : {"codes":"0x000000000000000a, 0x000000010676c000","rawCodes":[10,4403412992],"type":"EXC_BAD_ACCESS","signal":"SIGBUS","subtype":"KERN_MEMORY_ERROR at 0x000000010676c000"},
  "termination" : {"flags":0,"code":10,"namespace":"SIGNAL","indicator":"Bus error: 10","byProc":"exc handler","byPid":42250},
  "ktriageinfo" : "APFS - (arg = 0x300001) Encountered a compressed data hash mismatch\nVM - (arg = 0x0) Page has restart bit set\nVM - (arg = 0x0) Page has restart bit set\nVM - (arg = 0x0) Page has restart bit set\nVM - (arg = 0x0) Page has restart bit set\n",
  "vmregioninfo" : "0x10676c000 is in 0x1065dc000-0x106d10000;  bytes after start: 1638400  bytes before end: 5914623\n      REGION TYPE                    START - END         [ VSIZE] PRT\/MAX SHRMOD  REGION DETAIL\n      dyld private memory         105740000-105741000    [    4K] ---\/--- SM=NUL  \n      GAP OF 0xe9b000 BYTES\n--->  __TEXT                      1065dc000-106d10000    [ 7376K] r-x\/rwx SM=COW  ...s\/CursorAsset\n      __DATA_CONST                106d10000-106d14000    [   16K] rw-\/rw- SM=COW  ...s\/CursorAsset",
  "extMods" : {"caller":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"system":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"targeted":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"warnings":0},
  "faultingThread" : 0,
  "threads" : [{"queue":"com.apple.main-thread","instructionState":{"instructionStream":{"bytes":[193,72,131,193,16,61,255,255,0,0,116,219,247,208,15,188,192,72,1,193,72,15,182,68,15,240,76,15,182,68,14,240,76,41,192,93,195,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,144,85,72,137,229,73,137,251,73,41,243,72,137,248,73,57,211,114,27,72,131,250,96,118,47,72,129,250,0,64,0,0,15,130,203,0,0,0,72,137,209,252,243,164,93,195,72,57,254,116,249,72,1,214,72,1,215,72,131,250,96,15,130,140,1,0,0,233,169,1,0,0,72,131,250,16,118,86,197,248,16,76,22,240,72,131,234,32,118,42,197,252,16,6,197,252,17,7,72,131,198,32,72,131,199,32,72,131,234,32,114,20,197,252,16,6,197,252,17,7,72,131,198,32,72,131,199,32,72,131,234,32,72,131,194,16,126,12],"offset":96}},"frames":[{"imageOffset":2569,"symbol":"_platform_memmove$VARIANT$Haswell","symbolLocation":41,"imageIndex":2},{"imageOffset":2044599,"symbol":"CGXCursorAddCursorBitmap","symbolLocation":187,"imageIndex":3},{"imageOffset":1235363,"symbol":"CGXUpdateHardwareColorCursors","symbolLocation":261,"imageIndex":3},{"imageOffset":3386626,"symbol":"CGXSessionEventUpdate","symbolLocation":615,"imageIndex":3},{"imageOffset":1368825,"symbol":"(anonymous namespace)::ServerNotifier::invoke_callbacks(unsigned int, void*, unsigned long) const","symbolLocation":385,"imageIndex":3},{"imageOffset":1366352,"symbol":"WSPostLocalNotification","symbolLocation":46,"imageIndex":3},{"imageOffset":1492450,"symbol":"invocation function for block in CGSessionSendCreationNotification(CGXSession*)","symbolLocation":44,"imageIndex":3},{"imageOffset":1486060,"symbol":"createSessionWithOwner(__CFDictionary const*, CGXCredentials, void*, unsigned long, bool, unsigned int, unsigned int*)","symbolLocation":821,"imageIndex":3},{"imageOffset":2378441,"symbol":"WSInitialize","symbolLocation":3468,"imageIndex":3},{"imageOffset":3567417,"symbol":"SLXServer","symbolLocation":1254,"imageIndex":3},{"imageOffset":13452,"imageIndex":1},{"imageOffset":25478,"symbol":"start","symbolLocation":1942,"imageIndex":4}],"id":360293,"triggered":true,"threadState":{"r13":{"value":240},"rax":{"value":140489722462280},"rflags":{"value":66054},"cpu":{"value":12},"r14":{"value":105553147823616},"rsi":{"value":4403412992},"r8":{"value":80361105850892289},"cr2":{"value":4403412992},"rdx":{"value":6912000},"r10":{"value":11400714819323198549},"r9":{"value":4380127848},"r15":{"value":6912000},"rbx":{"value":140489722462280},"trap":{"value":14,"description":"(no mapping for user data read)"},"err":{"value":4},"r11":{"value":140485320046664},"rip":{"value":140703240710665,"matchesCrashFrame":1},"rbp":{"value":140701968939632},"rsp":{"value":140701968939632},"r12":{"value":140489722462208},"rcx":{"value":5914624},"flavor":"x86_THREAD_STATE","rdi":{"value":140489723459656}},"name":"ws_main_thread"},{"id":360387,"name":"com.apple.coreanimation.render-server","threadState":{"r13":{"value":21525170446},"rax":{"value":268451845},"rflags":{"value":514},"cpu":{"value":0},"r14":{"value":2},"rsi":{"value":21525170446},"r8":{"value":0},"cr2":{"value":0},"rdx":{"value":8589934592},"r10":{"value":0},"r9":{"value":45092861640704},"r15":{"value":45092861640704},"rbx":{"value":123145452968688},"trap":{"value":133},"err":{"value":16777263},"r11":{"value":514},"rip":{"value":140703240272430},"rbp":{"value":123145452968528},"rsp":{"value":123145452968424},"r12":{"value":499},"rcx":{"value":123145452968424},"flavor":"x86_THREAD_STATE","rdi":{"value":123145452968688}},"frames":[{"imageOffset":6702,"symbol":"mach_msg2_trap","symbolLocation":10,"imageIndex":6},{"imageOffset":65082,"symbol":"mach_msg2_internal","symbolLocation":84,"imageIndex":6},{"imageOffset":35682,"symbol":"mach_msg_overwrite","symbolLocation":653,"imageIndex":6},{"imageOffset":7455,"symbol":"mach_msg","symbolLocation":19,"imageIndex":6},{"imageOffset":298268,"symbol":"CA::Render::Server::server_thread(void*)","symbolLocation":534,"imageIndex":7},{"imageOffset":297721,"symbol":"thread_fun(void*)","symbolLocation":25,"imageIndex":7},{"imageOffset":25090,"symbol":"_pthread_start","symbolLocation":99,"imageIndex":8},{"imageOffset":7083,"symbol":"thread_start","symbolLocation":15,"imageIndex":8}]},{"id":360388,"frames":[{"imageOffset":7048,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":8}],"threadState":{"r13":{"value":0},"rax":{"value":33554800},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":0},"rsi":{"value":10759},"r8":{"value":409604},"cr2":{"value":0},"rdx":{"value":123145452998656},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":0},"rbx":{"value":123145453522944},"trap":{"value":133},"err":{"value":33554800},"r11":{"value":582},"rip":{"value":140703240514440},"rbp":{"value":0},"rsp":{"value":123145453522944},"r12":{"value":0},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145453522944}}},{"id":360389,"frames":[{"imageOffset":7048,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":8}],"threadState":{"r13":{"value":0},"rax":{"value":33554800},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":1},"rsi":{"value":12547},"r8":{"value":409604},"cr2":{"value":0},"rdx":{"value":123145453535232},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":123145454058360},"rbx":{"value":123145454059520},"trap":{"value":133},"err":{"value":33554800},"r11":{"value":582},"rip":{"value":140703240514440},"rbp":{"value":0},"rsp":{"value":123145454059520},"r12":{"value":5128196},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145454059520}}},{"id":360390,"frames":[{"imageOffset":7048,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":8}],"threadState":{"r13":{"value":0},"rax":{"value":33554800},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":1},"rsi":{"value":15107},"r8":{"value":409604},"cr2":{"value":0},"rdx":{"value":123145454071808},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":123145454594936},"rbx":{"value":123145454596096},"trap":{"value":133},"err":{"value":33554800},"r11":{"value":582},"rip":{"value":140703240514440},"rbp":{"value":0},"rsp":{"value":123145454596096},"r12":{"value":5193732},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145454596096}}}],
  "usedImages" : [
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4401774592,
    "size" : 7553024,
    "uuid" : "5e315191-af2e-38a0-830d-dbf628293159",
    "path" : "\/System\/Library\/PrivateFrameworks\/SkyLight.framework\/Versions\/A\/Resources\/CursorAsset",
    "name" : "CursorAsset"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4379848704,
    "size" : 16384,
    "uuid" : "a8fa780e-30fe-313c-b55d-c9a1d5aefac3",
    "path" : "\/System\/Library\/PrivateFrameworks\/SkyLight.framework\/Versions\/A\/Resources\/WindowServer",
    "name" : "WindowServer"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703240708096,
    "size" : 40960,
    "uuid" : "0f4e02db-a99c-353a-a9ec-3fa83ce01236",
    "path" : "\/usr\/lib\/system\/libsystem_platform.dylib",
    "name" : "libsystem_platform.dylib"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703331008512,
    "CFBundleShortVersionString" : "1.600.0",
    "CFBundleIdentifier" : "com.apple.SkyLight",
    "size" : 4554747,
    "uuid" : "2c47c41f-ba8a-3c0a-8ff7-e7eeb2895115",
    "path" : "\/System\/Library\/PrivateFrameworks\/SkyLight.framework\/Versions\/A\/SkyLight",
    "name" : "SkyLight"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703236792320,
    "size" : 639936,
    "uuid" : "ab17bf63-259b-3b48-8d70-863166a2191c",
    "path" : "\/usr\/lib\/dyld",
    "name" : "dyld"
  },
  {
    "size" : 0,
    "source" : "A",
    "base" : 0,
    "uuid" : "00000000-0000-0000-0000-000000000000"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703240265728,
    "size" : 241656,
    "uuid" : "9927a0a9-dfa8-3ffa-88d8-62055f37a137",
    "path" : "\/usr\/lib\/system\/libsystem_kernel.dylib",
    "name" : "libsystem_kernel.dylib"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703380692992,
    "CFBundleShortVersionString" : "1.11",
    "CFBundleIdentifier" : "com.apple.QuartzCore",
    "size" : 3833850,
    "uuid" : "d6c8f60e-bec6-3f16-a6b4-11f1045d65db",
    "path" : "\/System\/Library\/Frameworks\/QuartzCore.framework\/Versions\/A\/QuartzCore",
    "name" : "QuartzCore",
    "CFBundleVersion" : "1110.6"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703240507392,
    "size" : 49152,
    "uuid" : "a9ba8a53-d774-3fe9-8bde-64187bff7ea9",
    "path" : "\/usr\/lib\/system\/libsystem_pthread.dylib",
    "name" : "libsystem_pthread.dylib"
  }
],
  "sharedCache" : {
  "base" : 140703236096000,
  "size" : 25769803776,
  "uuid" : "2a323ece-7dbf-33e2-9ef3-3390c59ddc35"
},
  "vmSummary" : "ReadOnly portion of Libraries: Total=382.0M resident=0K(0%) swapped_out_or_unallocated=382.0M(100%)\nWritable regions: Total=1.3G written=0K(0%) resident=0K(0%) swapped_out=0K(0%) unallocated=1.3G(100%)\n\n                                VIRTUAL   REGION \nREGION TYPE                        SIZE    COUNT (non-coalesced) \n===========                     =======  ======= \nActivity Tracing                   256K        1 \nKernel Alloc Once                    8K        1 \nMALLOC                             1.2G       49 \nMALLOC guard page                   48K       12 \nSTACK GUARD                       56.0M        5 \nStack                             10.5M        5 \nVM_ALLOCATE                         16K        3 \n__CGSERVER                          16K        1 \n__DATA                            12.4M      235 \n__DATA_CONST                     10000K      160 \n__DATA_DIRTY                       429K       85 \n__FONT_DATA                        2352        1 \n__LINKEDIT                       181.2M        4 \n__OBJC_RO                         71.1M        1 \n__OBJC_RW                         2169K        2 \n__SLSERVER                          16K        1 \n__TEXT                           200.8M      257 \ndyld private memory                260K        2 \nshared memory                       40K        4 \n===========                     =======  ======= \nTOTAL                              1.8G      829 \n",
  "legacyInfo" : {
  "threadTriggered" : {
    "name" : "ws_main_thread",
    "queue" : "com.apple.main-thread"
  }
},
  "logWritingSignature" : "9f3e0b03624241a8447cd870b715623db88edb01"
}

Model: MacBookPro16,1, BootROM 2020.61.1.0.0 (iBridge: 21.16.2057.0.0,0), 8 processors, 8-Core Intel Core i9, 2,4 GHz, 64 GB, SMC
Graphics: Intel UHD Graphics 630, Intel UHD Graphics 630, Built-In
Graphics: AMD Radeon Pro 5500M, AMD Radeon Pro 5500M, PCIe, 8 GB
Display: LG HDR WQHD+, 3840 x 1600 (Ultra-wide 4K), Main, MirrorOff, Online
Memory Module: BANK 0/ChannelA-DIMM0, 32 GB, DDR4, 2667 MHz, Micron, MT40A4G8BAF-062E:B
Memory Module: BANK 2/ChannelB-DIMM0, 32 GB, DDR4, 2667 MHz, Micron, MT40A4G8BAF-062E:B
AirPort: spairport_wireless_card_type_wifi (0x14E4, 0x7BF), wl0: Jul 10 2023 12:53:18 version 9.30.503.0.32.5.92 FWID 01-c06f991b
AirPort:
Bluetooth: Version (null), 0 services, 0 devices, 0 incoming serial ports
Network Service: USB 10/100/1000 LAN, Ethernet, en5
Network Service: Wi-Fi, AirPort, en0
PCI Card: pci8086,15f0, USB eXtensible Host Controller, Thunderbolt@72,0,0
USB Device: USB31Bus
USB Device: hub_device
USB Device: USB3.1 Hub
USB Device: USB3.0 Card Reader
USB Device: USB 10/100/1000 LAN
USB Device: hub_device
USB Device: Sound Blaster X3
USB Device: USB2.1 Hub
USB Device: USB2.0 Hub
USB Device: HD Pro Webcam C920
USB Device: LG Monitor Controls
USB Device: USB31Bus
USB Device: T2Bus
USB Device: composite_device
USB Device: Touch Bar Backlight
USB Device: Touch Bar Display
USB Device: Apple Internal Keyboard / Trackpad
USB Device: Headset
USB Device: Ambient Light Sensor
USB Device: FaceTime HD Camera (Built-in)
USB Device: Apple T2 Controller
Thunderbolt Bus: MacBook Pro, Apple Inc., 63.5
Thunderbolt Device: 38WN95C, LG Electronics, 1, 56.1
Thunderbolt Bus: MacBook Pro, Apple Inc., 63.5

panic(cpu 4 caller 0xffffff801a5de4fa): addr 0xffffbf80f85c95b0 being freed to zone VM map entries, isn't from zone map @zalloc.c:1155
Panicked task 0xffffff90f34b6df8: 314 threads: pid 0: kernel_task
Backtrace (CPU 4), panicked thread: 0xffffff9a8871b598, Frame : Return Address
0xffffffc949dc7780 : 0xffffff8019e36c41
0xffffffc949dc77d0 : 0xffffff8019f95310
0xffffffc949dc7810 : 0xffffff8019f84a5c
0xffffffc949dc7890 : 0xffffff8019dd3971
0xffffffc949dc78b0 : 0xffffff8019e36f2d
0xffffffc949dc79a0 : 0xffffff8019e365d3
0xffffffc949dc7a00 : 0xffffff801a5d8bcb
0xffffffc949dc7af0 : 0xffffff801a5de4fa
0xffffffc949dc7b30 : 0xffffff8019ea70a9
0xffffffc949dc7b90 : 0xffffff8019eab1ca
0xffffffc949dc7c50 : 0xffffff8019ead178
0xffffffc949dc7c90 : 0xffffff8019ead066
0xffffffc949dc7cd0 : 0xffffff8019f2aa58
0xffffffc949dc7d10 : 0xffffff8019eb28da
0xffffffc949dc7d30 : 0xffffff801a4c4aed
0xffffffc949dc7e40 : 0xffffff801a59b27a
0xffffffc949dc7e70 : 0xffffff801a4f17cb
0xffffffc949dc7ea0 : 0xffffff8019e90638
0xffffffc949dc7ee0 : 0xffffff8019e916c8
0xffffffc949dc7fa0 : 0xffffff8019dd319e

Process name corresponding to current thread (0xffffff9a8871b598): kernel_task

Mac OS version:
23C71

Kernel version:
Darwin Kernel Version 23.2.0: Wed Nov 15 21:54:10 PST 2023; root:xnu-10002.61.3~2/RELEASE_X86_64
Kernel UUID: F73CFE5A-7EF6-3C21-AFA7-742645B733CC
roots installed: 0
KernelCache slide: 0x0000000019a00000
KernelCache base:  0xffffff8019c00000
Kernel slide:      0x0000000019ae0000
Kernel text base:  0xffffff8019ce0000
__HIB  text base: 0xffffff8019b00000
System model name: MacBookPro16,1 (Mac-E1008331FDC96864)
System shutdown begun: NO
Hibernation exit count: 1

System uptime in nanoseconds: 23220525882946
Last Sleep:           absolute           base_tsc          base_nano
  Uptime  : 0x0000151e73326206
  Sleep   : 0x00001518280ff233 0x0000447725fc5806 0x0000150f4e8ab700
  Wake    : 0x0000151898adec4b 0x0000000211903410 0x0000151839ba0904
Compressor Info: 0% of compressed pages limit (OK) and 0% of segments limit (OK) with 10 swapfiles and OK swap space
Zone info:
  Zone map: 0xffffff80ef548000 - 0xffffffa0ef548000
  . PGZ   : 0xffffff80ef548000 - 0xffffff80f7549000
  . VM    : 0xffffff80f7549000 - 0xffffff85c2ee2000
  . RO    : 0xffffff85c2ee2000 - 0xffffff875c215000
  . GEN0  : 0xffffff875c215000 - 0xffffff8c27bae000
  . GEN1  : 0xffffff8c27bae000 - 0xffffff90f3547000
  . GEN2  : 0xffffff90f3547000 - 0xffffff95beee0000
  . GEN3  : 0xffffff95beee0000 - 0xffffff9a8a87a000
  . DATA  : 0xffffff9a8a87a000 - 0xffffffa0ef548000
  Metadata: 0xffffffa12fa5a000 - 0xffffffa14fa5a000
  Bitmaps : 0xffffffa14fa5a000 - 0xffffffa15ba5a000
  Extra   : 0 - 0

last started kext at 5699001406450: @filesystems.smbfs    5.1 (addr 0xffffff7faf279000, size 544768)
loaded kexts:
com.intel.driver.EnergyDriver    3.6.2
@filesystems.smbfs    5.1
>!APlatformEnabler    2.7.0d0
>AGPM    135
>X86PlatformShim    1.0.0
>AudioAUUC    1.70
>!AHIDALSService    1
>!ATopCaseHIDEventDriver    7400.26
@filesystems.autofs    3.0
@kext.AMDRadeonX6000    5.0.2
@kext.AMDRadeonServiceManager    5.0.2
>!AUpstreamUserClient    3.6.11
>!AGraphicsDevicePolicy    8.1.9
>!AGFXHDA    300.1
@AGDCPluginDisplayMetrics    8.1.9
>pmtelemetry    1
@filesystems.nfs    1
|IOUserEthernet    1.0.1
>usb.!UUserHCI    1
>!ASunrise    1
>!AHV    1
>!ABridgeAudio!C    400.1
>!A!IKBLGraphics    22.0.1
>AGDCBacklightControl    8.1.9
>!AMuxControl2    8.1.9
>!ABacklight    180.9
>BridgeAudioCommunication    400.1
>!AAVEBridge    6.1
>ACPI_SMC_PlatformPlugin    1.0.0
>!AFIVRDriver    4.1.0
@UVCService    1
>!A!ISlowAdaptiveClocking    4.0.0
>!AMCCSControl    1.17
>!A!ICFLGraphicsFramebuffer    22.0.1
>!A!IPCHPMC    2.0.1
>!AThunderboltIP    4.0.3
|SCSITaskUserClient    492
>!UMass!SInterfaceNub    556
>usb.realtek8153patcher    5.0.0
>BCMWLANFirmware4388.Hashstore    1
>BCMWLANFirmware4387.Hashstore    1
>BCMWLANFirmware4378.Hashstore    1
>BCMWLANFirmware4377.Hashstore    1
>BCMWLANFirmware4364.Hashstore    1
>BCMWLANFirmware4355.Hashstore    1
>!AFileSystemDriver    3.0.1
@filesystems.tmpfs    1
@filesystems.lifs    1
@filesystems.hfs.kext    650.0.2
@BootCache    40
@!AFSCompression.!AFSCompressionTypeZlib    1.0.0
@!AFSCompression.!AFSCompressionTypeDataless    1.0.0d1
@filesystems.apfs    2235.60.6
>!ABCMWLANBusInterfacePCIeMac    1
@private.KextAudit    1.0
>!ASmartBatteryManager    161.0.0
>!AACPIButtons    6.1
>!ASMBIOS    2.1
>!AACPIEC    6.1
>!AAPIC    1.7
@!ASystemPolicy    2.0.0
@nke.applicationfirewall    404
|IOKitRegistryCompatibility    1
|EndpointSecurity    1
@Dont_Steal_Mac_OS_X    7.0.0
>!ADiskImages2    273
@kec.!AEncryptedArchive    1
>!AHIDKeyboard    7400.2
>!AActuatorDriver    7400.42
>!AMultitouchDriver    7400.42
>!AInputDeviceSupport    7410.1
>!AHS!BDriver    7400.26
>IO!BHIDDriver    9.0.0
@kext.AMDRadeonX6100HWLibs    1.0
@kext.AMDRadeonX6000HWServices    5.0.2
>usb.cdc.acm    5.0.0
>usb.serial    6.0.0
>!UAudio    610.3
>!AAudioClockLibs    300.1
@kext.triggers    1.0
>!A!ILpssUARTv1    3.0.60
>!A!ILpssUARTCommon    3.0.60
>!AOnboardSerial    1.0
>IOHIDPowerSource    1
>!ACallbackPowerSource    1
|IOAVB!F    1220.1
>!ARSMChannel    1
|IORSM!F    1
>!AIPAppender    1.0
>!AHDA!C    500.3
|IOHDA!F    500.3
|IOAudio!F    500.4
@vecLib.kext    1.2.0
>!AGraphicsControl    8.1.9
@kext.AMDRadeonX6000Framebuffer    5.0.2
@kext.AMDSupport    5.0.2
>!ASMBusPCI    1.0.14d1
>!ABacklightExpert    1.1.0
|IONDRVSupport    598
>IOPlatformPluginLegacy    1.0.0
>X86PlatformPlugin    1.0.0
@!AGPUWrangler    8.1.9
|IOSlowAdaptiveClocking!F    1.0.0
>!ASMBus!C    1.0.18d1
@plugin.IOgPTPPlugin    1200.91
|IOAccelerator!F2    481.0.1
@!AGraphicsDeviceControl    8.1.9
|IOGraphics!F    598
>IOPlatformPlugin!F    6.0.0d8
>!AThunderboltEDMSink    5.0.3
>driverkit.serial    6.0.0
>usb.IOUSBHostHIDDevice    1.2
>usb.cdc.ecm    5.0.0
>usb.cdc.ncm    5.0.0
>usb.!UHub    1.2
>usb.cdc    5.0.0
>usb.networking    5.0.0
>usb.!UHostCompositeDevice    1.2
>!AThunderboltPCIUpAdapter    4.1.1
>!AThunderboltDPOutAdapter    8.5.1
>!AThunderboltPCIDownAdapter    4.1.1
>!AThunderboltDPInAdapter    8.5.1
>!AThunderboltDPAdapter!F    8.5.1
>!AHPM    3.4.4
>!A!ILpssI2C!C    3.0.60
>!A!ILpssI2C    3.0.60
>!A!ILpssDmac    3.0.60
>!ABSDKextStarter    3
|IOSurface    352.0.3
@filesystems.hfs.encodings.kext    1
>!ASyntheticGame!C    11.2.3
>!AXsanScheme    3
>!AThunderboltNHI    7.2.81
|IOThunderbolt!F    9.3.3
>usb.!UVHCIBCE    1.2
>usb.!UVHCICommonBCE    1.0
>usb.!UVHCI    1.2
>usb.!UVHCICommon    1.0
>!AEffaceableNOR    1.0
|IOBufferCopy!C    1.1.0
|IOBufferCopyEngine!F    1
|IONVMe!F    2.1.0
>!ABCMWLANCoreMac    1.0.0
|IO80211!F    1200.13.0
>IOImageLoader    1.0.0
>!AOLYHALMac    1
|IOSerial!F    11
>corecapture    1.0.4
>usb.!UHostPacketFilter    1.0
|IOUSB!F    900.4.2
>usb.!UXHCIPCI    1.2
>usb.!UXHCI    1.2
>!AEFINVRAM    2.1
>!AEFIRuntime    2.1
>!ASMCRTC    1.0
|IOSMBus!F    1.1
|IOHID!F    2.0.0
|IOTimeSync!F    1200.91
|IOSkywalk!F    1.0
>mDNSOffloadUserClient    1.0.1b8
|IONetworking!F    3.4
>DiskImages    493.0.0
|IO!B!F    9.0.0
|IOReport!F    47
$quarantine    4
$sandbox    300.0
@kext.!AMatch    1.0.0d1
>!ASSE    1.0
>!ALockdownMode    1
>!AKeyStore    2
>!UTDM    556
|IOUSBMass!SDriver    243
|IOSCSIBlockCommandsDevice    492
|IOSCSIArchitectureModel!F    492
>!AFDEKeyStore    28.30
>!AEffaceable!S    1.0
|IO!S!F    2.1
>!ACyrus    1
>!ACredentialManager    1.0
>KernelRelayHost    1
|IOUSBHost!F    1.2
>!UHostMergeProperties    1.2
>usb.!UCommon    1.0
>!AMobileFileIntegrity    1.0.5
$!AImage4    5.0.0
@kext.CoreTrust    1
|CoreAnalytics!F    1
>!ABusPower!C    1.0
>!ASEPManager    1.0.1
>IOSlaveProcessor    1
>!AACPIPlatform    6.1
>!ASMC    3.1.9
|IOPCI!F    2.9
|IOACPI!F    1.4
>watchdog    1
@kec.pthread    1
@kec.XrtHostedXnu    1
@kec.Libm    1
@kec.Compression    1.0
@kec.corecrypto    14.0



[SirThanksalot]

Finally found where the kext is and removed it. Does not appear in the listed kexts anymore. However, a new kernel panic appeared:

panic(cpu 2 caller 0xffffff800a984f03): Kernel trap at 0xffffff800ae657a9, type 14=page fault, registers:
CR0: 0x000000008001003b, CR2: 0xffffbf9cf83c8da8, CR3: 0x0000000abeeab1e9, CR4: 0x00000000003626e0
RAX: 0x0000000000000035, RBX: 0xffffff982f53c318, RCX: 0x00000000fffeffff, RDX: 0x0000000000000001
RSP: 0xffffffd0caa53b10, RBP: 0xffffffd0caa53b40, RSI: 0x0000000000000003, RDI: 0xffffbf9cf83c8da8
R8:  0x0000000000030003, R9:  0x0000000000000003, R10: 0xffffff804b0b1a68, R11: 0x000000000065b60c
R12: 0x0000000000000007, R13: 0xffffff982c88a000, R14: 0xffffff982c88a000, R15: 0x0000000000000070
RFL: 0x0000000000010282, RIP: 0xffffff800ae657a9, CS:  0x0000000000000008, SS:  0x0000000000000000
Fault CR2: 0xffffbf9cf83c8da8, Error code: 0x0000000000000000, Fault CPU: 0x2, PL: 0, VF: 1

Panicked task 0xffffff9cf5d55008: 36 threads: pid 12468: Figma
Backtrace (CPU 2), panicked thread: 0xffffff9820b730c8, Frame : Return Address
0xffffffd0caa53490 : 0xffffff800a836c41
0xffffffd0caa534e0 : 0xffffff800a995310
0xffffffd0caa53520 : 0xffffff800a984a5c
0xffffffd0caa535a0 : 0xffffff800a7d3971
0xffffffd0caa535c0 : 0xffffff800a836f2d
0xffffffd0caa536b0 : 0xffffff800a8365d3
0xffffffd0caa53710 : 0xffffff800afd8bcb
0xffffffd0caa53800 : 0xffffff800a984f03
0xffffffd0caa53980 : 0xffffff800a984be7
0xffffffd0caa53a00 : 0xffffff800a7d3971
0xffffffd0caa53a20 : 0xffffff800ae657a9
0xffffffd0caa53b40 : 0xffffff800ae655a6
0xffffffd0caa53b60 : 0xffffff800ae613e8
0xffffffd0caa53b90 : 0xffffff800ae6119e
0xffffffd0caa53bd0 : 0xffffff800ae8b219
0xffffffd0caa53bf0 : 0xffffff800af4ba95
0xffffffd0caa53c60 : 0xffffff800a942058
0xffffffd0caa53ca0 : 0xffffff800a80f8a0
0xffffffd0caa53d60 : 0xffffff800a8276b8
0xffffffd0caa53dd0 : 0xffffff800a827d28
0xffffffd0caa53ef0 : 0xffffff800a96a052
0xffffffd0caa53fa0 : 0xffffff800a7d3dd6

Process name corresponding to current thread (0xffffff9820b730c8): Figma

Mac OS version:
23C71

Kernel version:
Darwin Kernel Version 23.2.0: Wed Nov 15 21:54:10 PST 2023; root:xnu-10002.61.3~2/RELEASE_X86_64
Kernel UUID: F73CFE5A-7EF6-3C21-AFA7-742645B733CC
roots installed: 0
KernelCache slide: 0x000000000a400000
KernelCache base:  0xffffff800a600000
Kernel slide:      0x000000000a4e0000
Kernel text base:  0xffffff800a6e0000
__HIB  text base: 0xffffff800a500000
System model name: MacBookPro16,1 (Mac-E1008331FDC96864)
System shutdown begun: NO
Hibernation exit count: 0

System uptime in nanoseconds: 81649789140477
Last Sleep:           absolute           base_tsc          base_nano
  Uptime  : 0x00004a4292ad81ce
  Sleep   : 0x00002c6427c952b0 0x00009df3fcf48088 0x00002c45bb76a7da
  Wake    : 0x00002c6466a30664 0x0000a04933e0c906 0x00002c64457eaaa8
Compressor Info: 0% of compressed pages limit (OK) and 0% of segments limit (OK) with 0 swapfiles and OK swap space
Zone info:
  Zone map: 0xffffff8828cc0000 - 0xffffffa828cc0000
  . PGZ   : 0xffffff8828cc0000 - 0xffffff8830cc1000
  . VM    : 0xffffff8830cc1000 - 0xffffff8cfc65a000
  . RO    : 0xffffff8cfc65a000 - 0xffffff8e9598d000
  . GEN0  : 0xffffff8e9598d000 - 0xffffff9361326000
  . GEN1  : 0xffffff9361326000 - 0xffffff982ccbf000
  . GEN2  : 0xffffff982ccbf000 - 0xffffff9cf8658000
  . GEN3  : 0xffffff9cf8658000 - 0xffffffa1c3ff2000
  . DATA  : 0xffffffa1c3ff2000 - 0xffffffa828cc0000
  Metadata: 0xffffffc8afb7f000 - 0xffffffc8cfb7f000
  Bitmaps : 0xffffffc8cfb7f000 - 0xffffffc8dbb7f000
  Extra   : 0 - 0

last started kext at 16430432700: >AudioAUUC    1.70 (addr 0xffffff7f9f51e000, size 12288)
loaded kexts:
>AudioAUUC    1.70
>!AHIDALSService    1
>!ATopCaseHIDEventDriver    7400.26
>X86PlatformShim    1.0.0
>AGPM    135
>!APlatformEnabler    2.7.0d0
@filesystems.autofs    3.0
>!AUpstreamUserClient    3.6.11
@kext.AMDRadeonX6000    5.0.2
@kext.AMDRadeonServiceManager    5.0.2
>!ABridgeAudio!C    400.1
>!AGFXHDA    300.1
>!AGraphicsDevicePolicy    8.1.9
@AGDCPluginDisplayMetrics    8.1.9
>pmtelemetry    1
@filesystems.nfs    1
|IOUserEthernet    1.0.1
>!A!IKBLGraphics    22.0.1
>usb.!UUserHCI    1
>!ASunrise    1
>!AHV    1
>!AMuxControl2    8.1.9
>AGDCBacklightControl    8.1.9
>!AFIVRDriver    4.1.0
>!A!ISlowAdaptiveClocking    4.0.0
>!ABacklight    180.9
>!A!IPCHPMC    2.0.1
>!A!ICFLGraphicsFramebuffer    22.0.1
>ACPI_SMC_PlatformPlugin    1.0.0
>!AMCCSControl    1.17
@UVCService    1
>BridgeAudioCommunication    400.1
>!AAVEBridge    6.1
>!AThunderboltIP    4.0.3
|SCSITaskUserClient    492
>!UMass!SInterfaceNub    556
>usb.realtek8153patcher    5.0.0
>BCMWLANFirmware4388.Hashstore    1
>BCMWLANFirmware4387.Hashstore    1
>BCMWLANFirmware4378.Hashstore    1
>BCMWLANFirmware4377.Hashstore    1
>BCMWLANFirmware4364.Hashstore    1
>BCMWLANFirmware4355.Hashstore    1
>!AFileSystemDriver    3.0.1
@filesystems.tmpfs    1
@filesystems.lifs    1
@filesystems.hfs.kext    650.0.2
@BootCache    40
@!AFSCompression.!AFSCompressionTypeZlib    1.0.0
@!AFSCompression.!AFSCompressionTypeDataless    1.0.0d1
@filesystems.apfs    2235.60.6
>!ABCMWLANBusInterfacePCIeMac    1
@private.KextAudit    1.0
>!ASmartBatteryManager    161.0.0
>!AACPIButtons    6.1
>!ASMBIOS    2.1
>!AACPIEC    6.1
>!AAPIC    1.7
@!ASystemPolicy    2.0.0
@nke.applicationfirewall    404
|IOKitRegistryCompatibility    1
|EndpointSecurity    1
@Dont_Steal_Mac_OS_X    7.0.0
>!ADiskImages2    273
@kec.!AEncryptedArchive    1
>!AActuatorDriver    7400.42
>!AMultitouchDriver    7400.42
>!AInputDeviceSupport    7410.1
>!AHS!BDriver    7400.26
>IO!BHIDDriver    9.0.0
>!AHIDKeyboard    7400.2
@kext.AMDRadeonX6100HWLibs    1.0
>usb.cdc.acm    5.0.0
>usb.serial    6.0.0
>!UAudio    610.3
>!AAudioClockLibs    300.1
@kext.AMDRadeonX6000HWServices    5.0.2
>!AHDA!C    500.3
|IOHDA!F    500.3
|IOAudio!F    500.4
@vecLib.kext    1.2.0
>!ASMBusPCI    1.0.14d1
@kext.triggers    1.0
>IOHIDPowerSource    1
>!ACallbackPowerSource    1
|IOAVB!F    1220.1
>!ARSMChannel    1
|IORSM!F    1
>!AIPAppender    1.0
>!A!ILpssUARTv1    3.0.60
>!A!ILpssUARTCommon    3.0.60
>!AOnboardSerial    1.0
>!AGraphicsControl    8.1.9
@kext.AMDRadeonX6000Framebuffer    5.0.2
@kext.AMDSupport    5.0.2
@!AGPUWrangler    8.1.9
|IOSlowAdaptiveClocking!F    1.0.0
>!ABacklightExpert    1.1.0
|IONDRVSupport    598
|IOAccelerator!F2    481.0.1
@!AGraphicsDeviceControl    8.1.9
>IOPlatformPluginLegacy    1.0.0
>X86PlatformPlugin    1.0.0
>IOPlatformPlugin!F    6.0.0d8
|IOGraphics!F    598
>!ASMBus!C    1.0.18d1
>driverkit.serial    6.0.0
@plugin.IOgPTPPlugin    1200.91
>!AThunderboltEDMSink    5.0.3
>usb.IOUSBHostHIDDevice    1.2
>usb.cdc.ecm    5.0.0
>usb.cdc.ncm    5.0.0
>usb.!UHub    1.2
>usb.cdc    5.0.0
>usb.networking    5.0.0
>usb.!UHostCompositeDevice    1.2
>!AThunderboltPCIUpAdapter    4.1.1
>!AThunderboltDPOutAdapter    8.5.1
>!AThunderboltPCIDownAdapter    4.1.1
>!AThunderboltDPInAdapter    8.5.1
>!AThunderboltDPAdapter!F    8.5.1
>!AHPM    3.4.4
>!A!ILpssI2C!C    3.0.60
>!A!ILpssI2C    3.0.60
>!A!ILpssDmac    3.0.60
>!ABSDKextStarter    3
|IOSurface    352.0.3
@filesystems.hfs.encodings.kext    1
>!ASyntheticGame!C    11.2.3
>!AXsanScheme    3
>!AThunderboltNHI    7.2.81
|IOThunderbolt!F    9.3.3
>usb.!UVHCIBCE    1.2
>usb.!UVHCICommonBCE    1.0
>usb.!UVHCI    1.2
>usb.!UVHCICommon    1.0
>!AEffaceableNOR    1.0
|IOBufferCopy!C    1.1.0
|IOBufferCopyEngine!F    1
|IONVMe!F    2.1.0
>!ABCMWLANCoreMac    1.0.0
|IO80211!F    1200.13.0
>IOImageLoader    1.0.0
>!AOLYHALMac    1
|IOSerial!F    11
>corecapture    1.0.4
>usb.!UHostPacketFilter    1.0
|IOUSB!F    900.4.2
>usb.!UXHCIPCI    1.2
>usb.!UXHCI    1.2
>!AEFINVRAM    2.1
>!AEFIRuntime    2.1
>!ASMCRTC    1.0
|IOSMBus!F    1.1
|IOHID!F    2.0.0
|IOTimeSync!F    1200.91
|IOSkywalk!F    1.0
>mDNSOffloadUserClient    1.0.1b8
|IONetworking!F    3.4
>DiskImages    493.0.0
|IO!B!F    9.0.0
|IOReport!F    47
$quarantine    4
$sandbox    300.0
@kext.!AMatch    1.0.0d1
>!ASSE    1.0
>!ALockdownMode    1
>!AKeyStore    2
>!UTDM    556
|IOUSBMass!SDriver    243
|IOSCSIBlockCommandsDevice    492
|IOSCSIArchitectureModel!F    492
>!AFDEKeyStore    28.30
>!AEffaceable!S    1.0
|IO!S!F    2.1
>!ACyrus    1
>!ACredentialManager    1.0
>KernelRelayHost    1
|IOUSBHost!F    1.2
>!UHostMergeProperties    1.2
>usb.!UCommon    1.0
>!AMobileFileIntegrity    1.0.5
$!AImage4    5.0.0
@kext.CoreTrust    1
|CoreAnalytics!F    1
>!ABusPower!C    1.0
>!ASEPManager    1.0.1
>IOSlaveProcessor    1
>!AACPIPlatform    6.1
>!ASMC    3.1.9
|IOPCI!F    2.9
|IOACPI!F    1.4
>watchdog    1
@kec.pthread    1
@kec.XrtHostedXnu    1
@kec.Libm    1
@kec.Compression    1.0
@kec.corecrypto    14.0



[thetechhimself]

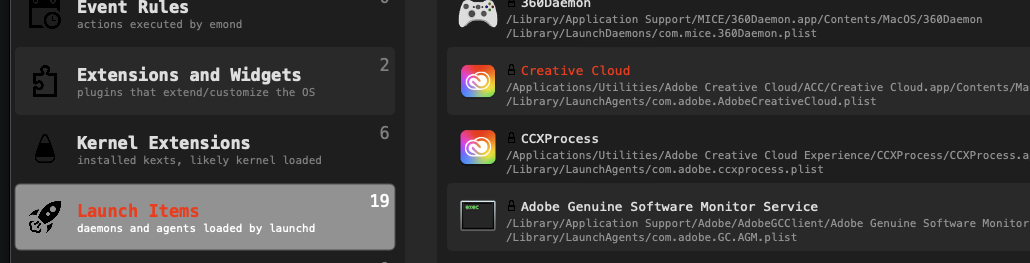

Finally found where the kext is and removed it. Does not appear in the listed kexts anymore. However, a new kernel panic appeared:

panic(cpu 2 caller 0xffffff800a984f03): Kernel trap at 0xffffff800ae657a9, type 14=page fault, registers:
CR0: 0x000000008001003b, CR2: 0xffffbf9cf83c8da8, CR3: 0x0000000abeeab1e9, CR4: 0x00000000003626e0
RAX: 0x0000000000000035, RBX: 0xffffff982f53c318, RCX: 0x00000000fffeffff, RDX: 0x0000000000000001
RSP: 0xffffffd0caa53b10, RBP: 0xffffffd0caa53b40, RSI: 0x0000000000000003, RDI: 0xffffbf9cf83c8da8
R8:  0x0000000000030003, R9:  0x0000000000000003, R10: 0xffffff804b0b1a68, R11: 0x000000000065b60c
R12: 0x0000000000000007, R13: 0xffffff982c88a000, R14: 0xffffff982c88a000, R15: 0x0000000000000070
RFL: 0x0000000000010282, RIP: 0xffffff800ae657a9, CS:  0x0000000000000008, SS:  0x0000000000000000
Fault CR2: 0xffffbf9cf83c8da8, Error code: 0x0000000000000000, Fault CPU: 0x2, PL: 0, VF: 1

Panicked task 0xffffff9cf5d55008: 36 threads: pid 12468: Figma
Backtrace (CPU 2), panicked thread: 0xffffff9820b730c8, Frame : Return Address
0xffffffd0caa53490 : 0xffffff800a836c41
0xffffffd0caa534e0 : 0xffffff800a995310
0xffffffd0caa53520 : 0xffffff800a984a5c
0xffffffd0caa535a0 : 0xffffff800a7d3971
0xffffffd0caa535c0 : 0xffffff800a836f2d
0xffffffd0caa536b0 : 0xffffff800a8365d3
0xffffffd0caa53710 : 0xffffff800afd8bcb
0xffffffd0caa53800 : 0xffffff800a984f03
0xffffffd0caa53980 : 0xffffff800a984be7
0xffffffd0caa53a00 : 0xffffff800a7d3971
0xffffffd0caa53a20 : 0xffffff800ae657a9
0xffffffd0caa53b40 : 0xffffff800ae655a6
0xffffffd0caa53b60 : 0xffffff800ae613e8
0xffffffd0caa53b90 : 0xffffff800ae6119e
0xffffffd0caa53bd0 : 0xffffff800ae8b219
0xffffffd0caa53bf0 : 0xffffff800af4ba95
0xffffffd0caa53c60 : 0xffffff800a942058
0xffffffd0caa53ca0 : 0xffffff800a80f8a0
0xffffffd0caa53d60 : 0xffffff800a8276b8
0xffffffd0caa53dd0 : 0xffffff800a827d28
0xffffffd0caa53ef0 : 0xffffff800a96a052
0xffffffd0caa53fa0 : 0xffffff800a7d3dd6

Process name corresponding to current thread (0xffffff9820b730c8): Figma

Mac OS version:
23C71

Kernel version:
Darwin Kernel Version 23.2.0: Wed Nov 15 21:54:10 PST 2023; root:xnu-10002.61.3~2/RELEASE_X86_64
Kernel UUID: F73CFE5A-7EF6-3C21-AFA7-742645B733CC
roots installed: 0
KernelCache slide: 0x000000000a400000
KernelCache base:  0xffffff800a600000
Kernel slide:      0x000000000a4e0000
Kernel text base:  0xffffff800a6e0000
__HIB  text base: 0xffffff800a500000
System model name: MacBookPro16,1 (Mac-E1008331FDC96864)
System shutdown begun: NO
Hibernation exit count: 0

System uptime in nanoseconds: 81649789140477
Last Sleep:           absolute           base_tsc          base_nano
  Uptime  : 0x00004a4292ad81ce
  Sleep   : 0x00002c6427c952b0 0x00009df3fcf48088 0x00002c45bb76a7da
  Wake    : 0x00002c6466a30664 0x0000a04933e0c906 0x00002c64457eaaa8
Compressor Info: 0% of compressed pages limit (OK) and 0% of segments limit (OK) with 0 swapfiles and OK swap space
Zone info:
  Zone map: 0xffffff8828cc0000 - 0xffffffa828cc0000
  . PGZ   : 0xffffff8828cc0000 - 0xffffff8830cc1000
  . VM    : 0xffffff8830cc1000 - 0xffffff8cfc65a000
  . RO    : 0xffffff8cfc65a000 - 0xffffff8e9598d000
  . GEN0  : 0xffffff8e9598d000 - 0xffffff9361326000
  . GEN1  : 0xffffff9361326000 - 0xffffff982ccbf000
  . GEN2  : 0xffffff982ccbf000 - 0xffffff9cf8658000
  . GEN3  : 0xffffff9cf8658000 - 0xffffffa1c3ff2000
  . DATA  : 0xffffffa1c3ff2000 - 0xffffffa828cc0000
  Metadata: 0xffffffc8afb7f000 - 0xffffffc8cfb7f000
  Bitmaps : 0xffffffc8cfb7f000 - 0xffffffc8dbb7f000
  Extra   : 0 - 0

last started kext at 16430432700: >AudioAUUC    1.70 (addr 0xffffff7f9f51e000, size 12288)
loaded kexts:
>AudioAUUC    1.70
>!AHIDALSService    1
>!ATopCaseHIDEventDriver    7400.26
>X86PlatformShim    1.0.0
>AGPM    135
>!APlatformEnabler    2.7.0d0
@filesystems.autofs    3.0
>!AUpstreamUserClient    3.6.11
@kext.AMDRadeonX6000    5.0.2
@kext.AMDRadeonServiceManager    5.0.2
>!ABridgeAudio!C    400.1
>!AGFXHDA    300.1
>!AGraphicsDevicePolicy    8.1.9
@AGDCPluginDisplayMetrics    8.1.9
>pmtelemetry    1
@filesystems.nfs    1
|IOUserEthernet    1.0.1
>!A!IKBLGraphics    22.0.1
>usb.!UUserHCI    1
>!ASunrise    1
>!AHV    1
>!AMuxControl2    8.1.9
>AGDCBacklightControl    8.1.9
>!AFIVRDriver    4.1.0
>!A!ISlowAdaptiveClocking    4.0.0
>!ABacklight    180.9
>!A!IPCHPMC    2.0.1
>!A!ICFLGraphicsFramebuffer    22.0.1
>ACPI_SMC_PlatformPlugin    1.0.0
>!AMCCSControl    1.17
@UVCService    1
>BridgeAudioCommunication    400.1
>!AAVEBridge    6.1
>!AThunderboltIP    4.0.3
|SCSITaskUserClient    492
>!UMass!SInterfaceNub    556
>usb.realtek8153patcher    5.0.0
>BCMWLANFirmware4388.Hashstore    1
>BCMWLANFirmware4387.Hashstore    1
>BCMWLANFirmware4378.Hashstore    1
>BCMWLANFirmware4377.Hashstore    1
>BCMWLANFirmware4364.Hashstore    1
>BCMWLANFirmware4355.Hashstore    1
>!AFileSystemDriver    3.0.1
@filesystems.tmpfs    1
@filesystems.lifs    1
@filesystems.hfs.kext    650.0.2
@BootCache    40
@!AFSCompression.!AFSCompressionTypeZlib    1.0.0
@!AFSCompression.!AFSCompressionTypeDataless    1.0.0d1
@filesystems.apfs    2235.60.6
>!ABCMWLANBusInterfacePCIeMac    1
@private.KextAudit    1.0
>!ASmartBatteryManager    161.0.0
>!AACPIButtons    6.1
>!ASMBIOS    2.1
>!AACPIEC    6.1
>!AAPIC    1.7
@!ASystemPolicy    2.0.0
@nke.applicationfirewall    404
|IOKitRegistryCompatibility    1
|EndpointSecurity    1
@Dont_Steal_Mac_OS_X    7.0.0
>!ADiskImages2    273
@kec.!AEncryptedArchive    1
>!AActuatorDriver    7400.42
>!AMultitouchDriver    7400.42
>!AInputDeviceSupport    7410.1
>!AHS!BDriver    7400.26
>IO!BHIDDriver    9.0.0
>!AHIDKeyboard    7400.2
@kext.AMDRadeonX6100HWLibs    1.0
>usb.cdc.acm    5.0.0
>usb.serial    6.0.0
>!UAudio    610.3
>!AAudioClockLibs    300.1
@kext.AMDRadeonX6000HWServices    5.0.2
>!AHDA!C    500.3
|IOHDA!F    500.3
|IOAudio!F    500.4
@vecLib.kext    1.2.0
>!ASMBusPCI    1.0.14d1
@kext.triggers    1.0
>IOHIDPowerSource    1
>!ACallbackPowerSource    1
|IOAVB!F    1220.1
>!ARSMChannel    1
|IORSM!F    1
>!AIPAppender    1.0
>!A!ILpssUARTv1    3.0.60
>!A!ILpssUARTCommon    3.0.60
>!AOnboardSerial    1.0
>!AGraphicsControl    8.1.9
@kext.AMDRadeonX6000Framebuffer    5.0.2
@kext.AMDSupport    5.0.2
@!AGPUWrangler    8.1.9
|IOSlowAdaptiveClocking!F    1.0.0
>!ABacklightExpert    1.1.0
|IONDRVSupport    598
|IOAccelerator!F2    481.0.1
@!AGraphicsDeviceControl    8.1.9
>IOPlatformPluginLegacy    1.0.0
>X86PlatformPlugin    1.0.0
>IOPlatformPlugin!F    6.0.0d8
|IOGraphics!F    598
>!ASMBus!C    1.0.18d1
>driverkit.serial    6.0.0
@plugin.IOgPTPPlugin    1200.91
>!AThunderboltEDMSink    5.0.3
>usb.IOUSBHostHIDDevice    1.2
>usb.cdc.ecm    5.0.0
>usb.cdc.ncm    5.0.0
>usb.!UHub    1.2
>usb.cdc    5.0.0
>usb.networking    5.0.0
>usb.!UHostCompositeDevice    1.2
>!AThunderboltPCIUpAdapter    4.1.1
>!AThunderboltDPOutAdapter    8.5.1
>!AThunderboltPCIDownAdapter    4.1.1
>!AThunderboltDPInAdapter    8.5.1
>!AThunderboltDPAdapter!F    8.5.1
>!AHPM    3.4.4
>!A!ILpssI2C!C    3.0.60
>!A!ILpssI2C    3.0.60
>!A!ILpssDmac    3.0.60
>!ABSDKextStarter    3
|IOSurface    352.0.3
@filesystems.hfs.encodings.kext    1
>!ASyntheticGame!C    11.2.3
>!AXsanScheme    3
>!AThunderboltNHI    7.2.81
|IOThunderbolt!F    9.3.3
>usb.!UVHCIBCE    1.2
>usb.!UVHCICommonBCE    1.0
>usb.!UVHCI    1.2
>usb.!UVHCICommon    1.0
>!AEffaceableNOR    1.0
|IOBufferCopy!C    1.1.0
|IOBufferCopyEngine!F    1
|IONVMe!F    2.1.0
>!ABCMWLANCoreMac    1.0.0
|IO80211!F    1200.13.0
>IOImageLoader    1.0.0
>!AOLYHALMac    1
|IOSerial!F    11
>corecapture    1.0.4
>usb.!UHostPacketFilter    1.0
|IOUSB!F    900.4.2
>usb.!UXHCIPCI    1.2
>usb.!UXHCI    1.2
>!AEFINVRAM    2.1
>!AEFIRuntime    2.1
>!ASMCRTC    1.0
|IOSMBus!F    1.1
|IOHID!F    2.0.0
|IOTimeSync!F    1200.91
|IOSkywalk!F    1.0
>mDNSOffloadUserClient    1.0.1b8
|IONetworking!F    3.4
>DiskImages    493.0.0
|IO!B!F    9.0.0
|IOReport!F    47
$quarantine    4
$sandbox    300.0
@kext.!AMatch    1.0.0d1
>!ASSE    1.0
>!ALockdownMode    1
>!AKeyStore    2
>!UTDM    556
|IOUSBMass!SDriver    243
|IOSCSIBlockCommandsDevice    492
|IOSCSIArchitectureModel!F    492
>!AFDEKeyStore    28.30
>!AEffaceable!S    1.0
|IO!S!F    2.1
>!ACyrus    1
>!ACredentialManager    1.0
>KernelRelayHost    1
|IOUSBHost!F    1.2
>!UHostMergeProperties    1.2
>usb.!UCommon    1.0
>!AMobileFileIntegrity    1.0.5
$!AImage4    5.0.0
@kext.CoreTrust    1
|CoreAnalytics!F    1
>!ABusPower!C    1.0
>!ASEPManager    1.0.1
>IOSlaveProcessor    1
>!AACPIPlatform    6.1
>!ASMC    3.1.9
|IOPCI!F    2.9
|IOACPI!F    1.4
>watchdog    1
@kec.pthread    1
@kec.XrtHostedXnu    1
@kec.Libm    1
@kec.Compression    1.0
@kec.corecrypto    14.0

First off, Sonoma has reduced driver compatibility with my 2019 i9 15 MacBook Pro Vega 20, particularly the AMD graphics driver. It reduced my battery capacity by 300% compared to Ventura and reduced my perceptual performance by 50% for end user tasks. “Pro” tasks were largely unaffected. I downgraded to Ventura and lost a month of data, which most was in other places (synced to my Synology). So there’s the obvious; Sonoma has poor performance on non Apple Silicon, my 2 cents.

But,

Try the following before downgrading…

Use the opposing thunderbolt; your MacBook has different thunderbolt modules, 2, left and right.

Try disabling graphics switching; PCIE sleep support problems are a thing in the PC world; maybe Mac world too now.

Lastly, try a different cable; thunderbolt to HDMI, thunderbolt to DisplayPort. They are different protocols which invoke different calls on the same driver.

Again, downgrading is a fantastic idea, backup the “delta” data first, restore and re-sync the delta difference.



[SirThanksalot]

First off, Sonoma has reduced driver compatibility with my 2019 i9 15 MacBook Pro Vega 20, particularly the AMD graphics driver. It reduced my battery capacity by 300% compared to Ventura and reduced my perceptual performance by 50% for end user tasks. “Pro” tasks were largely unaffected. I downgraded to Ventura and lost a month of data, which most was in other places (synced to my Synology). So there’s the obvious; Sonoma has poor performance on non Apple Silicon, my 2 cents.

But,

Try the following before downgrading…

Use the opposing thunderbolt; your MacBook has different thunderbolt modules, 2, left and right.

Try disabling graphics switching; PCIE sleep support problems are a thing in the PC world; maybe Mac world too now.

Lastly, try a different cable; thunderbolt to HDMI, thunderbolt to DisplayPort. They are different protocols which invoke different calls on the same driver.

Again, downgrading is a fantastic idea, backup the “delta” data first, restore and re-sync the delta difference.

So I tried a different cable and different TB port and it seems to work for now. However, it will probably crash in the morning after a long time of not using the Mac.
Restoring is probably the only option. It is baffling to me, that the system becomes so unstable once you update. I know, Intel is not really supported anymore, but this is beyond annoying.



[thetechhimself]

So I tried a different cable and different TB port and it seems to work for now. However, it will probably crash in the morning after a long time of not using the Mac.
Restoring is probably the only option. It is baffling to me, that the system becomes so unstable once you update. I know, Intel is not really supported anymore, but this is beyond annoying.

It’s probably the AMD driver itself; I looked over the kernel code for Sonoma today and aside from security and feature support updates, nothing stood out, which means the drivers either on Intel or AMD don’t play so well with Darwin 23. That means downgrading is your best option, IMO.



[Elusi]

So I tried a different cable and different TB port and it seems to work for now. However, it will probably crash in the morning after a long time of not using the Mac.
Restoring is probably the only option. It is baffling to me, that the system becomes so unstable once you update. I know, Intel is not really supported anymore, but this is beyond annoying.

Sorry to break yours and @thetechhimself 's conclusion but it's very likely something more playing into this or you would see way more complainer threads post Sonoma. Anecdotally I run an Intel 16" through a thunderbolt dock and often use software that asks for the AMD GPU. It's all fine. Nothing I repeat nothing works worse since upgrading from Ventura.

You mention you had trouble with your setup even before. It could be thus be a hardware issue before that got exacerbated with the update. If I were you I'd just get it over with, move my stuff to temporary storage and try running a clean install.



[thetechhimself]

Sorry to break yours and @thetechhimself 's conclusion but it's very likely something more playing into this or you would see way more complainer threads post Sonoma. Anecdotally I run an Intel 16" through a thunderbolt dock and often use software that asks for the AMD GPU. It's all fine. Nothing I repeat nothing works worse since upgrading from Ventura.

You mention you had trouble with your setup even before. It could be thus be a hardware issue before that got exacerbated with the update. If I were you I'd just get it over with, move my stuff to temporary storage and try running a clean install.

There’s nothing a clean install would resolve here other than display prefs default reset. The energy settings is another.

Tell you what; run knock knock by objective see, see if any kernels extensions are present. Maybe. It’s free and good for malware detection and removal. Perhaps there is incompatible third party present… Doubtful, but have a peek.



[TheRealAlex]

Apple 1000% sabotaging Intel Machines, you can collect your $12 bucks after the class action lawsuit settles in 2028.



[Elusi]

It’s probably the monitor combination. Trust me, first thought. But, that costs money for something that worked fine on Ventura that Sonoma broke. I believe it as a former ACMT and systems engineer these days.

There’s nothing a clean install would resolve here other than display prefs default reset. The energy settings is another. Again, clean install is overkill, but sure. It’s highly improbable to resolve, as a former ACMT…

Tell you what; run knock knock by objective see, see if any kernels extensions are present. Maybe. It’s free and good for malware detection and removal. Perhaps there is incompatible third party present…

But OP has stated they get kernel panics while only connected to a charger. It seems that the app Figma is present in the most recent log. Not pointing to the app in particular but it's a design app that to my knowledge uses plenty of GPU resources, so I'm with you here that it seems related to GPU.

Thunderbolt feels less likely since that element hasn't been consistently present during all these crashes. Though the AMD GPU in this model always gets enabled when you connect an external monitor, thunderbolt or otherwise, hence it's possibly excerbating the issues.

I'm leaning towards either corrupted system components, and that's the hopeful one. Trying this theory through a reinstall is way cheaper than buying a new computer. Another plausible alternative is unfortunately that the GPU is starting to fail.

But by all means, @SirThanksalot , start with the knock knock suggestion. If doing a clean install, take Ventura if it feels safer. It will still receive security updates for a good while. I'm just thinking there's been an underlying problem with this machine in particular and not some fundamental miss that is present on all 16" Intel Macs.



[thetechhimself]

But OP has stated they get kernel panics while only connected to a charger. It seems that the app Figma is present in the most recent log. Not pointing to the app in particular but it's a design app that to my knowledge uses plenty of GPU resources, so I'm with you here that it seems related to GPU.

Thunderbolt feels less likely since that element hasn't been consistently present during all these crashes. Though the AMD GPU in this model always gets enabled when you connect an external monitor, thunderbolt or otherwise, hence it's possibly excerbating the issues.

I'm leaning towards either corrupted system components, and that's the hopeful one. Trying this theory through a reinstall is way cheaper than buying a new computer. Another plausible alternative is unfortunately that the GPU is starting to fail.

But by all means, @SirThanksalot , start with the knock knock suggestion. If doing a clean install, take Ventura if it feels safer. It will still receive security updates for a good while. I'm just thinking there's been an underlying problem with this machine in particular and not some fundamental miss that is present on all 16" Intel Macs.

PCIE sleep support is a big deal in the GPU business. I’ve dealt with several software regressions regarding NVIDIA with it, recently at that. Why not Apple / AMD now that Intel is on the outs? Perfectly logical conclusion in fact.

Tell you what, perhaps you can explain to the OP what in a clean install is going to fix and why upgrading to Sonoma caused this? All I hear is accusations against the OP and myself for giving logical explanations why downgrading is the right move.

Apple 1000% sabotaging Intel Machines, you can collect your $12 bucks after the class action lawsuit settles in 2028.

Actually I don't think they are; rather I think it's more likely that support through third parties has ended and Apple is merely keeping Intel machines on life support as pulling the plug is bad for PR and customer loyalty. Some configurations may fare better than others. I don't take it personally; it's a business decision of (not) dumping money into development for already sold machines, or, dumping it into new stuff so it can sell. I don't blame Apple one bit for this move, this is business as usual for a large tech company, nothing nefarious.

Now making iOS17 non-downgradable for most iPhones? That, I've got beef with, and there may be some white boards back in Cupertino showing the number of projected users they can sway to upgrade their handset by not taking time to optimize iOS17 for older models and then locking folks into iOS17 after they've upgraded...



[thetechhimself]

But OP has stated they get kernel panics while only connected to a charger. It seems that the app Figma is present in the most recent log. Not pointing to the app in particular but it's a design app that to my knowledge uses plenty of GPU resources, so I'm with you here that it seems related to GPU.

Thunderbolt feels less likely since that element hasn't been consistently present during all these crashes. Though the AMD GPU in this model always gets enabled when you connect an external monitor, thunderbolt or otherwise, hence it's possibly excerbating the issues.

I'm leaning towards either corrupted system components, and that's the hopeful one. Trying this theory through a reinstall is way cheaper than buying a new computer. Another plausible alternative is unfortunately that the GPU is starting to fail.

But by all means, @SirThanksalot , start with the knock knock suggestion. If doing a clean install, take Ventura if it feels safer. It will still receive security updates for a good while. I'm just thinking there's been an underlying problem with this machine in particular and not some fundamental miss that is present on all 16" Intel Macs.

It's probably just certain conditions with the AMD support, if I had to bet. Things like external displays, say wake from deep sleep states causing under voltage fault, see what I mean? That may have been there since Ventura in fact. Sonoma in my experience, has some larger manifestations of poor performance in my observation on my (Intel) configuration. From talking to other Mac users on other Mac forums and reviewing the code from Sonoma itself, I don't think it's a widespread issue, rather corner cases are probably impacted as I can't see the source code from the drivers, which is probably the culprit as those are likely collaboration efforts that have now ceased and Apple would now be the sole code maintainer, without help from the supplier which has the expertise... That's problematic, for sure.



[SirThanksalot]

Sorry to break yours and @thetechhimself 's conclusion but it's very likely something more playing into this or you would see way more complainer threads post Sonoma. Anecdotally I run an Intel 16" through a thunderbolt dock and often use software that asks for the AMD GPU. It's all fine. Nothing I repeat nothing works worse since upgrading from Ventura.

You mention you had trouble with your setup even before. It could be thus be a hardware issue before that got exacerbated with the update. If I were you I'd just get it over with, move my stuff to temporary storage and try running a clean install.

Well, the trouble actually started, when I updated to Ventura. Everything worked perfectly on Monterey. I thought I'll update to Ventura, since I was 2 versions behind. Updated to Ventura, then the problem with the external display started. Annoying, but no kernel panics. Just had to connect and disconnect the screen a few times. Thought, that maybe Sonoma would fix this... well, it made everything worse :/



[SirThanksalot]

Ok, so I ran KnockKnock. A little confused as to what the tool is actually supposed to do, but alas. It flagged the Creative Cloud two times:

Once in Launch Items and once in Background Managed Tools, otherwise I don't see anything red. What is the correct way to use this tool?

So actually, the kernel panics while the system is running have more or less disappeared after I removed the Intel Energy Driver, Java and Parallels. What I do get each and every day are panics after the Mac has been in sleep for a long time (> 5 hours). They are different each time. So here are just a few:

last started kext at 16430432700: >AudioAUUC 1.70 (addr 0xffffff7f9f51e000, size 12288)

or

last started kext at 15678508600: >AudioAUUC 1.70 (addr 0xffffff7fb051e000, size 12288)

or

last started kext at 1579588231: >usb.IOUSBHostHIDDevice 1.2 (addr 0xffffff800e2e0000, size 32768)

...

I am now just wondering if it is a thunderbolt problem. As mentioned before, I have a display everything is connected to and the display then connects to the Mac. Well, after it connects, the Mac seems to crash, but otherwise it is working...

As for the Graphics Card, some things started happening, that worry me. One time, I did get graphical glitches. Videos on YouTube looked strange (kind of mosaic) and in Figma some UI elements were a jumbled mess. And on top of that, some browsers started dropping tabs. So I would get constant tab errors in Vivaldi and Brave (basically not loading, crashing tabs and so on), which might indicate some RAM problem? I don't want to think about this, but is the Logic Board slowly dying? I mean, I have been working for the past few hours without any problems, but they start to appear randomly. I keep doing Time Machine backups, in case I have to set up everything from scratch.

Reinstalled Sonoma from the recovery, since I can not go back to Ventura like that. I really don't want to reset the system and then finding out, that it didn't solve anything, but maybe I'll have to...



[thetechhimself]

Ok, so I ran KnockKnock. A little confused as to what the tool is actually supposed to do, but alas. It flagged the Creative Cloud two times:

View attachment 2333259
Once in Launch Items and once in Background Managed Tools, otherwise I don't see anything red. What is the correct way to use this tool?

So actually, the kernel panics while the system is running have more or less disappeared after I removed the Intel Energy Driver, Java and Parallels. What I do get each and every day are panics after the Mac has been in sleep for a long time (> 5 hours). They are different each time. So here are just a few:

last started kext at 16430432700: >AudioAUUC 1.70 (addr 0xffffff7f9f51e000, size 12288)

or

last started kext at 15678508600: >AudioAUUC 1.70 (addr 0xffffff7fb051e000, size 12288)

or

last started kext at 1579588231: >usb.IOUSBHostHIDDevice 1.2 (addr 0xffffff800e2e0000, size 32768)

...

I am now just wondering if it is a thunderbolt problem. As mentioned before, I have a display everything is connected to and the display then connects to the Mac. Well, after it connects, the Mac seems to crash, but otherwise it is working...

As for the Graphics Card, some things started happening, that worry me. One time, I did get graphical glitches. Videos on YouTube looked strange (kind of mosaic) and in Figma some UI elements were a jumbled mess. And on top of that, some browsers started dropping tabs. So I would get constant tab errors in Vivaldi and Brave (basically not loading, crashing tabs and so on), which might indicate some RAM problem? I don't want to think about this, but is the Logic Board slowly dying? I mean, I have been working for the past few hours without any problems, but they start to appear randomly. I keep doing Time Machine backups, in case I have to set up everything from scratch.

Reinstalled Sonoma from the recovery, since I can not go back to Ventura like that. I really don't want to reset the system and then finding out, that it didn't solve anything, but maybe I'll have to...

Kernel and extensions please? Shows 2, curios what they are.

Keep in mind thunderbolt and DisplayPort, hdmi, can carry audio, not just video. That panic makes sense that it may be having difficulty reestablishing audio on the digital link which is AMD driver dependent, at least in Debian, probably Darwin too. Ubuntu had that problem earlier this year and I actually couldn’t solve it; someone smarter fixed the code after a couple months of that madness.



[GMShadow]

How are your monitors connected to your dock? Any adapters involved? I had a recent case where a cheap DP to DVI dongle was throwing all sorts of errors and causing a connected computer to lock up, and another one where an adapter was causing some driver weirdness and graphical glitches.



[SirThanksalot]

Kernel and extensions please? Shows 2, curios what they are.

Keep in mind thunderbolt and DisplayPort, hdmi, can carry audio, not just video. That panic makes sense that it may be having difficulty reestablishing audio on the digital link which is AMD driver dependent, at least in Debian, probably Darwin too. Ubuntu had that problem earlier this year and I actually couldn’t solve it; someone smarter fixed the code after a couple months of that madness.

Ok, so here are the tabs:

I could probably live without the Extensions in the second screenshot. Could they be causing the kernel panics?

Today, I tried starting up the Mac a little bit differently. Instead of plugging the display straight in, I opened up the Mac, waited for it to boot up, logged in and then connected the display. No kernel panic.

@GMShadow Everything is connected to the back of the monitor (it has USB Ports) and then one Thunderbolt cable is running from the monitor to the Mac, so the monitor acts as a hub.

Cheers,
SirThanksalot



[SirThanksalot]

Ok, so I have some more information and I am starting to lose hope. I tried doing the HDD FirstAid from the recovery mode and got this gem:

Got it on every drive, the main one and the 2 partitions. Meanwhile, I let the Mac run without it being connected to anything. Constant crashes with graphical glitches. Just had two in a row. Crash, log back in, apps open, crash again, reboot. Since my tabs in the browser are crashing, I thought I'd run a memory diagnostics tool, so I got MemTest86, and well...

So yeah... I am not sure anymore, that it is a software problem. The weird thing is, that I never had any problems on Big Sur or Monteray. If this was in fact caused by Sonoma, this would be the first time I ever experience software breaking hardware. Or this must be one of the greatest coincidences...
So am I crazy in thinking, that this still might be fixable?
