Which ASMedia Serial ATA 6 Gb/s controller does the Apple 🍎 Mac Pro 2023 utilize to drive the 2 onboard internal SATA 6 Gb/s ports (ASM1061, ASM1061R, ASM1062, ASM1062R, ASM1064, ASM1164, or ASM1166) and do they support Port Multipliers (and if so: Command-based switching or FIS (Frame Information Structure) based switching?) and hot plug / unplug or have those optional features of the SATA 6 Gb/s standard been disabled?
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
MP 14,8 Internal Onboard SATA 6 Gb/s Ports Bridge & Controller Model in Mac Pro (2023)
- Thread starter FlyerKumar
- Start date
- Sort by reaction score

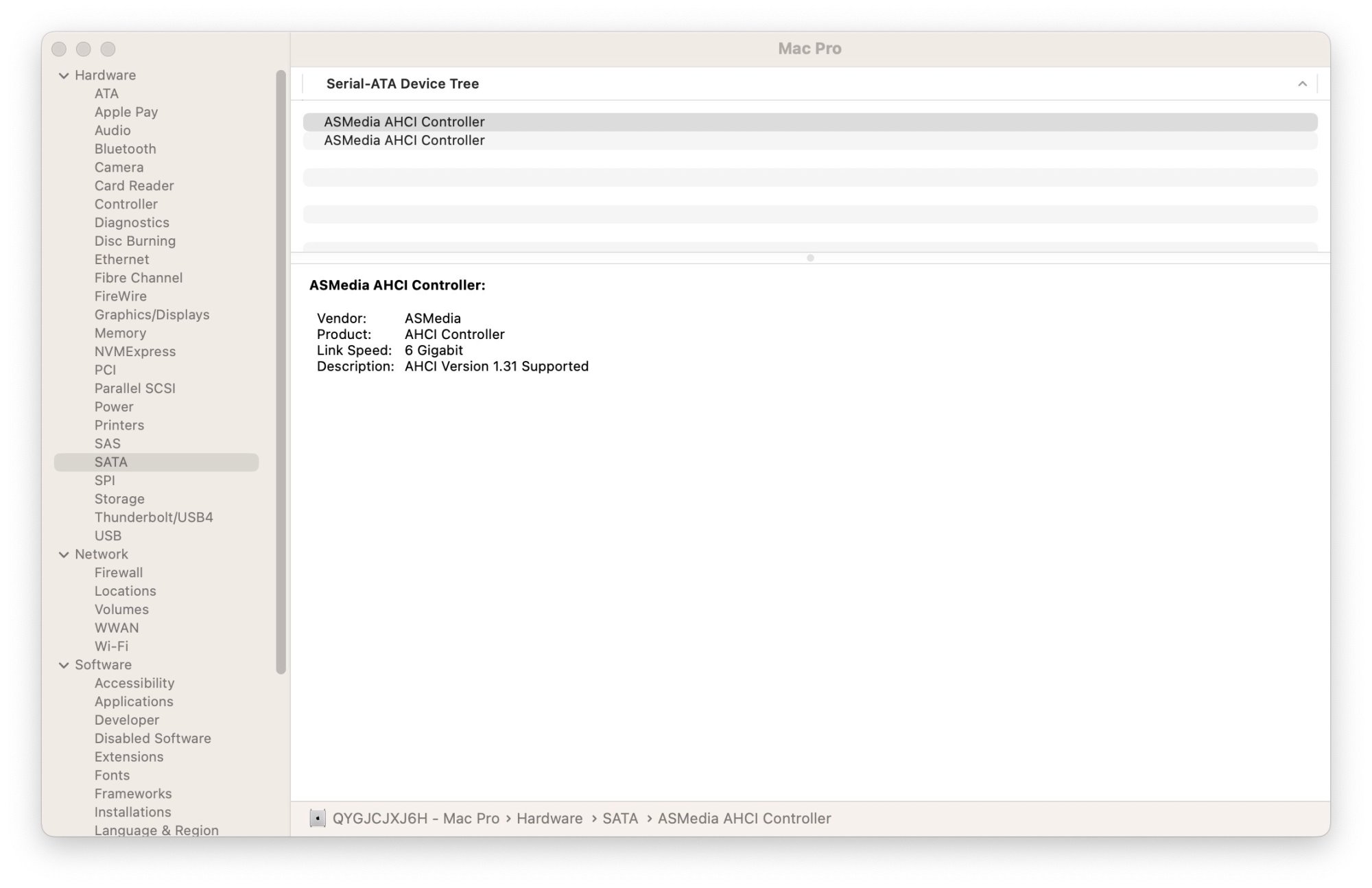

It is ASMedia ASM1062. I dumped the ioreg and found out the PCIe vendor id "1b21" and device id "0624" for the AHCI class.
