iMAK79

macrumors newbie
Original poster
Aug 10, 2011
21
2

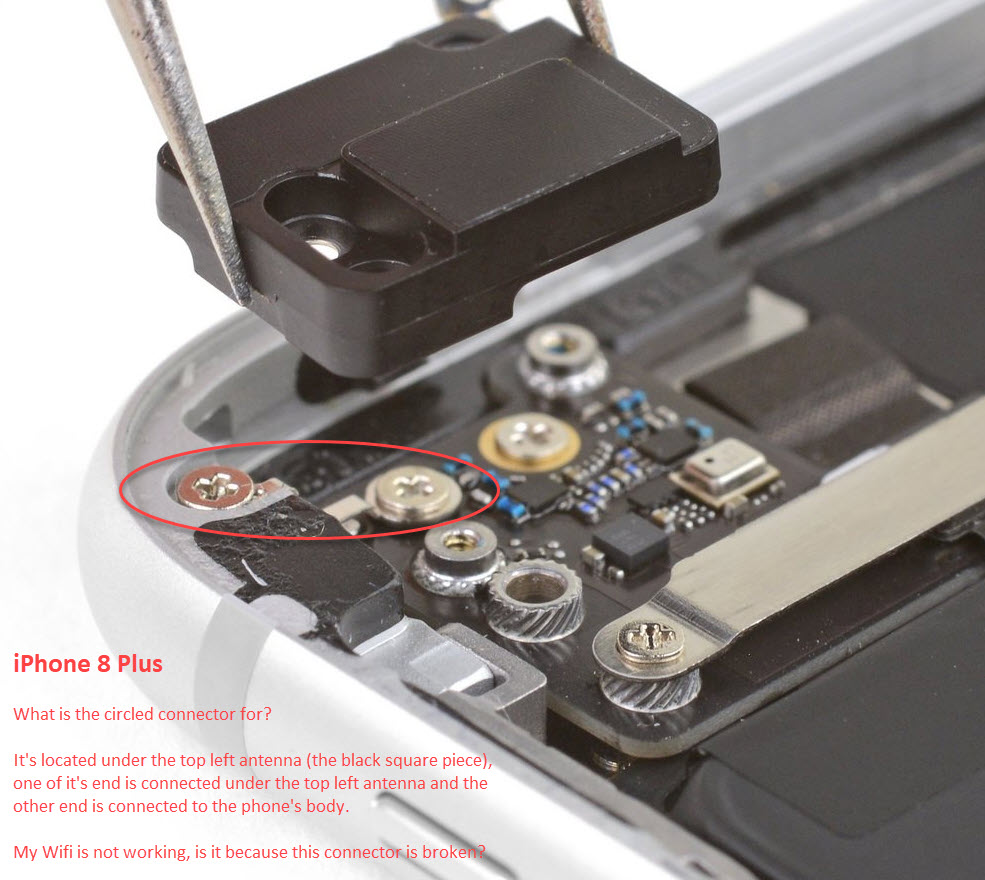

iPhone 8 Plus Antenna.jpg


chabig

macrumors G4
Sep 6, 2002
11,450
9,321
I know a little bit about electronics and I don't even see a connector inside your circle. But maybe go watch iFixit teardown of an 8 Plus. You might find an answer there.


iMAK79

macrumors newbie
Original poster
Aug 10, 2011
21
2
I know a little bit about electronics and I don't even see a connector inside your circle. But maybe go watch iFixit teardown of an 8 Plus. You might find an answer there.
You see the two screws inside the red circle, they are holding holding a connector.


wilberforce

macrumors 68030
Aug 15, 2020
2,932
3,208
SF Bay Area
Monopole antennas need a ground plane (A dipole or loop antenna doesn't). The phone body may be acting as a ground plane.
Or different parts of the phone body, separated by insulators (the white plastic lines), may be acting as the antenna(s).
