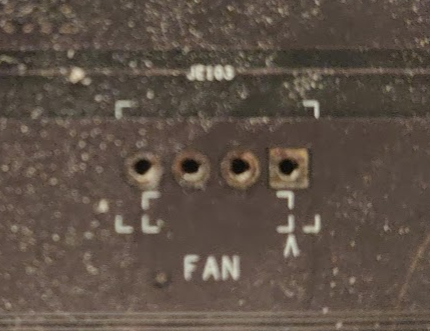

Does anybody know or used the unpopulated je103 fan header? Look at the right end of the picture you will see half of it.
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
MP 1,1-5,1 JE103 fan header?
- Thread starter startergo
- Start date
-
- Tags
- je103 fan header
- Sort by reaction score
There aren't any unused fan headers on a cMP 4,1 or 5,1 board . There are three headers on the bottom which control the speaker , air intake fan and exhaust fan . There is the je103 mounting point for ... something Apple never used . Install the board and examine that point with a multimeter to determine if the circuit is live .
And what happens if there are no traces ( active or otherwise ) connected to the mounting holes , deep inside all those layers of fiberglass ? Take your Fluke to it first before you go through the trouble of attaching a header . Also , assuming a fan can be attached and run from it , do you suppose Apple would have provided some method of control for it in SMC ? That fan might simply spin up to max RPMs and stay there . It'll get real loud !
there are other ways to control if there is power of course. Even a small board with a potentiometer will do. That would have been a great connector for a fan for the diode.
wanted to measure, but you would have to solder the cables, because you can't do that when the CPU tray is connected to the backplane

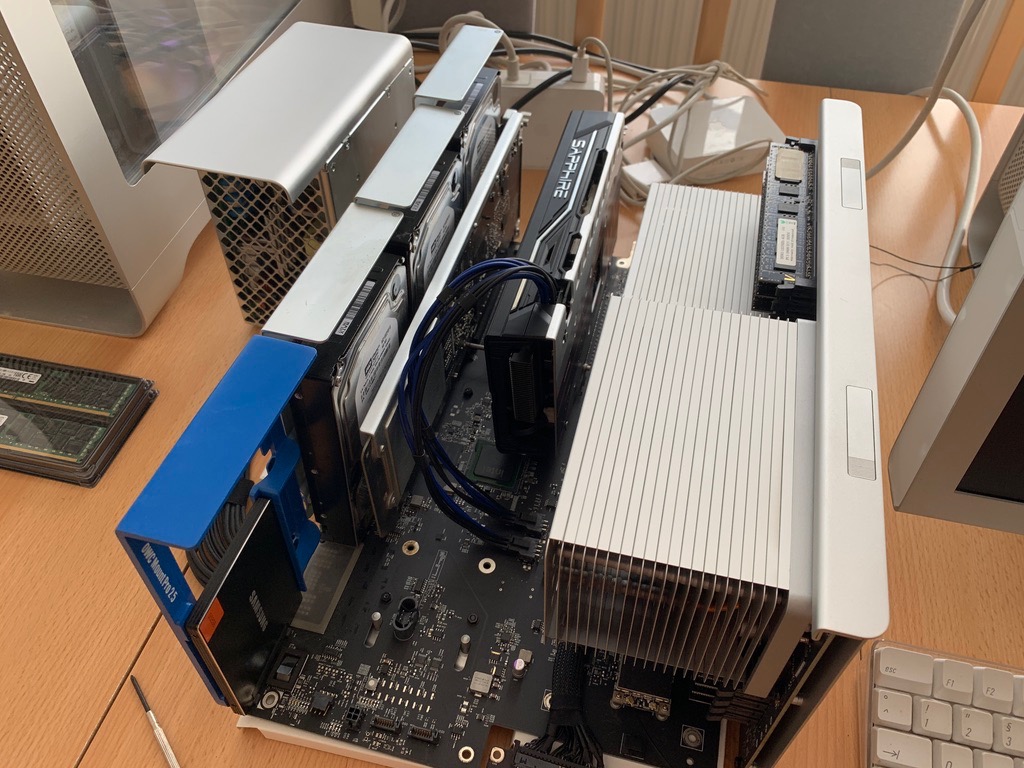

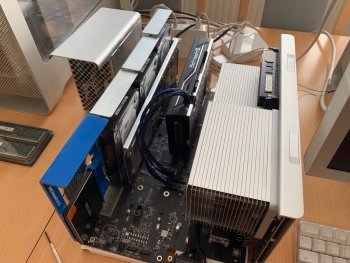

That looks very similar to an open air Mac Pro 1,1 I once had mounted on a thick maple plywood board many years ago . That was when I tested individual used Xeons after purchase , before I realized almost every one worked anyways .
