MP 1,1-5,1 Kernel Panic - Mac Pro 5,1 with OpenCore Patcher

[robotwaffle]

Hello -

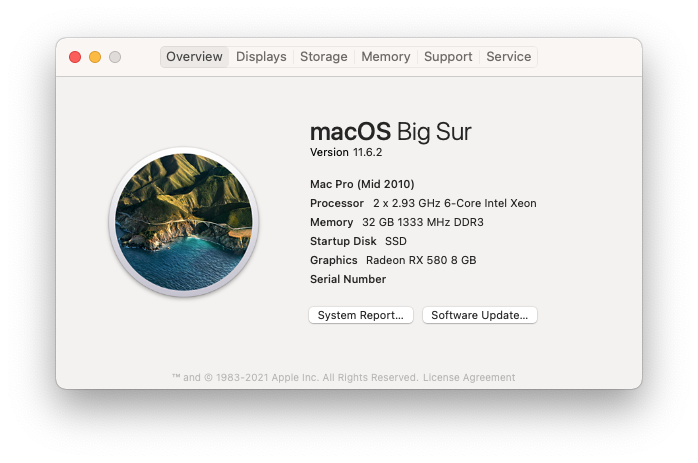

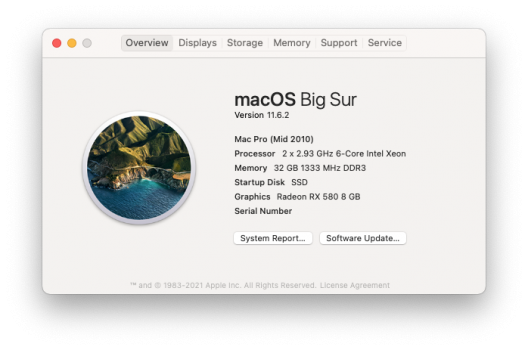

I have a Mac Pro 5,1 2010

Model Name: Mac Pro
Model Identifier: MacPro5,1
Processor Name: 6-Core Intel Xeon
Processor Speed: 2.93 GHz
Number of Processors: 2
Total Number of Cores: 12
L2 Cache (per Core): 256 KB
L3 Cache (per Processor): 12 MB
Hyper-Threading Technology: Enabled
Memory: 32 GB
System Firmware Version: 9144.0.7.6.0
SMC Version (system): 1.39f11
SMC Version (processor tray): 1.39f11
Radeon RX 580
NVME PCI Drive
Inateck PCIe to USB 3.2 Gen 2 Extension Card

I have installed Big Sur using the OpenCore Patcher.

Periodically, the machine will appear as if it has rebooted. I'll come into my office and the screen is at the login screen. I have a UPS power supply and the power has not been disconnected but It will randomly reboot. Yesterday it happened while using the machine. The screen went black, no warning. I was curious if anyone could help me figure out what is going on.

Below is the report.

Kernel Panic.

panic(cpu 14 caller 0xffffff800efd3da7): "IOSCSIPeripheralDeviceType00::setPowerState(0xffffff93714b46c0 : 0xffffff80113ad1cc, 3 -> 2) timed out after 100498 ms"@/System/Volumes/Data/SWE/macOS/BuildRoots/9dc5c14c79/Library/Caches/com.apple.xbs/Sources/xnu/xnu-7195.141.14/iokit/Kernel/IOServicePM.cpp:5382
Backtrace (CPU 14), Frame : Return Address
0xffffffc10a7dbac0 : 0xffffff800e88c26d
0xffffffc10a7dbb10 : 0xffffff800e9d3993
0xffffffc10a7dbb50 : 0xffffff800e9c3f8a
0xffffffc10a7dbba0 : 0xffffff800e830a2f
0xffffffc10a7dbbc0 : 0xffffff800e88ba8d
0xffffffc10a7dbce0 : 0xffffff800e88bd83
0xffffffc10a7dbd50 : 0xffffff800f09c7ba
0xffffffc10a7dbdc0 : 0xffffff800efd3da7
0xffffffc10a7dbe10 : 0xffffff800efd36c9
0xffffffc10a7dbe20 : 0xffffff800efec80e
0xffffffc10a7dbe60 : 0xffffff800efd2448
0xffffffc10a7dbe80 : 0xffffff800e8d2985
0xffffffc10a7dbef0 : 0xffffff800e8d38f4
0xffffffc10a7dbfa0 : 0xffffff800e83013e

Process name corresponding to current thread: kernel_task
Boot args: -lilubetaall -wegbeta agdpmod=pikera shikigva=80 unfairgva=1 mbasd=1 -wegtree -no_compat_check no32exec=0

Mac OS version:
20G314

Kernel version:
Darwin Kernel Version 20.6.0: Wed Nov 10 22:23:07 PST 2021; root:xnu-7195.141.14~1/RELEASE_X86_64
Kernel UUID: C67468D8-72C1-36BC-A0DA-CD5FA852AD32
KernelCache slide: 0x000000000e600000
KernelCache base: 0xffffff800e800000
Kernel slide: 0x000000000e610000
Kernel text base: 0xffffff800e810000
__HIB text base: 0xffffff800e700000
System model name: MacPro5,1 (Mac-7BA5B2D9E42DDD94)
System shutdown begun: NO
Panic diags file available: NO (0xe00002bc)
Hibernation exit count: 0

System uptime in nanoseconds: 9510251508498
Last Sleep: absolute base_tsc base_nano
Uptime : 0x000008a64729bd69
Sleep : 0x00000571bebc52ed 0x0000000098925966 0x0000056316cf7279
Wake : 0x00000571c314a5d2 0x00000000983e82ae 0x00000571c02353b5
last started kext at 6525253894681: @filesystems.msdosfs 1.10 (addr 0xffffff7faa0ba000, size 57344)
last stopped kext at 6836229664299: @filesystems.msdosfs 1.10 (addr 0xffffff7faa0ba000, size 57344)
loaded kexts:
as.vit9696.!AALC 1.6.6
as.vit9696.WhateverGreen 1.5.5
as.vit9696.Lilu 1.5.8
>AGPM 122.1
@filesystems.autofs 3.0
@fsplaceholder 1.14.0
>AudioAUUC 1.70
@fileutil 20.036.15
>!AUpstreamUserClient 3.6.8
>!AMCCSControl 1.14
@kext.AMDFramebuffer 4.0.6
@kext.AMDRadeonServiceManager 4.0.6
>!AMikeyHIDDriver 131
@kext.AMDRadeonX4000 4.0.6
>!AGraphicsDevicePolicy 6.3.5
@AGDCPluginDisplayMetrics 6.3.5
>pmtelemetry 1
|IOUserEthernet 1.0.1
>usb.!UUserHCI 1
>!AHDA 283.15
|IO!BSerialManager 8.0.5d7
>!AMikeyDriver 283.15
@Dont_Steal_Mac_OS_X 7.0.0
>!AHV 1
>!ALPC 3.1
>!ADiskImages2 1
>!AGFXHDA 100.1.433
>ACPI_SMC_PlatformPlugin 1.0.0
>!A!ISlowAdaptiveClocking 4.0.0
@kext.AMD9500!C 4.0.6
>!AFWOHCI 5.7.4
>!ARAID 5.1.0
>!UDisplays 380
|IO!BUSBDFU 8.0.5d7
>!AFileSystemDriver 3.0.1
@filesystems.tmpfs 1
@filesystems.hfs.kext 556.100.11
@BootCache 40
@!AFSCompression.!AFSCompressionTypeZlib 1.0.0
@!AFSCompression.!AFSCompressionTypeDataless 1.0.0d1
|SCSITaskUserClient 436.140.1
@filesystems.apfs 1677.141.2
>!AAHCIPort 346.100.2
>!I82574LEthernet 2.7.2
>AirPort.Brcm4331 800.21.31
@private.KextAudit 1.0
>!ARTC 2.0
>!AHPET 1.8
>!AACPIButtons 6.1
>!ASMBIOS 2.1
>!AACPIEC 6.1
>!AAPIC 1.7
>!A!ICPUPowerManagementClient 222.0.0
@!ASystemPolicy 2.0.0
@nke.applicationfirewall 311
|IOKitRegistryCompatibility 1
|EndpointSecurity 1
>!A!ICPUPowerManagement 222.0.0
@kext.triggers 1.0
>!AHIDKeyboard 224
@kext.AMDRadeonX4000HWLibs 1.0
|IOAccelerator!F2 442.9
@kext.AMDRadeonX4000HWServices 4.0.6
>!AGraphicsControl 6.3.5
>DspFuncLib 283.15
@kext.OSvKernDSPLib 529
|IOSerial!F 11
|IOAVB!F 940.4
|IOEthernetAVB!C 1.1.0
>!ASMBus!C 1.0.18d1
|IONDRVSupport 585.2
>!AHDA!C 283.15
|IOHDA!F 283.15
@plugin.IOgPTPPlugin 985.2
>!ASMBusPCI 1.0.14d1
@!AGPUWrangler 6.3.5
>IOPlatformPluginLegacy 1.0.0
>IOPlatformPlugin!F 6.0.0d8
|IOSlowAdaptiveClocking!F 1.0.0
>!UAudio 405.39
|IOAudio!F 300.6.1
@vecLib.kext 1.2.0
@kext.AMDSupport 4.0.6
@!AGraphicsDeviceControl 6.3.5
|IOGraphics!F 585.2
|IOFireWire!F 4.8.3
>!UHIDMouse 194
>!AHIDMouse 194
|IOAHCIBlock!S 332
>usb.IOUSBHostHIDDevice 1.2
>usb.cdc 5.0.0
>usb.networking 5.0.0
>usb.!UHostCompositeDevice 1.2
|Broadcom!BHost!CUSBTransport 8.0.5d7
|IO!BHost!CUSBTransport 8.0.5d7
|IO!BHost!CTransport 8.0.5d7
>usb.!UHub 1.2
>!ABSDKextStarter 3
|IOSurface 290.8.1
|IOSkywalk!F 1
>mDNSOffloadUserClient 1.0.1b8
@filesystems.hfs.encodings.kext 1
|IOSCSIMultimediaCommandsDevice 436.140.1
|IOBD!S!F 1.8
|IODVD!S!F 1.8
|IOCD!S!F 1.8
|IOAHCISerialATAPI 268
>!AXsanScheme 3
|IOAHCI!F 294.100.1
|IO80211Mojave 1200.12.2
>corecapture 1.0.4
>usb.!UEHCIPCI 1.2
>usb.!UUHCIPCI 1.2
>usb.!UUHCI 1.2
>usb.!UEHCI 1.2
|IONVMe!F 2.1.0
>usb.!UHostPacketFilter 1.0
|IOUSB!F 900.4.2
>usb.!UXHCIPCI 1.2
>usb.!UXHCI 1.2
>!AEFINVRAM 2.1
>!AEFIRuntime 2.1
|IOSMBus!F 1.1
|IOHID!F 2.0.0
$!AImage4 3.0.0
|IOTimeSync!F 985.2
|IONetworking!F 3.4
>DiskImages 493.0.0
|IO!B!F 8.0.5d7
|IOReport!F 47
|IO!BPacketLogger 8.0.5d7
$quarantine 4
$sandbox 300.0
@Kext.!AMatch 1.0.0d1
|CoreAnalytics!F 1
>!ASSE 1.0
>!AKeyStore 2
>!UTDM 511.141.1
|IOUSBMass!SDriver 184.140.2
|IOSCSIBlockCommandsDevice 436.140.1
|IO!S!F 2.1
|IOSCSIArchitectureModel!F 436.140.1
>!AMobileFileIntegrity 1.0.5
@kext.CoreTrust 1
>!AFDEKeyStore 28.30
>!AEffaceable!S 1.0
>!ACredentialManager 1.0
>KernelRelayHost 1
|IOUSBHost!F 1.2
>!UHostMergeProperties 1.2
>usb.!UCommon 1.0
>!ABusPower!C 1.0
>!ASEPManager 1.0.1
>IOSlaveProcessor 1
>!AACPIPlatform 6.1
>!ASMC 3.1.9
|IOPCI!F 2.9
|IOACPI!F 1.4
>watchdog 1
@kec.pthread 1
@kec.corecrypto 11.1
@kec.Libm 1



[tsialex]

There is sleep involved with this crash.

First thing I'd do is to check the BR2032 RTC battery voltage, replace it with another BR2032 if below 3V, CR2032 is not appropriated for this application.

After that, I'd test with a supported Mojave install for some days and see if the crash stops.



[smirk]

@robotwaffle Any update with this? Did replacing the battery help?



[robotwaffle]

@robotwaffle Any update with this? Did replacing the battery help?

I did replaced the battery today.

Things to note, since posting this forum post, I did not have any further issues. One thing worth noting. I noticed that when I used my USB 3 ports, this issue seems to happen.

I have a "Inateck PCIe to USB 3.2 Gen 2 Extension Card with 5 Ports 8 Gbps Bandwidth,No External Power Source Required, RedComets U25" USB-3 Card.

I will try using the USB3 port now heavily and see if it crashes again.

Will update soon...



[nathan_reilly]

I'm also dealing with this Lost some good work yesterday if I can say so myself.
