Heads up to anyone who got a 2016 MacBook Pro and was thinking of connecting via USB-C port to the new LG 38UC99-W. It does not display any image despite being able to power the MacBook and have connected drives appear on the MacBook desktop. Just a black screen. LG offered no solution and simply said it should work via USB-C port. I was able to get the LG to display when using a display cable and USB-C to DisplayPort adapter. The adapter which shall remain nameless barely accomplished the job and the slightest of movement of the cable resulted in loss of display. I also a experienced a complete freeze of the MacBook while connected to the LG. I tried out a few different 34 inch LG models and concluded that a resolution of 3440 x 1400 has an appearance similar to that of my 8 year old Cinema Display. Given this experience I will not be gambling on the plastic, clunky looking LG 4k & 5k displays that are supposedly "made for the mac".

Last edited:

RyanC1384

macrumors member
Nov 24, 2016
89
81
I just ordered this monitor and have heard from others that it works fine. Have you done any troubleshooting?


typecomp

macrumors newbie
Original poster
Nov 28, 2016
10
0
I just ordered this monitor and have heard from others that it works fine. Have you done any troubleshooting?
None was suggested by LG and I returned the monitor. Don't know what to troubleshoot on two new pieces of equipment other than getting another new cable. I am returning the MacBook Pro since no one else makes an ultra wide monitor with C port. Hope yours works. I am going to wait for next update to 5k iMac and get that since sharp text has new appeal after my experiences with LG ultrawides. I also found that having only two inbound USB ports on the monitor is a pain.

Last edited:

Pootmatoot

macrumors 6502a
Nov 17, 2014
614
1,244
None was suggested by LG and I returned the monitor. Don't know what to troubleshoot on two new pieces of equipment other than getting another new cable. I am returning the MacBook Pro since no one else makes an ultra wide monitor with C port. Hope yours works. I am going to wait for next update to 5k iMac and get that since sharp text has new appeal after my experiences with LG ultrawides. I also found that having only two inbound USB ports on the monitor is a pain.

Are you using a "proper" USB-C cable and not the charging cable that came with the Mac? That won't have the bandwidth.

  • Like
Reactions: RyanC1384

typecomp

macrumors newbie
Original poster
Nov 28, 2016
10
0
Are you using a "proper" USB-C cable and not the charging cable that came with the Mac? That won't have the bandwidth.
No sure wasn't and no one at Apple, LG, or Micro Center suggested this was the problem. You would think Apple would have released that information sooner than 11 days ago. They are still telling people that Cinema Displays with mini display port connectors can be used on the new MBP via T3-T2 connector. Which it can't. And, as I just found out as I am writing this, Apple is still telling people their charge cable can connect to monitors for display purposes.

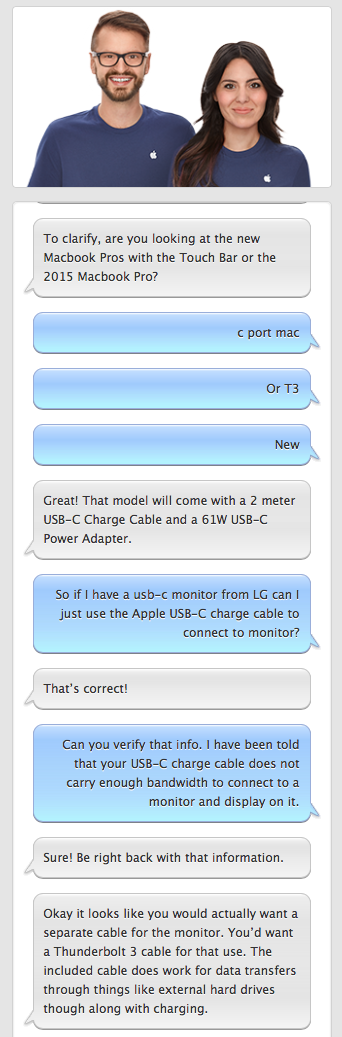

chat log.png


Pootmatoot

macrumors 6502a
Nov 17, 2014
614
1,244
No sure wasn't and no one at Apple, LG, or Micro Center suggested this was the problem. You would think Apple would have released that information sooner than 11 days ago. They are still telling people that Cinema Displays with mini display port connectors can be used on the new MBP via T3-T2 connector. Which it can't. And, as I just found out as I am writing this, Apple is still telling people their charge cable can connect to monitors for display purposes.

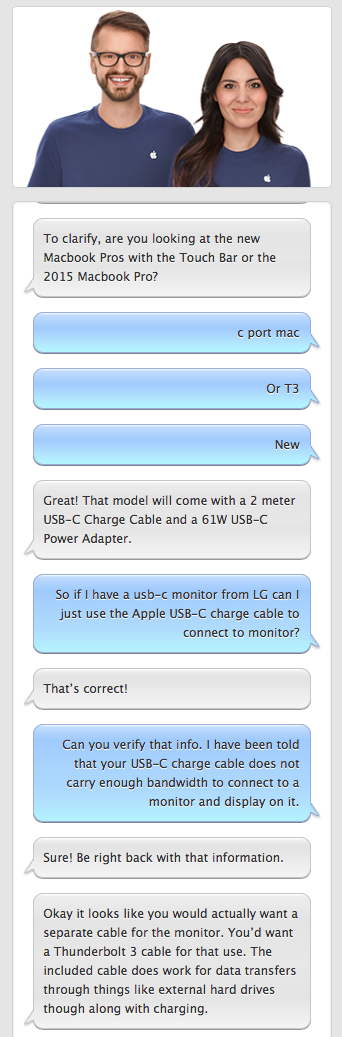

View attachment 675188

It might not be the case - I've not used that specific monitor - I just know it's certainly an issue with similar devices.

Welcome to the world of USB-C! The water's warm! And chaotic!


typecomp

macrumors newbie
Original poster
Nov 28, 2016
10
0
It might not be the case - I've not used that specific monitor - I just know it's certainly an issue with similar devices.

Welcome to the world of USB-C! The water's warm! And chaotic!
Thanks for the welcome but I am leaving C-world and will be looking forward to an iMac when they revamp those.


Pootmatoot

macrumors 6502a
Nov 17, 2014
614
1,244
Thanks for the welcome but I am leaving C-world and will be looking forward to an iMac when they revamp those.

Heh, I won't be buying a USB-C only device for many years, I suspect. Apple have lost me this cycle: I'll be getting an XPS when they refresh in January.


RyanC1384

macrumors member
Nov 24, 2016
89
81
Is it a 13 or a 15? If it's a 13 you may have to plug it in the left ports only for it to work....

This could be the case, I have read that 2 of the USB-C ports on the 13" MacBook Pro with Touch Bar are not as fast as the other two.

I understand your frustration, but it sounds to me like you've thrown in the towel a bit prematurely.


typecomp

macrumors newbie
Original poster
Nov 28, 2016
10
0
This could be the case, I have read that 2 of the USB-C ports on the 13" MacBook Pro with Touch Bar are not as fast as the other two.

I understand your frustration, but it sounds to me like you've thrown in the towel a bit prematurely.
Yes I regret not trying LGs cable which would have solved the problem. On the other hand I now realize that I value resolution over screen real estate and believe I will apreciate a 5k monitor over an ultra wide.


Kiddomac

macrumors newbie
Jan 3, 2017
3
0
i had the same problem at first, but then somehow it upgraded to flickering picture. i tested around for 2 hours or so getting increasingly frustrated, now i have a stable 60 Hz picture with the lg usb-c cable. the trick was to also connect the macbook to an outlet, as far as i can tell.

can anyone here confirm this?


AlpineAddict

macrumors newbie
Aug 16, 2017
6
3
Hi Folks...
Ive just caught up with this thread, as I'm having similar difficulties with connectivity of the LG 38" monitor and my 2017 MacBook Pro. I have used the USB C cable, supplied with LG monitor, direct to the MBP and it seems to work ok, BUT the cable supplied with the MBP does NOT work... Haven't checked the theory of 2 ports on one side being faster then the other 2 ports... However, I want hard wired internet, so I bought a dock (Belkin Thunderbolt 3 express dock).

This dock 'should' work with all monitors. I have plugged MBP to dock with LG supplied USB C lead, and dock to Monitor with Belkin USB C lead... The monitor does NOT work, at all... it actually renders the whole dock inactive and shuts it down to standby...

I then tried connecting the Monitor to the dock with LG supplied DisplayPort lead, and then dock to MBP with LG Supplied USB C lead and all is good in the hood...

I called Belkin to find out why the USB C lead would not work for all connectivity and they said, after looking at the tech spec for the LG monitor, that the USB C port on the monitor is not an 'actual' USB C port for purposes of connecting to, like I was, and that it was purely for charging etc. ... Funny as it worked before when I had the MBP direct to the monitor...!!!!!! They said the port did not have enough transfer speed...?????? Not sure I believe that tbh...

I know very little about this, but am desperate to find out why I can't use USB C from the screen to the dock...

I have today sent the dock back, as it could be faulty (due to it not detecting speakers at all, via either of the audio ports)... I am waiting for a replacement, next week, so I'll see what the outcome is...

I'd also be interested to know (from anyone with this screen) if it's possible to connect an ethernet cable, via an adapter, through the monitor to get hard wired internet... Would save me £300 on the bloody dock...!!!

Thx y'all...


Claywd

macrumors newbie
Nov 9, 2012
24
0
I'd also be interested to know (from anyone with this screen) if it's possible to connect an ethernet cable, via an adapter, through the monitor to get hard wired internet... Would save me £300 on the bloody dock...!!!

Thx y'all...

That got me thinking.... so I tried it out and yeah it works. I actually hooked up the startech usb.30 hub that includes an ethernet adapter and two usb3.0 ports. got like $20. pretty sweet now that my monitor is a dock. :)


Claytonious

macrumors newbie
Aug 2, 2018
1
0
I just got this working correctly with a 15" Macbook Pro 2017 with touchbar. It wasn't working for quite a while, but simply plugging the USB-C cable into a different port on the MBP made the beautiful image suddenly appear on the monitor and now all's well. I *am* using the included, provided cable from LG that came with the monitor.

It's also powering the MBP just by being plugged into the display.

Good stuff.


insats

macrumors newbie
Oct 9, 2018
1
0
A little late to the party here, but I'm looking to buy the LG 34UC99-W to use with my 12" MB (2017).

  1. Will I need another USB-C cable than the one that came with the charger (as mentioned elsewhere here)?
  2. If so, how do I know which type of USB-C cable to get? There seems to be a lot of different types
  3. Will the Macbook charge while connected to the monitor?


ajiuo

macrumors 65816
Apr 9, 2011
1,129
641
I just got this working correctly with a 15" Macbook Pro 2017 with touchbar. It wasn't working for quite a while, but simply plugging the USB-C cable into a different port on the MBP made the beautiful image suddenly appear on the monitor and now all's well. I *am* using the included, provided cable from LG that came with the monitor.

It's also powering the MBP just by being plugged into the display.

Good stuff.

How well does this actual charge and power the 15” MBP? I’ve heard it only has a 60W charger witch is fine for the 13, but the 15 uses an 87w power supply. Wouldn’t only using 60w slow down charging and/or throttle the performance of the MBP.


hmoazed

macrumors newbie
Jun 24, 2012
4
1
Heads up to anyone who got a 2016 MacBook Pro and was thinking of connecting via USB-C port to the new LG 38UC99-W. It does not display any image despite being able to power the MacBook and have connected drives appear on the MacBook desktop. Just a black screen. LG offered no solution and simply said it should work via USB-C port. I was able to get the LG to display when using a display cable and USB-C to DisplayPort adapter. The adapter which shall remain nameless barely accomplished the job and the slightest of movement of the cable resulted in loss of display. I also a experienced a complete freeze of the MacBook while connected to the LG. I tried out a few different 34 inch LG models and concluded that a resolution of 3440 x 1400 has an appearance similar to that of my 8 year old Cinema Display. Given this experience I will not be gambling on the plastic, clunky looking LG 4k & 5k displays that are supposedly "made for the mac".

Hi, I'm sorry you had such a bad experience. It can be frustrating when an Apple product doesn't "just work", since we're used to everything always working :)
The problem you're having has to do with the cable. You need a high-bandwidth cable. Not all USB-C cables are the same. Some support just USB 2.0 speeds, some USB 3.0, and the "Thunderbolt 3" versions have 20 Mb/s and 40 Mb/s speeds. Since this monitor has such a high resolution, you need the higher bandwidth cable to display video with. This has nothing to do with Apple, MacBook, or the LG monitor, it is just how USB-C and Thurderbolt work.

USB-C has become the new industry standard across all devices and vendors, from Dell to Apple, from MacBooks to the new iPad Pros. A single connector so you don't have to buy and carry 20 different cables. It is a great idea. Now, a high-bandwidth cable is much more expensive to manufacture, a 2m 40 Mb/s cable sells for as much as $80 on Amazon today, so if ALL cables were to be high-bandwidth, it would be prohibitively expensive. There are cheaper cables for charging, or for slower data transfer, and more expensive ones for UHD video. I just wish this was made more clear, I had no idea myself and was disappointed to see a blank screen when I attached my monitor to my new MacBook Air this morning. But a quick google search showed me I need a high-bandwidth cable which I just ordered.

I'm sure this is just USB-C's growing pains. Bottom line is that the entire industry is finally moving to a single cable - for charging, data transfer, display, audio, etc., which will ultimately benefit all users. The days when your friend couldn't charge his/her device (whatever it was - laptop, phone, etc.) at your place, or connect their device to your monitor etc. will soon be over.
