I tried three thunderbolt docks with m1 max and they all have these problem

Problem 1:
When dock connected and restarting the mac causes the magsafe to stay amber.

Docks having this problem : Amazon Thunderbolt Dock, Caldigit TS3 Plus Dock
Docks without this problem: Anker 13 in 1 Dock

Problem2:
Ethernet chipset is realtek and the speed is capped at 700 Mbps

Docks having this problem: Amazon Thunderbolt Dock, Anker 13 in 1 Thunderbolt Dock
Docks without this problem: Caldigit ts3 plus

Can anyone please suggest a dock that dos not have above mentioned problem. I am expecting 1 display port or hdml, 1 tb3 port, 1 usb c port, ethernet port and usb a ports.

Thanks


Donsell

macrumors member
Feb 19, 2021
67
51
Are you using Magsafe and the doc at the same time? I'm not sure how the Mac handles two power sources at the same time.


rbmanian75

macrumors member
Original poster
Mar 6, 2009
76
4
Are you using Magsafe and the doc at the same time? I'm not sure how the Mac handles two power sources at the same time.

yes i am using both at the same time. The mac gets the power from magsafe only and it is not using the docks pd. I can confirm this in the system report. i am using mag safe because it is 140W and the docks PD is limited to 100 W max.


beach bum

macrumors demi-goddess
Oct 6, 2011
8,820
31,029
Philly
I have the Caldigit TS3 Plus dock and only have the one cable running from the dock to the MBP to charge at 87W. There really is no reason to use the MagSafe charger at the same time unless you are running really intensive tasks or charging additional externals at the same time.


rbmanian75

macrumors member
Original poster
Mar 6, 2009
76
4
You want a Thunderbolt 4 powered Dock! Everyone seems to love the Caldigit Thunderbolt 4 Element Hub!

Here is video on it:

It does not have ethernet port. I doubt if i connect usb ethernet dongle to this dock will it give full 1gbps speed? I dount this because when i connected the usb ethernet dongle to ts3 plus usb port the speed was capped at 700 mbps. I am not sure how this one behaves


rbmanian75

macrumors member
Original poster
Mar 6, 2009
76
4
I have the Caldigit TS3 Plus dock and only have the one cable running from the dock to the MBP to charge at 87W. There really is no reason to use the MagSafe charger at the same time unless you are running really intensive tasks or charging additional externals at the same time.

battery charges fast with magsafe 140 W. with 87w it charges slow. that is the reason i would like to hook up magsafe always.


beach bum

macrumors demi-goddess
Oct 6, 2011
8,820
31,029
Philly
battery charges fast with magsafe 140 W. with 87w it charges slow. that is the reason i would like to hook up magsafe always.
Are you using your MBP docked or are you portable? Did you turn off Optimized Battery Charging?

If docked, fast charging vs slow really shouldn’t be an issue. If you are fast charing and portable, then that is another story.


rbmanian75

macrumors member
Original poster
Mar 6, 2009
76
4
Are you using your MBP docked or are you portable? Did you turn off Optimized Battery Charging?

If docked, fast charging vs slow really shouldn’t be an issue. If you are fast charing and portable, then that is another story.

yes i tried turning off optimized batttery charging and it does not help. i do want fast charging and portable. in either case the magsafe should not turn amber when it restarts. may be a problem with mac or dock i dont know. because this problem does not happen in anker 13 in 1 dock.


Buckehteadron

macrumors newbie
Dec 4, 2020
7
6
I tried three thunderbolt docks with m1 max and they all have these problem

Problem 1:
When dock connected and restarting the mac causes the magsafe to stay amber.

Docks having this problem : Amazon Thunderbolt Dock, Caldigit TS3 Plus Dock
Docks without this problem: Anker 13 in 1 Dock

Problem2:
Ethernet chipset is realtek and the speed is capped at 700 Mbps

Docks having this problem: Amazon Thunderbolt Dock, Anker 13 in 1 Thunderbolt Dock
Docks without this problem: Caldigit ts3 plus

Can anyone please suggest a dock that dos not have above mentioned problem. I am expecting 1 display port or hdml, 1 tb3 port, 1 usb c port, ethernet port and usb a ports.

Thanks
Hmmm.

Problem 1 may not really be a problem.

I noticed this on my 16" M1 Max Macbook Pro and simply pulling the magsafe off and then immediately reattaching it makes the light go to green if you're at 100% charge. Even after a restart, the color goes to amber even if you are at 100% charge. Apple will have to fix that if they care to, but its not a big deal. I'm using two docs actually, one connected to the other. I'm using the Caldigit Thunderbolt 4 Element Hub (https://www.caldigit.com/thunderbolt-4-element-hub/) which adds 3 additional TB4 ports and 4 USB 3.1 Gen 2 USB-A ports. I then connect that to a Wavlink Universal 5K USB-C/A Laptop Docking Station (https://www.newegg.com/black-wavlink-69dk1/p/1DN-0023-00014?Item=9SIA6PF5SY3895) which adds another 6 USB-A ports as well as 2 DisplayPort ports and 2 HDMI ports as well as audio and Gigabit Ethernet.

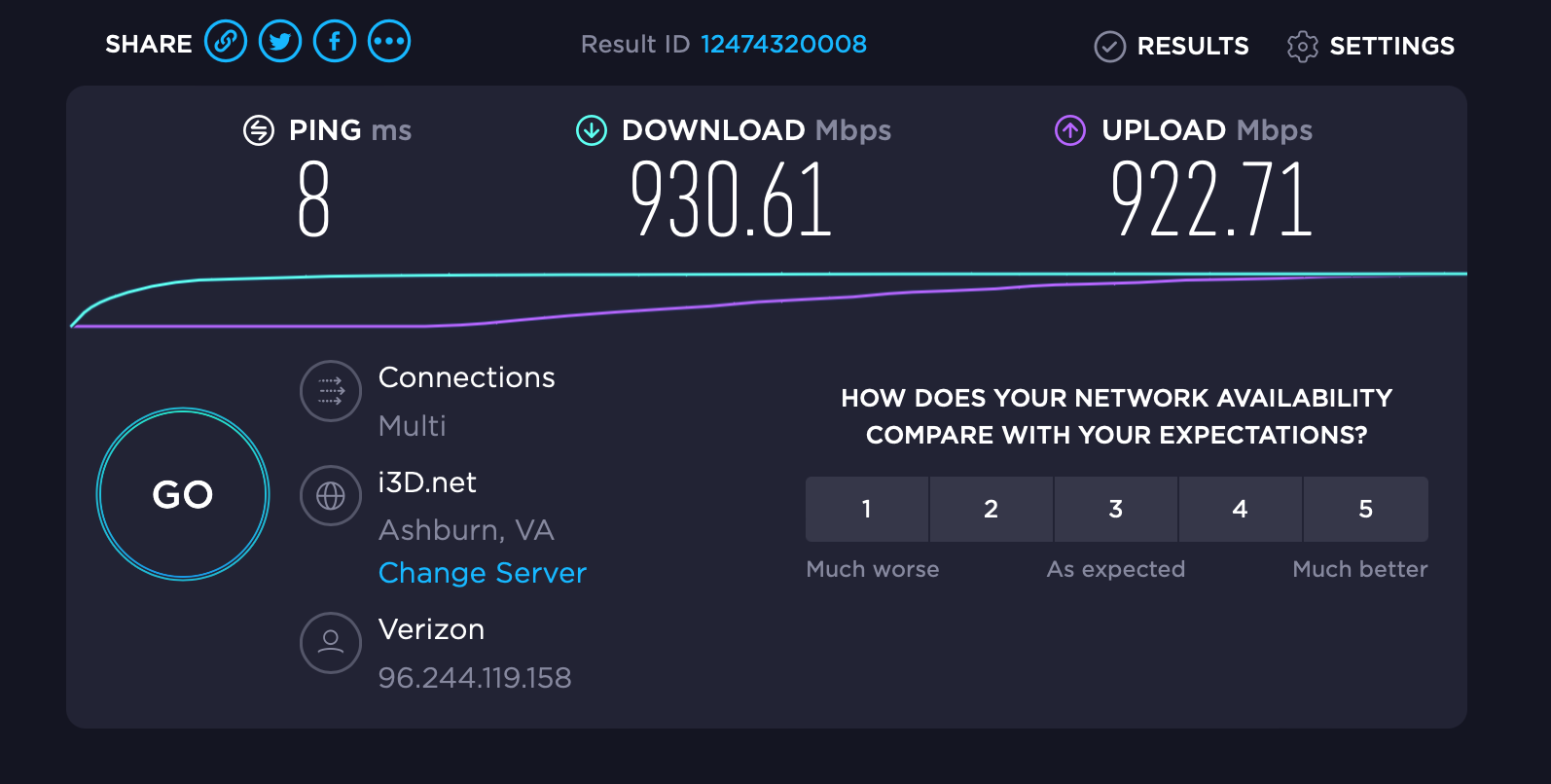

Problem 2. This brings me to problem 2. Ethernet on this secondary dock works pretty well. I've enclosed a speed test to show what I routinely get. I bought this on sale during Black Friday for $99. It's still on sale at Newegg for about $112 which is still about $40 less than Amazon. I am on Verizon FIOS Gigabit internet service which supports 960 Mbps downloads by 840 Mbps uploads.


Attachments

  • Screen Shot 2021-12-15 at 8.31.53 PM.png
    Screen Shot 2021-12-15 at 8.31.53 PM.png
    187 KB · Views: 121

rbmanian75

macrumors member
Original poster
Mar 6, 2009
76
4
Hmmm.

Problem 1 may not really be a problem.

I noticed this on my 16" M1 Max Macbook Pro and simply pulling the magsafe off and then immediately reattaching it makes the light go to green if you're at 100% charge. Even after a restart, the color goes to amber even if you are at 100% charge. Apple will have to fix that if they care to, but its not a big deal. I'm using two docs actually, one connected to the other. I'm using the Caldigit Thunderbolt 4 Element Hub (https://www.caldigit.com/thunderbolt-4-element-hub/) which adds 3 additional TB4 ports and 4 USB 3.1 Gen 2 USB-A ports. I then connect that to a Wavlink Universal 5K USB-C/A Laptop Docking Station (https://www.newegg.com/black-wavlink-69dk1/p/1DN-0023-00014?Item=9SIA6PF5SY3895) which adds another 6 USB-A ports as well as 2 DisplayPort ports and 2 HDMI ports as well as audio and Gigabit Ethernet.

Problem 2. This brings me to problem 2. Ethernet on this secondary dock works pretty well. I've enclosed a speed test to show what I routinely get. I bought this on sale during Black Friday for $99. It's still on sale at Newegg for about $112 which is still about $40 less than Amazon. I am on Verizon FIOS Gigabit internet service which supports 960 Mbps downloads by 840 Mbps uploads.

We are paying premium for this computer as a consumer and i expect to be without annoying issues like magsafe staying amber

for me the max ethernet speed i get is capped at 700mbps with the docks i mentioned above. may be you dont have the issue because you are using a thunderbolt 4 dock. where as with the same dock in windows/linux i get 950 mbps. seems to be problem with apple hardware/software. i am trying to find a dock that goes well m1 max.


ekwipt

macrumors 65816
Jan 14, 2008
1,069
362
You want two docks a thunderbolt 4 and a thunderbolt 3 dock.

I'm using a OWC Thunderbolt 4 and a
Belkin Thunderbolt 3 Express Dock HD

the Belkin dock has a Intel Ethernet


The good thing about this combo is it's all daisy chained through one another to one thunderbolt port that also charges

Last edited:

Buckehteadron

macrumors newbie
Dec 4, 2020
7
6
We are paying premium for this computer as a consumer and i expect to be without annoying issues like magsafe staying amber

for me the max ethernet speed i get is capped at 700mbps with the docks i mentioned above. may be you dont have the issue because you are using a thunderbolt 4 dock. where as with the same dock in windows/linux i get 950 mbps. seems to be problem with apple hardware/software. i am trying to find a dock that goes well m1 max.
The Wavlink I have is not a Thunderbolt 4 dock, it's just a USB 3.1 Gen 2 USB-C dock with ethernet. Docks differ in the way they behave, unfortunately. I'll have to run a test with another dock I have access to that you have, the Caldigit T3 to see if it works for me as yours did. I generally only use it with an M1 Mac Mini and I don't use the ethernet port on it at all.


rbmanian75

macrumors member
Original poster
Mar 6, 2009
76
4
The Wavlink I have is not a Thunderbolt 4 dock, it's just a USB 3.1 Gen 2 USB-C dock with ethernet. Docks differ in the way they behave, unfortunately. I'll have to run a test with another dock I have access to that you have, the Caldigit T3 to see if it works for me as yours did. I generally only use it with an M1 Mac Mini and I don't use the ethernet port on it at all.

i have speed problems with docks having realtek chipset ethernet port. intel chipset ethernet docks like ts3 plus are maxing out the speeds.


ekwipt

macrumors 65816
Jan 14, 2008
1,069
362
Apple doesn’t use Realtek in any of their products, They don't have any drivers in MacOS and the Realtek driver isn't supported by Monterey.


PCIe Driver Support​

Currently in macOS Big Sur/Monterey, there are 3 PCIe Ethernet Vendors natively supported. Besides the Intel8254X driver, all other drivers in macOS natively support both Intel and Apple Silicon machines:

  • Drivers can be found under /System/Library/Extensions/IONetworkingFamily.kext/Contents/PlugIns/

VendorDriverSupported ArchitecturesHardware
IntelAppleIntel8254XEthernet.kextx86_6480003ES2LAN, 82545EM, 82571EB/82571GB
IntelAppleIntelI210Ethernet.kextx86_64, arm64ei210, i225
IntelIntel82574L.kextx86_64, arm64e82574L, 82566DC
BroadcomAppleBCM5701Ethernet.kextx86_64, arm64e5764M, 57761, 57762, 57765, 57766
AquantiaAppleEthernetAquantiaAqtion.kextx86_64, arm64eAQC107, AQC113


rbmanian75

macrumors member
Original poster
Mar 6, 2009
76
4
Apple doesn’t use Realtek in any of their products, They don't have any drivers in MacOS and the Realtek driver isn't supported by Monterey.


PCIe Driver Support​

Currently in macOS Big Sur/Monterey, there are 3 PCIe Ethernet Vendors natively supported. Besides the Intel8254X driver, all other drivers in macOS natively support both Intel and Apple Silicon machines:

  • Drivers can be found under /System/Library/Extensions/IONetworkingFamily.kext/Contents/PlugIns/

VendorDriverSupported ArchitecturesHardware
IntelAppleIntel8254XEthernet.kextx86_6480003ES2LAN, 82545EM, 82571EB/82571GB
IntelAppleIntelI210Ethernet.kextx86_64, arm64ei210, i225
IntelIntel82574L.kextx86_64, arm64e82574L, 82566DC
BroadcomAppleBCM5701Ethernet.kextx86_64, arm64e5764M, 57761, 57762, 57765, 57766
AquantiaAppleEthernetAquantiaAqtion.kextx86_64, arm64eAQC107, AQC113


The realtek ethernet usb dongles when directly connected to mac they give max speed and does not have any problem in monterey 12.1. I am using this way now.

The speed capping only happens in realtek ethernet ports present in thunderbolt docks.

the driver is
Driver: com.apple.DriverKit.AppleUserECM

  • Like
Reactions: ekwipt

ekwipt

macrumors 65816
Jan 14, 2008
1,069
362
The realtek ethernet usb dongles when directly connected to mac they give max speed and does not have any problem in monterey 12.1. I am using this way now.

The speed capping only happens in realtek ethernet ports present in thunderbolt docks.

the driver is
Driver: com.apple.DriverKit.AppleUserECM

so it might be how this driver handles the offloading, it goes through the USB chipset rather than directly through pcie and doesn't have enough bandwidth when other devices are plugged into it (via thunderbolt) and that’s why plugging it directly in aleviates the problem

Why PCIe over USB​

With macOS, Apple generally prioritizes PCIe devices over USB for better driver support as drivers are written explicitly for them (see next section). Whereas with USB, Apple writes semi-generic drivers based off USB CDC (Controller Device Class). As of Monterey, the following are supported:

  • ACM: Abstract Control Model
  • DMM: Device Management Model
  • ECM: RNDIS, Ethernet Control Model
  • EEM: Ethernet Emulation Model
  • NCM: Network Control Model
  • WCM: (WebCaM) Device Management Model
Additionally PCIe NICs generally offload much of the compute task from the CPU onto the on-board controller, giving your system some headroom during bandwidth intensive tasks. Compare this to USB, much of the compute task is still on the CPU side.

  • Note 1: Not all USB Ethernet devices are supported in macOS (namely AX88179) however the vast majority are thanks to this generic driver struture.
  • Note 2: Apple may sometimes have additional support for certain USB Ethernet controllers via add-on drivers such as AppleUSBRealtek8153Patcher.kext
Finally the most noticable issue with USB NICs is that they share bandwidth with the rest of your USB devices on the same controller. USB 3.0 for example has a shared bandwidth of 5Gbps, and when you have a dock with multiple devices plugged in, that takes up precious resources:

DeviceBandwidthNotes
USB to SATA HDD3GbpsLower end HDD (SATA 2 speeds)
USB to SATA SSD5GbpsSATA 3 SSD (capped at USB 3.0)
USB Ethernet NIC1GbpsStandard 1Gbe
USB Capture Card5Gbps
TOTAL14Gbps
As you can see, devices will be strained for bandwidth as we’re exceeding the 5Gbps bandwidth allowed under USB 3.0. Removing devices from this chain can greatly alliviate contrains, allowing your NIC to run without comprimise as well as allowing other USB devices to run faster.
