M1 Max to Displayport correct cable

D

dhmiller

macrumors newbie
Original poster
Feb 7, 2022
9
1

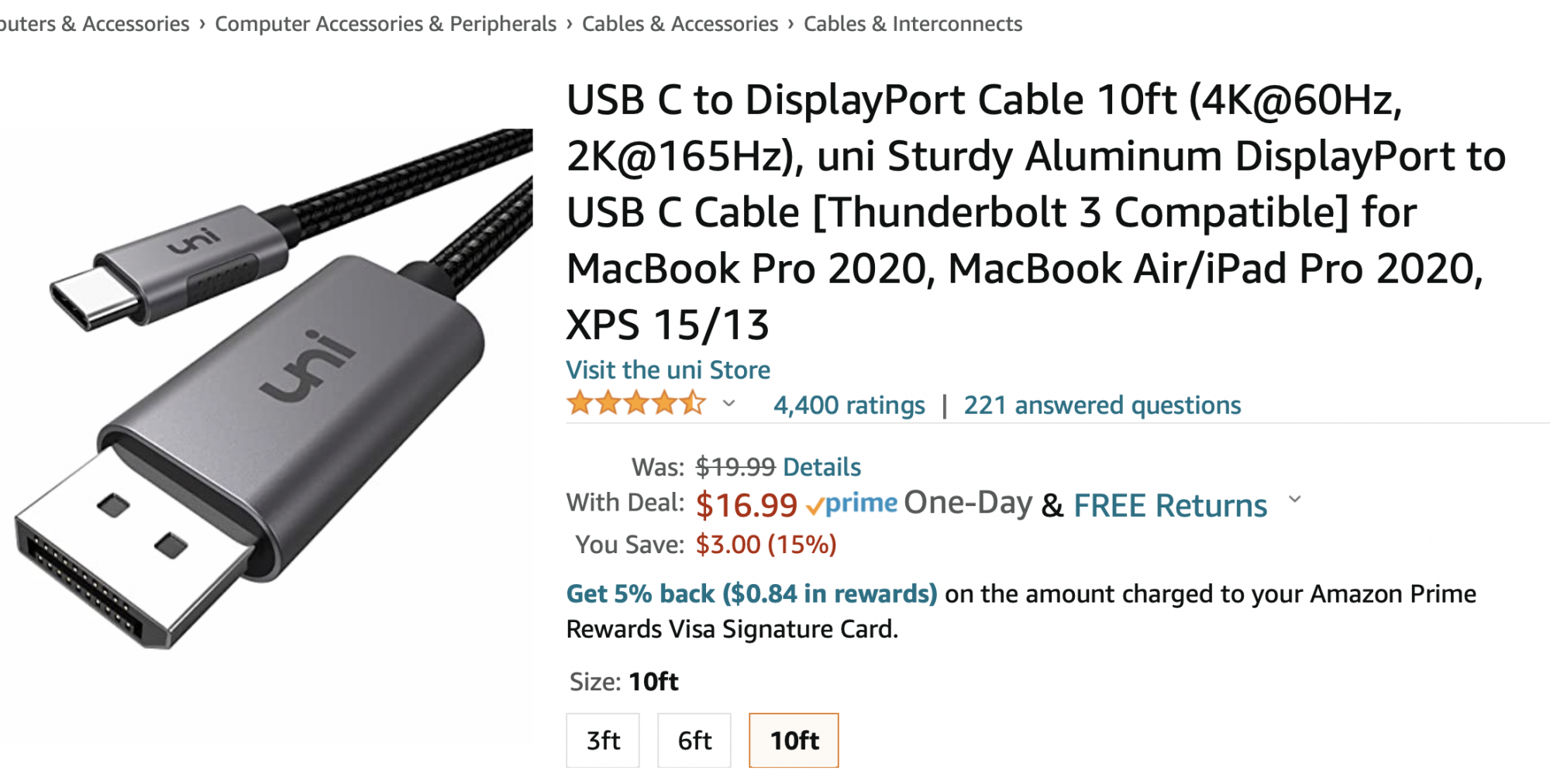

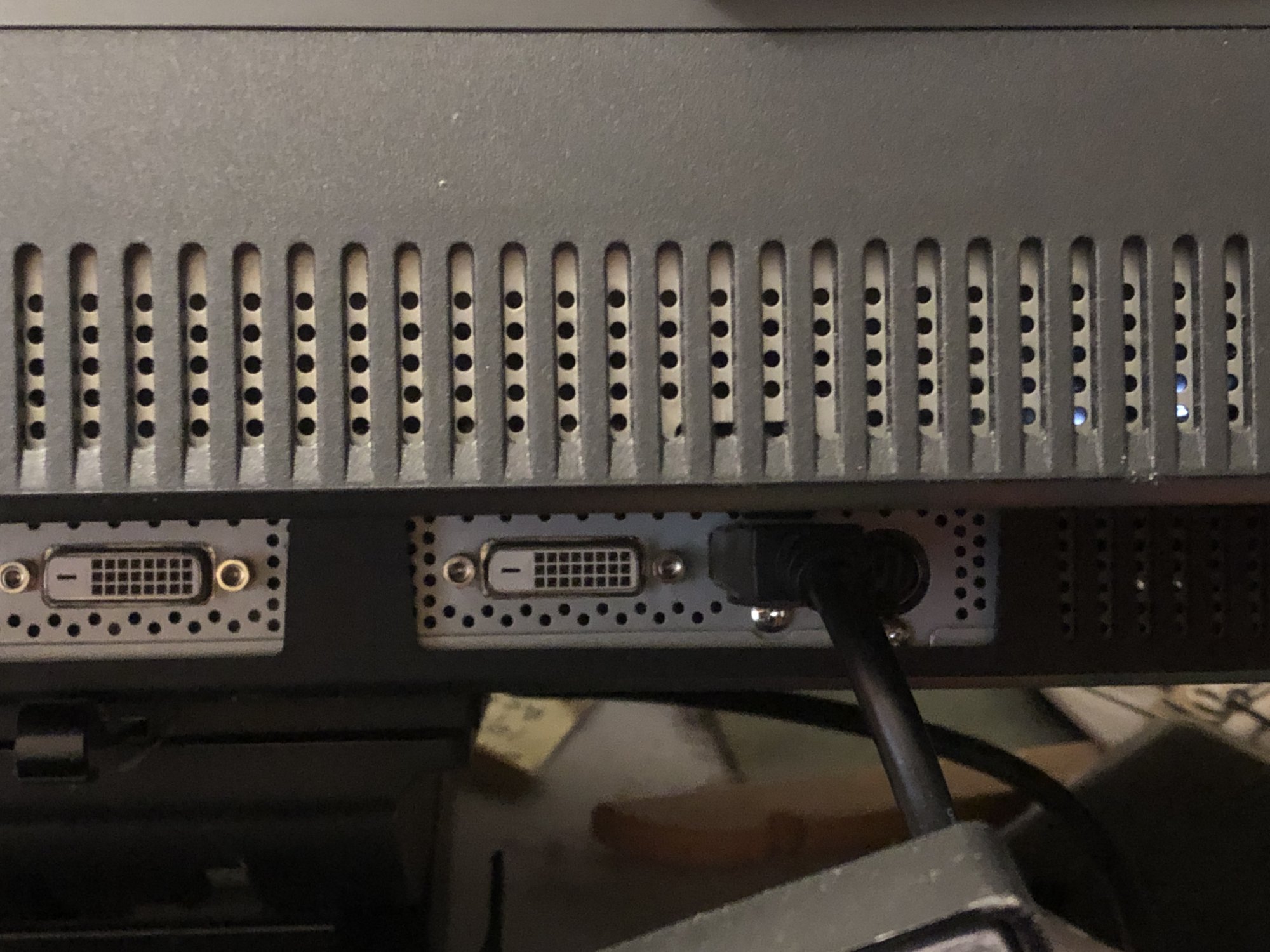

I need to connect my M1 Max to a 6 year old NEC Multi sync display. The cables I'm seeing at Amazon and elsewhere do not have the same adapter as the ports on my machine, shown below. Aren't these the two ports Displayports? If so, what am I missing? amazom DP ports.pngIMG_7804.JPG

Converting from USB-C to DVI requires an active adapter, which means you want a high quality adapter.

You can purchase this adapter and use a DVI cable. Your monitor has a pair of DVI ports.

www.amazon.com

Cable Matters USB C to DVI Adapter (USB-C to DVI Adapter) in Black - Thunderbolt 4 / USB4 / Thunderbolt 3 Port Compatible with MacBook Pro, Dell XPS 13, 15, HP Spectre x360, Surface Pro and More

Cable Matters USB C to DVI Adapter (USB-C to DVI Adapter) in Black - Thunderbolt 4 / USB4 / Thunderbolt 3 Port Compatible with MacBook Pro, Dell XPS 13, 15, HP Spectre x360, Surface Pro and More
www.amazon.com

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
  • Like
Reactions: jdb8167
Looks like there are multiple options Would any one be better than the other? And how about just a

DisplayPort to DVI Adapter? But that's probably not active. Thanks for the help.​


Last edited:



JPack said:
Converting from USB-C to DVI requires an active adapter, which means you want a high quality adapter.

You can purchase this adapter and use a DVI cable. Your monitor has a pair of DVI ports.

www.amazon.com

Cable Matters USB C to DVI Adapter (USB-C to DVI Adapter) in Black - Thunderbolt 4 / USB4 / Thunderbolt 3 Port Compatible with MacBook Pro, Dell XPS 13, 15, HP Spectre x360, Surface Pro and More

Cable Matters USB C to DVI Adapter (USB-C to DVI Adapter) in Black - Thunderbolt 4 / USB4 / Thunderbolt 3 Port Compatible with MacBook Pro, Dell XPS 13, 15, HP Spectre x360, Surface Pro and More
www.amazon.com
Click to expand...

Last edited:
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
Last edited:
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
JPack said:
Converting from USB-C to DVI requires an active adapter, which means you want a high quality adapter.

You can purchase this adapter and use a DVI cable. Your monitor has a pair of DVI ports.

www.amazon.com

Cable Matters USB C to DVI Adapter (USB-C to DVI Adapter) in Black - Thunderbolt 4 / USB4 / Thunderbolt 3 Port Compatible with MacBook Pro, Dell XPS 13, 15, HP Spectre x360, Surface Pro and More

Cable Matters USB C to DVI Adapter (USB-C to DVI Adapter) in Black - Thunderbolt 4 / USB4 / Thunderbolt 3 Port Compatible with MacBook Pro, Dell XPS 13, 15, HP Spectre x360, Surface Pro and More
www.amazon.com
Click to expand...
Using an active adapter is always a risk. Using HDMI to DVI adapter does not require active / transcoding. It's essentially the same signal (except that DVI does not carry sound). A simple cable like this should work fine on all new MacBook pros with an HDMI port. EDIT: with the link: https://www.amazon.com/Amazon-Basics-Adapter-Cable-1-Pack/dp/B014I8UQJY/

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
dhmiller said:

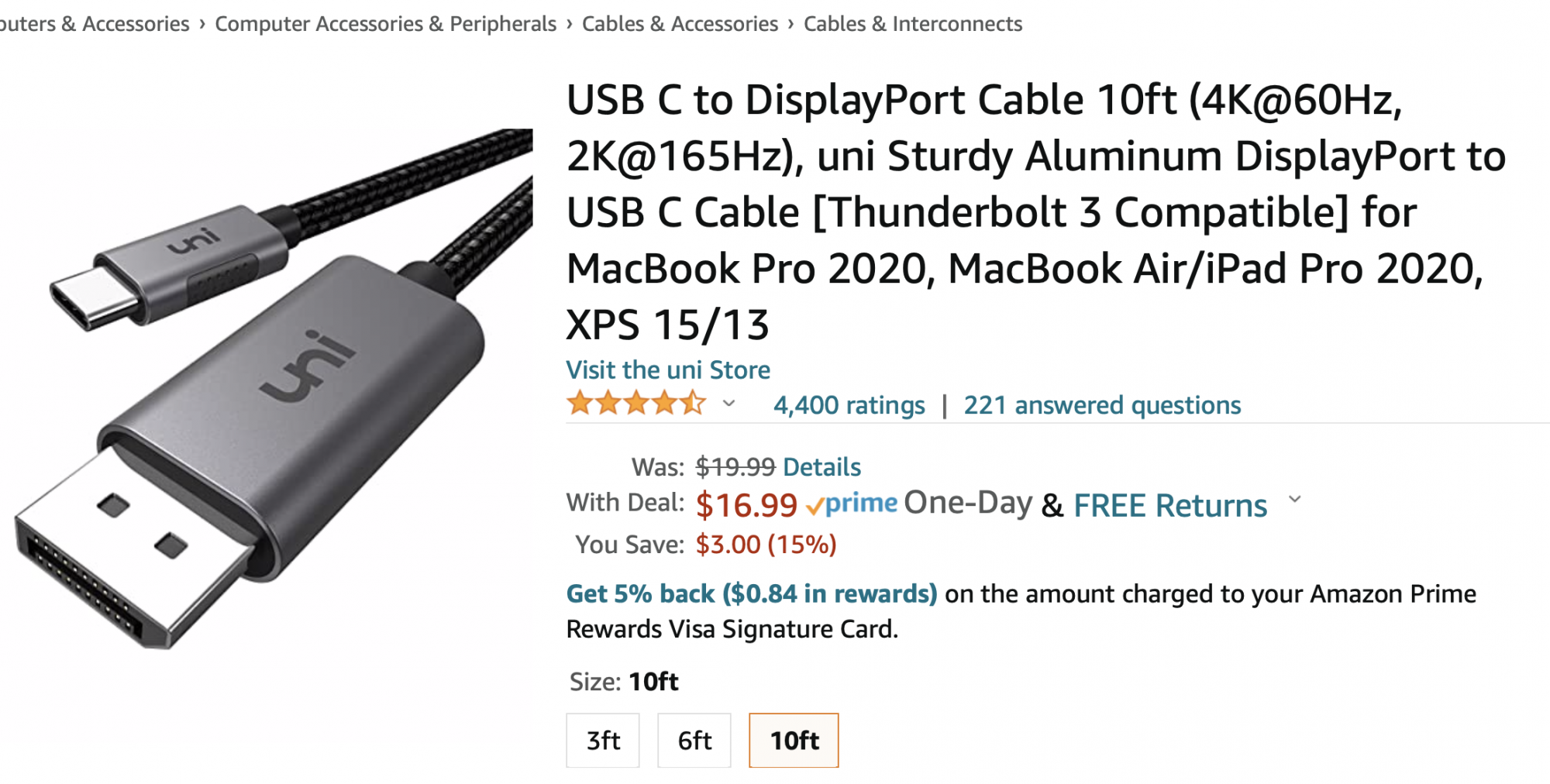

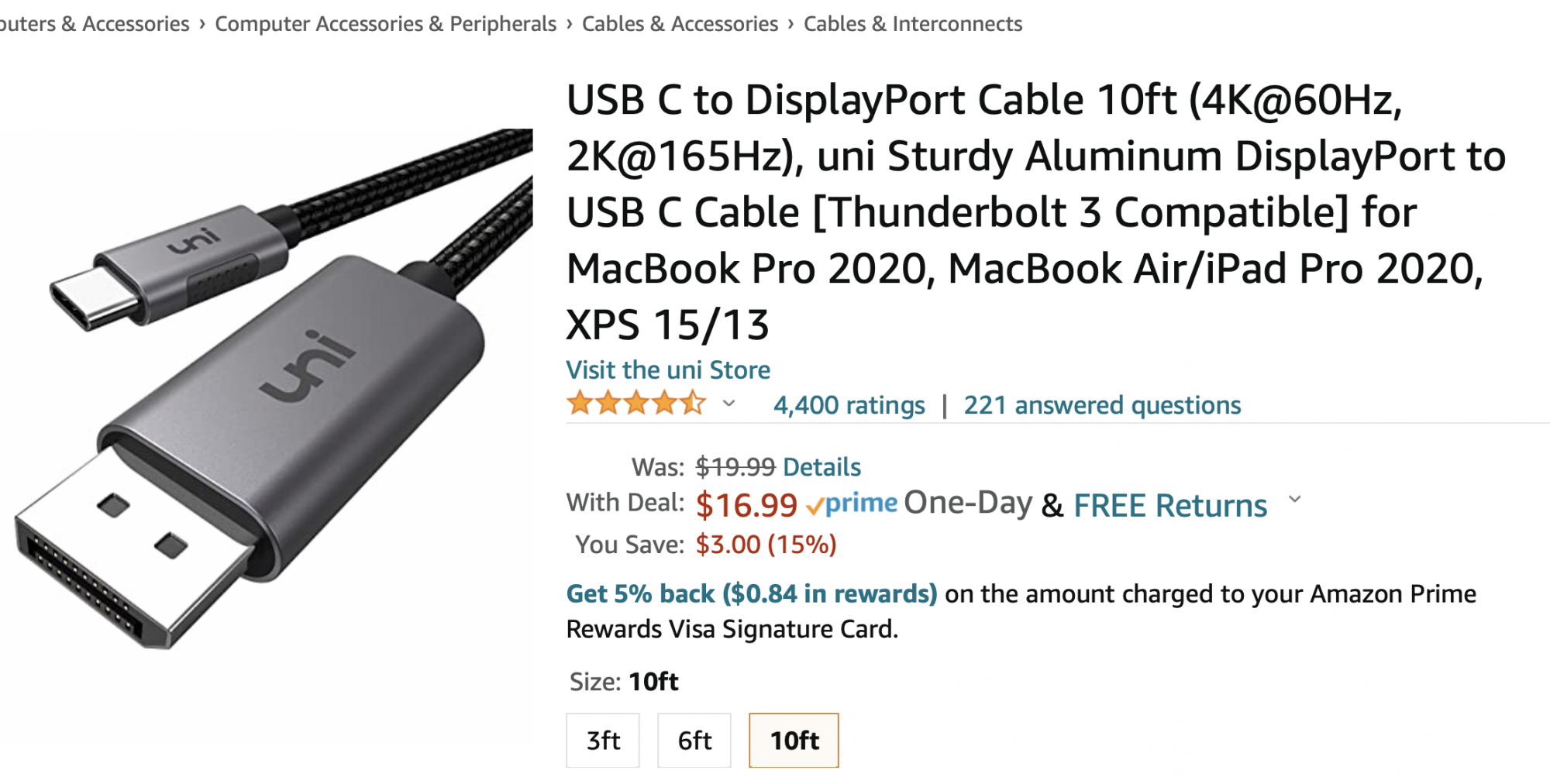

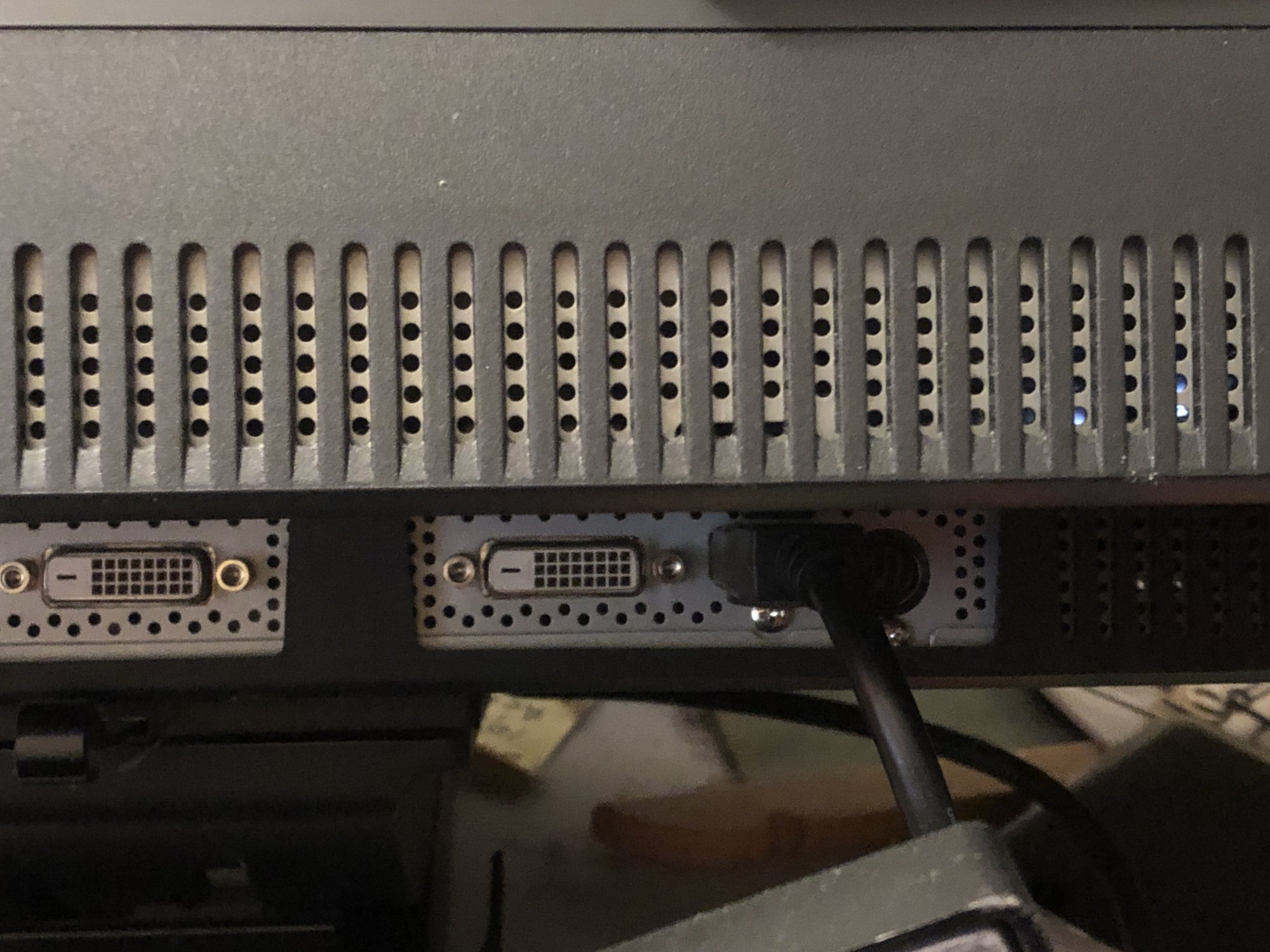

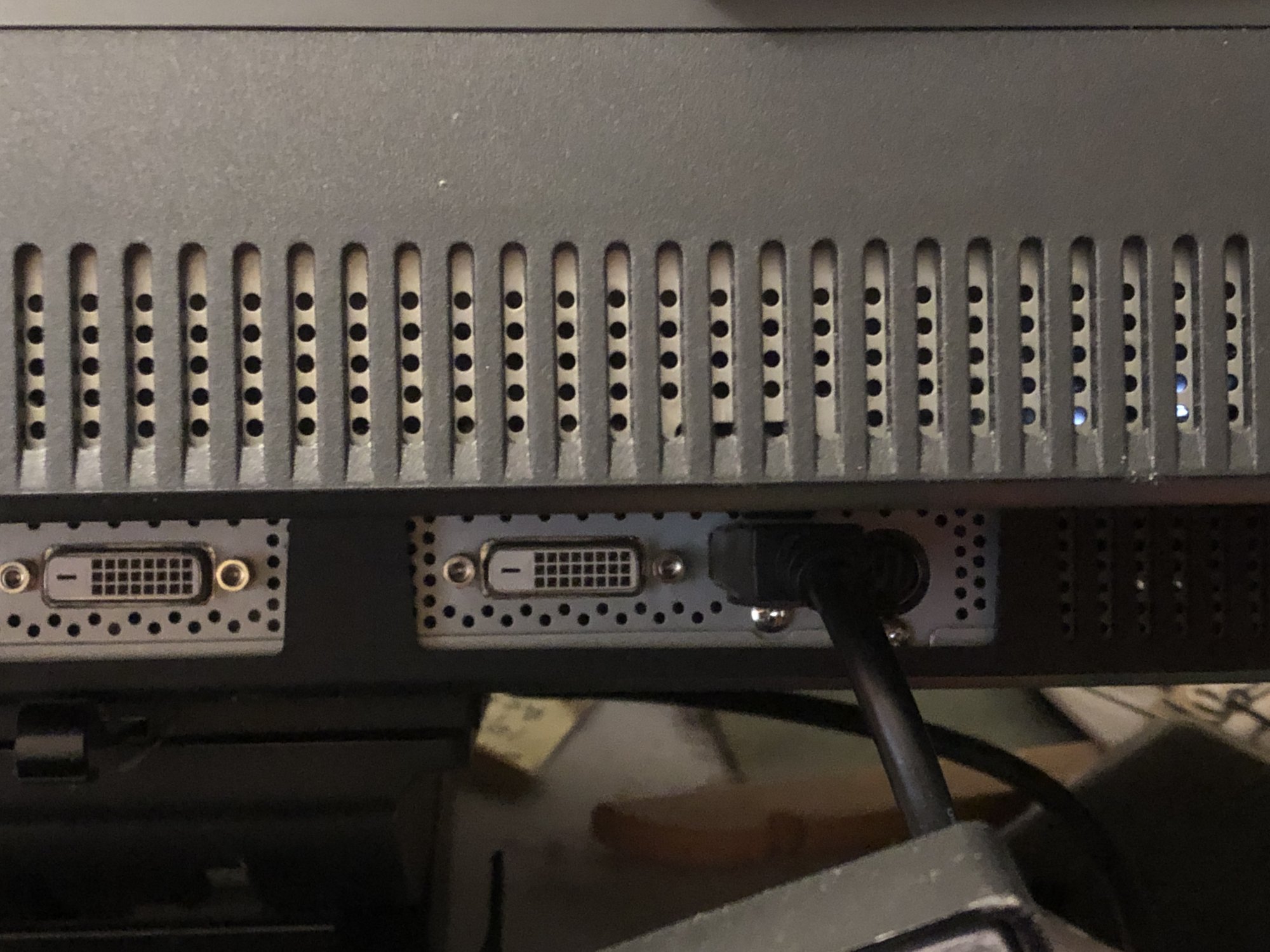

I need to connect my M1 Max to a 6 year old NEC Multi sync display. The cables I'm seeing at Amazon and elsewhere do not have the same adapter as the ports on my machine, shown below. Aren't these the two ports Displayports? If so, what am I missing?View attachment 1955581View attachment 1955580
Click to expand...

Club 3D | USB3.2 Gen1 Type-C to Dual Link DVI-D HDCP OFF version Active Adapter M/F for Apple Cinema Displays

The Club 3D CAC-1510-A is a USB3.2 Gen1 Type-C input to Dual Link DVI-D or Single Link DVI output adapter HDCP OFF version for Apple Cinema Displays or other displays which do not support HDCP. The USB3.2 Gen1 Type-C to Dual Link DVI or Single Link DVI Adapter is the easiest solution for...
www.club-3d.com www.club-3d.com

zzemman said:
Using an active adapter is always a risk. Using HDMI to DVI adapter does not require active / transcoding. It's essentially the same signal (except that DVI does not carry sound). A simple cable like this should work fine on all new MacBook pros with an HDMI port. EDIT: with the link: https://www.amazon.com/Amazon-Basics-Adapter-Cable-1-Pack/dp/B014I8UQJY/
Click to expand...
Hmm, got a different reply above and bought the active adapter yesterday. So what is the risk of using it? I'll pickup the one you suggest as well.. Thanks for the info.

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
  • Like
Reactions: LuisN
dhmiller said:
Hmm, got a different reply above and bought the active adapter yesterday. So what is the risk of using it? I'll pickup the one you suggest as well.. Thanks for the info.
Click to expand...
There is always a small risk when attaching a cheap (active) electronics device to an expensive laptop. There is less risk attaching a passive cable that is only wiring (although there is also a small chance the wiring could be wrong). It's just a bit less risk. So if you really want to plug your monitor into a USB-C / Thunderbolt port then use the active adapter. But if you are indiferent, it's a bit safer to use the HDMI port with the passive cable. My 2c.

zzemman said:
There is always a small risk when attaching a cheap (active) electronics device to an expensive laptop. There is less risk attaching a passive cable that is only wiring (although there is also a small chance the wiring could be wrong). It's just a bit less risk. So if you really want to plug your monitor into a USB-C / Thunderbolt port then use the active adapter. But if you are indiferent, it's a bit safer to use the HDMI port with the passive cable. My 2c.
Click to expand...
Thanks much. I'll try HDMI first.
