M1 MB Pro and external NVMe speeds.

[goneeuro02]

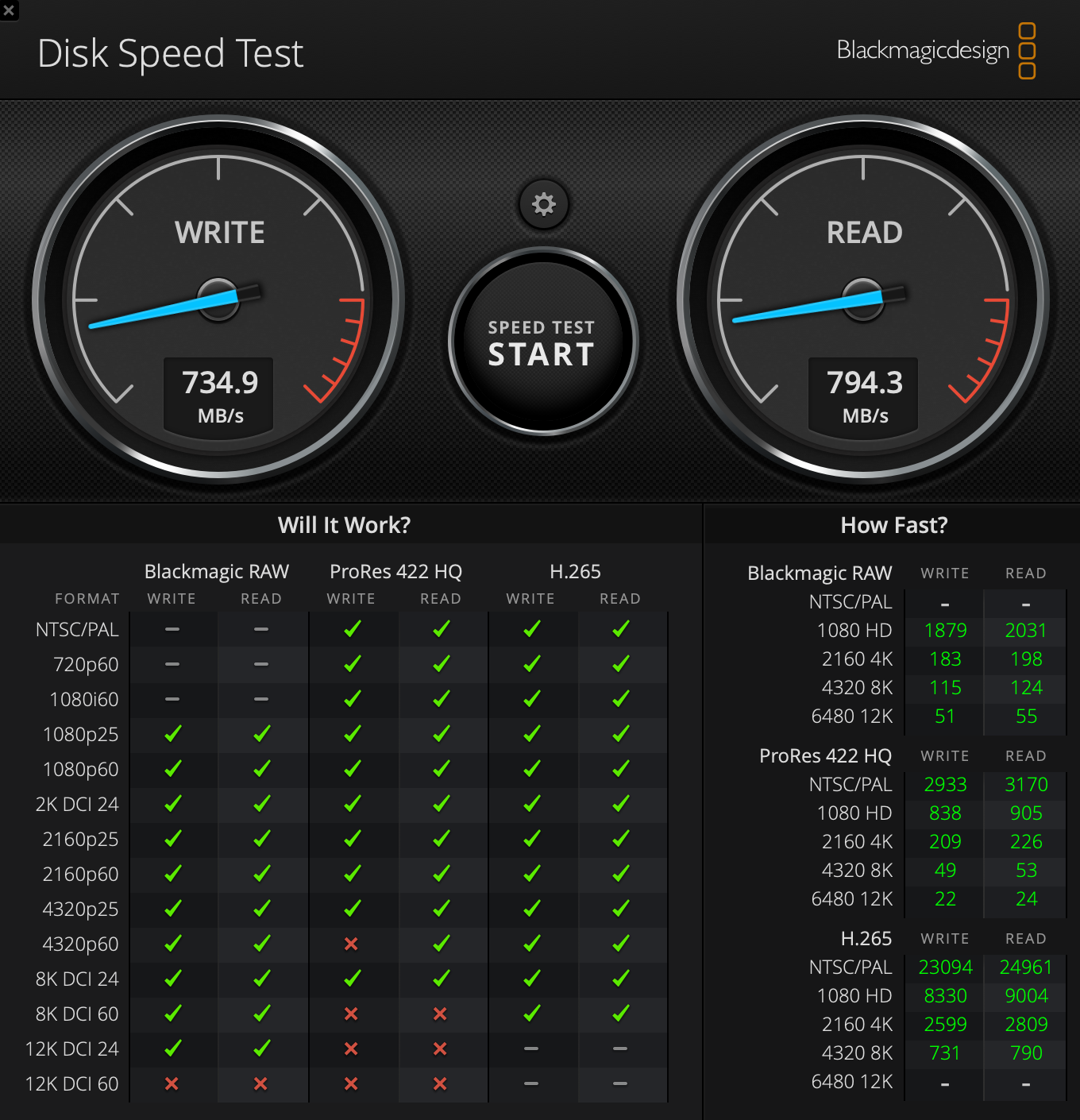

Good afternoon everyone. I bought and external NVMe and enclosure and I am not getting the speeds I thought I would. Does this sound right with what I am using?

2020 M1 13in MacBook Pro, 16GB of RAM, 500GB, 8core CPU, 8core GPU

Insignia USB3.2 Gen2 M.2 NVMe SSD enclosure

Insignia™ M.2 NVMe to USB-C SSD Enclosure NS-PCNVMEHDE - Best Buy

Shop Insignia™ M.2 NVMe to USB-C SSD Enclosure at Best Buy. Find low everyday prices and buy online for delivery or in-store pick-up. Price Match Guarantee.

www.bestbuy.com

WD_Black SN770 1TB

Western Digital WD_BLACK 1TB SN770 NVMe Internal Gaming SSD Solid State Drive - Gen4 PCIe, M.2 2280, Up to 5,150 MB/s - WDS100T3X0E

Get ready to game even faster with the WD_BLACK SN770 NVMe SSD. Zoom past load times and get into the action now with a purpose-built gaming drive that boasts up to 40% faster performance and up to 20% more power efficiency at maximum speed over the previous generation(3) (1TB model), plus a PCIe...

www.amazon.com



[mfram]

Looks about right to me. As a matter of fact, that looks really good for a cheap USB-C enclosure. The enclosure specs point out that it is a 10 gbps USB-C port. So the absolute theoretical max for data transfer would be around 1000 MB/s. You're getting 75-80% of that absolute max which sounds right to me. I have an external San Disk SSD USB-C drive which gets around 650 MB/s. So count yourself lucky. What filesystem are you using on this drive? That might make a difference. What were you expecting?



[iMacDragon]

Yeah, to go much faster you need proper thunderbolt enclosure.

I have heard that the Apple implementation does not tend to max out the bus on SSD's for USB, so this is probably about as good as can expect from USB.



[goneeuro02]

Perfect, thanks. That is what I was kinda thinking but was hoping for a second opinion.
