MP 1,1-5,1 Mac Pro 3,1, A1186, EMC2133 - Won't boot-up

[149TM]

Hi Guys, picked up these 3 machines last night.
2 X 3,1
1 x G5

One of the 3,1 A1186, EMC2133 is not moving from grey screen.
Boots ok, I can select drive by pressing Option key. However it hands on grey boot screen.
Won't go any further.

I've removed the memory and just kept two banks as having one in, it won't boot, light flashes.

The 7300GT GPU is showing boot screen, however when I tried a GT120, got no picture.

Nothing else inside, bare Mac.

Any ideas what to do?

Thank you in advance



[149TM]

Hi Guys, picked up these 3 machines last night.
2 X 3,1
1 x G5

One of the 3,1 A1186, EMC2133 is not moving from grey screen.
Boots ok, I can select drive by pressing Option key. However it hands on grey boot screen.
Won't go any further.

I've removed the memory and just kept two banks as having one in, it won't boot, light flashes.

The 7300GT GPU is showing boot screen, however when I tried a GT120, got no picture.

Nothing else inside, bare Mac.

Any ideas what to do?

Thank you in advance

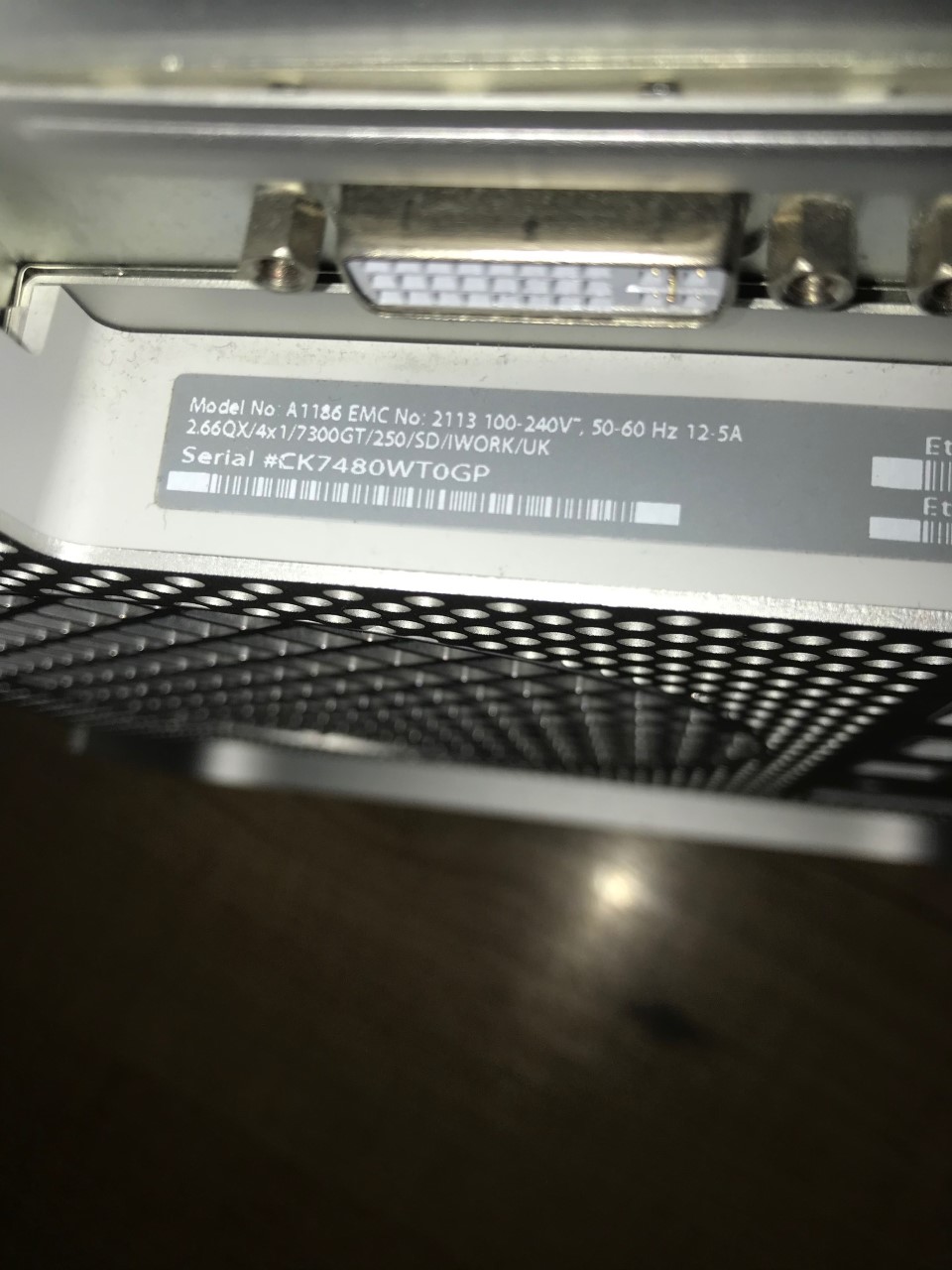

Discovered the Mac Pro is 1,1 not 3,1.

So max OS is Lion.



[Macschrauber]

with a little fiddling and a more recent gpu like a Radeon 5770 you can run El Cap on the 1.1



[Nguyen Duc Hieu]

Your cMPs 1,1 works fine.
They just need some OS to be installed.



[149TM]

with a little fiddling and a more recent gpu like a Radeon 5770 you can run El Cap on the 1.1

Thank you.

Can you point to any guides I can use to get El Cap installed.



[Macschrauber]

Thank you.

Can you point to any guides I can use to get El Cap installed.

2006/2007 Mac Pro (1,1/2,1) and OS X El Capitan | MacRumors Forums



[149TM]

Your cMPs 1,1 works fine.
They just need some OS to be installed.

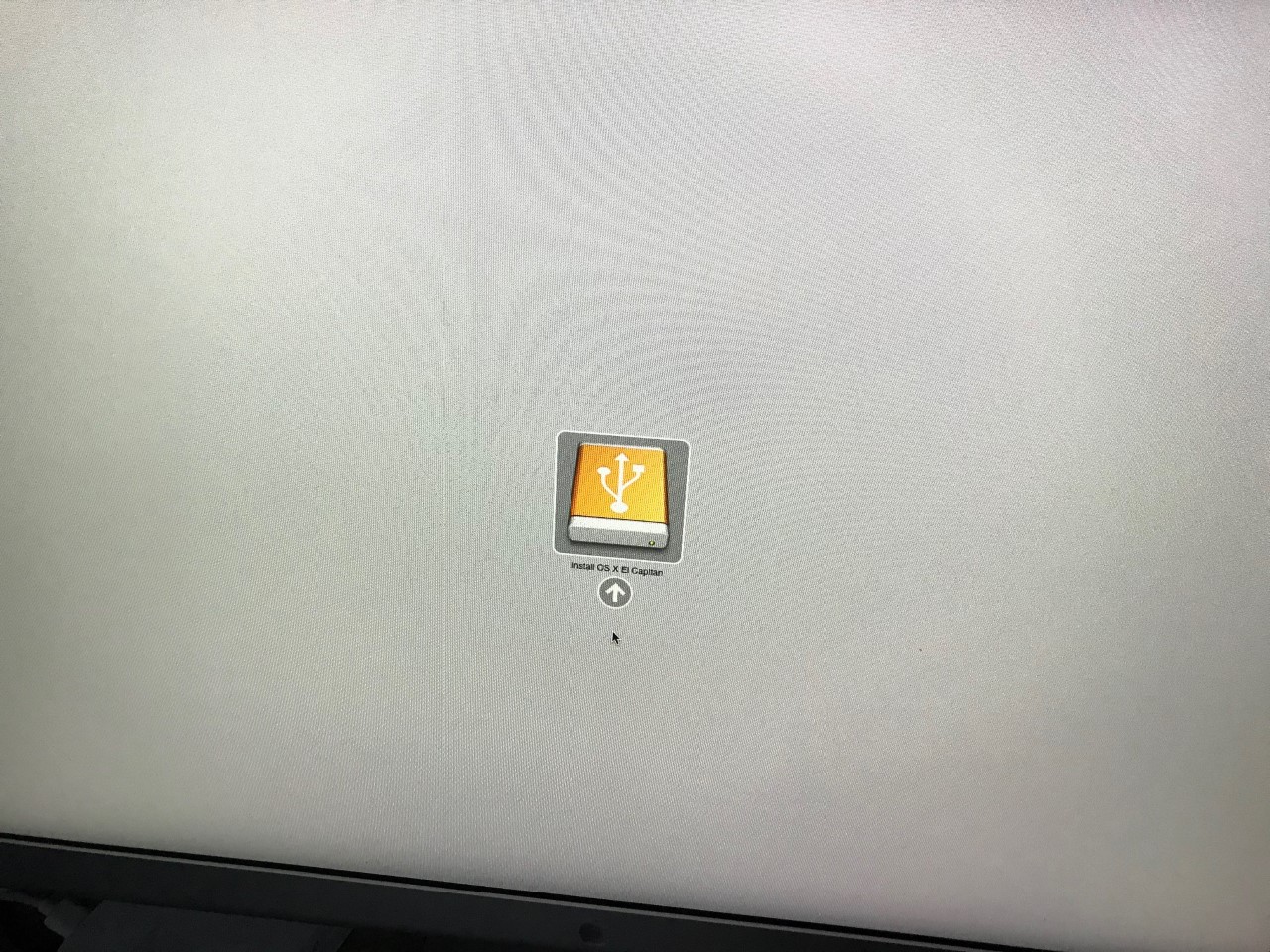

Managed to get it updated to El-Capitan very easily, using a simple method.

All working fine now.

Thank you



[Nguyen Duc Hieu]

Managed to get it updated to El-Capitan very easily, using a simple method.

All working fine now.

Thank you

Next step is upgrade it's firmware and SMC to 2,1.
Then replace the CPUs if they are not Xeon X5355 or X5365 yet.



[149TM]

Next step is upgrade it's firmware and SMC to 2,1.
Then replace the CPUs if they are not Xeon X5355 or X5365 yet.

I have the Dual Core?
2 x 2.66 GHz D. Core Xeon 5150

Is it worth upgrading to Xeon X5355 or X5365?

Thanks



[149TM]

I have the Dual Core?
2 x 2.66 GHz D. Core Xeon 5150

Is it worth upgrading to Xeon X5355 or X5365?

Thanks

Managed to get the firmware upgraded 2,1.

Will this install El Capitan or still need to do the hack?

What else can and should I upgrade.

Many Thanks



[Nguyen Duc Hieu]

Managed to get the firmware upgraded 2,1.

Will this install El Capitan or still need to do the hack?

What else can and should I upgrade.

Many Thanks

You already has El Capitan running. Still need the hack.
For CPUs, if 20$-25$ for a pair of quad-core X5355 are too much for your fun budget, then probably double the cores count on your CPUs don't worth that much.
Next steps are RAM, SSD, a better graphic card.



[149TM]

Where I am two CPU's are over $100? Can't find them cheaper.
It has 24MB RAM which is enough for now.

Have ordered SSD.
And GT120 or might go for ATI Radeon 4XXX or 5XXX.

Thank you



[149TM]

Where I am two CPU's are over $100? Can't find them cheaper.
It has 24MB RAM which is enough for now.

Have ordered SSD.
And GT120 or might go for ATI Radeon 4XXX or 5XXX.

Thank you

With the Mac GT120, should I get full boot screen or not?



[Nguyen Duc Hieu]

With the Mac GT120, should I get full boot screen or not?

What do you need bootscreen for? You already have the 7300GT.
Switching boot drive can be done from "System Preference"

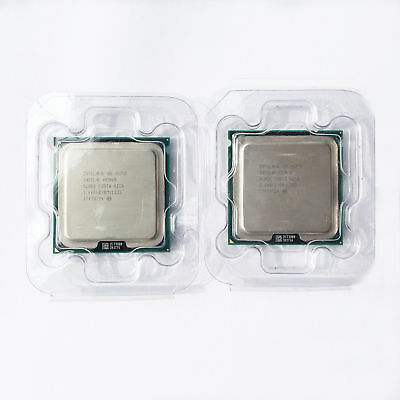

I bought my Xeon X5355 from ebay. Took 1 month to reach, but they are cheap enough to wait.
12$ a pair and free ship

Matching pair_ Intel Xeon X5355 2.66GHz 8m 1333fsb LGA771 SL9YM CPU 883436012973 | eBay

² 2 X x5355 Processors. ETA 3 to 6 Weeks. ⻠All faulty due to improper installation or improper use will NOT be covered by the warranty.

www.ebay.com



[Macschrauber]

With the Mac GT120, should I get full boot screen or not?

no, its a efi64 card, bootscreen from MP3,1 to 5,1
