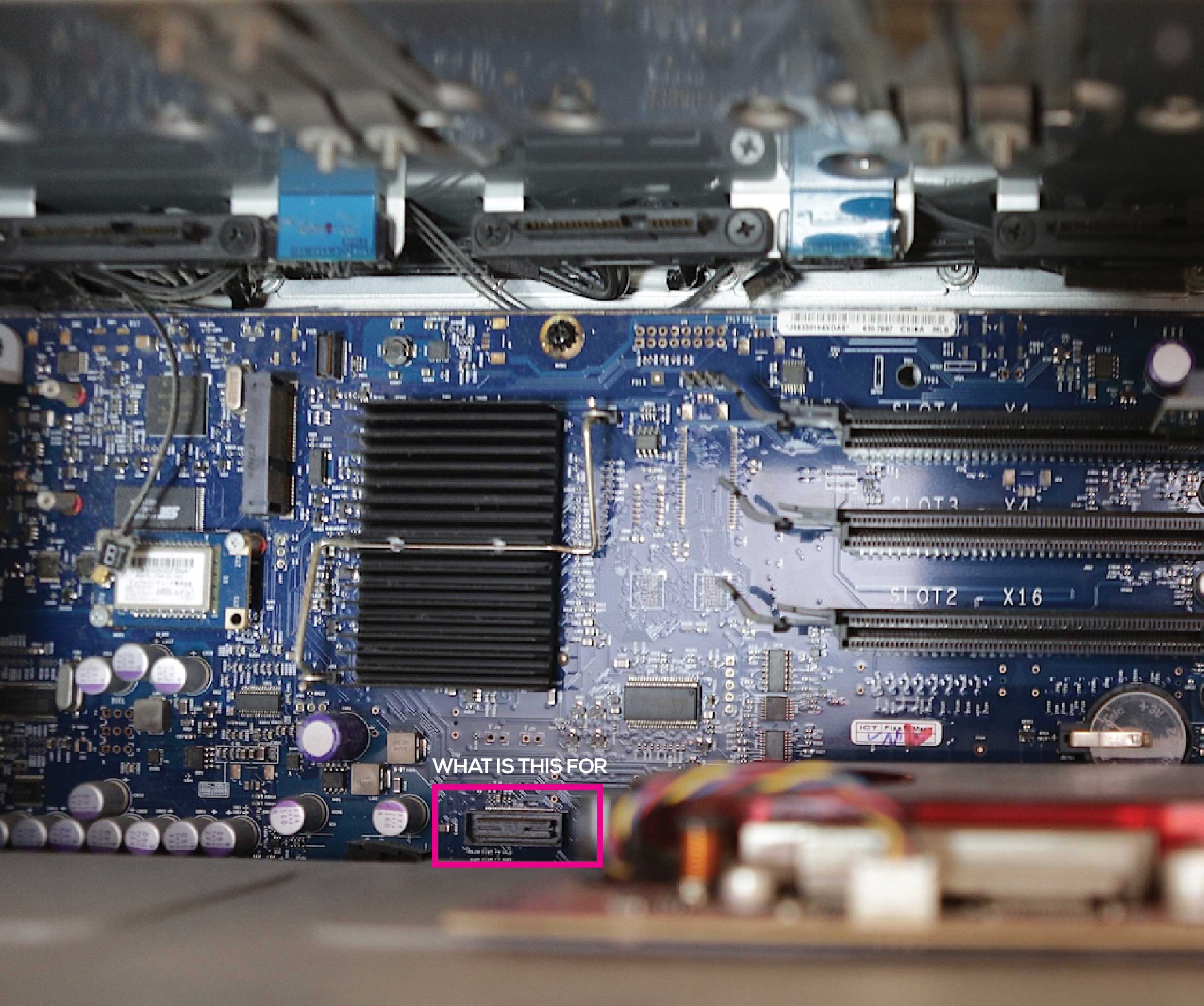

Does anyone know what this connector on the mac pro 3.1 (2008) is ? (to the left of the x16 pci) slot https://goo.gl/photos/RyaBCXbvJtM3SnBt8
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
Mac Pro 3.1 mystery connector...
- Thread starter dannyboy3344
- Start date
-
- Tags
- mac pro 3.1
- Sort by reaction score
It looks like a JTAG connector. (https://en.wikipedia.org/wiki/Joint_Test_Action_Group) (https://wwws.samtec.com/technical-specifications/Default.aspx?SeriesMaster=BSH)
We use them where I work to step through processor instructions to debug low-level code. Usually only development machines have them installed. I wonder what Apple is using this connector for (Could be for something completely different...). Interesting.
We use them where I work to step through processor instructions to debug low-level code. Usually only development machines have them installed. I wonder what Apple is using this connector for (Could be for something completely different...). Interesting.

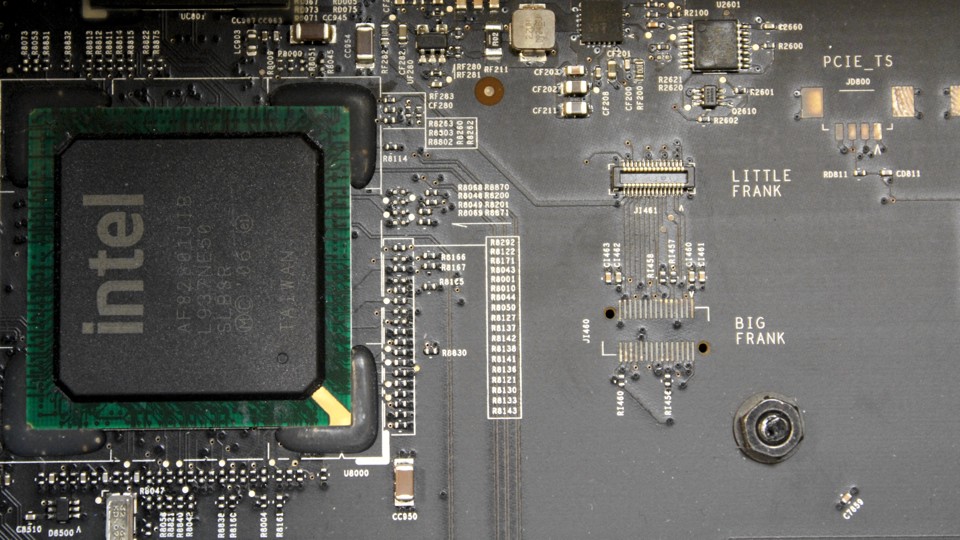

The same is in Mac Pro 4,1-5,1 - called Little Frank and Big Frank
Must be some special Apple service connector
Must be some special Apple service connector
Intel used to have a motherboard or some part of a motherboard they called the Zappa. Zappa'
s estate didn't like them taking Frank's name in vain however. Maybe there is a connection, since it's right next to an intel chip.
s estate didn't like them taking Frank's name in vain however. Maybe there is a connection, since it's right next to an intel chip.
The same is in Mac Pro 4,1-5,1 - called Little Frank and Big Frank
Must be some special Apple service connector
I think that's some sort of diagnostics/debugging connector for the system management controller.
On the MP3,1 and earlier, there's only one chipset controlling the whole system. On the MP4,1 and later, there's two- one on the backplane board (the big PCB that has the PCI-e slots on it), and another located on the CPU daughter card. AFAIK, it's the same chip on both sides of the system (called the "Primary SMC" and "Secondary SMC" in the service manual), so it'd make sense that they'd be named Big Frank and Little Frank.
-SC
On the MP3,1 and earlier, there's only one chipset controlling the whole system. On the MP4,1 and later, there's two- one on the backplane board (the big PCB that has the PCI-e slots on it), and another located on the CPU daughter card. AFAIK, it's the same chip on both sides of the system (called the "Primary SMC" and "Secondary SMC" in the service manual), so it'd make sense that they'd be named Big Frank and Little Frank.
-SC
