MP 1,1-5,1 Mac Pro 5,1 - Titan Ridge Thunderbolt Questions

[smrieck511]

Hi,

I have a Mac Pro 5,1 with a Titan Ridge 2.0. Trying to get Thunderbolt to work but I'm new to this. Can anyone help with a step by step?

Here's what I have and know:

Mac Pro 5,1 running Catalina. 32Gb Ram, RX580 Graphics and a Titan Ridge 2.0.

- The TR has a jumper between pins 3 and 5.
- The TR is installed in slot 4
- It TR is alive. USB 3.0 works fine and shows up in system report.
- Thunderbolt in System Report shows no drivers installed.

What I do NOT know:

- Is flashing the card absolutely necessary? I don't have the flash tool but found a link on Amazon.
- I read something about possibly running it in Windows first but Bootcamp says it will not run on my Mac.
- I'm confused about OpenCore. Where to begin? What version. How is this installed?
- What is it that actually gets Thunderbolt recognized? Flashing? OpenCore? Both?


THANKS for any assistance.



[cdf]

Flashing your Titan Ridge Card is what gets it recognized in macOS. Additionally using an SSDT (injected through OpenCore) enables proper hot-plug and wake-from-sleep functionality. You can learn about OpenCore and how to create a custom SSDT here.

Depending on your Thunderbolt devices, booting first into Windows may be an initially easier option; however, this option is cumbersome in the long run and functionality may be more limited than with a flashed card.



[lastmile]

Never bothered with TB on my cMPs but I have a chance to get two cheap TB Displays.

Is anybody selling flashed Titan Ridge cards? I can't even find the card for sale any more, just flashing services on eBay.



[AlexMaximus]

Never bothered with TB on my cMPs but I have a chance to get two cheap TB Displays.

Is anybody selling flashed Titan Ridge cards? I can't even find the card for sale any more, just flashing services on eBay.

I have one fully flashed Titan Ridge card new in box. It's the last revision. If you are interested I can make you an offer for about 70% of the original price I have paid plus shipping.



[neonaudio]

I have one fully flashed Titan Ridge card new in box. It's the last revision. If you are interested I can make you an offer for about 70% of the original price I have paid plus shipping.

I'm looking for a flashed card if you still have one...



[AlexMaximus]

I'm looking for a flashed card if you still have one...

Sorry, the Titan Ridge card has been sold.



[thohahente]

I recently acquired an OWC 11-port TB4 dock. I can't get the Gigabyte Titanridge 2 Thunderbolt card to pick up the dock as checked in the System Info. The card is working fine. It picks up the powered Toshiba TB3 dock I have and any devices that are hung off that. Running the latest version of Sonoma on OCLP 2.2.0. Nothing urgent but I like things to work.



[Trungha]

I recently acquired an OWC 11-port TB4 dock. I can't get the Gigabyte Titanridge 2 Thunderbolt card to pick up the dock as checked in the System Info. The card is working fine. It picks up the powered Toshiba TB3 dock I have and any devices that are hung off that. Running the latest version of Sonoma on OCLP 2.2.0. Nothing urgent but I like things to work.

Hi! how did you get this setup with Thunderbolt! Can you send me the config.plist file! Thank you!



[thohahente]

Hi! How did you get this setup with Thunderbolt! Can you send me the config.plist file! Thank you!

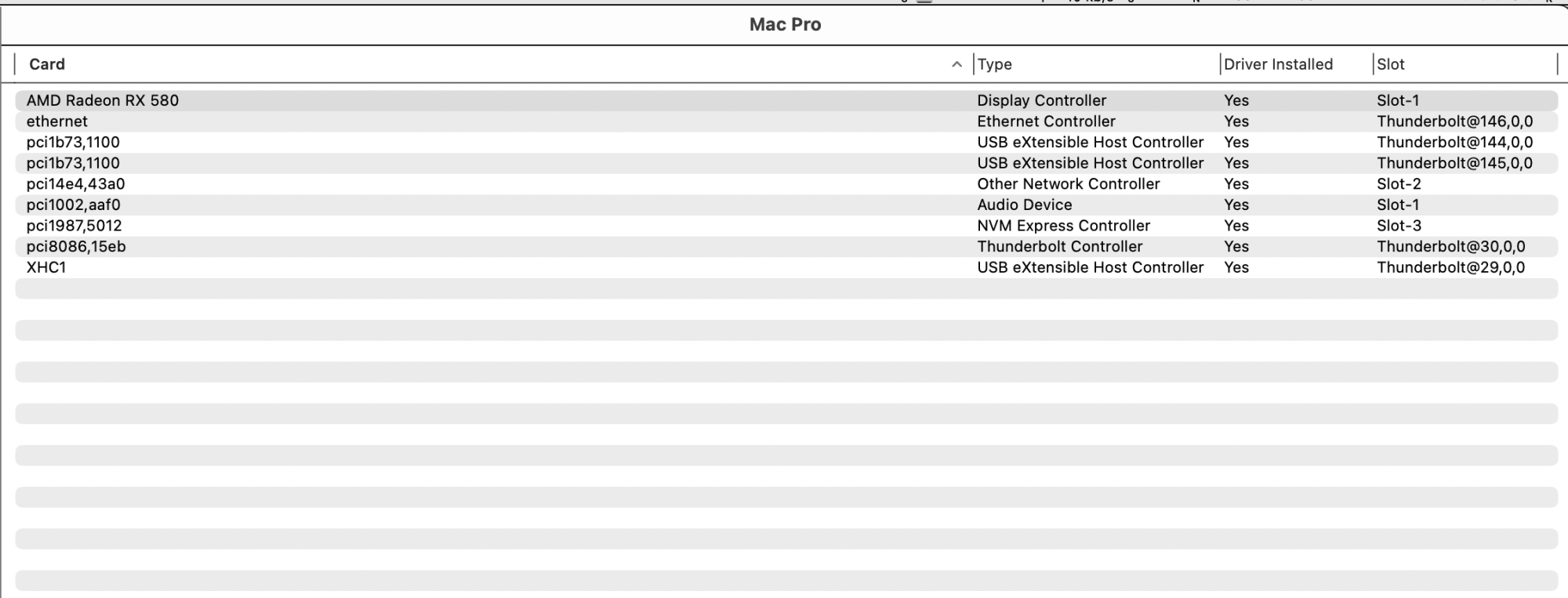

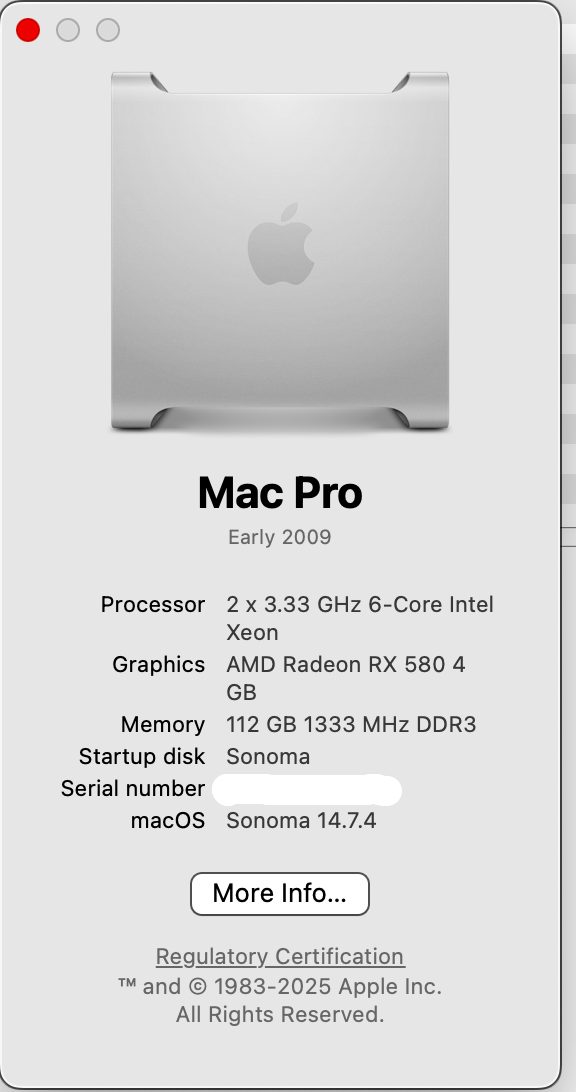

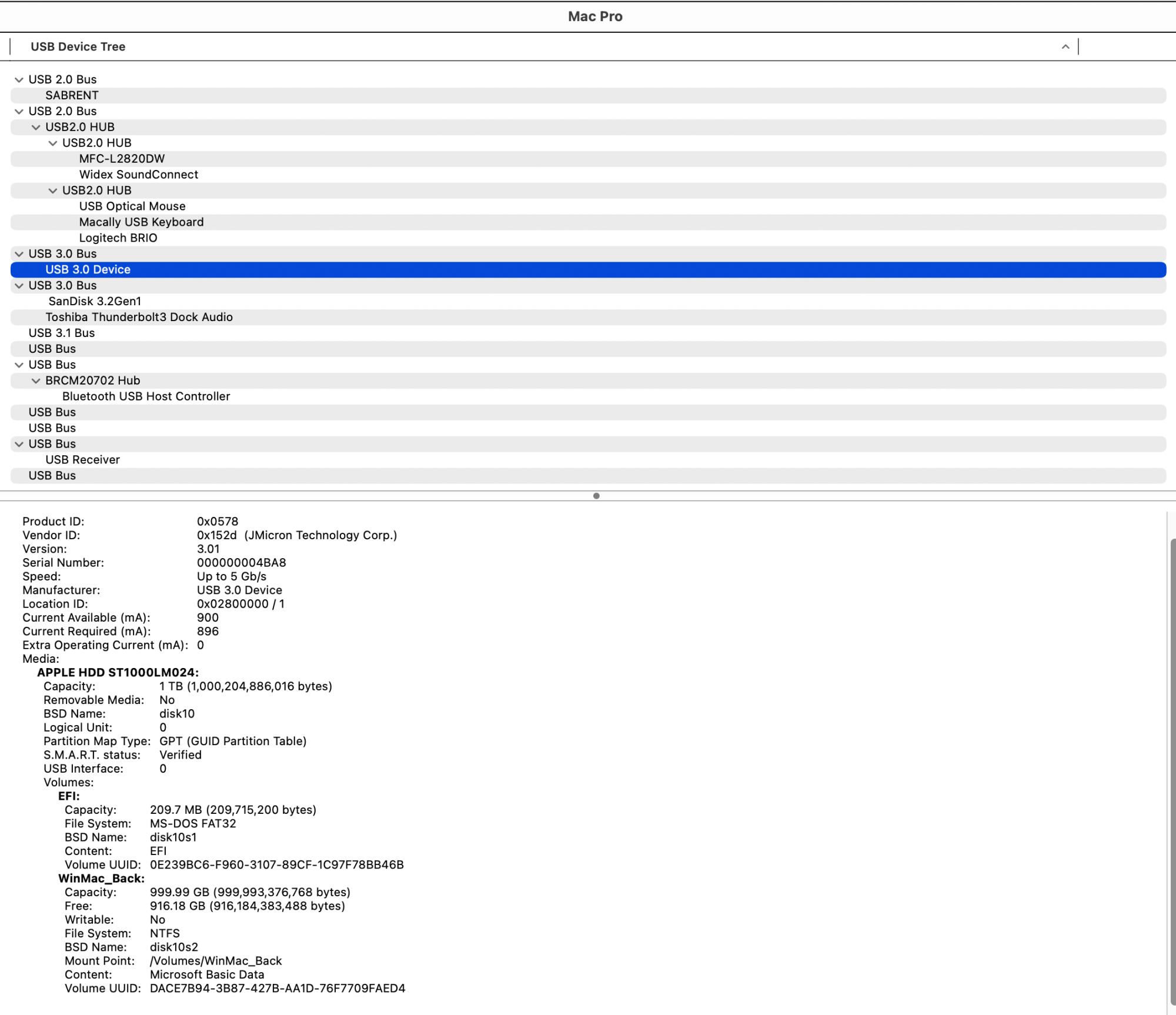

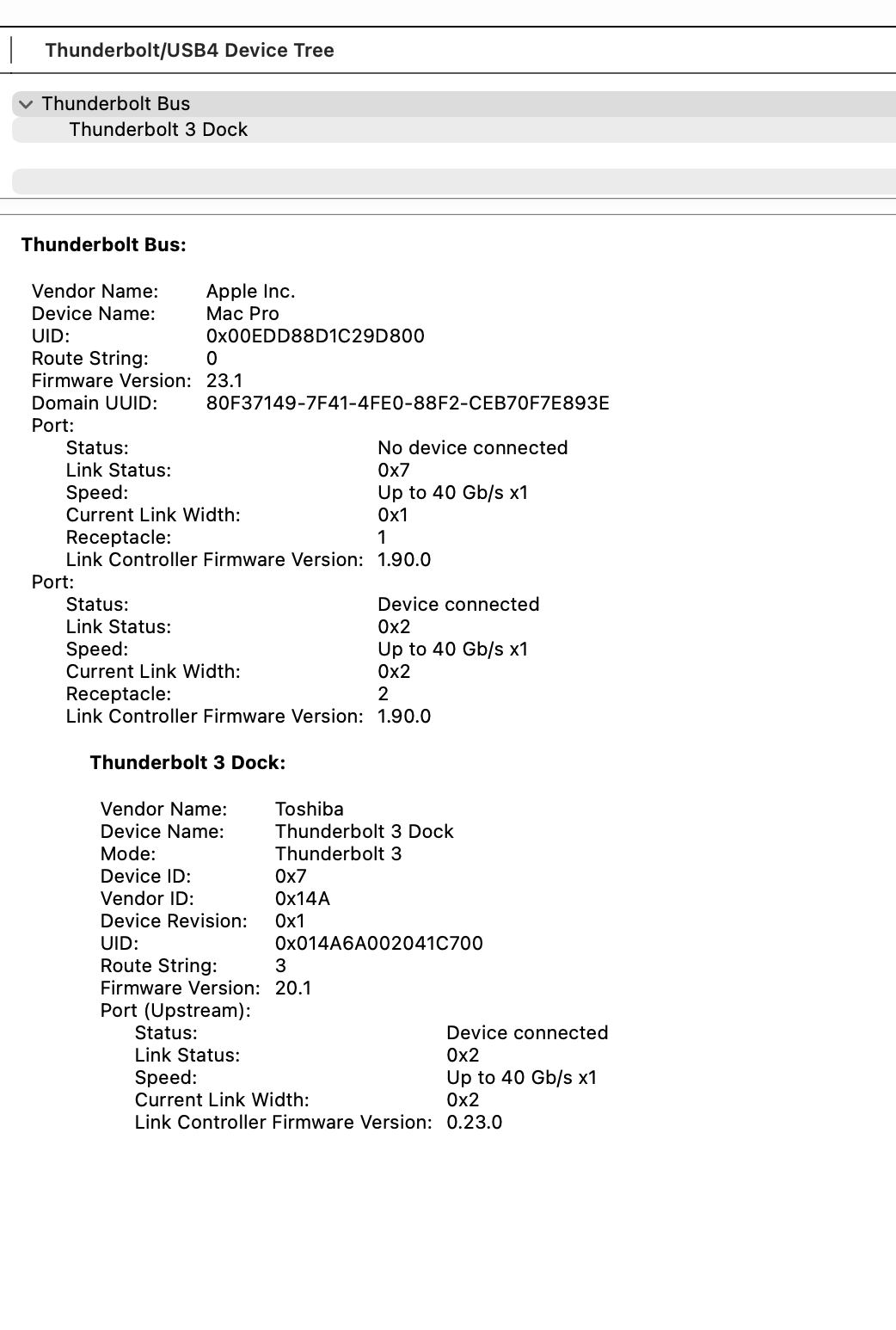

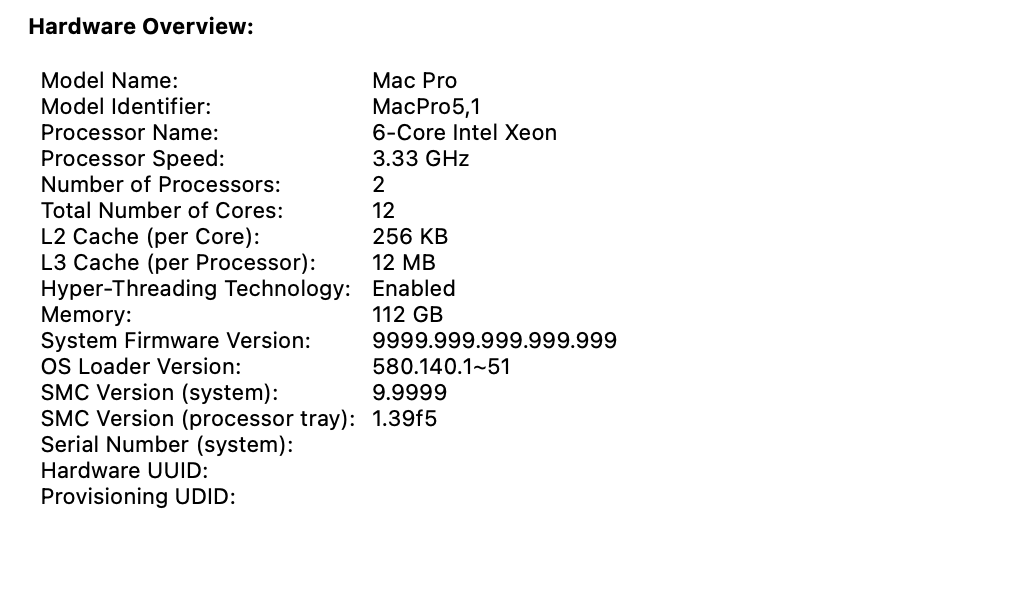

I am using a flashed-for-Mac Gigabyte Titanridge 2 Thunderbolt 3 PCIe card.I used Open Core nut recently switched to OCLP because I spent too much time on minutiae updating OC for my current simple needs.



[CarManDSL]

I am using a flashed-for-Mac Gigabyte Titanridge 2 Thunderbolt 3 PCIe card.I used Open Core nut recently switched to OCLP because I spent too much time on minutiae updating OC for my current simple needs.

Have a MP 2010 5,1 with Sapphire Plus RX580, Mojave. Used OCLP to install Mojave. Wish to use a single 6k60hz monitor. Asus 32PAQCV on the list.
Can the RX580 support this? (Each of 2xDP support 5120×2880@60Hz
Will a Mac flashed Titan Ridge 2.0 with 2xDP feeds from RX580 support a single 6k?

Idea is to use a M4 Mini along with MP5,1 and switch between depending on requirement, both using a single 6k monitor



[thohahente]

Sorry. It is not my area of expertise.
