MP 1,1-5,1 Mac Pro 5.1 - Windows 10 - No Audio Devices Found

[JBreckeen]

Hello all.

I have a 5.1 that is solo-boot to Win10 from the harddisk (there is only Win10, and no other OS's). Yes I know, I know; but this is a graphics workstation and we all know the issues with OSX and modern graphics cards. This with a RTX 2080ti serves me very well for my work.

Everything has been perfect with it, but after a Win10 update a couple of versions ago, I have lost all audio. I waited until the next (latest) update to see if it would be fixed, but no joy. There have been no hardware changes, and only Win10 updates.

The speaker icon in the bottom bar has a red X, and the sound setting page says "no output devices found" and "no input devices found". I have uninstalled all the hardware drivers and let the scan for new hardware find them all. The Device Manager shows the hardware, and doesn't list any issues. Everything looks like it should work. Apple Software Update says I am up to date.

BTW I get the Mac startup chime through the internal speaker.

Has anybody else seen this? I want to see if I can solve it before reinstalling Win10 from scratch.

Thanks all!

J.

SPECS:

MacPro 5.1
2 X 5680
64 gb
RTX 2080ti
all SSD

Bootcamp 5.1
BootROM: I cannot remember the version on here, but I think it was the latest before I got rid of OSX. I dont know a way to see it in Win10.
Win10: 21H1 19043.1237 up to date.

Apple Cinema Display - using USB audio

Don't know what other specs might help . . . .



[Freeangel1]

reinstall the bootcamp drivers?



[Soba]

Regarding the BootROM version, you can see the version number in Windows 10 by running System Information. It is listed under "BIOS Version/Date" and should be 144.0.0.0.0. If it is not, see the first post of this sticky thread at the top of this forum about upgrading your BootROM:

MP5,1: What you have to do to upgrade to Mojave (BootROM upgrade instructions thread)

Please fully read this first post, you will probably find that you have one or more problems described into the various notes below. Mojave will only install if you have upgraded your BootROM to the current release and your Mac Pro have a Metal capable GPU*. If you are trying to install Mojave...

forums.macrumors.com

Your audio problem almost certainly is unrelated to the BootROM. I agree that the first step should be to reinstall the Boot Camp drivers.



[JBreckeen]

Thank you both for the answers. I know it sounds stupid but what would be your suggestion on the best way to reinstall the BootCamp drivers on Win10?

There is the Boot Camp Services under Add/Remove Software. And then what version of BootCamp to put back on?

I have already done the Brigadier download, and it said this version of BootCamp is for Win 7. I then manually installed several of the drivers, but still the same issue.

This is the details for the installed version of BootCamp:

File Version: 6.1.7600.13​

Product Name: Boot Camp​

Product Version: 6.1.0.0​

Size: 90.0 KB​

Date Modified: 5/18/2021 12:39​

*even though the About BootCamp says version 5.1​

Now in case it does matter, my BootROM and System info is:

OS Name Microsoft Windows 10 Pro​

Version 10.0.19043 Build 19043​

Other OS Description Not Available​

OS Manufacturer Microsoft Corporation​

System Name MACPRO​

System Manufacturer Apple Inc.​

System Model MacPro5,1​

System Type x64-based PC​

System SKU Unsupported​

Processor Intel(R) Xeon(R) CPU X5680 @ 3.33GHz, 3458 Mhz, 6 Core(s), 12 Logical Processor(s)​

Processor Intel(R) Xeon(R) CPU X5680 @ 3.33GHz, 3458 Mhz, 6 Core(s), 12 Logical Processor(s)​

BIOS Version/Date Apple Inc. MP51.88Z.0085.B00.1802021746, 2/2/2018​

SMBIOS Version 2.4​

BIOS Mode UEFI​

BaseBoard Manufacturer Apple Inc.​

BaseBoard Product Mac-F221BEC8​

BaseBoard Version Not Available​

Platform Role Workstation​

Secure Boot State Unsupported​

PCR7 Configuration Binding Not Possible​

Windows Directory C:\WINDOWS​

System Directory C:\WINDOWS\system32​

Boot Device \Device\HarddiskVolume1​

Locale United States​

Hardware Abstraction Layer Version = "10.0.19041.1151"​

User Name MACPRO\email​

Time Zone Eastern Daylight Time​

Installed Physical Memory (RAM) 64.0 GB​

Total Physical Memory 64.0 GB​

Available Physical Memory 58.1 GB​

Total Virtual Memory 73.5 GB​

Available Virtual Memory 65.6 GB​

Page File Space 9.50 GB​

Page File C:\pagefile.sys​

Kernel DMA Protection Off​

Virtualization-based security Not enabled​

Device Encryption Support Reasons for failed automatic device encryption: TPM is not usable, PCR7 binding is not supported, Hardware Security Test Interface failed and device is not Modern Standby, Un-allowed DMA capable bus/device(s) detected, TPM is not usable​

Hyper-V - VM Monitor Mode Extensions Yes​

Hyper-V - Second Level Address Translation Extensions Yes​

Hyper-V - Virtualization Enabled in Firmware Yes​

Hyper-V - Data Execution Protection Yes​

This is from the System Info/Components/Sound Device:

Name USB Audio Device​

Manufacturer (Generic USB Audio)​

Status OK​

PNP Device ID USB\VID_05AC&PID_1105&MI_00\7&13177E54&0&0000​

Driver C:\WINDOWS\SYSTEM32\DRIVERS\USBAUDIO.SYS (10.0.19041.1202, 205.00 KB (209,920 bytes), 9/14/2021 18:20)​

​

Name High Definition Audio Device​

Manufacturer Microsoft​

Status OK​

PNP Device ID HDAUDIO\FUNC_01&VEN_10DE&DEV_0091&SUBSYS_10DE12A4&REV_1001\5&24355AA8&0&0001​

Driver C:\WINDOWS\SYSTEM32\DRIVERS\HDAUDIO.SYS (10.0.19041.264, 420.00 KB (430,080 bytes), 5/12/2021 18:07)​

​

Name Realtek High Definition Audio​

Manufacturer Realtek​

Status OK​

PNP Device ID HDAUDIO\FUNC_01&VEN_10EC&DEV_0885&SUBSYS_106B4200&REV_1001\4&1F7A1B12&0&0001​

Driver C:\WINDOWS\SYSTEM32\DRIVERS\RTKVHD64.SYS (6.0.1.5936, 1.91 MB (2,001,056 bytes), 9/16/2021 07:52)​

Thanks much all!

J.



[Soba]

I'm writing this from memory as I don't have my Mac Pro in front of me, but there is typically a separate entry for each driver in the Add/Remove Software window. If you can find an entry for the audio driver there, then remove that, reboot, and reinstall the driver. You will have to install manually, as you said; the drivers won't install automatically on Windows 10. For the audio, you should be fine installing the Mac Pro release of the Boot Camp drivers.

The installer should clearly say it's for the audio driver when you run it, so you will know when you have the right one.

If removal and reinstall in this way still does not work, if you delete the audio device from Device Manager, is there a checkbox in the confirmation dialog to also remove the driver for the device? If so, try that and then reinstall.

Regarding your BootROM (again, probably unrelated to your current problem), you are running version MP51.88Z.0085.B00, which is old and does not have current CPU microcodes (see this post by Alex for confirmation). It is vulnerable to the Spectre and Meltdown attacks, as well as other problems. At your convenience, I recommend following the instructions in the first post of the BootROM update thread to update it at least to MP51.0089.B00 and then, if you have a Metal-capable graphics card, to 144.0.0.0.0.

MP5,1: What you have to do to upgrade to Mojave (BootROM upgrade instructions thread)

Please fully read this first post, you will probably find that you have one or more problems described into the various notes below. Mojave will only install if you have upgraded your BootROM to the current release and your Mac Pro have a Metal capable GPU*. If you are trying to install Mojave...

forums.macrumors.com



[GermanS]

Hello all.

I have a 5.1 that is solo-boot to Win10 from the harddisk (there is only Win10, and no other OS's). Yes I know, I know; but this is a graphics workstation and we all know the issues with OSX and modern graphics cards. This with a RTX 2080ti serves me very well for my work.

Everything has been perfect with it, but after a Win10 update a couple of versions ago, I have lost all audio. I waited until the next (latest) update to see if it would be fixed, but no joy. There have been no hardware changes, and only Win10 updates.

The speaker icon in the bottom bar has a red X, and the sound setting page says "no output devices found" and "no input devices found". I have uninstalled all the hardware drivers and let the scan for new hardware find them all. The Device Manager shows the hardware, and doesn't list any issues. Everything looks like it should work. Apple Software Update says I am up to date.

BTW I get the Mac startup chime through the internal speaker.

Has anybody else seen this? I want to see if I can solve it before reinstalling Win10 from scratch.

Thanks all!

J.

SPECS:

MacPro 5.1
2 X 5680
64 gb
RTX 2080ti
all SSD

Bootcamp 5.1
BootROM: I cannot remember the version on here, but I think it was the latest before I got rid of OSX. I dont know a way to see it in Win10.
Win10: 21H1 19043.1237 up to date.

Apple Cinema Display - using USB audio

Don't know what other specs might help . . . .



[GermanS]

I had the same problem too. until I wrote a USB flash drive in the MBR format. + native drivers via BootCamp. or windows 7, then update to 10 windows. I recorded on a dvd disk windows 7 ultmeit in the Mac Pro itself. and booted from the disk. everything works perfectly.



[Macschrauber]

you guys can use brigadier to download the audio drivers.

I did just 21H2 legacy install via the VirtualBox real disc method & Brigadier's help with bootcamp drivers. After all set up with VirtualBox just plugged the drive what I hooked to an USB Sata Adapter in an Sata Port and it booted right away.

A few pix I took:

1. download 7zip, Brigadier needs it to unzip

2. install 7zip

3. Install Brigadier (https://github.com/timsutton/brigadier/releases/download/0.2.4/brigadier.exe)

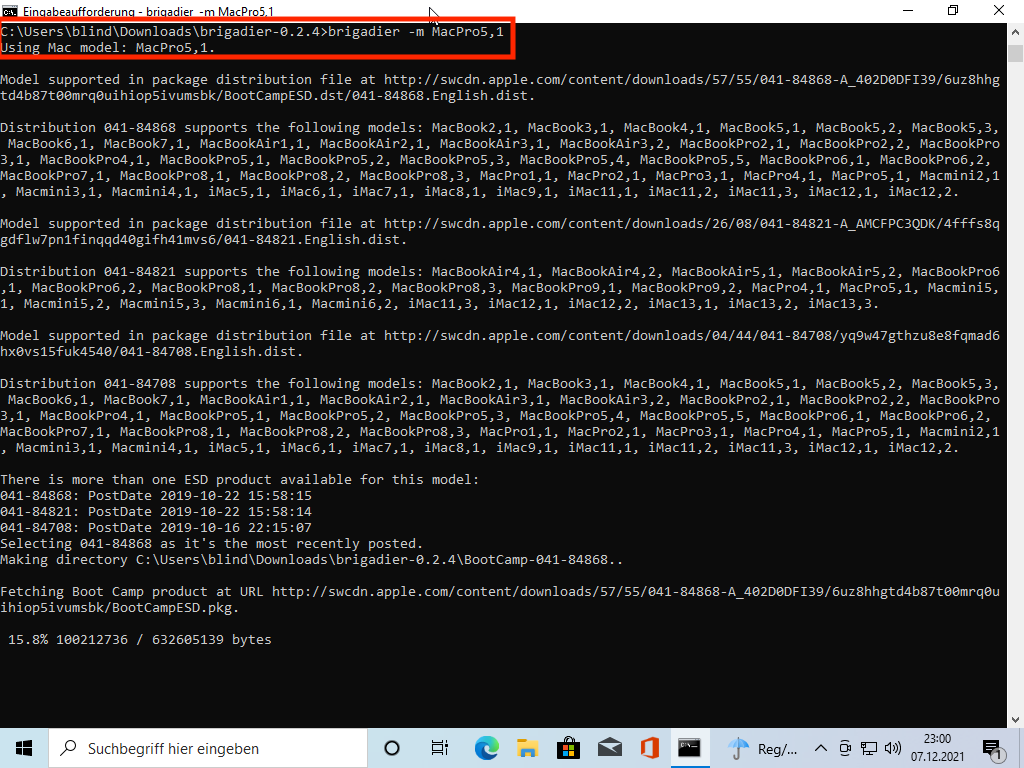

4. run Brigadier with brigadier -m MacPro5,1

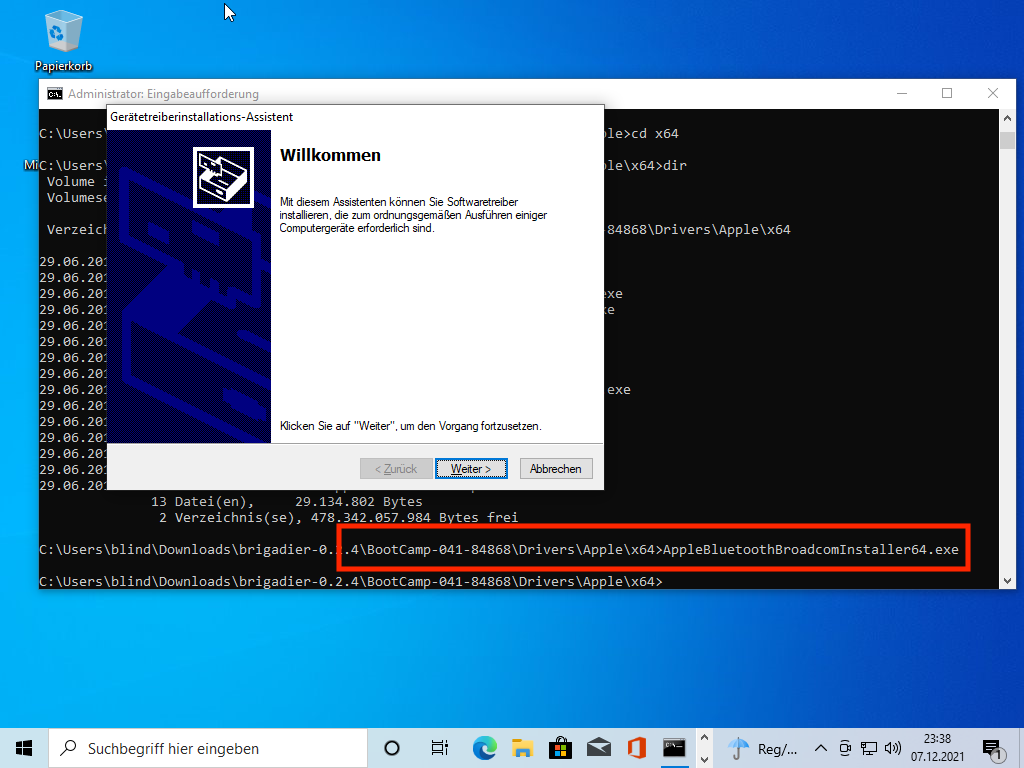

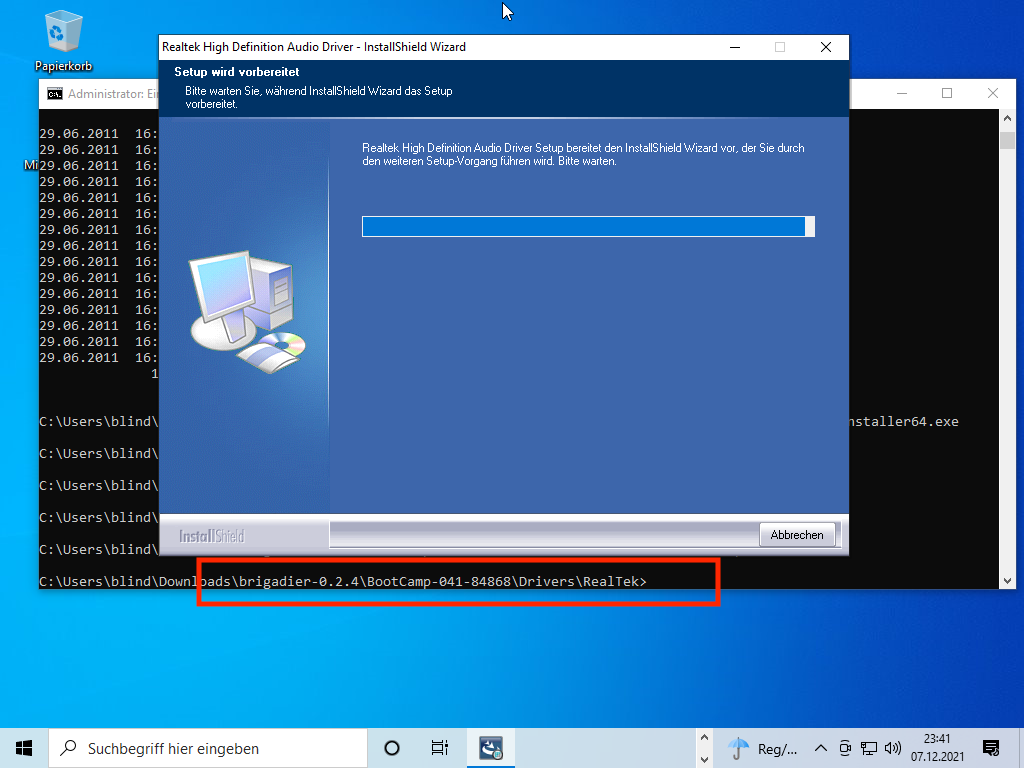

5. cmd as admin, walk thru the directories and install Broadcom bluetooth and Realtek audio drivers

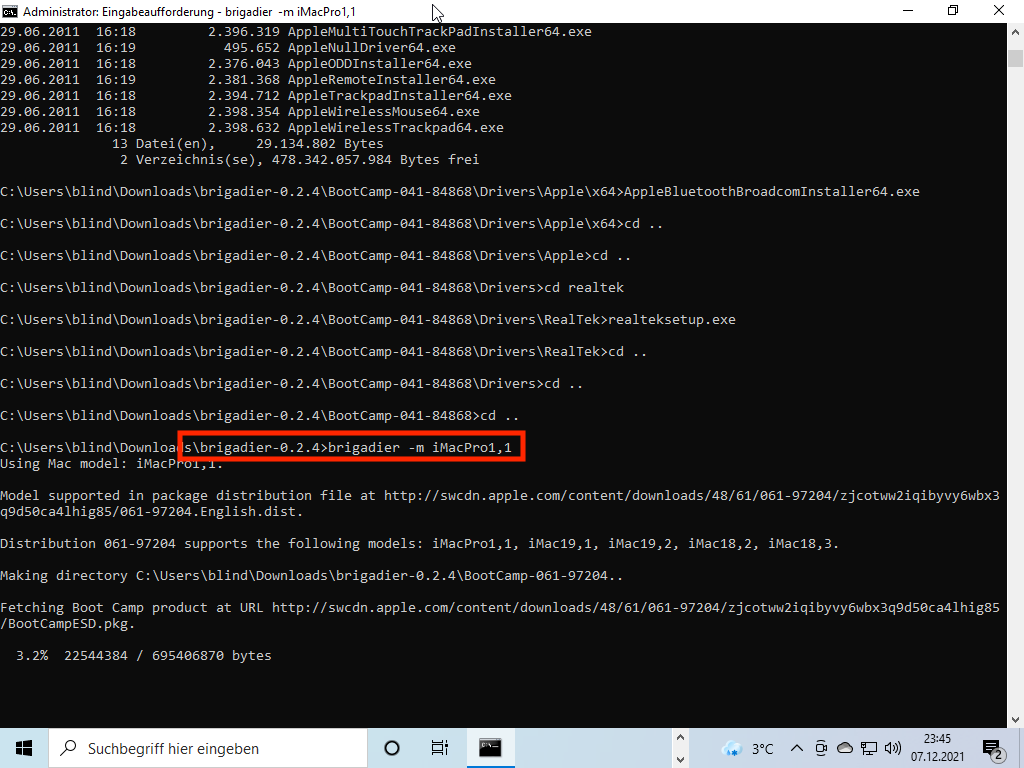

6. run Brigadier with brigadier -m iMacPro1,1

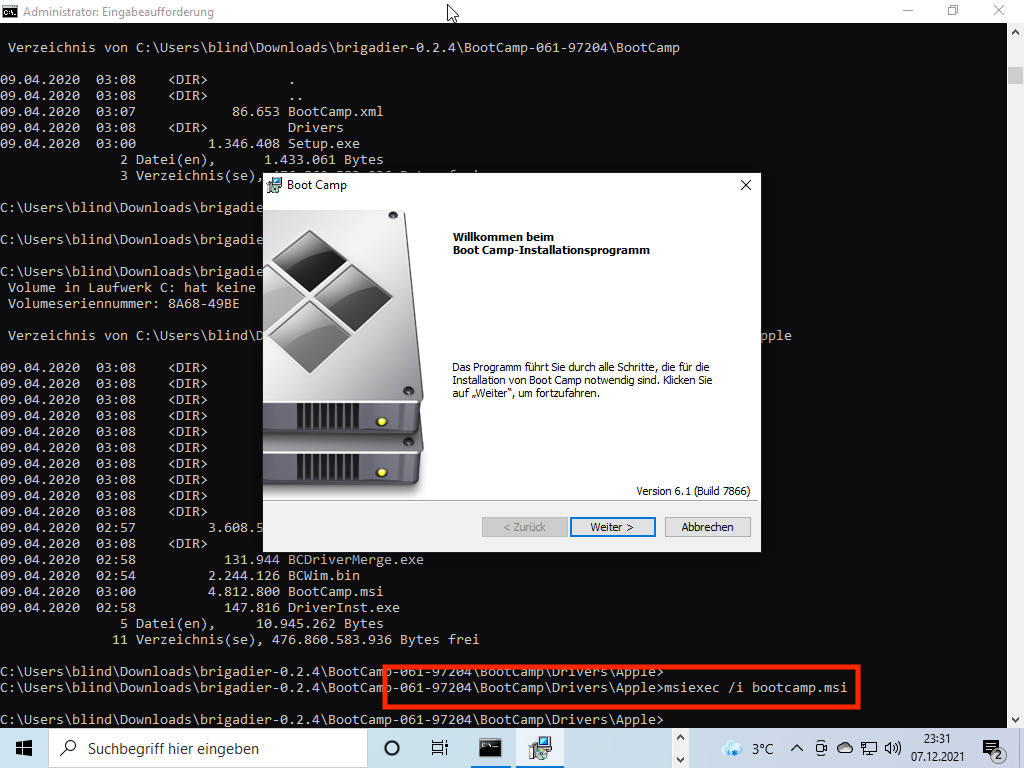

7. cmd as admin, walk thru the directories and install iMacPro1,1 Bootcamp drivers

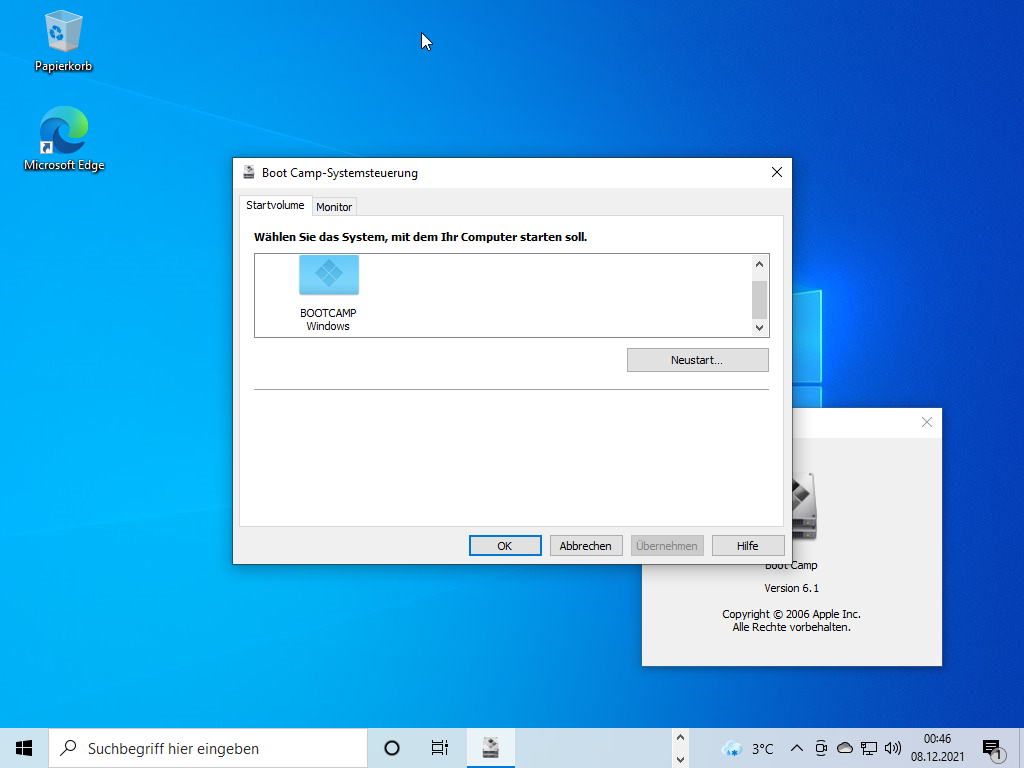

after reboot BootCamp control panel is installed

note: the internal Mac Pro speaker does not work, analog and digital audio output work.

update drivers as usual.


edit: after updating to Windows 11 even the internal speaker worked.
