Mac studio can't connect over ethernet

[albbreinholt]

My Mac studio will not connect to my pace 5268ac over ethernet with a connection fast enough to load a simple web page.
Things I have tried.

took Mac to apple store. worked fine there.
replaced ethernet cables/ tested cables with other devices.
set hardware settings to manual 1000baseT/Full-Duplex (on both Mac and router)
replaced router with new one (same model) from at&t.
restarted computer, restarted router.

wifi works 200-300 mbps
ethernet over adapter works 100 mbps

Is there anything I haven't tried or could try?



[AlteMac]

My Mac studio will not connect to my pace 5268ac over ethernet with a connection fast enough to load a simple web page.
Things I have tried.

took Mac to apple store. worked fine there.
replaced ethernet cables/ tested cables with other devices.
set hardware settings to manual 1000baseT/Full-Duplex (on both Mac and router)
replaced router with new one (same model) from at&t.
restarted computer, restarted router.

wifi works 200-300 mbps
ethernet over adapter works 100 mbps

Is there anything I haven't tried or could try?

Have you tried letting the hardware set itself up automatically rather than manually?



[albbreinholt]

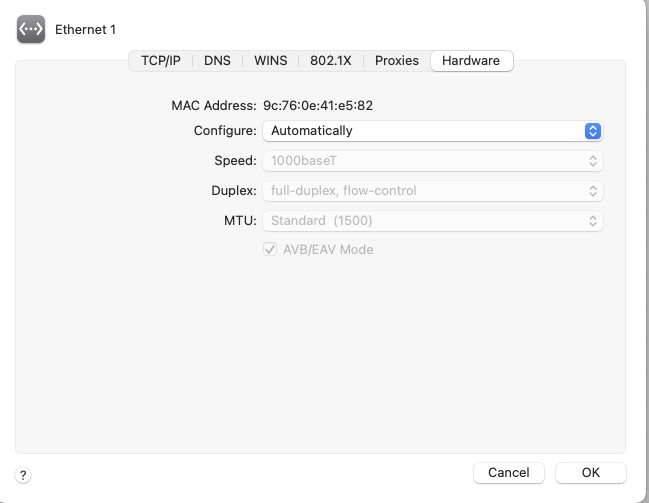

Have you tried letting the hardware set itself up automatically rather than manually? View attachment 2023093

Yes that is what I tried first. I only messed with settings after it did not connect correctly on its own and restarting things did not fix it.



[BanditoB]

Do you have another Ethernet device that you can connect to? You may also want to try using an Ethernet switch between the two devices.



[albbreinholt]

Do you have another Ethernet device that you can connect to? You may also want to try using an Ethernet switch between the two devices.

I thought of that but don't have a switch laying around. At&t are sending a bgw210. Lets see if that works.



[albbreinholt]

Finally talked At&t into sending me a different model of router and the issue is resolved. I now have a gigabit ethernet connection to my Mac studio. Thanks for all of your suggestions.



[Ethosik]

I don’t think you are alone on this. I keep getting drops when using the Ethernet port on device. Using the Ethernet on my OWC Thunderbolt dock has no issues. Hopefully it’s a software problem because I really wanted built in 10 Gbe



[kfscoll]

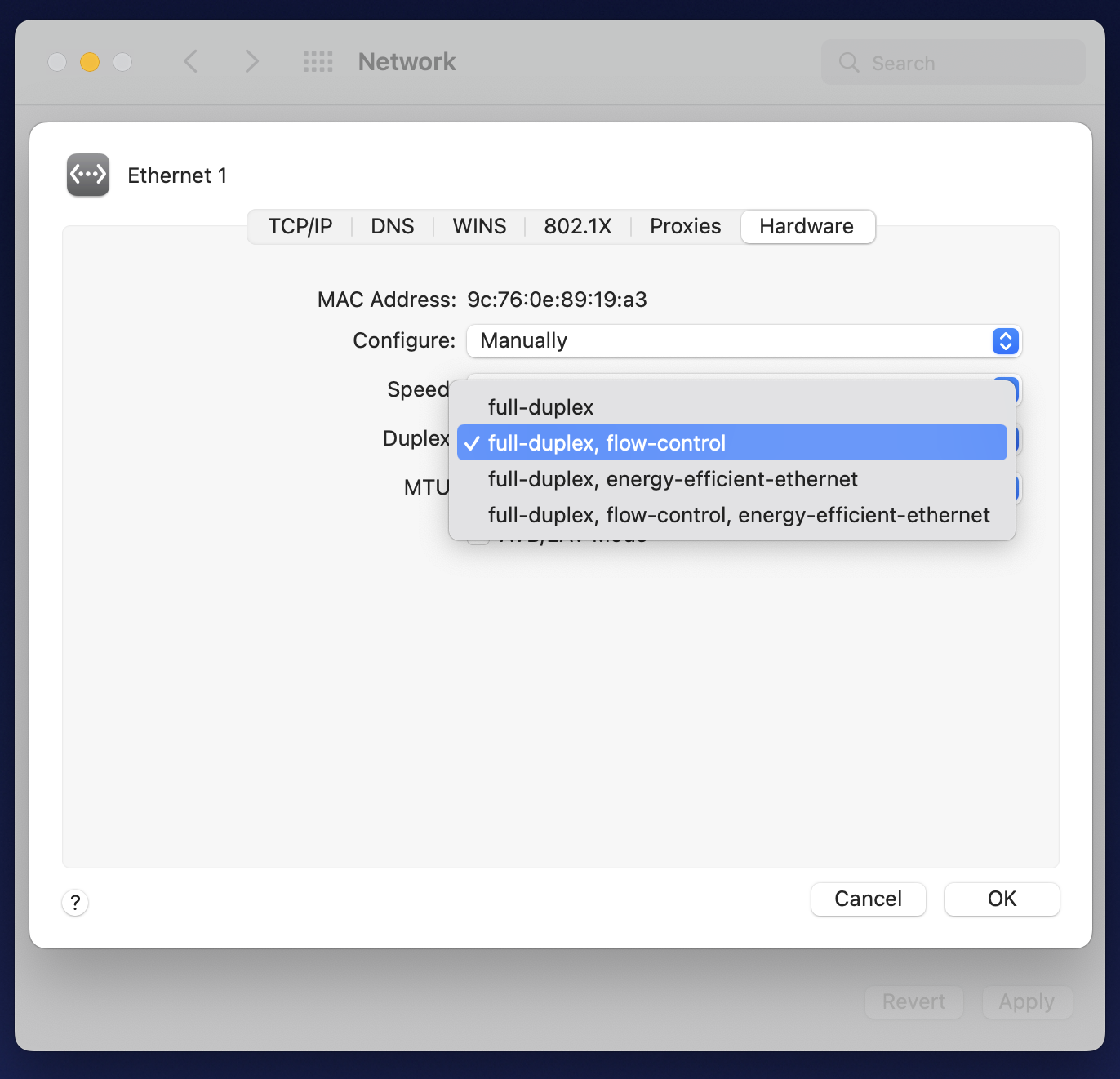

If your Ethernet connection is dropping, try configuring it manually and make sure that one of the “energy-efficient Ethernet” choices is NOT enabled.
