Terrible-Dimension66

macrumors newbie
Original poster
Dec 31, 2024
1
0

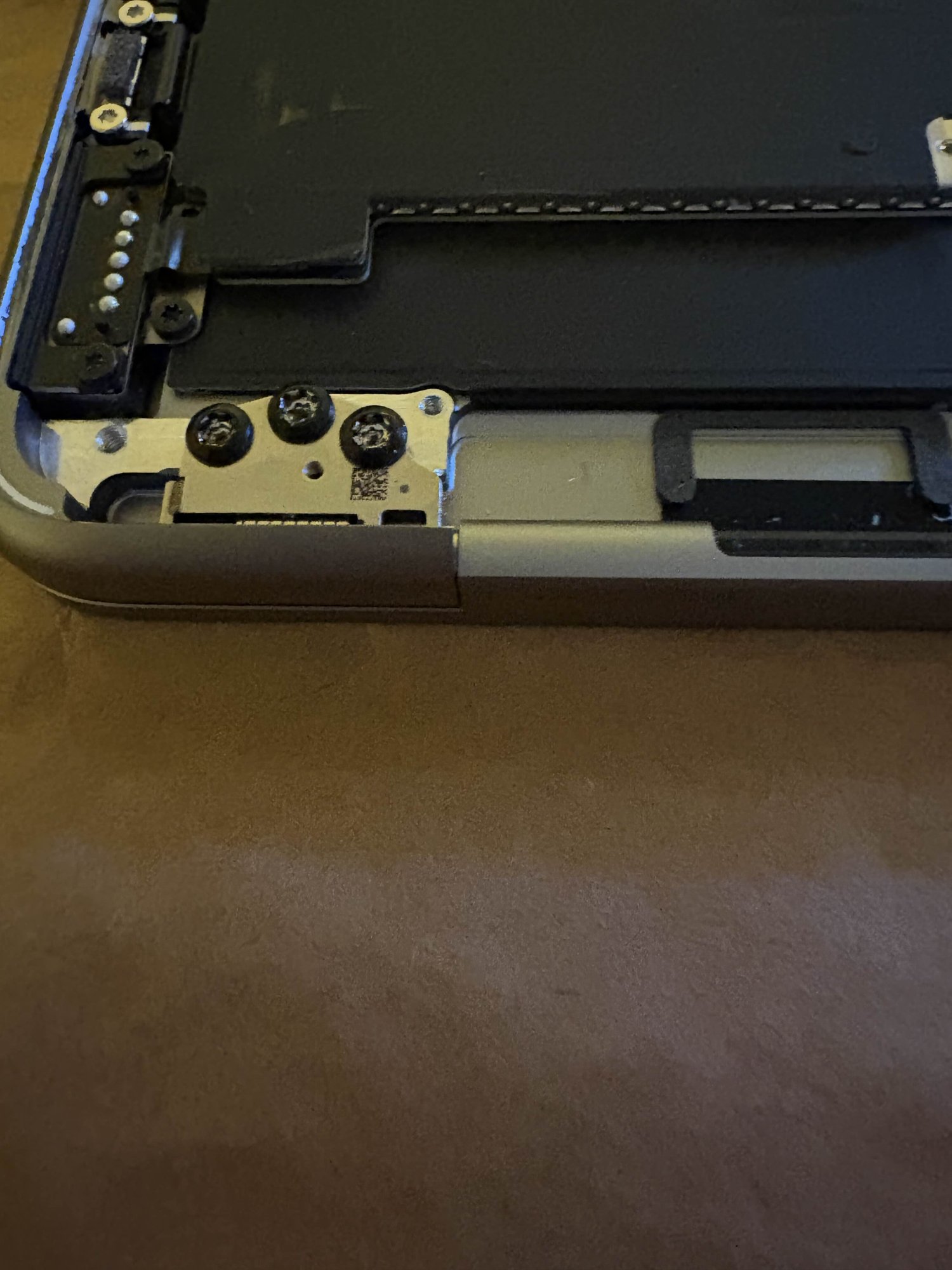

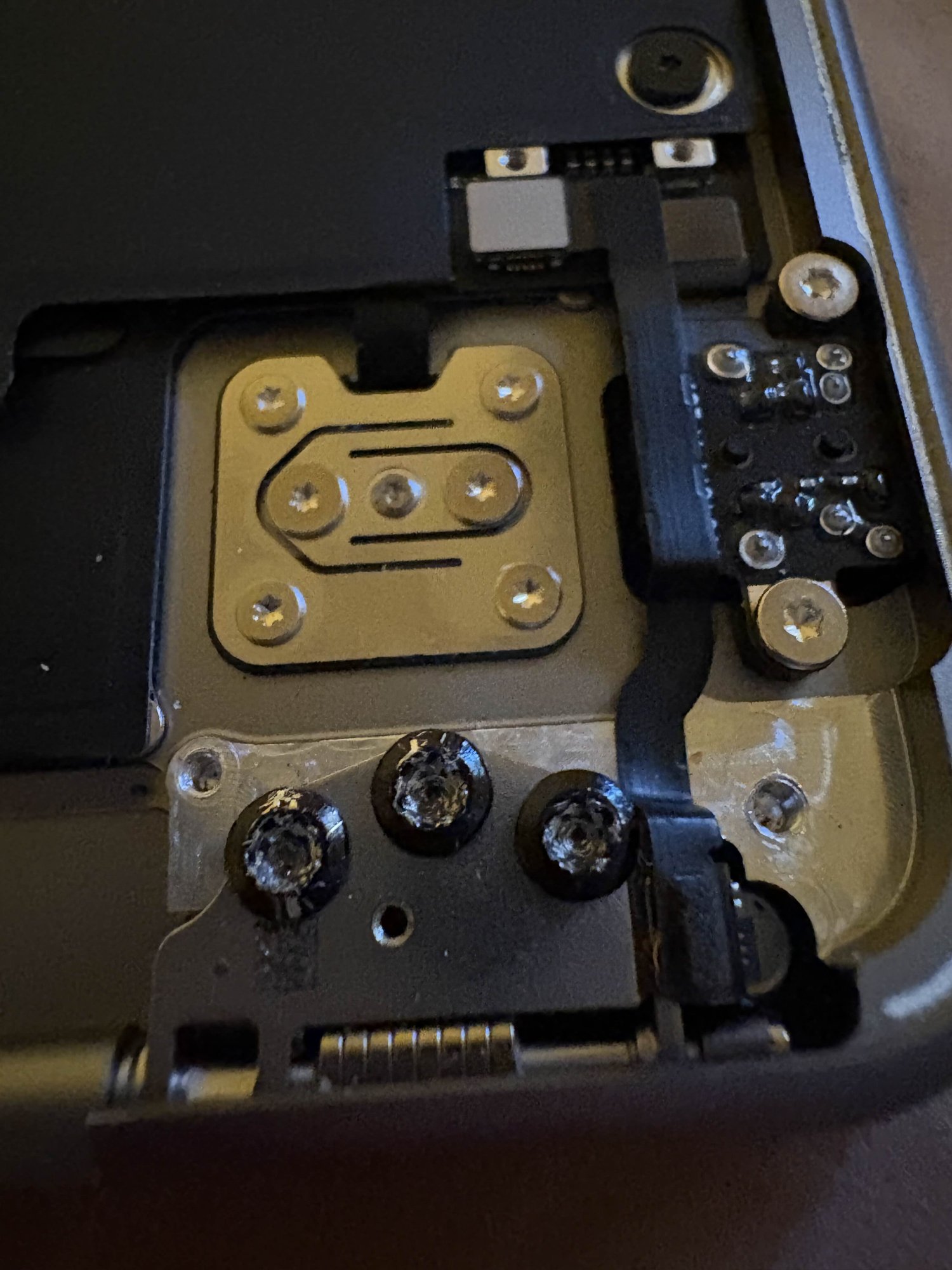

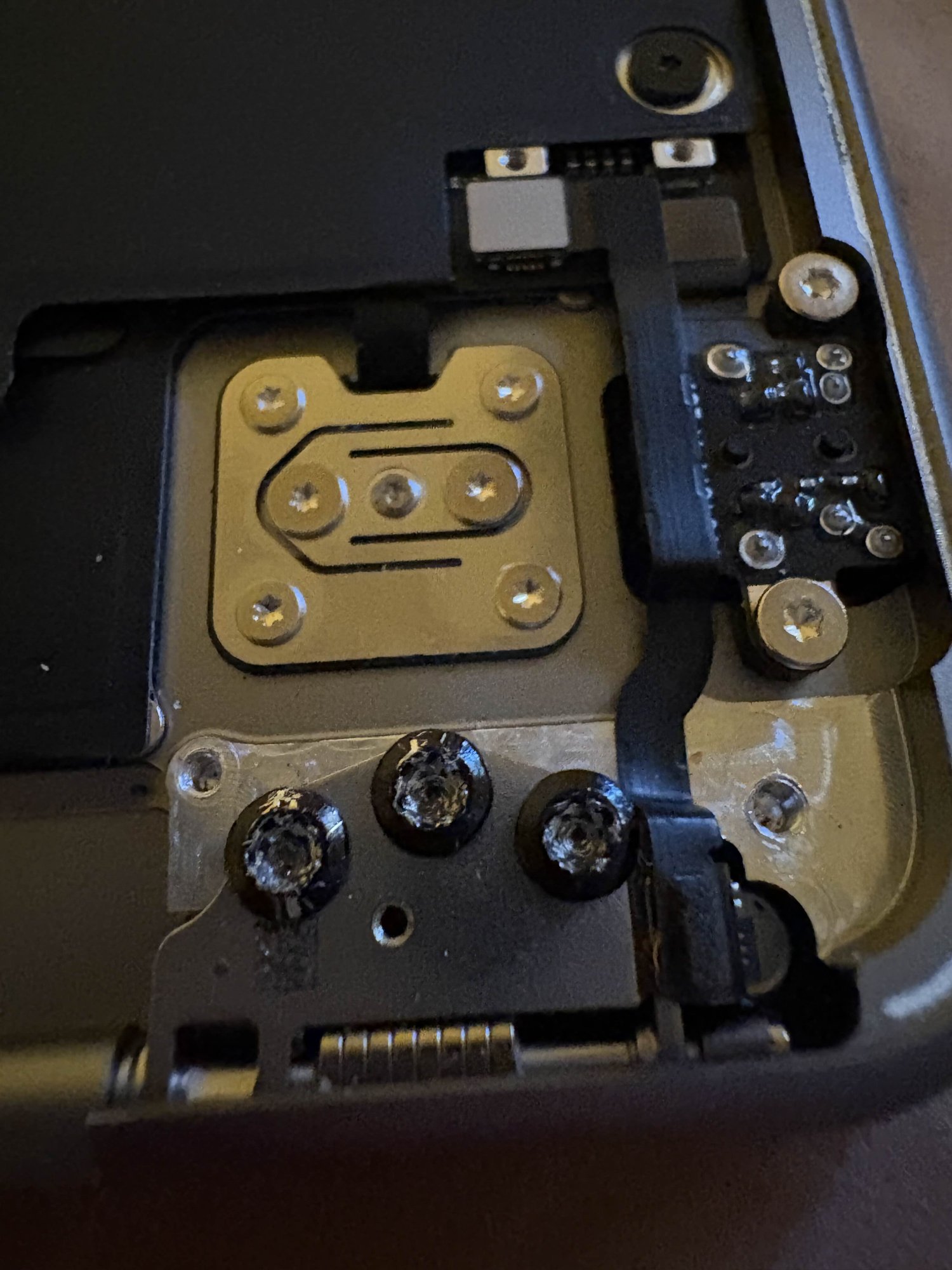

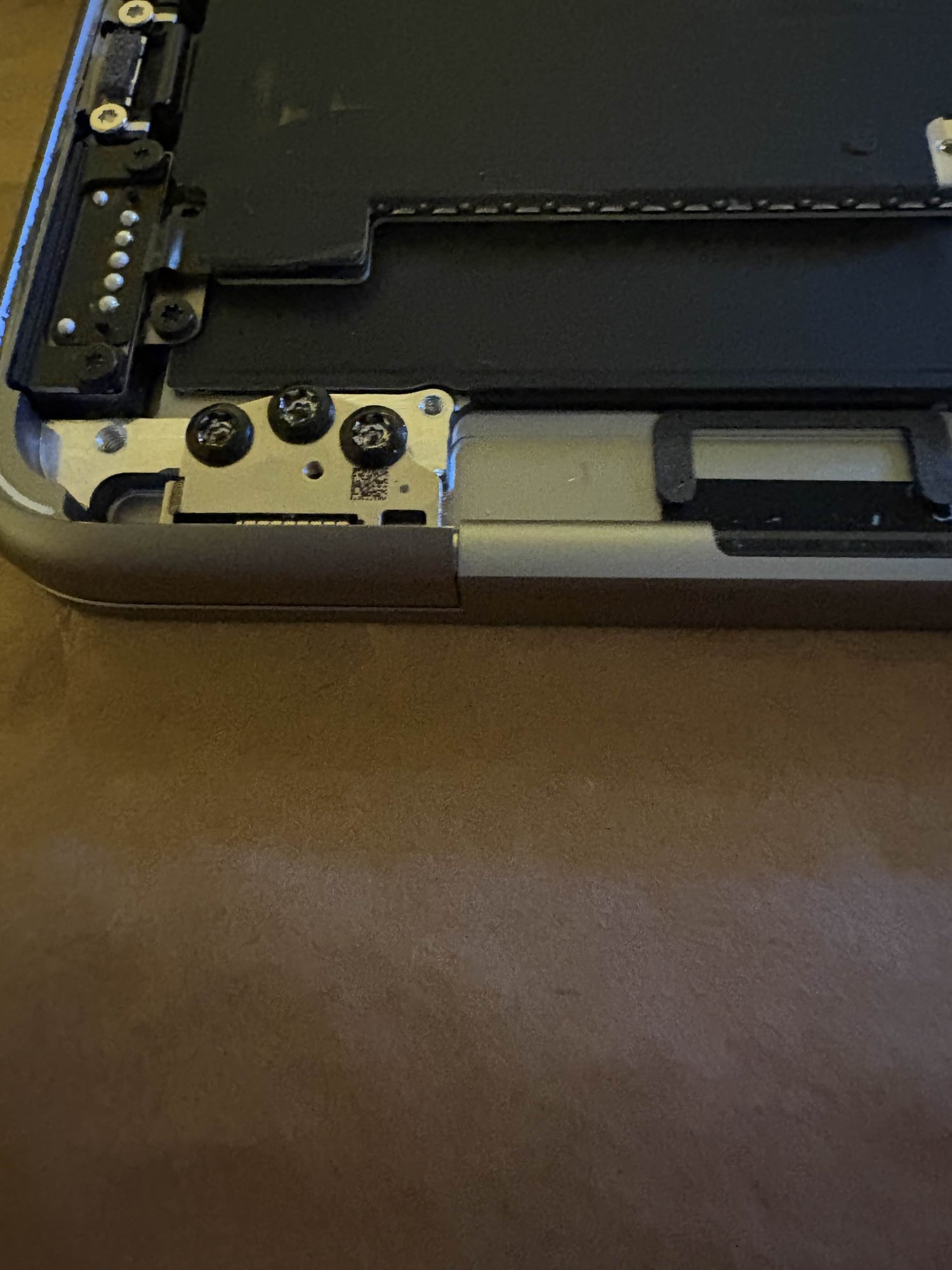

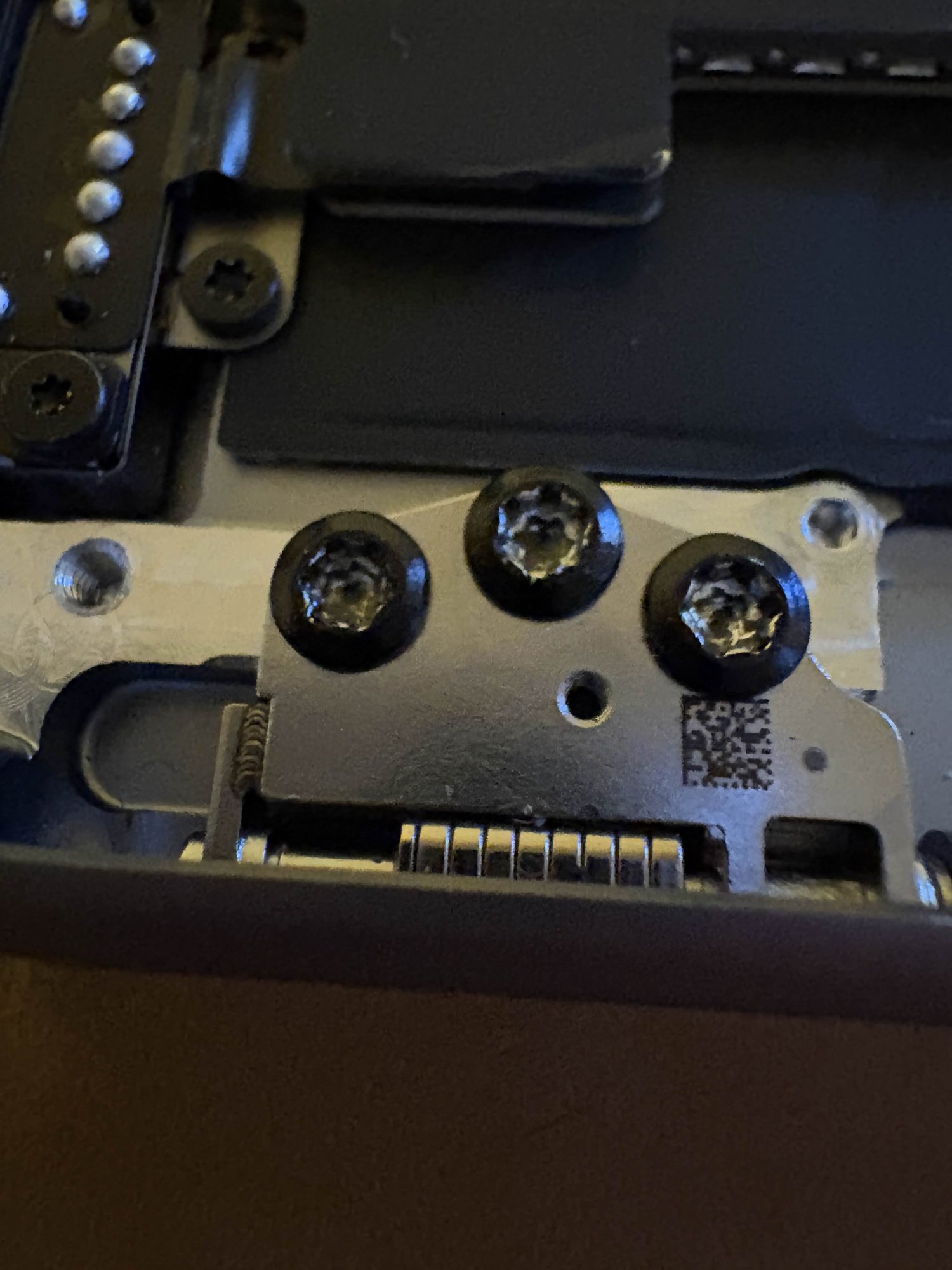

I’m trying to replace the broken screen on my macbook air m3 (model: a3113). Everything has gone well, but now I can’t remove the 3 black screws on each hinge to remove the broken screen piece. This is weird since it seems like all 6 screws are stripped and can’t be removed. Each screw basically has nowhere for any size screwdriver to grip onto. The new screen assembly I got doesn’t come with screws so I want to possibly take these out without further damaging them and then I can screw them into the new screen assembly by hand. But if this isn’t possible, then I still need a way to remove them and then I can purchase new screws from somewhere online. I’ve attached a few pictures.


Attachments

  • mac 3.jpg
    mac 3.jpg
    324 KB · Views: 62
  • mac 1.jpg
    mac 1.jpg
    264.7 KB · Views: 48
  • mac 2.jpg
    mac 2.jpg
    288 KB · Views: 40
Those are well & truly boogered.

Use a small easy-out & then either get replacements from ifixit or some other source.

Grind a slot in the screws using a Dremel tool, then use a slotted screwdriver to remove the screws.
